KUN50R-NKPDHE (2011)

Toyota Fortuner

Production Sep 2011 - Jan 2016
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

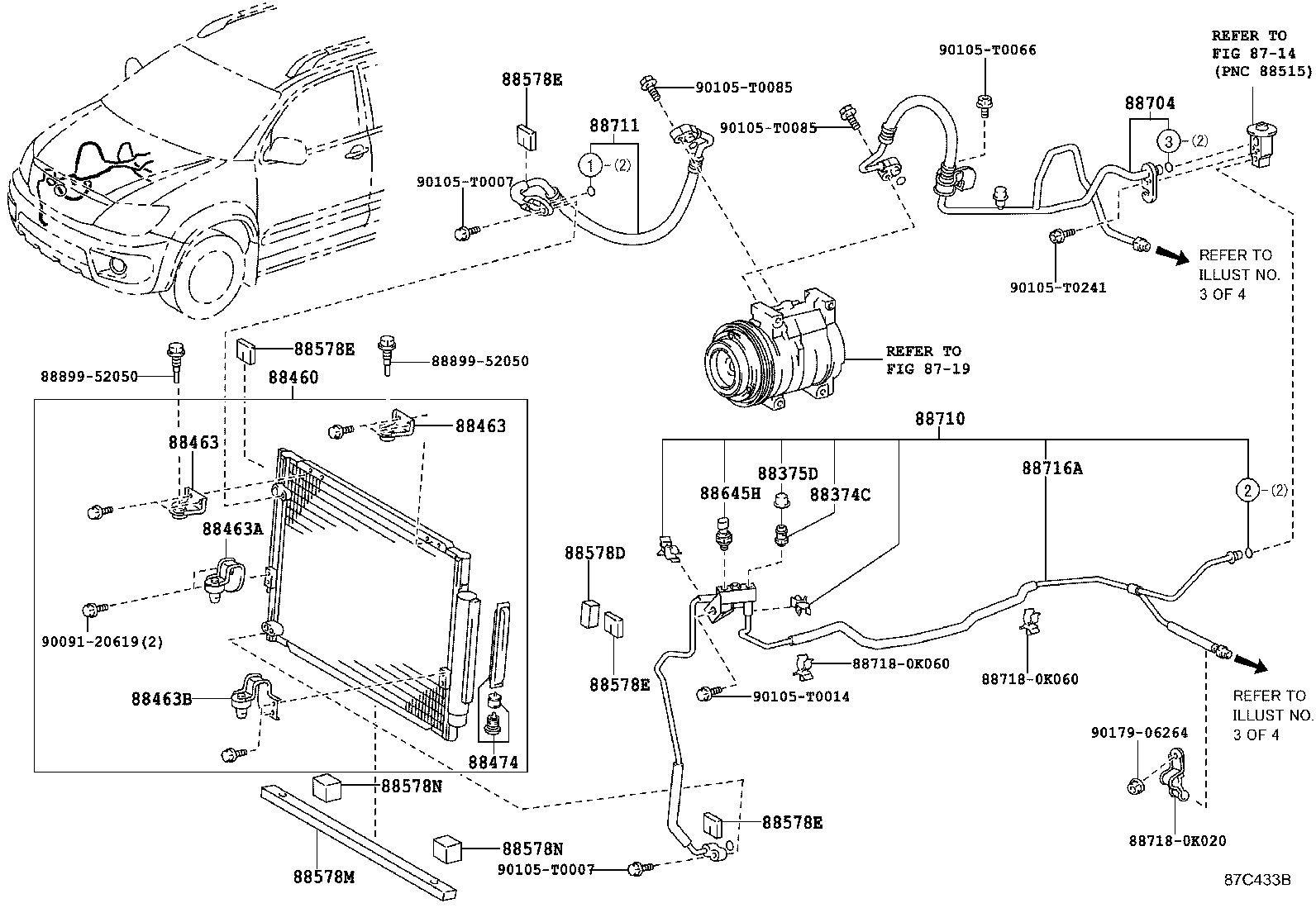

ILLUST NO. 2 OF 4(1109- )KUN50..MA

Click highlighted areas on diagram

FRONT(DUAL AIR CONDITIONER)

diagram 8714 8719 88374C 88375D 88460 88463 88463 88463A 88463B 88474 88578D 88578E 88578E 88578E 88578E 88578M 88578N 88578N 88645H 88704 88710 88711 88716A 887180K020 887180K060 887180K060 8889952050 8889952050 9009120619 90105T0007 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241 9017906264
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

KUN51..5FC..CO;GGN50..IDSUV..LA;TGN61..GEN,IDN,PHL,VN;KUN51..SR..(GEN,IND,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51..GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

KUN51..5FC..CO;TGN61..GEN,IDN,PHL,VN;GGN50,TGN51,61..LHD..(IDSUV,THSUV)..(GCC,GEN,LA);KUN50,6#,TGN51..GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN;KUN51..(IDSUV,SUVW,THSUV)..SR..(GEN,IND,LA,PHL,TH)

 1
88460 - CONDENSER ASSY, COOLER
88460-0K240

KUN50..MA

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K510

KUN50,TGN51..MA

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K510

KUN50,TGN51..MA

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K090

KUN50,TGN51..MA

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K110

KUN50,TGN51..MA

 1
88474 - DRYER, COOLER
88474-17010

KUN61..5FC..TH;KUN61..4FC..(IND,TH);TGN61..CO,GCC,GEN,IDN,LA,PHL;GGN50,60,KUN5#,60,TGN51..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K380

KUN50,TGN51..MA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K370

KUN50,TGN51..MA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K370

KUN50,TGN51..MA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K370

KUN50,TGN51..MA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K370

KUN50,TGN51..MA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K361

KUN50..MA

 1
88578N - PACKING, COOLING PIPE, NO.4
88578-0K710

KUN50,TGN51..MA

 2
88578N - PACKING, COOLING PIPE, NO.4
88578-0K710

KUN50,TGN51..MA

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0K370

KUN50

 1
88704-0K530

KUN50..MA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K470

KUN50,TGN51..MA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K311

KUN50..MA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0K310

KUN50..MA

 1
Common parts
88718-0K020
88718-0K060
88899-52050
90091-20619
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
90179-06264
Linked diagrams
8714
8719
