Toyota Fortuner KUN50 WINDSHIELD WASHER

KUN50R-NKPDHE (2008)

Toyota Fortuner

Production Sep 2008 - Sep 2011

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0501-0903) ; (0903- )IDSUV

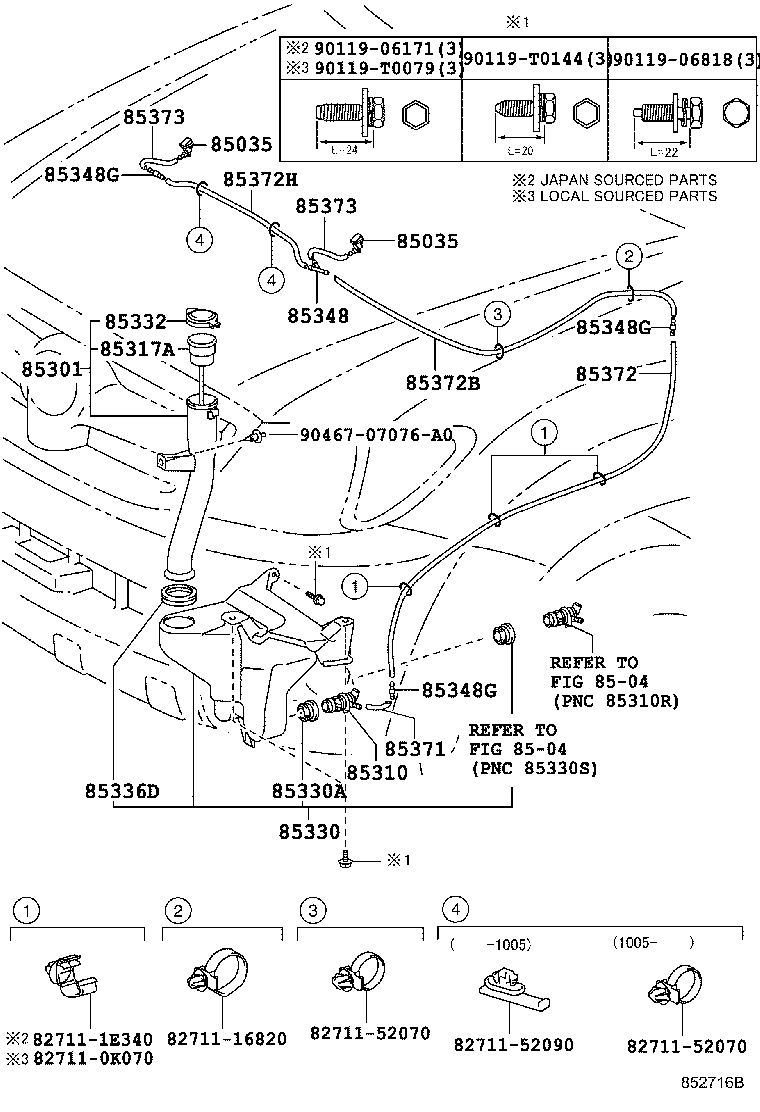

Click highlighted areas on diagram

Part #	Description	Period	Qty
85301 - INLET SUB-ASSY, WASHER
85301-0K071	KUN50,TGN51..MA	01/2010 - 09/2011	1
85301-0K070	KUN50,TGN51..MA	09/2008 - 12/2009	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K110	KUN50,TGN51..MA	09/2008 - 09/2011	1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-0K140	KUN50,TGN51..MA	09/2008 - 09/2011	1
85332 - CAP, WINDSHIELD WASHER JAR
85386-0K070	KUN50,TGN51..MA	09/2008 - 09/2011	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV	03/2009 - 12/2999	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV	03/2009 - 12/2999	3
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33019	GGN50,60,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=40	03/2009 - 05/2010	1
90068-33158	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=40	05/2010 - 12/2999	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59091	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=950	03/2009 - 12/2999	1
Common parts
82711-0K070
82711-16820
82711-52070
82711-52090
90119-06171
90119-06818
90119-T0079
90119-T0144
90467-07076A0
Linked diagrams
8504

(0903- )SUVW,THSUV

Click highlighted areas on diagram

Part #	Description	Period	Qty
85301 - INLET SUB-ASSY, WASHER
85301-0K071	KUN50,TGN51..MA	01/2010 - 09/2011	1
85301-0K070	KUN50,TGN51..MA	09/2008 - 12/2009	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0K110	KUN50,TGN51..MA	09/2008 - 09/2011	1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-0K140	KUN50,TGN51..MA	09/2008 - 09/2011	1
85332 - CAP, WINDSHIELD WASHER JAR
85386-0K070	KUN50,TGN51..MA	09/2008 - 09/2011	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV	03/2009 - 12/2999	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV	03/2009 - 12/2999	3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV	03/2009 - 12/2999	3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV	03/2009 - 12/2999	3
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33019	GGN50,60,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=40	03/2009 - 05/2010	1
90068-33158	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=40	05/2010 - 12/2999	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59091	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=950	03/2009 - 12/2999	1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33134	GGN50,60,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=900	03/2009 - 05/2010	1
90068-33159	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=900	05/2010 - 12/2999	1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-33106	GGN50,60,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=510	03/2009 - 05/2010	1
90068-33157	GGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV L=510	05/2010 - 12/2999	1
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
82711-52090
90119-06171
90119-06818
90119-T0079
90119-T0144
90467-07076A0
Linked diagrams
8504

(1107- )GGN50,60,KUN5#,61,LAN50,TGN61..SASUV,SUVW,THSUV

Click highlighted areas on diagram

W(HEADLAMP CLEANER)

Part #	Description	Period	Qty	Price
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
90119-06171
90119-T0079
90119-T0144
Linked diagrams
8401
8504
8505

KUN50R-NKPDHE (2008)

(0501-0903) ; (0903- )IDSUV

(0903- )SUVW,THSUV

(1107- )GGN50,60,KUN5#,61,LAN50,TGN61..SASUV,SUVW,THSUV
