KUN50R-NKPDHE (2008)
Toyota Fortuner
Production
Sep 2008
-
Sep 2011
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0501- )KUN5#,6#..IDN,LA,MA,PHL,TH,VN
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-0K020 |
KUN5#,6# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K180 |
KUN50,TGN51..MA |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH) |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH) |
2 | ||
| Common parts | ||||
| 61668-0K010 | ||||
| 77644-0K010 | ||||
| 90105-T0204 | ||||
| 90179-08234 | ||||
| 90179-08241 | ||||
| 90269-06017 | ||||
| 90460-46005 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(1107- )KUN5#,61 ; (1107- )KUN60..SUVW ; (1107- )KUN60..IDSUV..IDN,PHL
Click highlighted areas on diagram

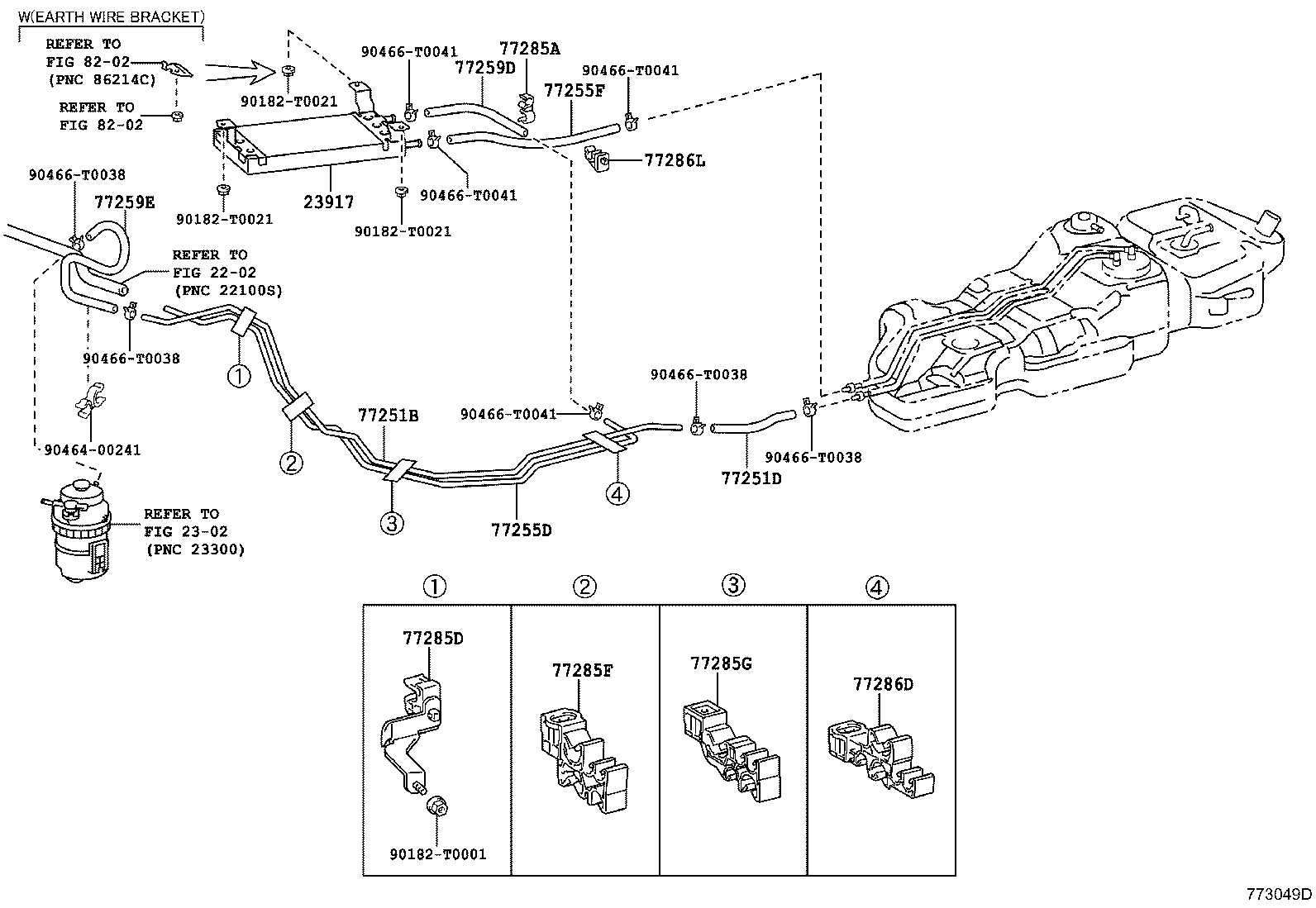

FUEL TUBE(W/FUEL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90182-T0001 | ||||
| 90182-T0021 | ||||
| 90464-00241 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
| 8202 | ||||
ILLUST NO. 4 OF 4(1107- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90269-06017 | ||||
| 90959-T1001 | ||||
