KUN50R-NKPDHE (2008)
Toyota Fortuner

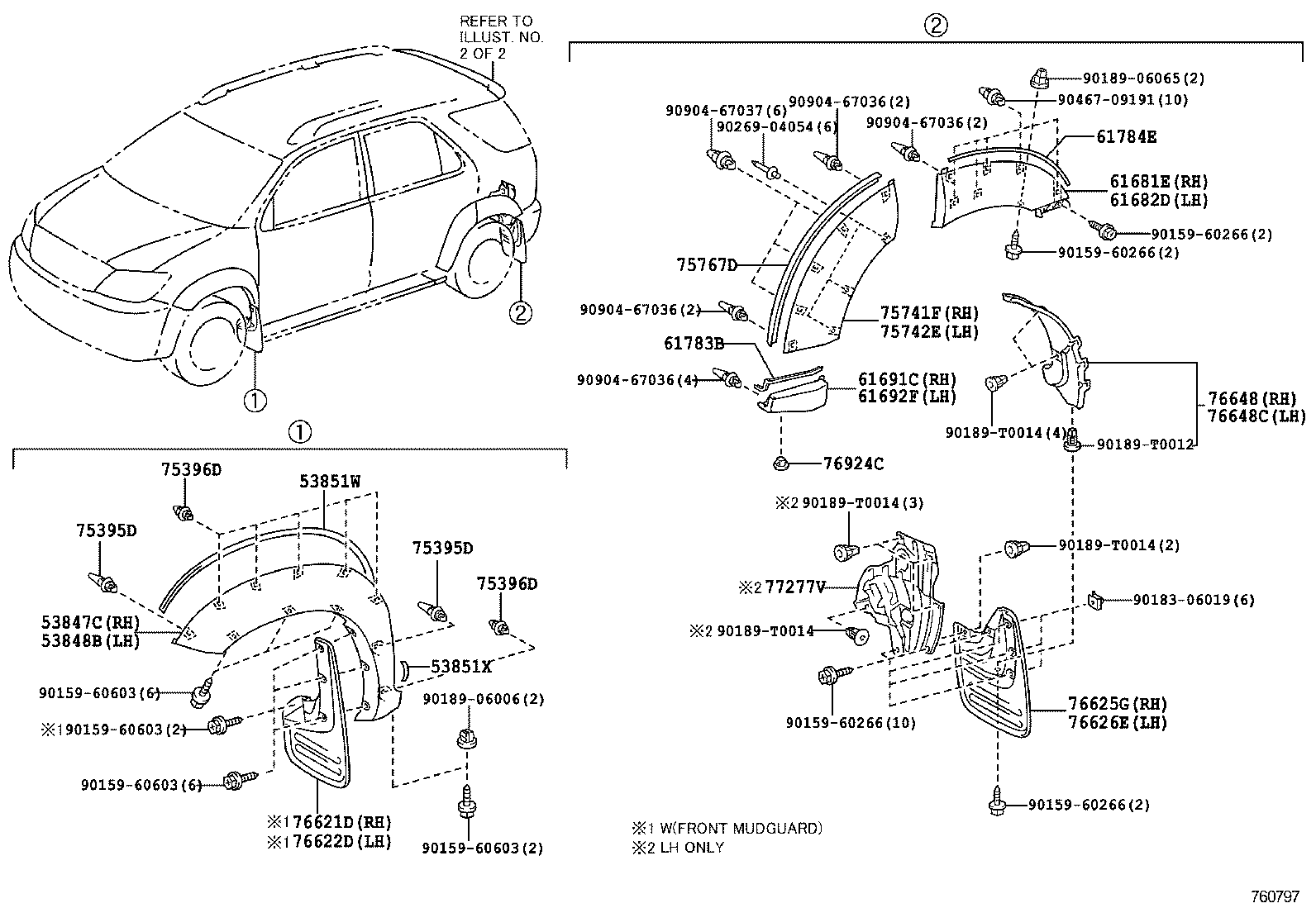

ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53847C - EXTENSION, FRONT WHEEL OPENING, RH | ||||
| 53847-0K903 |
GGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH |
1 | ||
| 53848B - EXTENSION, FRONT WHEEL OPENING, LH | ||||
| 53848-0K903 |
GGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH |
1 | ||
| 53851W - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-0K031B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,RH |
1 | ||
| 53852-0K031B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,LH |
1 | ||
| 53851-0K031C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,RH |
1 | ||
| 53852-0K031C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,LH |
1 | ||
| 53851X - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53855-0K010 |
GGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH |
2 | ||
| 61691C - EXTENSION, REAR WHEEL OPENING, NO.2 RH | ||||
| 61691-0K901 |
KUN50,TGN51..MA |
1 | ||
| 61692F - EXTENSION, REAR WHEEL OPENING, NO.2 LH | ||||
| 61692-0K901 |
KUN50,TGN51..MA |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,NO.1 |
1 | ||
| 61783-0K101B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.2 |
1 | ||
| 61783-0K101C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.2 |
1 | ||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.1 |
1 | ||
| 61783-0K071B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.1 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,NO.1 |
1 | ||
| 61783-0K101B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.2 |
1 | ||
| 61783-0K101C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.2 |
1 | ||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.1 |
1 | ||
| 61783-0K071B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.1 |
1 | ||
| 61784E - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-0K101B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.2 |
1 | ||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,NO.1 |
1 | ||
| 61784-0K101C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.2 |
1 | ||
| 61783-0K071B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.1 |
1 | ||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.1 |
1 | ||
| 61784E - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-0K101B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.2 |
1 | ||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,NO.1 |
1 | ||
| 61784-0K101C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.2 |
1 | ||
| 61783-0K071B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3,NO.1 |
1 | ||
| 61783-0K071C0 |
KUN50,TGN51..MA BLACK,1E3 ,204,NO.1 |
1 | ||
| 75396D - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-35020 |
GGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH |
2 | ||
| 75767D - PAD, REAR DOOR MOULDING,NO.1 | ||||
| 75767-0K011B0 |
KUN50,TGN51..MA GRAY,058 ,1D0 ,1F8 ,4S2 ,583 ,8R3 |
2 | ||
| 75767-0K011C0 |
KUN50,TGN51..MA BLACK,1E3 ,204 |
2 | ||
| 76625G - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-0K050 |
TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 76626E - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-0K050 |
TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 76924C - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
KUN50,TGN51..MA |
2 | ||
| Common parts | ||||
| 90159-60266 | ||||
| 90159-60603 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-T0012 | ||||
| 90189-T0014 | ||||
| 90269-04054 | ||||
| 90467-09191 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||

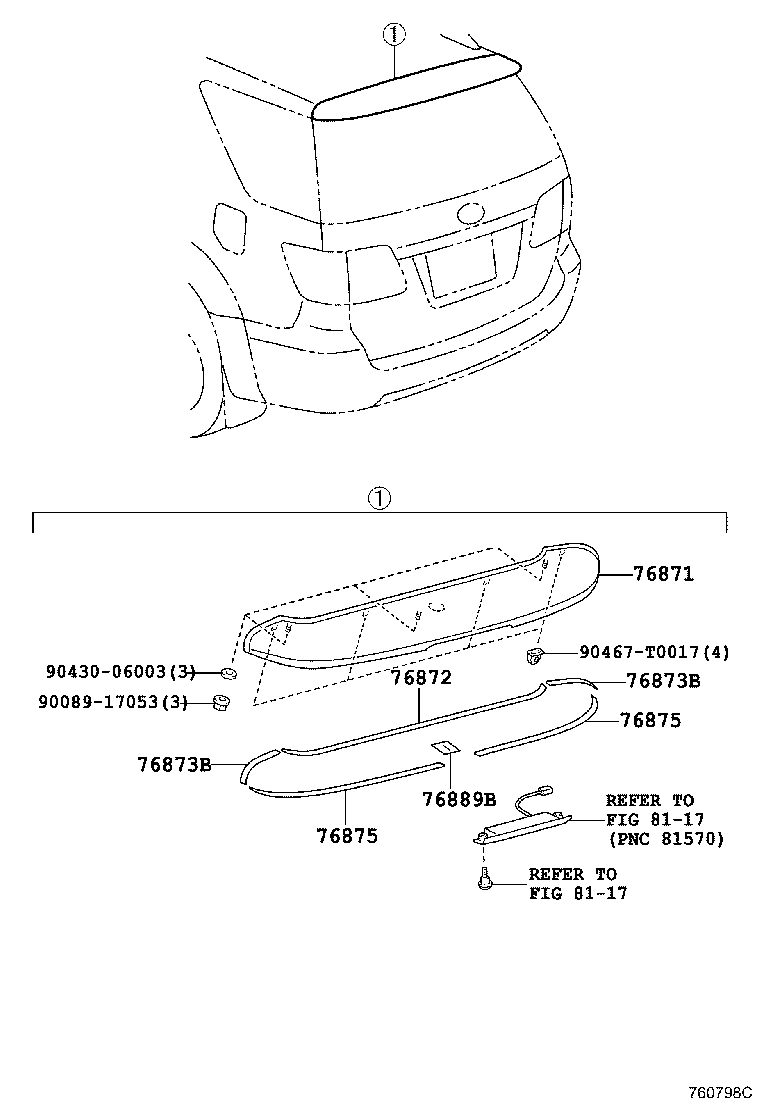

ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76871 - SPOILER, REAR | ||||
| 76871-0K901 |
KUN51,TGN51..RHD..4FC;GGN50,60,KUN5#,6#,TGN61..ANCOM,GCC,IDN,LA,MA,PHL,SA PAINT REQ. |
1 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-0K010 |
KUN50,TGN51..MA |
2 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-0K010 |
KUN50,TGN51..MA |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-0K010 |
KUN50,TGN51..MA |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-0K010 |
KUN50,TGN51..MA |
2 | ||
| 76889B - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-0K010 |
KUN50,TGN51..MA |
1 | ||
| Common parts | ||||
| 90178-T0023 | ||||
| 90430-06003 | ||||
| 90467-T0017 | ||||
| Linked diagrams | ||||
| 8117 | ||||
ILLUST NO. 1 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60266 | ||||
| 90159-60603 | ||||
| 90183-06019 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-T0012 | ||||
| 90189-T0014 | ||||
| 90269-04054 | ||||
| 90467-09191 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90089-17053 | ||||
| 90430-06003 | ||||
| 90467-T0017 | ||||
| Linked diagrams | ||||
| 8117 | ||||
