KUN50R-NKPDHE (2008)

Toyota Fortuner

Production Sep 2008 - Sep 2011
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )1KDFTV,2KDFTV..GEN,IDN,MA,PHL,TH,VN ;(0602-0810)1KDFTV..LA ; (0604-0810

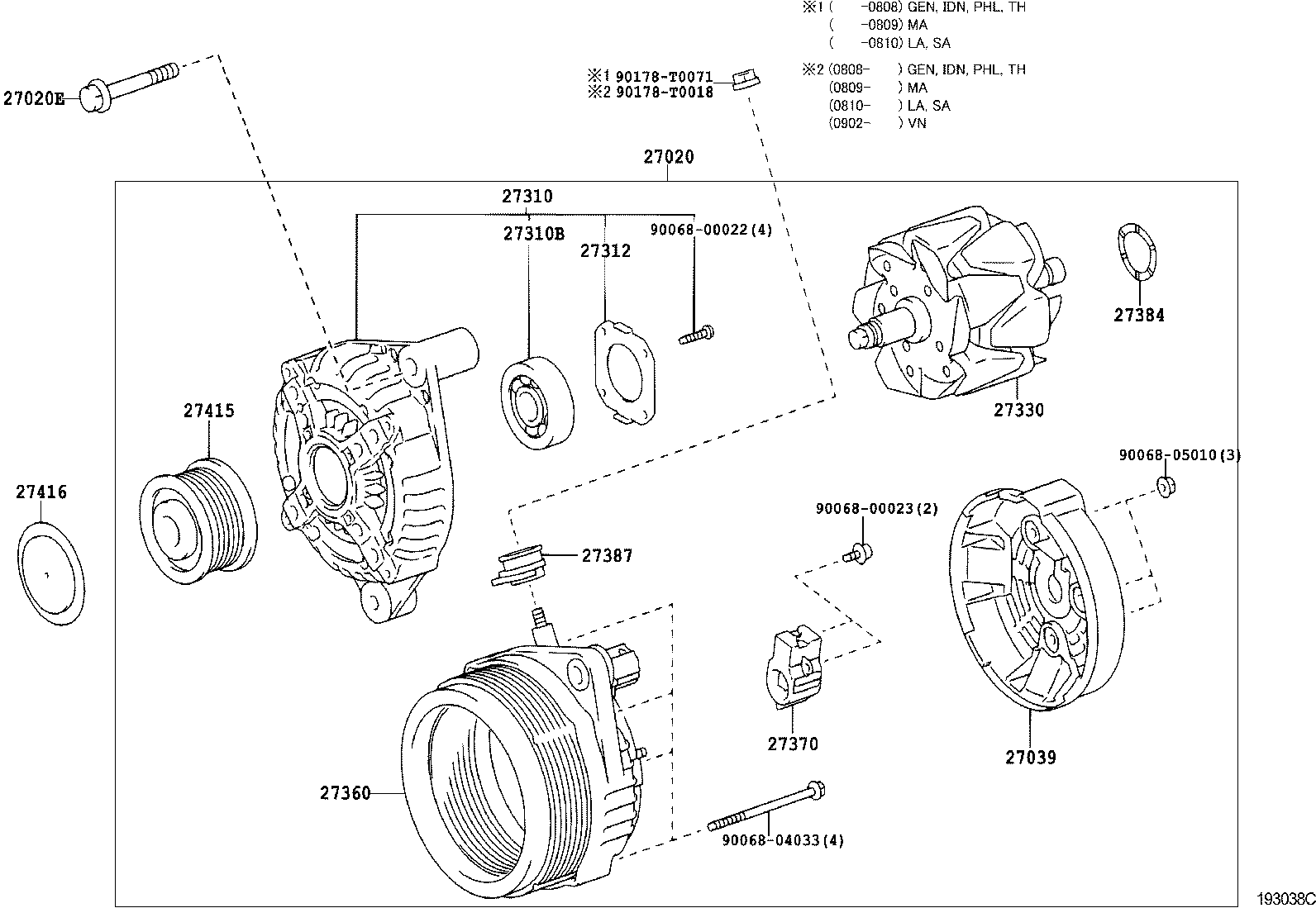

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9006800022 9006800023 9006804033 9006805010 90178T0018 90178T0071
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0L020

1KDFTV,2KDFTV..KUN5#,60..IDN,MA,PHL,TH

12V 80A

 1
27060-0L022

2KDFTV..KUN50

12V 80A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0L021

2KDFTV..KUN50

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10029

2KDFTV..KUN50

 1
27360 - COIL ASSY, ALTERNATOR
27360-0L021

2KDFTV..KUN50

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0L010

1KDFTV,2KDFTV..KUN5#,60..IDN,MA,PHL,TH

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0L010

1KDFTV,2KDFTV..KUN5#,60..IDN,MA,PHL,TH

 1
Common parts
90068-00022
90068-00023
90068-04033
90068-05010
90178-T0018
90178-T0071
