KUN156R-SDAMY (2016)
Toyota Fortuner
(1601- )GUN165..6FC..IDN ; (1601- )GUN15#,KUN156,TGN156,166..RHD..IDNSU

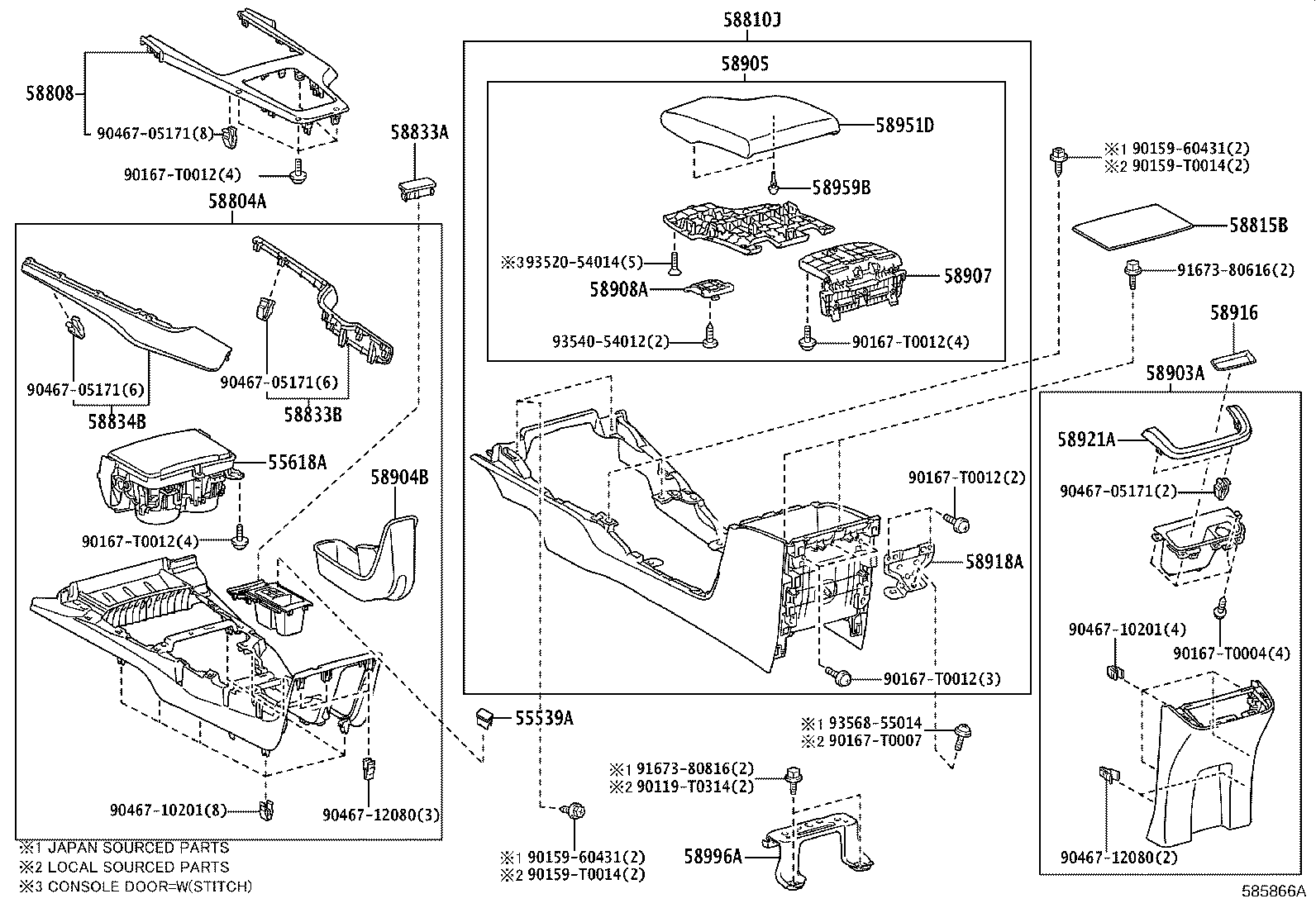

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-KK030C0 |
GUN156..LHD..SA;TGN166..5F..GCC;TGN156,166..M..LA;TGN156..EPT,GCC,GEN,KZS,SA;KUN156,165,LAN155,TGN168..5F,5FC,6F;GUN155..(IDNSU,SASUV,THSUV)..(H,L,S);GUN155,TGN168..(M,S)..(BZAGT,GEN,TH);TGN166..6FC..(L,M,S)..(EPT,GCC,GEN,IDN,PH,PKN,TH,VN);GGN155,165,GUN156,16#..BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,TH,VN BLACK |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55620-0K010B2 |
GUN165..RHD..GEN;TGN166..6FC..(GEN,PKN,TH);GUN15#,16#,KUN156,TGN156..RHD..(H,M)..(GEN,TH) GRAY,TRIM42 |
1 | ||
| 55620-0K010E2 |
GUN165..RHD..GEN;TGN166..6FC..(GEN,PKN,TH);GUN15#,16#,KUN156,TGN156..RHD..ATM..(H,M)..(ARL,GEN,TH) BROWN,TRIM41 |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-KK170C8 |
GUN156,16#,KUN156,TGN156,166..RHD..ATM..(H,M)..(ARL,GEN,TH) BLACK/GRAY,TRIM42 |
1 | ||
| 58804-KK170C9 |
GUN156,16#,KUN156,TGN156,166..RHD..ATM..(H,M)..(ARL,GEN,TH) BLACK/BROWN,TRIM41 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-KK020B1 |
GUN165..RHD..GEN;TGN166..6FC..(GEN,PKN,TH);GUN15#,16#,KUN156,TGN156..RHD..(H,M)..(GEN,TH) GRAY,TRIM42 |
1 | ||
| 58808-KK020E1 |
GUN165..RHD..GEN;TGN166..6FC..(GEN,PKN,TH);GUN15#,16#,KUN156,TGN156..RHD..ATM..(H,M)..(ARL,GEN,TH) BROWN,TRIM41 |
1 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-KK010 |
TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-KK130B1 |
TGN156..M..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..ATM..(H,M,S)..(GEN,IDN,PKN,SA,TH) SILVER 21SV85,TRIM4# |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-KK080B1 |
TGN156..M..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..ATM..(H,M,S)..(GEN,IDN,PKN,SA,TH) SILVER 21SV85,TRIM4# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-KK060C1 |
TGN166..TH;KUN156..RHD;TGN156..S..GEN;GUN156..(L,M)..ARL;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GGN155,GUN15#,16#..RHD..(PKN,SA,TH) BLACK/BEIGE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-KK030C6 |
TGN166..(H,S)..(GEN,PKN);GUN156,KUN156..RHD..(5FC,6F)..(H,M)..(ARL,GEN) BLACK/CHAMOIS,TRIM42 |
1 | ||
| 58905-KK030C8 |
TGN166..(H,S)..(GEN,PKN);GUN156,KUN156..RHD..(5FC,6F)..(H,M)..(ARL,GEN) BLACK/BROWN,TRIM41 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-KK010C0 |
GUN156..6F..M;TGN166..THSUV..GCC;GUN156..IDNSU..H..GEN;GUN156..(H,L)..(ARL,GCC);TGN156..IDNSU..(GEN,LA,VN);GUN165..AGTSU,IDNSU,SASUV,THSUV,VNSUV;TGN156..(AGTSU,EPTSU,SASUV,THSUV)..(L,M,S);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165,LAN155..EPT,GCC,GEN,IDN,LA,SA BLACK,TRIM4# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-KK010 |
TGN166..THSUV..GCC;TGN156,166..IDNSU..L..GCC;TGN156..IDNSU..(GEN,LA,VN);TGN156..AGTSU,EPTSU,SASUV,THSUV;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-KK010 |
TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58918A - BRACKET, BOX SUPPORT | ||||
| 58918-KK010 |
TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-KK020B1 |
GUN156..S..IART;TGN156..(H,M)..(BZAGT,GEN);TGN156..(M,S)..(KZS,LA,SA,VN);GUN156..6F..(H,M)..(ARL,BZAGT);GUN156..(H,M,S)..(GCC,GEN,LA,PH,PKN,SA,TH,VN);TGN166..(H,M,S)..(GEN,IDN,LA,PH,PKN,SA,TH,VN);GGN155,165,GUN155,16#,KUN156,LAN155,TGN168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV)..(H,M,S) SILVER 21SV85,TRIM4# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-KK030E3 |
TGN166..(H,S)..(GEN,PKN);GUN156,KUN156..RHD..(5FC,6F)..(H,M)..(ARL,GEN) CHAMOIS,TRIM42 |
1 | ||
| 58951-KK030E5 |
TGN166..(H,S)..(GEN,PKN);GUN156,KUN156..RHD..(5FC,6F)..(H,M)..(ARL,GEN) BROWN/BEIGE,TRIM41 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-T0008 |
TGN166..THSUV..GCC;TGN156,166..IDNSU..L..GCC;TGN156..IDNSU..(GEN,LA,VN);TGN156..AGTSU,EPTSU,SASUV,THSUV;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-KK020 |
TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| Common parts | ||||
| 90119-T0314 | ||||
| 90159-60431 | ||||
| 90159-T0014 | ||||
| 90167-T0004 | ||||
| 90167-T0007 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93520-54014 | ||||
| 93540-54012 | ||||
| 93568-55014 | ||||
