KUN156L-SGFLYF (2015)

Toyota Fortuner

Production Dec 2015 - Sep 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )KUN156..GEN,LA

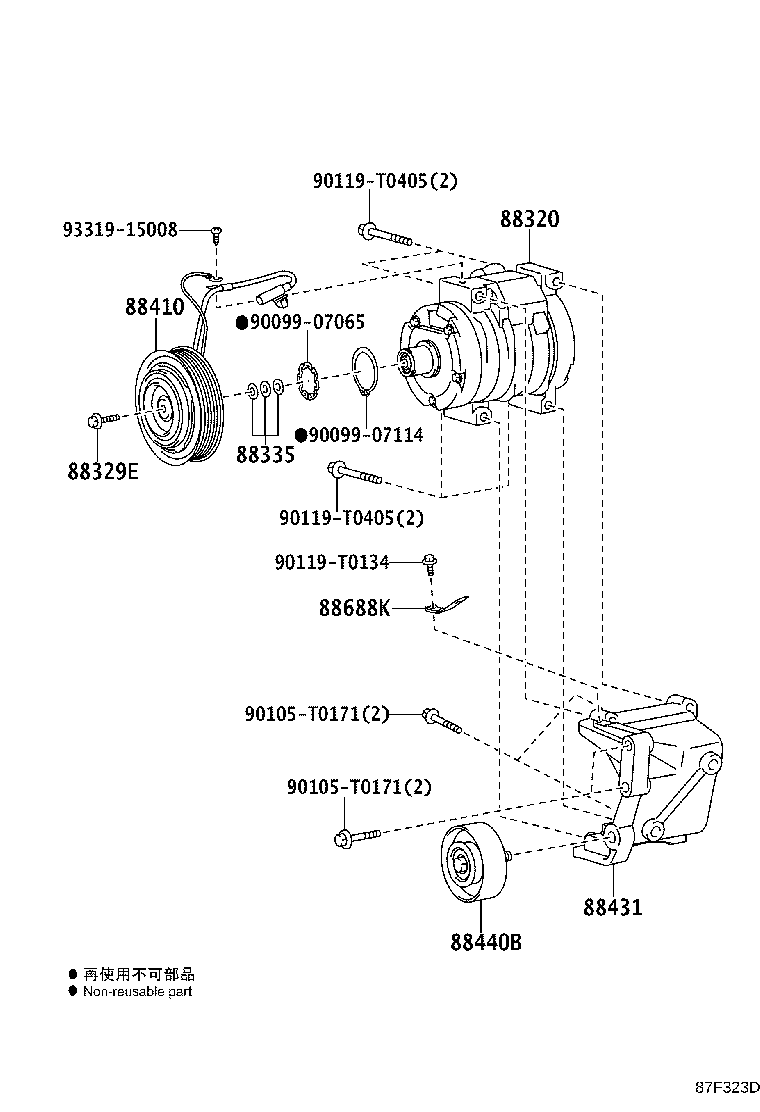

Click highlighted areas on diagram

diagram 88320 88329E 88335 88410 88431 88440B 88688K 9009907065 9009907114 90105T0171 90105T0171 90119T0134 90119T0405 90119T0405 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0K680

KUN156..AGTSU

 1
88320-0K680

KUN156..AGTSU

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88320-0K680

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
88329E - BOLT, COMPRESSOR, NO.1
90099-04349

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
90099-04349

KUN156..AGTSU;GGN155,165,GUN15#,16#,TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

GGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,EPTSU,IDNSU,THSUV,VNSUV

 1
88335-14020

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K750

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
88410-0K750

KUN156..AGTSU

 1
88410-0K750

KUN156..AGTSU

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K040

KUN156..AGTSU

 1
88431-0K040

KUN156..AGTSU

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88431-0K040

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
88440B - PULLEY ASSY, IDLE
88440-0K172

KUN156..AGTSU

 1
88440-0K172

KUN156..AGTSU

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
88440-0K172

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K380

KUN156..AGTSU

 1
88688-0K380

KUN156..AGTSU..M

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

 1
88688-0K380

KUN156..AGTSU

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

 1
Common parts
90099-07065
90099-07114
90105-T0171
90119-T0134
90119-T0405
93319-15008
