KUN156L-SGFLYF (2015)
Toyota Fortuner
Production
Dec 2015
-
Sep 2017
Engine
1KDFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1512- )KUN156,165

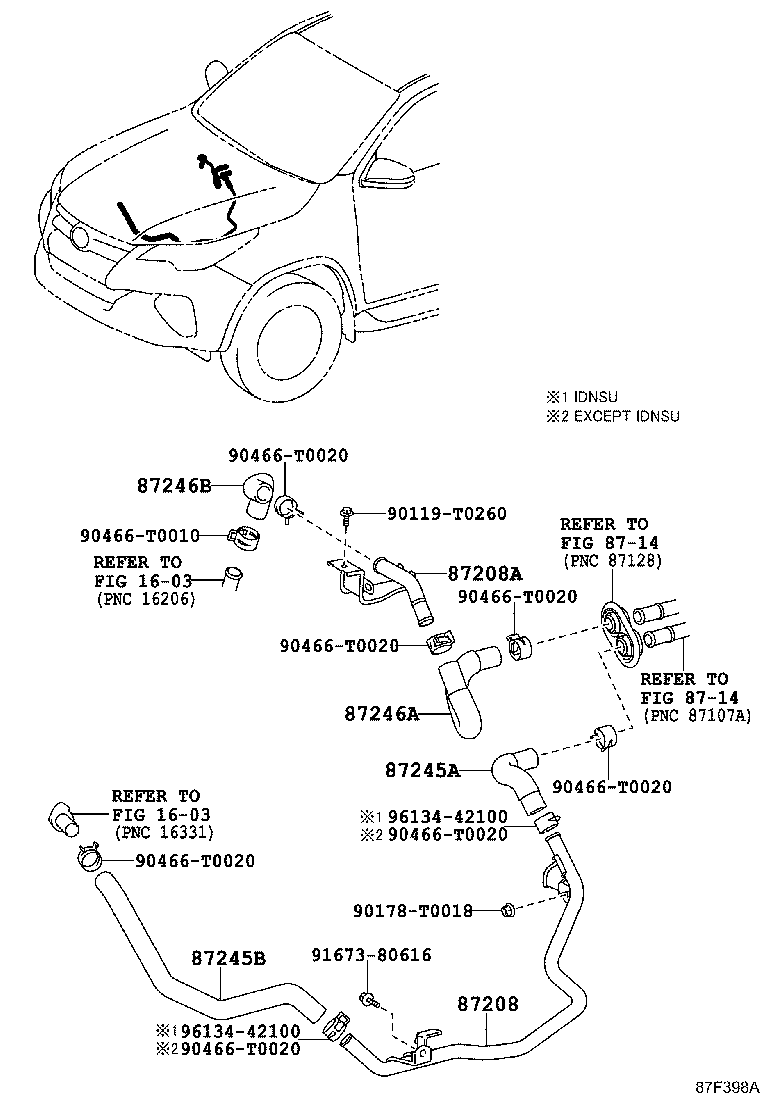

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-0K380 |
KUN156..AGTSU |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-0K410 |
KUN156,165 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0KJ80 |
KUN156..AGTSU |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-0K660 |
KUN156..AGTSU |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-0KC10 |
KUN156..AGTSU |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-0KK10 |
KUN156,165 |
1 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 90178-T0018 | ||||
| 90466-T0010 | ||||
| 90466-T0020 | ||||
| 91673-80616 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
