Toyota Fortuner KUN156 ELECTRONIC CONTROLED DIESEL (ECD)

Manufacturers Home
Toyota
GR
FORTUNER
KUN156L-SGFLYF (2015)
8405 - ELECTRONIC CONTROLED DIESEL (ECD)

KUN156L-SGFLYF (2015)

Toyota Fortuner

Production Dec 2015 - Sep 2017

Engine 1KDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

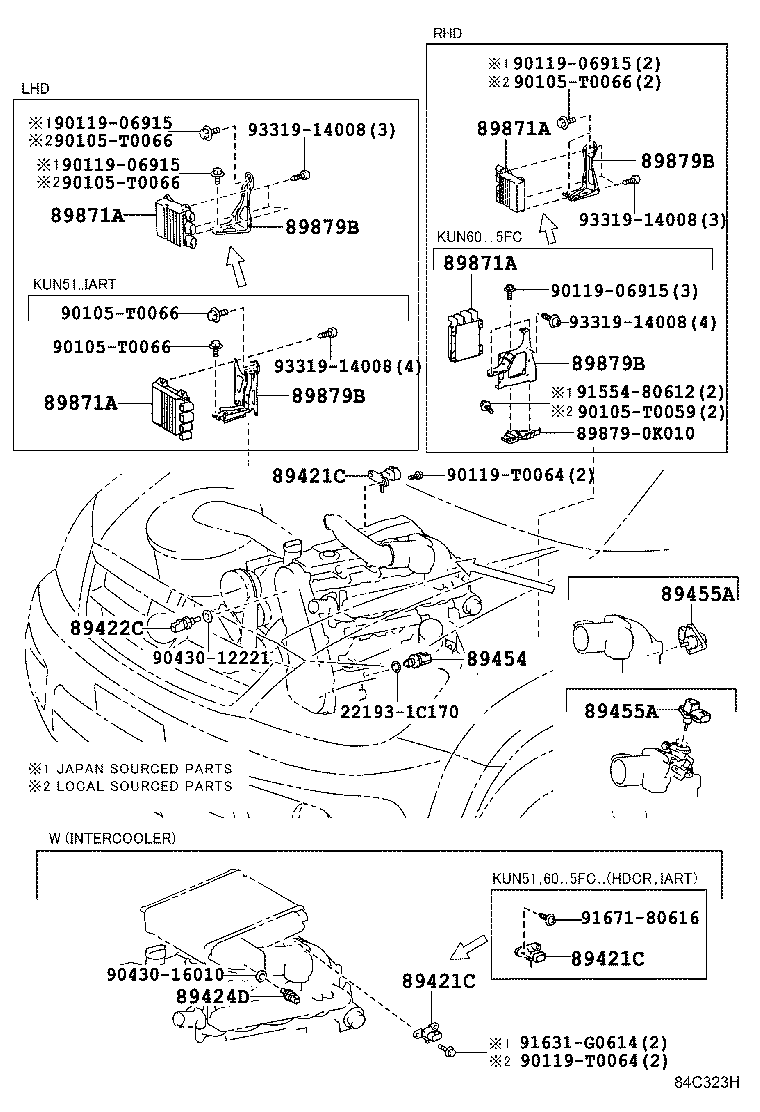

ILLUST NO. 1 OF 2(1107- )KUN5#,6#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
22193-1C170
89879-0K010
90105-T0059
90105-T0066
90119-06915
90119-T0064
90430-12221
90430-16010
91554-80612
91631-G0614
91671-80616
93319-14008

ILLUST NO. 2 OF 2(1107- )KUN5#,6#,LAN50

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0066
90159-T0001
90178-T0018
90179-06110

ILLUST NO. 2 OF 2(1512- )KUN156,165,LAN155

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
89661A - COMPUTER, ENGINE CONTROL
89666-0KT80	KUN156..LHD..6F P/N LABEL=896660KT80	12/2015 - 09/2017	1
89666-0KT60	KUN156..LHD..6F P/N LABEL=896660KT60	01/2016 - 09/2017	1
89666-0KT70	KUN156..LHD..6F P/N LABEL=896660KT70	03/2016 - 09/2017	1
89661A - COMPUTER, ENGINE CONTROL
89666-0KT80	KUN156..LHD..6F P/N LABEL=896660KT80	12/2015 - 09/2017	1
89666-0KT60	KUN156..LHD..6F P/N LABEL=896660KT60	01/2016 - 09/2017	1
89666-0KT70	KUN156..LHD..6F P/N LABEL=896660KT70	03/2016 - 09/2017	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K210	KUN156..LHD MADE IN INDONESIA	01/2016 - 09/2017	1
89667-0K140	KUN156..LHD MADE IN THAILAND	12/2015 - 09/2017	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K210	KUN156..LHD MADE IN INDONESIA	01/2016 - 09/2017	1
89667-0K140	KUN156..LHD MADE IN THAILAND	12/2015 - 09/2017	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K220	KUN156..LHD MADE IN INDONESIA	01/2016 - 09/2017	1
89668-0K150	KUN156..LHD MADE IN THAILAND	12/2015 - 09/2017	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K220	KUN156..LHD MADE IN INDONESIA	01/2016 - 09/2017	1
89668-0K150	KUN156..LHD MADE IN THAILAND	12/2015 - 09/2017	1
89878 - DRIVER, TURBO MOTOR
89878-71090	KUN156..LHD..(AGTSU,SASUV)	12/2015 - 09/2017	1
89878 - DRIVER, TURBO MOTOR
89878-71090	KUN156..LHD..(AGTSU,SASUV)	12/2015 - 09/2017	1
Common parts
90105-T0066
90153-T0001
90178-T0018
90179-06323
91673-80616

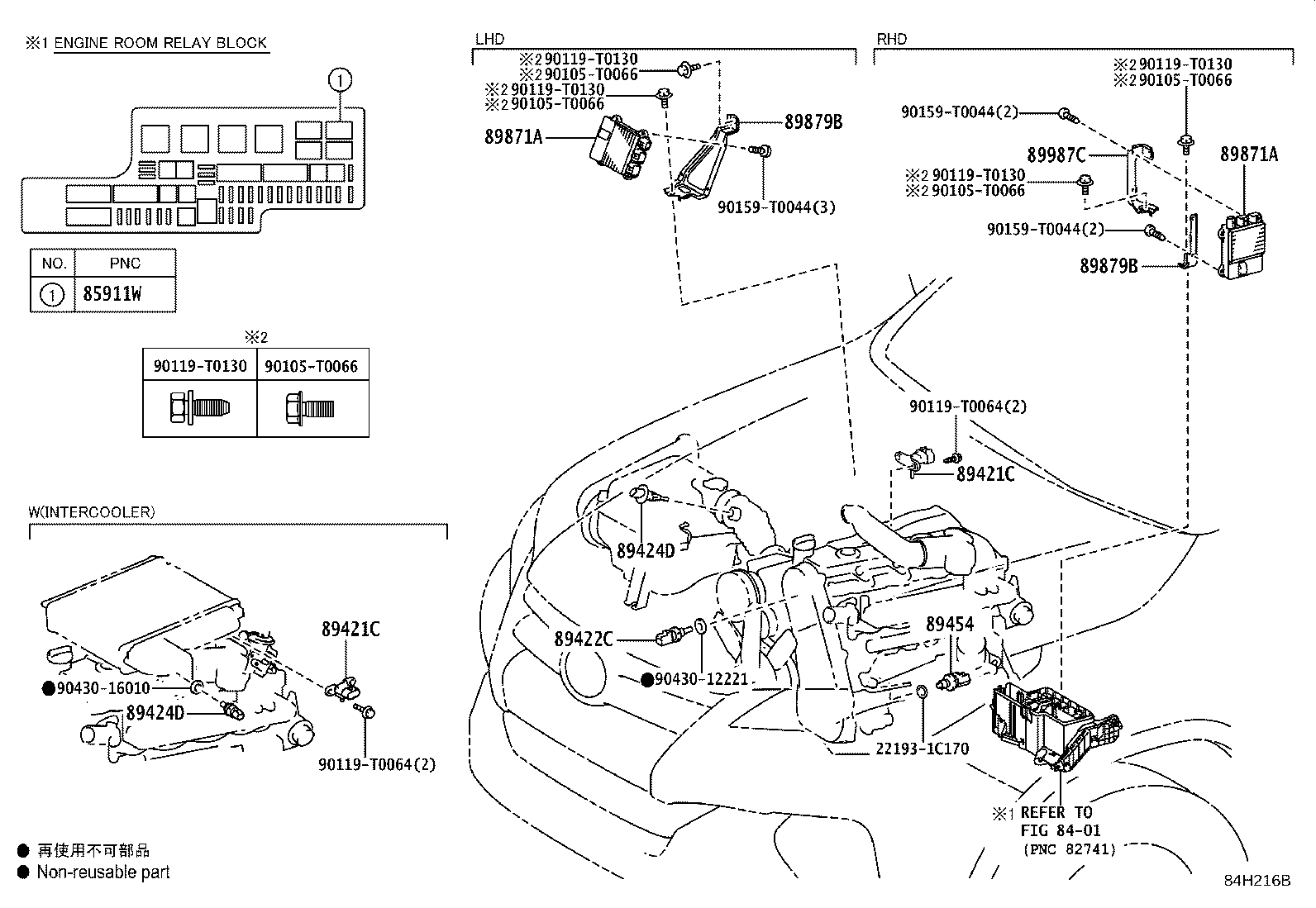

ILLUST NO. 1 OF 2(1512- )KUN156,165

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
85911W - RELAY, ELECTRONIC DRIVER UNIT
90987-02027	GUN155..L..MA;GUN15#,16#,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J)	07/2015 - 12/2999	1
90987-T2001	GUN155..L..MA;GUN15#,16#,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L)	07/2015 - 12/2999	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156,165,LAN155..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89454 - SENSOR, FUEL TEMPERATURE
89454-20010	KUN156,165	12/2015 - 09/2017	1
89871A - DRIVER, INJECTOR
89871-25010	KUN156,165	12/2015 - 09/2017	1
89871A - DRIVER, INJECTOR
89871-25010	KUN156,165	12/2015 - 09/2017	1
89879B - BRACKET, INJECTOR DRIVER
89879-0K070	KUN156..AGTSU..6F;KUN156..LHD..(IDNSU,SASUV) MADE IN INDONESIA	12/2015 - 09/2017	1
89879-0K030	KUN156..LHD MADE IN THAILAND	12/2015 - 09/2017	1
89879B - BRACKET, INJECTOR DRIVER
89879-0K070	KUN156..AGTSU..6F;KUN156..LHD..(IDNSU,SASUV) MADE IN INDONESIA	12/2015 - 09/2017	1
89879-0K030	KUN156..LHD MADE IN THAILAND	12/2015 - 09/2017	1
Common parts
22193-1C170
90105-T0066
90119-T0064
90119-T0130
90159-T0044
90430-12221
90430-16010
Linked diagrams
8401

KUN156L-SGFLYF (2015)

ILLUST NO. 1 OF 2(1107- )KUN5#,6#

ILLUST NO. 2 OF 2(1107- )KUN5#,6#,LAN50

ILLUST NO. 2 OF 2(1512- )KUN156,165,LAN155

ILLUST NO. 1 OF 2(1512- )KUN156,165

Part Price Details
