KUN156L-SGFLYF (2015)
Toyota Fortuner
(1107- )LHD

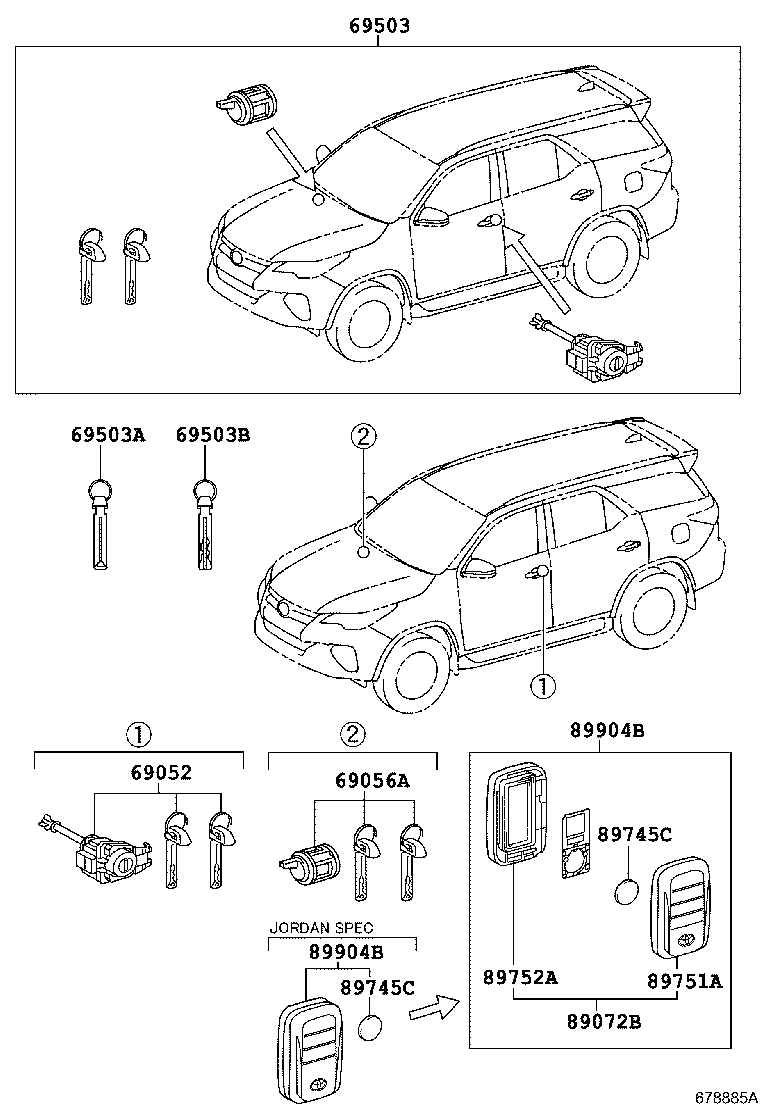

| Part # | Description | Qty | Price |
|---|
(1512- )LHD
WITH(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K070 |
GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M) |
1 | ||
| 69052-0K060 |
GUN165..THSUV..(L,S)..GCC;GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,KUN156,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(DCR,HDCR,HTWC) |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K050 |
KUN156..(AGTSU,SASUV)..(L,S);GUN156,165..THSUV..(L,S)..(ARL,GCC);GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(HDCR,HTWC) |
1 | ||
| 69056-0K060 |
GUN156..S..IART;GUN15#,165,TGN166..RHD..(PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN156,166..(AGTSU,EPTSU,THSUV)..(H,M)..(ARL,BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0KC70 |
GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-0K100 |
GUN156..S..IART;GUN15#,165,TGN166..RHD..(PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN156,166..(AGTSU,EPTSU,THSUV)..(H,M)..(ARL,BZAGT,EPT,GCC,GEN,LA) MASTER KEY,W(*68),SMART KEY,INSIDE CUT |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-0K070 |
GUN156..S..IART;GUN15#,165,TGN166..RHD..(PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN156,166..(AGTSU,EPTSU,THSUV)..(H,M)..(ARL,BZAGT,EPT,GCC,GEN,LA) MASTER KEY,W(*68),SMART KEY,INSIDE CUT |
2 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-0K410 |
GGN155..GEN,SA;TGN156..M..(GEN,VN);GUN156..IDNSU..M..(LA,PH,VN);GUN155,16#,KUN156..M..(LA,PH,TH);GUN156,KUN156,TGN166..RHD..M..(GEN,TH) |
2 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-0K010 |
GUN156..S..IART;GUN155,165..H..GCC;TGN156..6FC..(GEN,VN);TGN156,166..AGTSU..(H,M);GUN156,165..RHD..S..(SA,TH);TGN166..6FC..(GEN,IDN,PKN,SA,TH,VN);GUN155,165..(H,L,M)..(GEN,IDN,PH,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN156,KUN156..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M) CR2032 |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-0K010 |
GUN156..S..IART;GUN155,165..H..GCC;TGN156..6FC..(GEN,VN);TGN156,166..AGTSU..(H,M);GUN156,165..RHD..S..(SA,TH);TGN166..6FC..(GEN,IDN,PKN,SA,TH,VN);GUN155,165..(H,L,M)..(GEN,IDN,PH,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN156,KUN156..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M) CR2032 |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-0K150 |
TGN156,166..AGTSU..M;GGN155..BZAGT,GEN,LA,SA;TGN156..(H,M)..(BZAGT,GEN,VN);GUN156..(H,M)..(BZAGT,LA,PH,VN);GUN155,16#,KUN156..M..(LA,PH,TH);GUN156,KUN156,TGN166..RHD..M..(ARL,GEN,TH) |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-0K090 |
GUN155..IDNSU..M;GUN156..IDNSU..(H,M);GUN155..IDNSU..H..GCC;TGN156..6FC..(GEN,VN);TGN166..(H,M,S)..(GEN,IDN,SA,VN);GGN155,165,GUN165,KUN156..(AGTSU,IDNSU)..(H,M)..(GCC,GEN,IDN,LA,PH) |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-0K090 |
KUN156..AGTSU..M;GUN156,166,TGN166..TH;GGN155,GUN155,165..6FC..(M,S)..(SA,TH) |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-0K090 |
KUN156..AGTSU..M;GUN156,166,TGN166..TH;GGN155,GUN155,165..6FC..(M,S)..(SA,TH) |
2 | ||
(1512- )GGN155,165,GUN155,KUN156,165,LAN155,TGN156,16#..LHD..BZAGT,GCC,GEN,LA,PH
WITH(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K070 |
GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M) |
1 | ||
| 69052-0K070 |
GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M) |
1 | ||
| 69052-0K060 |
GUN165..THSUV..(L,S)..GCC;GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,KUN156,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(DCR,HDCR,HTWC) |
1 | ||
| 69052-0K060 |
GUN165..THSUV..(L,S)..GCC;GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,KUN156,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(DCR,HDCR,HTWC) |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K050 |
KUN156..(AGTSU,SASUV)..(L,S);GUN156,165..THSUV..(L,S)..(ARL,GCC);GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(HDCR,HTWC) |
1 | ||
| 69056-0K050 |
KUN156..(AGTSU,SASUV)..(L,S);GUN156,165..THSUV..(L,S)..(ARL,GCC);GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(HDCR,HTWC) |
1 | ||
| 69056-0K060 |
GUN156..S..IART;GUN15#,165,TGN166..RHD..(PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN156,166..(AGTSU,EPTSU,THSUV)..(H,M)..(ARL,BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 69056-0K060 |
GUN156..S..IART;GUN15#,165,TGN166..RHD..(PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN156,166..(AGTSU,EPTSU,THSUV)..(H,M)..(ARL,BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K220 |
KUN156..(AGTSU,SASUV)..(L,S);GUN156,165..THSUV..(L,S)..(ARL,GCC);GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(HDCR,HTWC) |
1 | ||
| 69057-0K220 |
KUN156..(AGTSU,SASUV)..(L,S);GUN156,165..THSUV..(L,S)..(ARL,GCC);GUN156,KUN165,TGN168..L..(BZAGT,SA);GGN155,165,LAN155..LHD..(SASUV,THSUV)..S;GUN15#,TGN156,166..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(L,S)..(HDCR,HTWC) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0KC70 |
GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M) |
1 | ||
| 69005-0KC70 |
GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0D040 |
GUN165..LHD..GEN;GUN156..(L,S)..ARL;GUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,165,GUN15#,165,KUN165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)..(DCR,DEFI,HDCR,HTWC) CR1620 |
1 | ||
| 89745-0D040 |
GUN165..LHD..GEN;GUN156..(L,S)..ARL;GUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,165,GUN15#,165,KUN165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)..(DCR,DEFI,HDCR,HTWC) CR1620 |
1 | ||
| 89758 - PACKING, DOOR CONTROL TRANSMITTER | ||||
| 89758-02010 |
GUN165..LHD..GEN;GUN156..(L,S)..ARL;GUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,165,GUN15#,165,KUN165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)..(DCR,DEFI,HDCR,HTWC) |
2 | ||
| 89758-02010 |
GUN165..LHD..GEN;GUN156..(L,S)..ARL;GUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,165,GUN15#,165,KUN165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)..(DCR,DEFI,HDCR,HTWC) |
2 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-0K150 |
GUN156..(L,S)..ARL;GUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,165,GUN15#,165,KUN165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)..(DCR,DEFI,HDCR,HTWC) CUT KEY |
1 | ||
| 89786-0K150 |
GUN156..(L,S)..ARL;GUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,165,GUN15#,165,KUN165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)..(DCR,DEFI,HDCR,HTWC) CUT KEY |
1 | ||
| Linked diagrams | ||||
| 8420 | ||||
