KUN156L-SGFLYF (2015)

Toyota Fortuner

Production Dec 2015 - Sep 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

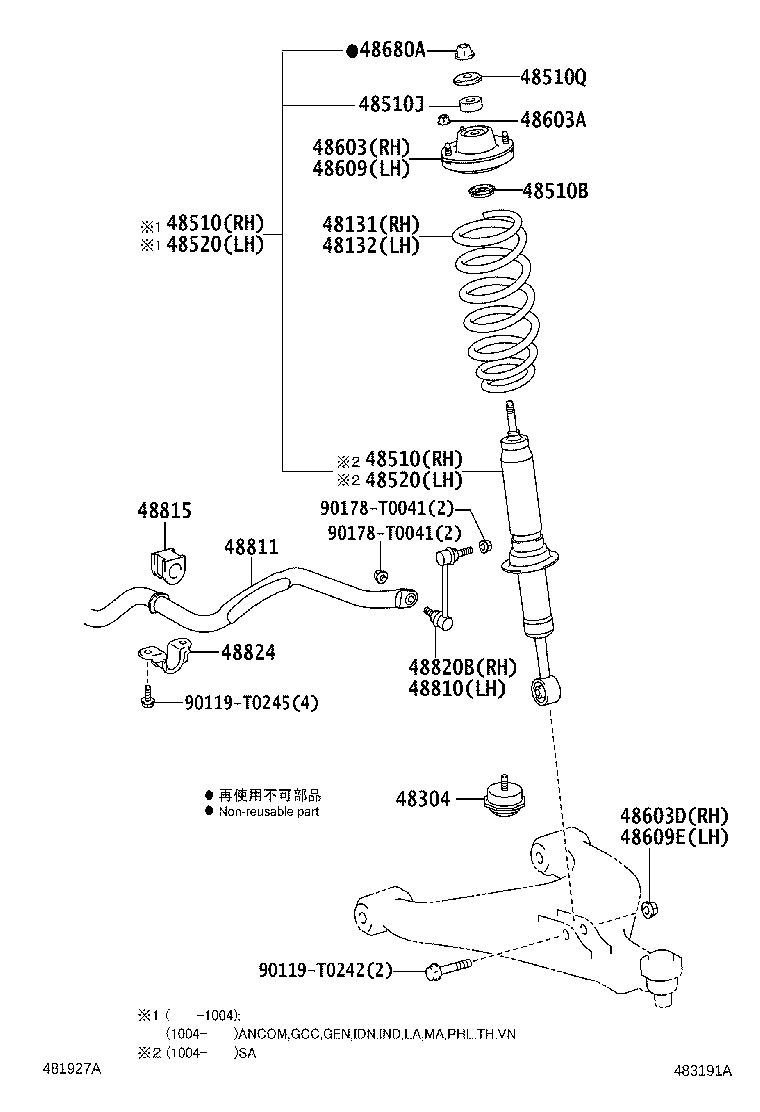

Click highlighted areas on diagram

diagram 48131 48132 48304 48510 48510 48510B 48510J 48510Q 48520 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48820B 48824 90119T0242 90119T0245 90178T0041 90178T0041
Part # Description Qty Price
Common parts
90119-T0242
90119-T0245
90178-T0041

(1107- )

Click highlighted areas on diagram

diagram 48131 48132 48304 48510 48510 48510B 48510J 48510Q 48520 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48820B 48824 90119T0242 90119T0245 90178T0041 90178T0041
Part # Description Qty Price
Common parts
90119-T0242
90119-T0245
90178-T0041

(1507- )

Click highlighted areas on diagram

diagram 48131 48132 48304 48510 48510B 48510J 48510Q 48520 48603 48603A 48603D 48609 48609E 48680A 48810 48811 48815 48820B 48824 90119T0242 90119T0245 90178T0041 90178T0041
Part # Description Qty Price
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-0K100

GGN155,GUN156,KUN156,TGN156,16#..AGTSU

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-8Z208

GUN156..L..BZAGT;KUN156..AGTSU,SASUV;GGN155,GUN155..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(EPT,GCC,LA,SA);GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..HDCR..(ARL,BZAGT,GCC,GEN,LA,PKN,VN)

MARK 48510-0KA20

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2003

KUN156,165;TGN166..S..SA;TGN156..AGTSU,EPTSU,IDNSU,THSUV;GGN155,165,GUN15#,16#,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-T2004

KUN156,165;TGN166..S..SA;TGN156..AGTSU,EPTSU,IDNSU,THSUV;GGN155,165,GUN15#,16#,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-8Z208

GUN156..L..BZAGT;KUN156..AGTSU,SASUV;GGN155,GUN155..LHD..(AGTSU,EPTSU,SASUV,THSUV)..(EPT,GCC,LA,SA);GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..HDCR..(ARL,BZAGT,GCC,GEN,LA,PKN,VN)

MARK 48510-0KA20

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-T0050

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GUN15#,16#,KUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,KUN165,LAN155,TGN168..LHD..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)

 6
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90178-T0048

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GUN15#,16#,KUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,KUN165,LAN155,TGN168..LHD..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90178-T0048

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GUN15#,16#,KUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,KUN165,LAN155,TGN168..LHD..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
90177-T0015

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GUN15#,16#,KUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,KUN165,LAN155,TGN168..LHD..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)

 2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-0K090

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
48824 - BRACKET, STABILIZER, FRONT
48824-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
Common parts
90119-T0242
90119-T0245
90178-T0041
