KUN156L-SGFLYF (2015)
Toyota Fortuner

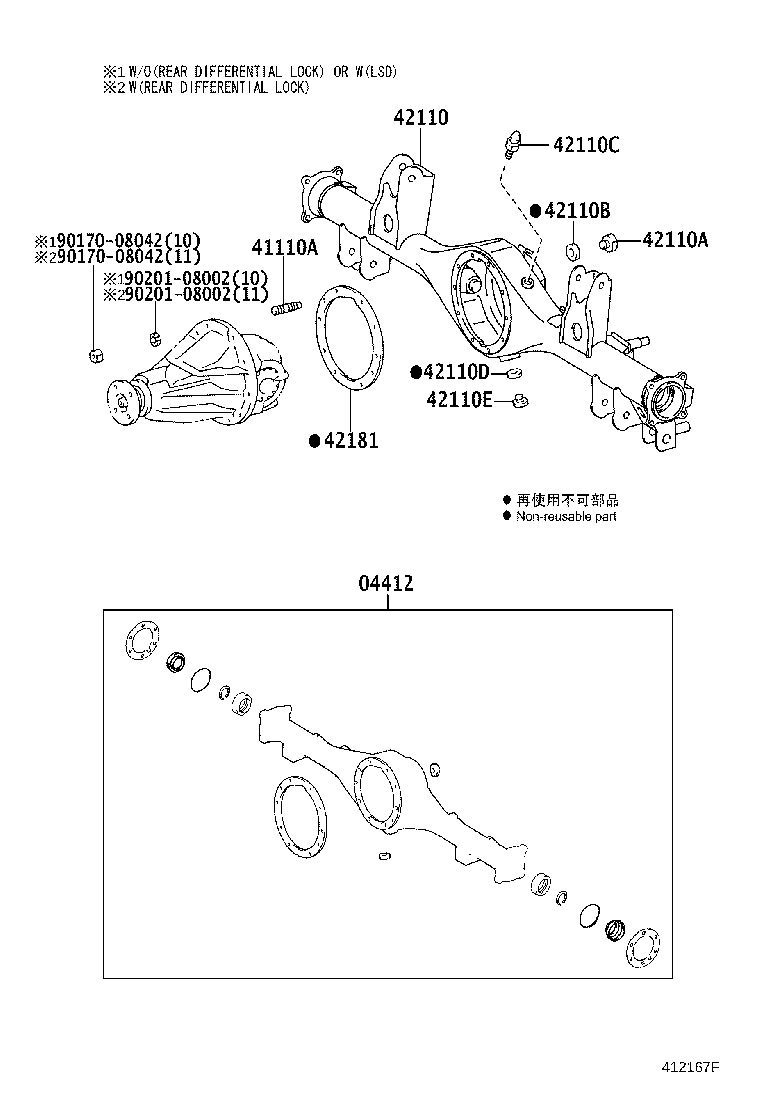

ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||

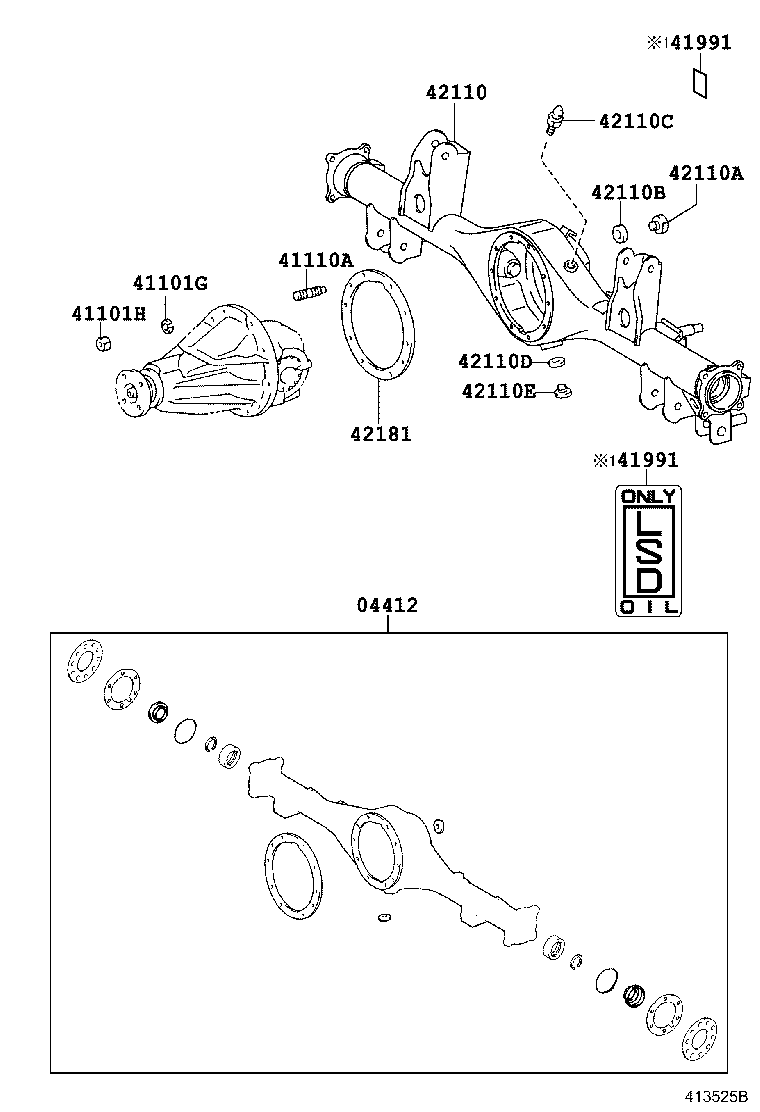

ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price |
|---|

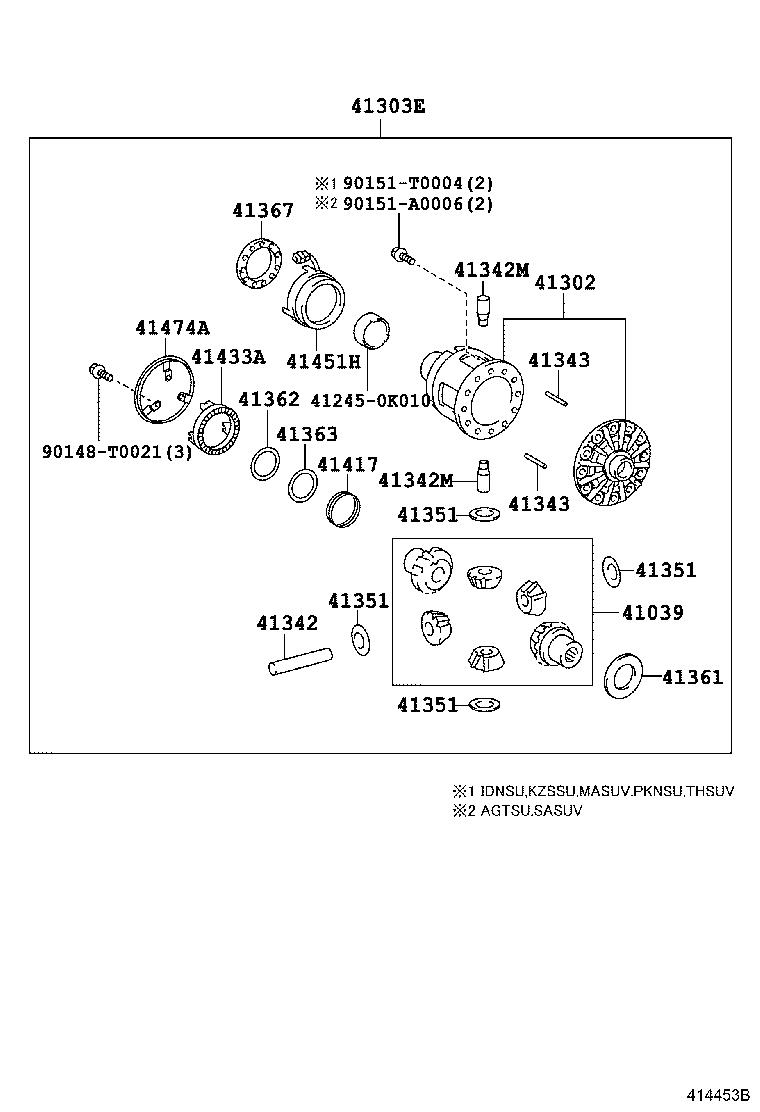

ILLUST NO. 2 OF 3(1512- )GUN156,KUN156..AGTSU..H,L,M..DCR,HDCR; (1601- )TGN156,166..AGTSU..M
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-71070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41039-71070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41039-71070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41039-71070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41039-71070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41342-0K070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41342-0K070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41342-0K070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41342-0K070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41351-0K040 |
GGN155,GUN156,KUN156..AGTSU |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K300 |
GGN155,GUN156,KUN156..AGTSU T=1.50 |
2 | ||
| 41361-0K300 |
GGN155,GUN156,KUN156..AGTSU T=1.50 |
2 | ||
| 41361-0K300 |
GGN155,GUN156,KUN156..AGTSU T=1.50 |
2 | ||
| 41361-0K300 |
GGN155,GUN156,KUN156..AGTSU T=1.50 |
2 | ||
| 41361-0K300 |
GGN155,GUN156,KUN156..AGTSU T=1.50 |
2 | ||
| 41361-0K320 |
GGN155,GUN156,KUN156..AGTSU T=1.60 |
2 | ||
| 41361-0K320 |
GGN155,GUN156,KUN156..AGTSU T=1.60 |
2 | ||
| 41361-0K320 |
GGN155,GUN156,KUN156..AGTSU T=1.60 |
2 | ||
| 41361-0K320 |
GGN155,GUN156,KUN156..AGTSU T=1.60 |
2 | ||
| 41361-0K320 |
GGN155,GUN156,KUN156..AGTSU T=1.60 |
2 | ||
| 41361-0K110 |
GGN155,GUN156,KUN156..AGTSU T=1.45 |
2 | ||
| 41361-0K110 |
GGN155,GUN156,KUN156..AGTSU T=1.45 |
2 | ||
| 41361-0K110 |
GGN155,GUN156,KUN156..AGTSU T=1.45 |
2 | ||
| 41361-0K110 |
GGN155,GUN156,KUN156..AGTSU T=1.45 |
2 | ||
| 41361-0K110 |
GGN155,GUN156,KUN156..AGTSU T=1.45 |
2 | ||
| 41361-0K340 |
GGN155,GUN156,KUN156..AGTSU T=1.70 |
2 | ||
| 41361-0K340 |
GGN155,GUN156,KUN156..AGTSU T=1.70 |
2 | ||
| 41361-0K340 |
GGN155,GUN156,KUN156..AGTSU T=1.70 |
2 | ||
| 41361-0K340 |
GGN155,GUN156,KUN156..AGTSU T=1.70 |
2 | ||
| 41361-0K340 |
GGN155,GUN156,KUN156..AGTSU T=1.70 |
2 | ||
| 41361-0K350 |
GGN155,GUN156,KUN156..AGTSU T=1.75 |
2 | ||
| 41361-0K350 |
GGN155,GUN156,KUN156..AGTSU T=1.75 |
2 | ||
| 41361-0K350 |
GGN155,GUN156,KUN156..AGTSU T=1.75 |
2 | ||
| 41361-0K350 |
GGN155,GUN156,KUN156..AGTSU T=1.75 |
2 | ||
| 41361-0K350 |
GGN155,GUN156,KUN156..AGTSU T=1.75 |
2 | ||
| 41361-0K370 |
GGN155,GUN156,KUN156..AGTSU T=1.85 |
2 | ||
| 41361-0K370 |
GGN155,GUN156,KUN156..AGTSU T=1.85 |
2 | ||
| 41361-0K370 |
GGN155,GUN156,KUN156..AGTSU T=1.85 |
2 | ||
| 41361-0K370 |
GGN155,GUN156,KUN156..AGTSU T=1.85 |
2 | ||
| 41361-0K370 |
GGN155,GUN156,KUN156..AGTSU T=1.85 |
2 | ||
| 41361-0K330 |
GGN155,GUN156,KUN156..AGTSU T=1.65 |
2 | ||
| 41361-0K330 |
GGN155,GUN156,KUN156..AGTSU T=1.65 |
2 | ||
| 41361-0K330 |
GGN155,GUN156,KUN156..AGTSU T=1.65 |
2 | ||
| 41361-0K330 |
GGN155,GUN156,KUN156..AGTSU T=1.65 |
2 | ||
| 41361-0K330 |
GGN155,GUN156,KUN156..AGTSU T=1.65 |
2 | ||
| 41361-0K310 |
GGN155,GUN156,KUN156..AGTSU T=1.55 |
2 | ||
| 41361-0K310 |
GGN155,GUN156,KUN156..AGTSU T=1.55 |
2 | ||
| 41361-0K310 |
GGN155,GUN156,KUN156..AGTSU T=1.55 |
2 | ||
| 41361-0K310 |
GGN155,GUN156,KUN156..AGTSU T=1.55 |
2 | ||
| 41361-0K310 |
GGN155,GUN156,KUN156..AGTSU T=1.55 |
2 | ||
| 41361-0K360 |
GGN155,GUN156,KUN156..AGTSU T=1.80 |
2 | ||
| 41361-0K360 |
GGN155,GUN156,KUN156..AGTSU T=1.80 |
2 | ||
| 41361-0K360 |
GGN155,GUN156,KUN156..AGTSU T=1.80 |
2 | ||
| 41361-0K360 |
GGN155,GUN156,KUN156..AGTSU T=1.80 |
2 | ||
| 41361-0K360 |
GGN155,GUN156,KUN156..AGTSU T=1.80 |
2 | ||
| Common parts | ||||
| 41245-0K010 | ||||
| 90148-T0021 | ||||
| 90151-A0006 | ||||
| 90151-T0004 | ||||

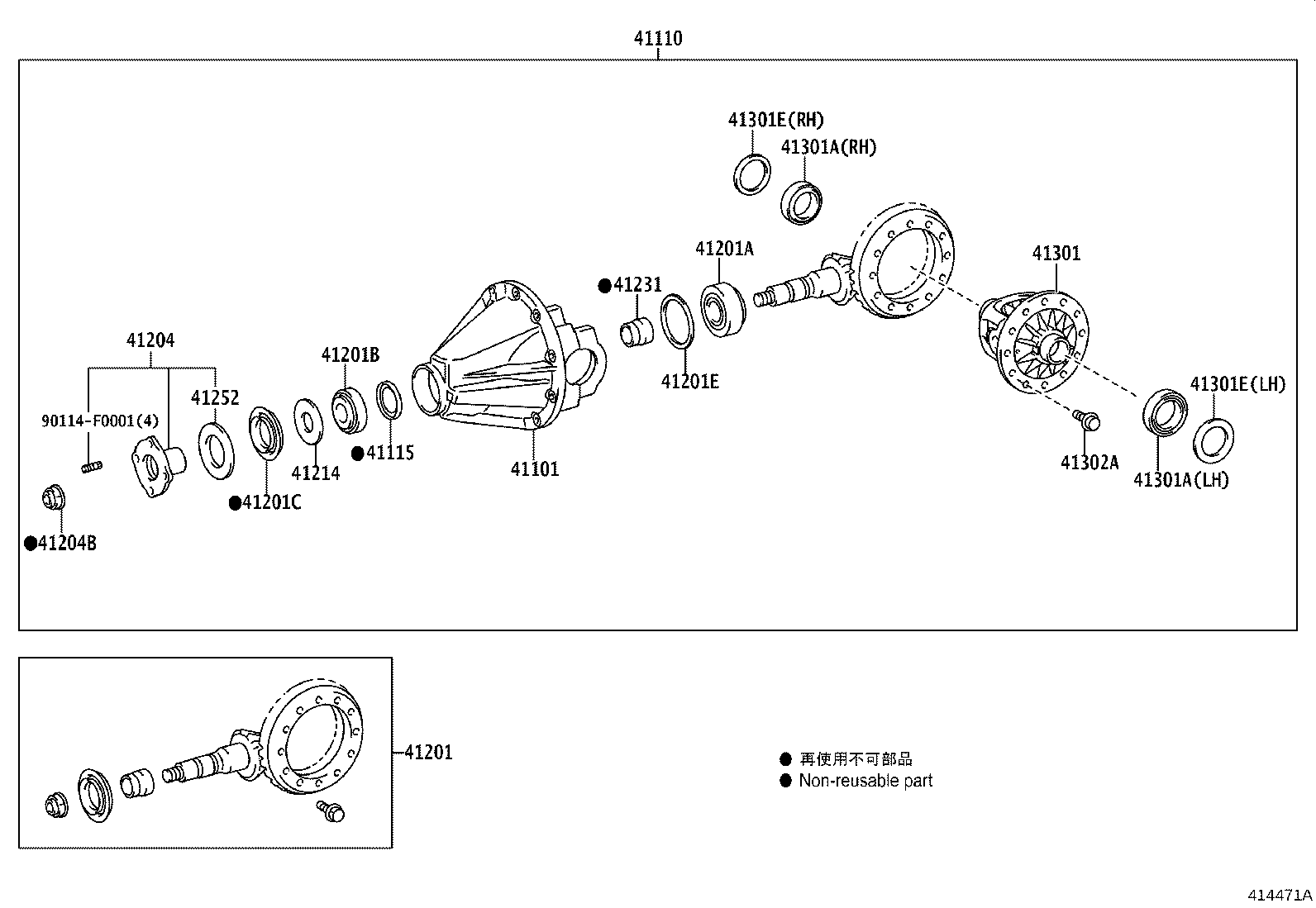

ILLUST NO. 1 OF 3(1603- )GGN155,165,GUN15#,KUN156,165,LAN155,TGN156,16#..LHD..AGTSU,SASUV,VENSU ;
W/O(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K070 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K580 |
GUN156..AGTSU..6FC;GGN155,KUN156..AGTSU *FGR=43:11=3.909 |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K020 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41115-0K050 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B70 |
GUN156..AGTSU..6FC;GGN155,KUN156..AGTSU *FGR=43:11=3.909 |
1 | ||
| 41201-09E50 |
GUN156..AGTSU..6FC;GGN155,KUN156..AGTSU *FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-S0016 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 90366-T0065 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0062 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 90366-S0013 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0065 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 90311-S0001 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-78002 |
GGN155,GUN156,KUN156..AGTSU T=1.74 |
1 | ||
| 90564-78001 |
GGN155,GUN156,KUN156..AGTSU T=1.72 |
1 | ||
| 90564-78010 |
GGN155,GUN156,KUN156..AGTSU T=1.90 |
1 | ||
| 90564-78003 |
GGN155,GUN156,KUN156..AGTSU T=1.76 |
1 | ||
| 90564-78012 |
GGN155,GUN156,KUN156..AGTSU T=1.94 |
1 | ||
| 90564-78015 |
GGN155,GUN156,KUN156..AGTSU T=2.00 |
1 | ||
| 90564-78005 |
GGN155,GUN156,KUN156..AGTSU T=1.80 |
1 | ||
| 90564-78011 |
GGN155,GUN156,KUN156..AGTSU T=1.92 |
1 | ||
| 90564-78007 |
GGN155,GUN156,KUN156..AGTSU T=1.84 |
1 | ||
| 90564-78004 |
GGN155,GUN156,KUN156..AGTSU T=1.78 |
1 | ||
| 90564-78016 |
GGN155,GUN156,KUN156..AGTSU T=2.02 |
1 | ||
| 90564-78006 |
GGN155,GUN156,KUN156..AGTSU T=1.82 |
1 | ||
| 90564-78014 |
GGN155,GUN156,KUN156..AGTSU T=1.98 |
1 | ||
| 90564-78018 |
GGN155,GUN156,KUN156..AGTSU T=2.06 |
1 | ||
| 90564-78009 |
GGN155,GUN156,KUN156..AGTSU T=1.88 |
1 | ||
| 90564-78013 |
GGN155,GUN156,KUN156..AGTSU T=1.96 |
1 | ||
| 90564-78019 |
GGN155,GUN156,KUN156..AGTSU T=2.08 |
1 | ||
| 90564-78017 |
GGN155,GUN156,KUN156..AGTSU T=2.04 |
1 | ||
| 90564-78008 |
GGN155,GUN156,KUN156..AGTSU T=1.86 |
1 | ||
| 90564-78021 |
GGN155,GUN156,KUN156..AGTSU T=2.12 |
1 | ||
| 90564-78024 |
GGN155,GUN156,KUN156..AGTSU T=2.18 |
1 | ||
| 90564-78023 |
GGN155,GUN156,KUN156..AGTSU T=2.16 |
1 | ||
| 90564-78020 |
GGN155,GUN156,KUN156..AGTSU T=2.10 |
1 | ||
| 90564-78022 |
GGN155,GUN156,KUN156..AGTSU T=2.14 |
1 | ||
| 90564-S0005 |
GGN155,GUN156,KUN156..AGTSU T=1.125,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0007 |
GGN155,GUN156,KUN156..AGTSU T=1.175,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0001 |
GGN155,GUN156,KUN156..AGTSU T=1.025,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0002 |
GGN155,GUN156,KUN156..AGTSU T=1.050,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0004 |
GGN155,GUN156,KUN156..AGTSU T=1.100,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0006 |
GGN155,GUN156,KUN156..AGTSU T=1.150,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0009 |
GGN155,GUN156,KUN156..AGTSU T=1.225,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0015 |
GGN155,GUN156,KUN156..AGTSU T=1.375,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0012 |
GGN155,GUN156,KUN156..AGTSU T=1.300,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0008 |
GGN155,GUN156,KUN156..AGTSU T=1.200,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0011 |
GGN155,GUN156,KUN156..AGTSU T=1.275,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0016 |
GGN155,GUN156,KUN156..AGTSU T=1.400,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0018 |
GGN155,GUN156,KUN156..AGTSU T=1.450,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0014 |
GGN155,GUN156,KUN156..AGTSU T=1.350,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0019 |
GGN155,GUN156,KUN156..AGTSU T=1.475,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0010 |
GGN155,GUN156,KUN156..AGTSU T=1.250,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0017 |
GGN155,GUN156,KUN156..AGTSU T=1.425,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0013 |
GGN155,GUN156,KUN156..AGTSU T=1.325,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90564-S0003 |
GGN155,GUN156,KUN156..AGTSU T=1.075,DIFFERENTIAL LOCK-WITH |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K110 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41204-0K130 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-F0001 |
GGN155,GUN156,KUN156..AGTSU OD=43.5,DIFFERENTIAL LOCK-WITH |
1 | ||
| 90179-22029 |
GGN155,GUN156,KUN156..AGTSU OD=43 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-0K040 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41214-0K050 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-71010 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41231-0K030 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-0K110 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K120 |
GGN155,GUN156,KUN156..AGTSU |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-S0022 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90366-T0071 |
GGN155,GUN156,KUN156..AGTSU RH |
1 | ||
| 90366-T0068 |
GGN155,GUN156,KUN156..AGTSU LH |
1 | ||
| 90366-S0019 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-S0022 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90366-T0071 |
GGN155,GUN156,KUN156..AGTSU RH |
1 | ||
| 90366-T0068 |
GGN155,GUN156,KUN156..AGTSU LH |
1 | ||
| 90366-S0019 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59049 |
GGN155,GUN156,KUN156..AGTSU T=2.18,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59050 |
GGN155,GUN156,KUN156..AGTSU T=2.20,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59046 |
GGN155,GUN156,KUN156..AGTSU T=2.12,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59044 |
GGN155,GUN156,KUN156..AGTSU T=2.08,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59045 |
GGN155,GUN156,KUN156..AGTSU T=2.10,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59054 |
GGN155,GUN156,KUN156..AGTSU T=2.28,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59053 |
GGN155,GUN156,KUN156..AGTSU T=2.26,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59047 |
GGN155,GUN156,KUN156..AGTSU T=2.14,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59048 |
GGN155,GUN156,KUN156..AGTSU T=2.16,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59058 |
GGN155,GUN156,KUN156..AGTSU T=2.36,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59059 |
GGN155,GUN156,KUN156..AGTSU T=2.38,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59052 |
GGN155,GUN156,KUN156..AGTSU T=2.24,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59057 |
GGN155,GUN156,KUN156..AGTSU T=2.34,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59067 |
GGN155,GUN156,KUN156..AGTSU T=2.54,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59066 |
GGN155,GUN156,KUN156..AGTSU T=2.52,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59051 |
GGN155,GUN156,KUN156..AGTSU T=2.22,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59071 |
GGN155,GUN156,KUN156..AGTSU T=2.62,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59063 |
GGN155,GUN156,KUN156..AGTSU T=2.46,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59056 |
GGN155,GUN156,KUN156..AGTSU T=2.32,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59062 |
GGN155,GUN156,KUN156..AGTSU T=2.44,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59065 |
GGN155,GUN156,KUN156..AGTSU T=2.50,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59055 |
GGN155,GUN156,KUN156..AGTSU T=2.30,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59060 |
GGN155,GUN156,KUN156..AGTSU T=2.40,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59064 |
GGN155,GUN156,KUN156..AGTSU T=2.48,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59069 |
GGN155,GUN156,KUN156..AGTSU T=2.58,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59070 |
GGN155,GUN156,KUN156..AGTSU T=2.60,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59061 |
GGN155,GUN156,KUN156..AGTSU T=2.42,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59078 |
GGN155,GUN156,KUN156..AGTSU T=2.12,RH |
1 | ||
| 90564-59075 |
GGN155,GUN156,KUN156..AGTSU T=2.06,RH |
1 | ||
| 90564-59077 |
GGN155,GUN156,KUN156..AGTSU T=2.10,RH |
1 | ||
| 90564-59068 |
GGN155,GUN156,KUN156..AGTSU T=2.56,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59088 |
GGN155,GUN156,KUN156..AGTSU T=2.32,RH |
1 | ||
| 90564-59072 |
GGN155,GUN156,KUN156..AGTSU T=2.64,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59074 |
GGN155,GUN156,KUN156..AGTSU T=2.68,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59084 |
GGN155,GUN156,KUN156..AGTSU T=2.24,RH |
1 | ||
| 90564-59083 |
GGN155,GUN156,KUN156..AGTSU T=2.22,RH |
1 | ||
| 90564-59076 |
GGN155,GUN156,KUN156..AGTSU T=2.08,RH |
1 | ||
| 90564-59073 |
GGN155,GUN156,KUN156..AGTSU T=2.66,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59087 |
GGN155,GUN156,KUN156..AGTSU T=2.30,RH |
1 | ||
| 90564-59092 |
GGN155,GUN156,KUN156..AGTSU T=2.40,RH |
1 | ||
| 90564-59080 |
GGN155,GUN156,KUN156..AGTSU T=2.16,RH |
1 | ||
| 90564-59089 |
GGN155,GUN156,KUN156..AGTSU T=2.34,RH |
1 | ||
| 90564-59090 |
GGN155,GUN156,KUN156..AGTSU T=2.36,RH |
1 | ||
| 90564-59086 |
GGN155,GUN156,KUN156..AGTSU T=2.28,RH |
1 | ||
| 90564-59085 |
GGN155,GUN156,KUN156..AGTSU T=2.26,RH |
1 | ||
| 90564-59079 |
GGN155,GUN156,KUN156..AGTSU T=2.14,RH |
1 | ||
| 90564-59082 |
GGN155,GUN156,KUN156..AGTSU T=2.20,RH |
1 | ||
| 90564-59081 |
GGN155,GUN156,KUN156..AGTSU T=2.18,RH |
1 | ||
| 90564-59101 |
GGN155,GUN156,KUN156..AGTSU T=2.58,RH |
1 | ||
| 90564-59097 |
GGN155,GUN156,KUN156..AGTSU T=2.50,RH |
1 | ||
| 90564-59094 |
GGN155,GUN156,KUN156..AGTSU T=2.44,RH |
1 | ||
| 90564-59095 |
GGN155,GUN156,KUN156..AGTSU T=2.46,RH |
1 | ||
| 90564-59106 |
GGN155,GUN156,KUN156..AGTSU T=2.68,RH |
1 | ||
| 90564-59096 |
GGN155,GUN156,KUN156..AGTSU T=2.48,RH |
1 | ||
| 90564-59091 |
GGN155,GUN156,KUN156..AGTSU T=2.38,RH |
1 | ||
| 90564-59105 |
GGN155,GUN156,KUN156..AGTSU T=2.66,RH |
1 | ||
| 90564-59099 |
GGN155,GUN156,KUN156..AGTSU T=2.54,RH |
1 | ||
| 90564-59098 |
GGN155,GUN156,KUN156..AGTSU T=2.52,RH |
1 | ||
| 90564-59104 |
GGN155,GUN156,KUN156..AGTSU T=2.64,RH |
1 | ||
| 90564-59093 |
GGN155,GUN156,KUN156..AGTSU T=2.42,RH |
1 | ||
| 90564-59102 |
GGN155,GUN156,KUN156..AGTSU T=2.60,RH |
1 | ||
| 90564-59103 |
GGN155,GUN156,KUN156..AGTSU T=2.62,RH |
1 | ||
| 90564-59100 |
GGN155,GUN156,KUN156..AGTSU T=2.56,RH |
1 | ||
| 90564-S0027 |
GGN155,GUN156,KUN156..AGTSU T=2.777,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0025 |
GGN155,GUN156,KUN156..AGTSU T=2.832,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0026 |
GGN155,GUN156,KUN156..AGTSU T=2.804,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0029 |
GGN155,GUN156,KUN156..AGTSU T=2.721,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0039 |
GGN155,GUN156,KUN156..AGTSU T=2.441,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0030 |
GGN155,GUN156,KUN156..AGTSU T=2.693,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0038 |
GGN155,GUN156,KUN156..AGTSU T=2.469,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0034 |
GGN155,GUN156,KUN156..AGTSU T=2.581,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0031 |
GGN155,GUN156,KUN156..AGTSU T=2.665,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0035 |
GGN155,GUN156,KUN156..AGTSU T=2.553,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0043 |
GGN155,GUN156,KUN156..AGTSU T=2.329,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0044 |
GGN155,GUN156,KUN156..AGTSU T=2.302,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0036 |
GGN155,GUN156,KUN156..AGTSU T=2.525,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0042 |
GGN155,GUN156,KUN156..AGTSU T=2.357,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0041 |
GGN155,GUN156,KUN156..AGTSU T=2.385,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0028 |
GGN155,GUN156,KUN156..AGTSU T=2.749,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0037 |
GGN155,GUN156,KUN156..AGTSU T=2.497,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0033 |
GGN155,GUN156,KUN156..AGTSU T=2.609,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0047 |
GGN155,GUN156,KUN156..AGTSU T=2.218,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0046 |
GGN155,GUN156,KUN156..AGTSU T=2.246,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0054 |
GGN155,GUN156,KUN156..AGTSU T=2.944,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0056 |
GGN155,GUN156,KUN156..AGTSU T=0.79,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0045 |
GGN155,GUN156,KUN156..AGTSU T=2.274,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0051 |
GGN155,GUN156,KUN156..AGTSU T=2.860,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0032 |
GGN155,GUN156,KUN156..AGTSU T=2.637,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0061 |
GGN155,GUN156,KUN156..AGTSU T=0.91,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0048 |
GGN155,GUN156,KUN156..AGTSU T=2.190,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0058 |
GGN155,GUN156,KUN156..AGTSU T=0.84,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0059 |
GGN155,GUN156,KUN156..AGTSU T=0.86,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0055 |
GGN155,GUN156,KUN156..AGTSU T=0.76,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0062 |
GGN155,GUN156,KUN156..AGTSU T=0.94,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0057 |
GGN155,GUN156,KUN156..AGTSU T=0.81,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0052 |
GGN155,GUN156,KUN156..AGTSU T=2.888,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0064 |
GGN155,GUN156,KUN156..AGTSU T=0.99,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0060 |
GGN155,GUN156,KUN156..AGTSU T=0.89,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0063 |
GGN155,GUN156,KUN156..AGTSU T=0.97,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0050 |
GGN155,GUN156,KUN156..AGTSU T=2.134,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0049 |
GGN155,GUN156,KUN156..AGTSU T=2.162,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0040 |
GGN155,GUN156,KUN156..AGTSU T=2.413,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0067 |
GGN155,GUN156,KUN156..AGTSU T=1.07,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0076 |
GGN155,GUN156,KUN156..AGTSU T=1.30,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0072 |
GGN155,GUN156,KUN156..AGTSU T=1.19,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0068 |
GGN155,GUN156,KUN156..AGTSU T=1.09,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0074 |
GGN155,GUN156,KUN156..AGTSU T=1.24,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0075 |
GGN155,GUN156,KUN156..AGTSU T=1.27,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0080 |
GGN155,GUN156,KUN156..AGTSU T=1.40,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0066 |
GGN155,GUN156,KUN156..AGTSU T=1.04,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0053 |
GGN155,GUN156,KUN156..AGTSU T=2.916,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0071 |
GGN155,GUN156,KUN156..AGTSU T=1.17,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0078 |
GGN155,GUN156,KUN156..AGTSU T=1.35,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0081 |
GGN155,GUN156,KUN156..AGTSU T=1.42,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0082 |
GGN155,GUN156,KUN156..AGTSU T=1.45,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0077 |
GGN155,GUN156,KUN156..AGTSU T=1.32,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0069 |
GGN155,GUN156,KUN156..AGTSU T=1.12,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0065 |
GGN155,GUN156,KUN156..AGTSU T=1.02,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0079 |
GGN155,GUN156,KUN156..AGTSU T=1.37,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0070 |
GGN155,GUN156,KUN156..AGTSU T=1.14,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0073 |
GGN155,GUN156,KUN156..AGTSU T=1.22,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0085 |
GGN155,GUN156,KUN156..AGTSU T=1.52,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0087 |
GGN155,GUN156,KUN156..AGTSU T=1.57,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0083 |
GGN155,GUN156,KUN156..AGTSU T=1.47,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0088 |
GGN155,GUN156,KUN156..AGTSU T=1.60,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0084 |
GGN155,GUN156,KUN156..AGTSU T=1.50,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0098 |
GGN155,GUN156,KUN156..AGTSU T=1.85,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0093 |
GGN155,GUN156,KUN156..AGTSU T=1.73,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0086 |
GGN155,GUN156,KUN156..AGTSU T=1.55,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0092 |
GGN155,GUN156,KUN156..AGTSU T=1.70,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0090 |
GGN155,GUN156,KUN156..AGTSU T=1.65,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0091 |
GGN155,GUN156,KUN156..AGTSU T=1.68,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0089 |
GGN155,GUN156,KUN156..AGTSU T=1.63,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0097 |
GGN155,GUN156,KUN156..AGTSU T=1.83,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0102 |
GGN155,GUN156,KUN156..AGTSU T=1.96,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0099 |
GGN155,GUN156,KUN156..AGTSU T=1.88,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0094 |
GGN155,GUN156,KUN156..AGTSU T=1.75,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0095 |
GGN155,GUN156,KUN156..AGTSU T=1.78,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0101 |
GGN155,GUN156,KUN156..AGTSU T=1.93,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0096 |
GGN155,GUN156,KUN156..AGTSU T=1.80,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0111 |
GGN155,GUN156,KUN156..AGTSU T=2.18,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0103 |
GGN155,GUN156,KUN156..AGTSU T=1.98,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0100 |
GGN155,GUN156,KUN156..AGTSU T=1.91,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0107 |
GGN155,GUN156,KUN156..AGTSU T=2.08,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0104 |
GGN155,GUN156,KUN156..AGTSU T=2.01,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0109 |
GGN155,GUN156,KUN156..AGTSU T=2.13,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0113 |
GGN155,GUN156,KUN156..AGTSU T=2.24,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0105 |
GGN155,GUN156,KUN156..AGTSU T=2.03,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0114 |
GGN155,GUN156,KUN156..AGTSU T=2.26,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0108 |
GGN155,GUN156,KUN156..AGTSU T=2.11,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0116 |
GGN155,GUN156,KUN156..AGTSU T=2.31,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0110 |
GGN155,GUN156,KUN156..AGTSU T=2.16,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0112 |
GGN155,GUN156,KUN156..AGTSU T=2.21,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0123 |
GGN155,GUN156,KUN156..AGTSU T=2.49,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0106 |
GGN155,GUN156,KUN156..AGTSU T=2.06,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0117 |
GGN155,GUN156,KUN156..AGTSU T=2.34,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0115 |
GGN155,GUN156,KUN156..AGTSU T=2.29,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0125 |
GGN155,GUN156,KUN156..AGTSU T=2.54,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0120 |
GGN155,GUN156,KUN156..AGTSU T=2.41,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0119 |
GGN155,GUN156,KUN156..AGTSU T=2.39,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0118 |
GGN155,GUN156,KUN156..AGTSU T=2.36,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0122 |
GGN155,GUN156,KUN156..AGTSU T=2.46,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0124 |
GGN155,GUN156,KUN156..AGTSU T=2.51,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0121 |
GGN155,GUN156,KUN156..AGTSU T=2.44,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59049 |
GGN155,GUN156,KUN156..AGTSU T=2.18,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59050 |
GGN155,GUN156,KUN156..AGTSU T=2.20,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59046 |
GGN155,GUN156,KUN156..AGTSU T=2.12,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59044 |
GGN155,GUN156,KUN156..AGTSU T=2.08,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59045 |
GGN155,GUN156,KUN156..AGTSU T=2.10,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59054 |
GGN155,GUN156,KUN156..AGTSU T=2.28,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59053 |
GGN155,GUN156,KUN156..AGTSU T=2.26,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59047 |
GGN155,GUN156,KUN156..AGTSU T=2.14,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59048 |
GGN155,GUN156,KUN156..AGTSU T=2.16,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59058 |
GGN155,GUN156,KUN156..AGTSU T=2.36,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59059 |
GGN155,GUN156,KUN156..AGTSU T=2.38,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59052 |
GGN155,GUN156,KUN156..AGTSU T=2.24,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59057 |
GGN155,GUN156,KUN156..AGTSU T=2.34,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59067 |
GGN155,GUN156,KUN156..AGTSU T=2.54,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59066 |
GGN155,GUN156,KUN156..AGTSU T=2.52,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59051 |
GGN155,GUN156,KUN156..AGTSU T=2.22,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59071 |
GGN155,GUN156,KUN156..AGTSU T=2.62,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59063 |
GGN155,GUN156,KUN156..AGTSU T=2.46,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59056 |
GGN155,GUN156,KUN156..AGTSU T=2.32,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59062 |
GGN155,GUN156,KUN156..AGTSU T=2.44,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59065 |
GGN155,GUN156,KUN156..AGTSU T=2.50,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59055 |
GGN155,GUN156,KUN156..AGTSU T=2.30,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59060 |
GGN155,GUN156,KUN156..AGTSU T=2.40,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59064 |
GGN155,GUN156,KUN156..AGTSU T=2.48,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59069 |
GGN155,GUN156,KUN156..AGTSU T=2.58,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59070 |
GGN155,GUN156,KUN156..AGTSU T=2.60,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59061 |
GGN155,GUN156,KUN156..AGTSU T=2.42,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59078 |
GGN155,GUN156,KUN156..AGTSU T=2.12,RH |
1 | ||
| 90564-59075 |
GGN155,GUN156,KUN156..AGTSU T=2.06,RH |
1 | ||
| 90564-59077 |
GGN155,GUN156,KUN156..AGTSU T=2.10,RH |
1 | ||
| 90564-59068 |
GGN155,GUN156,KUN156..AGTSU T=2.56,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59088 |
GGN155,GUN156,KUN156..AGTSU T=2.32,RH |
1 | ||
| 90564-59072 |
GGN155,GUN156,KUN156..AGTSU T=2.64,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59074 |
GGN155,GUN156,KUN156..AGTSU T=2.68,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59084 |
GGN155,GUN156,KUN156..AGTSU T=2.24,RH |
1 | ||
| 90564-59083 |
GGN155,GUN156,KUN156..AGTSU T=2.22,RH |
1 | ||
| 90564-59076 |
GGN155,GUN156,KUN156..AGTSU T=2.08,RH |
1 | ||
| 90564-59073 |
GGN155,GUN156,KUN156..AGTSU T=2.66,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59087 |
GGN155,GUN156,KUN156..AGTSU T=2.30,RH |
1 | ||
| 90564-59092 |
GGN155,GUN156,KUN156..AGTSU T=2.40,RH |
1 | ||
| 90564-59080 |
GGN155,GUN156,KUN156..AGTSU T=2.16,RH |
1 | ||
| 90564-59089 |
GGN155,GUN156,KUN156..AGTSU T=2.34,RH |
1 | ||
| 90564-59090 |
GGN155,GUN156,KUN156..AGTSU T=2.36,RH |
1 | ||
| 90564-59086 |
GGN155,GUN156,KUN156..AGTSU T=2.28,RH |
1 | ||
| 90564-59085 |
GGN155,GUN156,KUN156..AGTSU T=2.26,RH |
1 | ||
| 90564-59079 |
GGN155,GUN156,KUN156..AGTSU T=2.14,RH |
1 | ||
| 90564-59082 |
GGN155,GUN156,KUN156..AGTSU T=2.20,RH |
1 | ||
| 90564-59081 |
GGN155,GUN156,KUN156..AGTSU T=2.18,RH |
1 | ||
| 90564-59101 |
GGN155,GUN156,KUN156..AGTSU T=2.58,RH |
1 | ||
| 90564-59097 |
GGN155,GUN156,KUN156..AGTSU T=2.50,RH |
1 | ||
| 90564-59094 |
GGN155,GUN156,KUN156..AGTSU T=2.44,RH |
1 | ||
| 90564-59095 |
GGN155,GUN156,KUN156..AGTSU T=2.46,RH |
1 | ||
| 90564-59106 |
GGN155,GUN156,KUN156..AGTSU T=2.68,RH |
1 | ||
| 90564-59096 |
GGN155,GUN156,KUN156..AGTSU T=2.48,RH |
1 | ||
| 90564-59091 |
GGN155,GUN156,KUN156..AGTSU T=2.38,RH |
1 | ||
| 90564-59105 |
GGN155,GUN156,KUN156..AGTSU T=2.66,RH |
1 | ||
| 90564-59099 |
GGN155,GUN156,KUN156..AGTSU T=2.54,RH |
1 | ||
| 90564-59098 |
GGN155,GUN156,KUN156..AGTSU T=2.52,RH |
1 | ||
| 90564-59104 |
GGN155,GUN156,KUN156..AGTSU T=2.64,RH |
1 | ||
| 90564-59093 |
GGN155,GUN156,KUN156..AGTSU T=2.42,RH |
1 | ||
| 90564-59102 |
GGN155,GUN156,KUN156..AGTSU T=2.60,RH |
1 | ||
| 90564-59103 |
GGN155,GUN156,KUN156..AGTSU T=2.62,RH |
1 | ||
| 90564-59100 |
GGN155,GUN156,KUN156..AGTSU T=2.56,RH |
1 | ||
| 90564-S0027 |
GGN155,GUN156,KUN156..AGTSU T=2.777,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0025 |
GGN155,GUN156,KUN156..AGTSU T=2.832,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0026 |
GGN155,GUN156,KUN156..AGTSU T=2.804,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0029 |
GGN155,GUN156,KUN156..AGTSU T=2.721,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0039 |
GGN155,GUN156,KUN156..AGTSU T=2.441,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0030 |
GGN155,GUN156,KUN156..AGTSU T=2.693,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0038 |
GGN155,GUN156,KUN156..AGTSU T=2.469,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0034 |
GGN155,GUN156,KUN156..AGTSU T=2.581,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0031 |
GGN155,GUN156,KUN156..AGTSU T=2.665,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0035 |
GGN155,GUN156,KUN156..AGTSU T=2.553,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0043 |
GGN155,GUN156,KUN156..AGTSU T=2.329,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0044 |
GGN155,GUN156,KUN156..AGTSU T=2.302,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0036 |
GGN155,GUN156,KUN156..AGTSU T=2.525,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0042 |
GGN155,GUN156,KUN156..AGTSU T=2.357,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0041 |
GGN155,GUN156,KUN156..AGTSU T=2.385,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0028 |
GGN155,GUN156,KUN156..AGTSU T=2.749,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0037 |
GGN155,GUN156,KUN156..AGTSU T=2.497,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0033 |
GGN155,GUN156,KUN156..AGTSU T=2.609,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0047 |
GGN155,GUN156,KUN156..AGTSU T=2.218,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0046 |
GGN155,GUN156,KUN156..AGTSU T=2.246,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0054 |
GGN155,GUN156,KUN156..AGTSU T=2.944,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0056 |
GGN155,GUN156,KUN156..AGTSU T=0.79,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0045 |
GGN155,GUN156,KUN156..AGTSU T=2.274,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0051 |
GGN155,GUN156,KUN156..AGTSU T=2.860,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0032 |
GGN155,GUN156,KUN156..AGTSU T=2.637,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0061 |
GGN155,GUN156,KUN156..AGTSU T=0.91,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0048 |
GGN155,GUN156,KUN156..AGTSU T=2.190,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0058 |
GGN155,GUN156,KUN156..AGTSU T=0.84,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0059 |
GGN155,GUN156,KUN156..AGTSU T=0.86,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0055 |
GGN155,GUN156,KUN156..AGTSU T=0.76,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0062 |
GGN155,GUN156,KUN156..AGTSU T=0.94,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0057 |
GGN155,GUN156,KUN156..AGTSU T=0.81,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0052 |
GGN155,GUN156,KUN156..AGTSU T=2.888,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0064 |
GGN155,GUN156,KUN156..AGTSU T=0.99,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0060 |
GGN155,GUN156,KUN156..AGTSU T=0.89,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0063 |
GGN155,GUN156,KUN156..AGTSU T=0.97,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0050 |
GGN155,GUN156,KUN156..AGTSU T=2.134,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0049 |
GGN155,GUN156,KUN156..AGTSU T=2.162,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0040 |
GGN155,GUN156,KUN156..AGTSU T=2.413,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0067 |
GGN155,GUN156,KUN156..AGTSU T=1.07,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0076 |
GGN155,GUN156,KUN156..AGTSU T=1.30,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0072 |
GGN155,GUN156,KUN156..AGTSU T=1.19,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0068 |
GGN155,GUN156,KUN156..AGTSU T=1.09,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0074 |
GGN155,GUN156,KUN156..AGTSU T=1.24,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0075 |
GGN155,GUN156,KUN156..AGTSU T=1.27,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0080 |
GGN155,GUN156,KUN156..AGTSU T=1.40,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0066 |
GGN155,GUN156,KUN156..AGTSU T=1.04,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0053 |
GGN155,GUN156,KUN156..AGTSU T=2.916,DIFFERENTIAL LOCK-WITH,LH |
1 | ||
| 90564-S0071 |
GGN155,GUN156,KUN156..AGTSU T=1.17,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0078 |
GGN155,GUN156,KUN156..AGTSU T=1.35,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0081 |
GGN155,GUN156,KUN156..AGTSU T=1.42,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0082 |
GGN155,GUN156,KUN156..AGTSU T=1.45,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0077 |
GGN155,GUN156,KUN156..AGTSU T=1.32,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0069 |
GGN155,GUN156,KUN156..AGTSU T=1.12,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0065 |
GGN155,GUN156,KUN156..AGTSU T=1.02,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0079 |
GGN155,GUN156,KUN156..AGTSU T=1.37,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0070 |
GGN155,GUN156,KUN156..AGTSU T=1.14,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0073 |
GGN155,GUN156,KUN156..AGTSU T=1.22,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0085 |
GGN155,GUN156,KUN156..AGTSU T=1.52,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0087 |
GGN155,GUN156,KUN156..AGTSU T=1.57,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0083 |
GGN155,GUN156,KUN156..AGTSU T=1.47,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0088 |
GGN155,GUN156,KUN156..AGTSU T=1.60,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0084 |
GGN155,GUN156,KUN156..AGTSU T=1.50,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0098 |
GGN155,GUN156,KUN156..AGTSU T=1.85,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0093 |
GGN155,GUN156,KUN156..AGTSU T=1.73,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0086 |
GGN155,GUN156,KUN156..AGTSU T=1.55,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0092 |
GGN155,GUN156,KUN156..AGTSU T=1.70,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0090 |
GGN155,GUN156,KUN156..AGTSU T=1.65,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0091 |
GGN155,GUN156,KUN156..AGTSU T=1.68,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0089 |
GGN155,GUN156,KUN156..AGTSU T=1.63,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0097 |
GGN155,GUN156,KUN156..AGTSU T=1.83,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0102 |
GGN155,GUN156,KUN156..AGTSU T=1.96,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0099 |
GGN155,GUN156,KUN156..AGTSU T=1.88,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0094 |
GGN155,GUN156,KUN156..AGTSU T=1.75,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0095 |
GGN155,GUN156,KUN156..AGTSU T=1.78,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0101 |
GGN155,GUN156,KUN156..AGTSU T=1.93,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0096 |
GGN155,GUN156,KUN156..AGTSU T=1.80,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0111 |
GGN155,GUN156,KUN156..AGTSU T=2.18,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0103 |
GGN155,GUN156,KUN156..AGTSU T=1.98,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0100 |
GGN155,GUN156,KUN156..AGTSU T=1.91,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0107 |
GGN155,GUN156,KUN156..AGTSU T=2.08,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0104 |
GGN155,GUN156,KUN156..AGTSU T=2.01,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0109 |
GGN155,GUN156,KUN156..AGTSU T=2.13,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0113 |
GGN155,GUN156,KUN156..AGTSU T=2.24,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0105 |
GGN155,GUN156,KUN156..AGTSU T=2.03,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0114 |
GGN155,GUN156,KUN156..AGTSU T=2.26,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0108 |
GGN155,GUN156,KUN156..AGTSU T=2.11,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0116 |
GGN155,GUN156,KUN156..AGTSU T=2.31,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0110 |
GGN155,GUN156,KUN156..AGTSU T=2.16,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0112 |
GGN155,GUN156,KUN156..AGTSU T=2.21,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0123 |
GGN155,GUN156,KUN156..AGTSU T=2.49,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0106 |
GGN155,GUN156,KUN156..AGTSU T=2.06,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0117 |
GGN155,GUN156,KUN156..AGTSU T=2.34,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0115 |
GGN155,GUN156,KUN156..AGTSU T=2.29,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0125 |
GGN155,GUN156,KUN156..AGTSU T=2.54,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0120 |
GGN155,GUN156,KUN156..AGTSU T=2.41,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0119 |
GGN155,GUN156,KUN156..AGTSU T=2.39,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0118 |
GGN155,GUN156,KUN156..AGTSU T=2.36,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0122 |
GGN155,GUN156,KUN156..AGTSU T=2.46,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0124 |
GGN155,GUN156,KUN156..AGTSU T=2.51,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 90564-S0121 |
GGN155,GUN156,KUN156..AGTSU T=2.44,DIFFERENTIAL LOCK-WITH,RH |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12365 |
GGN155,GUN156,KUN156..AGTSU |
12 | ||
| 90105-F0003 |
GGN155,GUN156,KUN156..AGTSU DIFFERENTIAL LOCK-WITH |
12 | ||
| Common parts | ||||
| 90114-F0001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
