KUN156L-SGFLYF (2015)

Toyota Fortuner

Production Dec 2015 - Sep 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )1KDFTV..GEN,LA,PHL,SA,TH

Click highlighted areas on diagram

diagram 1701 1708 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 2606 8405 8405 8405 90105T0054 90105T0070 9011906830 90119T0064 90119T0331 90119T0331 90119T0331 9017606019 9046065012 9046065012 9167100816 9167100816 91671B0816 91671B0816
Part # Description Qty Price
Common parts
90105-T0054
90105-T0070
90119-06830
90119-T0064
90119-T0331
90176-06019
90460-65012
91671-00816
91671-B0816
Linked diagrams
1701
1708
2606
8405

ILLUST NO. 1 OF 2(0501- )1KDFTV..IND,LA,SA

Click highlighted areas on diagram

diagram 1701 17700 17705 17750 17801 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
Common parts
90099-00289
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701

ILLUST NO. 1 OF 2(1512- )1KDFTV

Click highlighted areas on diagram

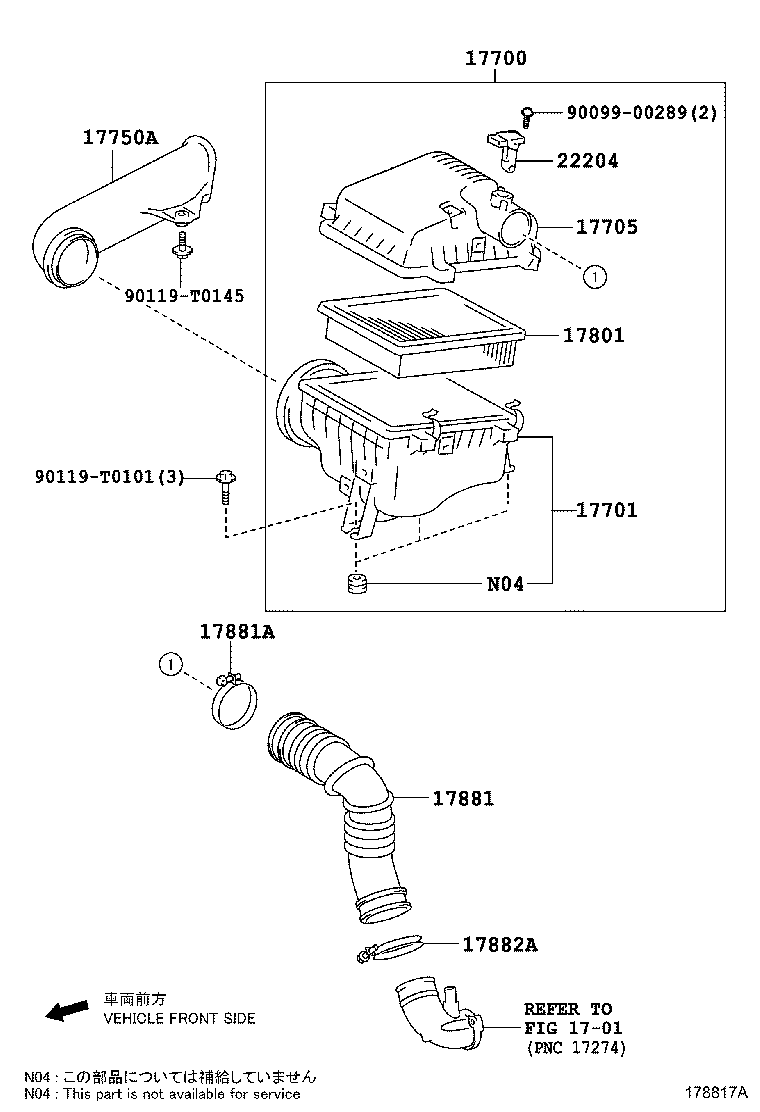

AIR CLEANER

diagram 1701 17700 17701 17705 17750A 17801 17881 17881A 17882A 22204 9009900289 90119T0101 90119T0145
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0L340

1KDFTV..KUN156..AGTSU

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0C190

1KDFTV..KUN156..AGTSU

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L370

1KDFTV..KUN156..AGTSU

 1
17750A - INLET ASSY, AIR CLEANER
17750-0L090

1KDFTV..KUN156..AGTSU

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0L040

1KDFTV,2KDFTV..KUN156,165..AGTSU,SASUV

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L200

1KDFTV..KUN156..AGTSU,SASUV

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0020

1KDFTV,2KDFTV..KUN156,165

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-T0005

1KDFTV..KUN156

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0L010

1KDFTV..KUN156

 1
Common parts
90099-00289
90119-T0101
90119-T0145
Linked diagrams
1701

ILLUST NO. 2 OF 2(1512- )1KDFTV

Click highlighted areas on diagram

INTERCOOLER

diagram 12601E 1701 17116 17341K 17341L 17341L 17342F 17342G 17342G 17861 17940D 17945 17946 2606 8405 8405 8405 8405 90105T0054 90105T0070 9011906830 9011906830 9011908C79 9011908C79 9011908C79 90119T0429 90119T0429 90119T0429 9017606019 9167100816 9167100816
Part # Description Qty Price
12601E - COVER SUB-ASSY, ENGINE, NO.1
12601-0L060

1KDFTV..KUN156..AGTSU

 1
17116 - GASKET, INTAKE FLANGE
17116-0L010

1KDFTV..KUN156..AGTSU,SASUV

 1
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-30060

1KDFTV..KUN156..AGTSU,SASUV

 1
17341L - CLAMP, HOSE
90460-80006

1KDFTV..KUN156..AGTSU,SASUV

 2
17341L - CLAMP, HOSE
90460-80006

1KDFTV..KUN156..AGTSU,SASUV

 2
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30010

1KDFTV..KUN156..AGTSU,SASUV

 1
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-65012

1KDFTV..KUN156..AGTSU,SASUV

 2
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-65012

1KDFTV..KUN156..AGTSU,SASUV

 2
17861 - CONNECTOR, INTAKE AIR
17860-0L020

1KDFTV..KUN156..AGTSU,SASUV

 1
17940D - INTERCOOLER ASSY
17940-0L020

1KDFTV..KUN156..AGTSU

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-0L010

1KDFTV..KUN156..AGTSU,SASUV

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30030

1KDFTV..KUN156..AGTSU,SASUV

 1
Common parts
90105-T0054
90105-T0070
90119-06830
90119-08C79
90119-T0429
90176-06019
91671-00816
Linked diagrams
1701
2606
8405
