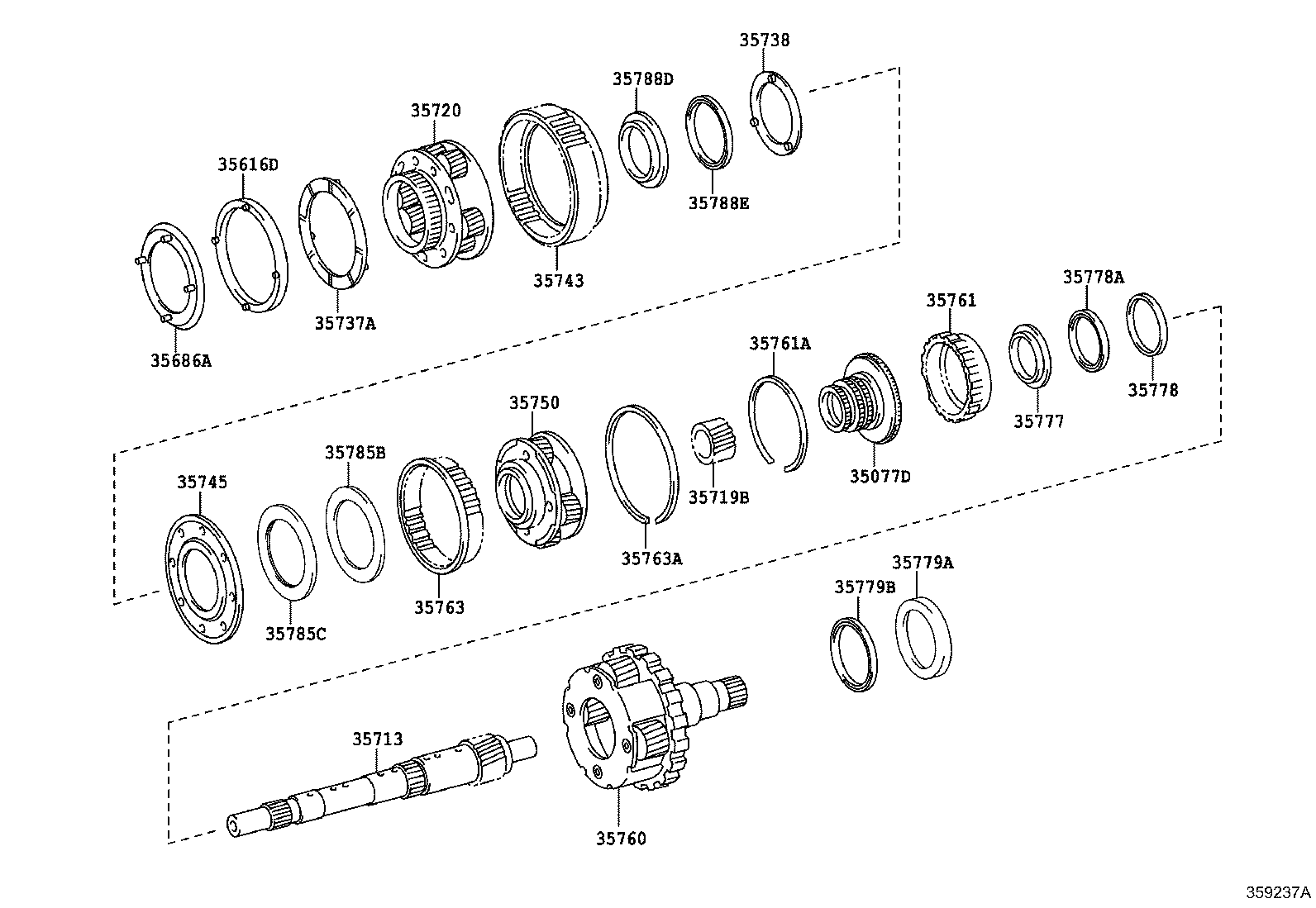

KUN156L-SGALYF (2015)
Toyota Fortuner
(1512- )5FC
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR | ||||
| 35077-60010 |
KUN156..5FC |
1 | ||
| 35616D - WASHER, CLUTCH DRUM THRUST | ||||
| 35616-60010 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35686A - WASHER, CLUTCH DRUM THRUST, NO.2 | ||||
| 35686-60010 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-60090 |
KUN156..5FC |
1 | ||
| 35719B - GEAR, PLANETARY SUN | ||||
| 35719-60050 |
KUN156..5FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-60070 |
KUN156..5FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-60030 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-60030 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-60060 |
KUN156..5FC |
1 | ||
| 35745 - FLANGE, FRONT PLANETARY RING GEAR | ||||
| 35745-60010 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35750 - GEAR ASSY, CENTER PLANETARY | ||||
| 35750-60010 |
KUN156..5FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-60100 |
KUN156..5FC |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-60040 |
KUN156..5FC |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-99073 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35763 - GEAR, CENTER PLANETARY RING | ||||
| 35763-60020 |
KUN156..5FC |
1 | ||
| 35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR) | ||||
| 90520-99076 |
KUN156..5FC |
1 | ||
| 35777 - RACE, THRUST BEARING, NO.7 | ||||
| 35777-60010 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35778 - RACE, THRUST BEARING, NO.8 | ||||
| 35778-60010 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35778A - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-32010 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35779A - RACE, THRUST BEARING, NO.9 | ||||
| 35779-60011 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35779B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-43007 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35785B - RACE, THRUST BEARING, NO.4 | ||||
| 35785-60010 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35785C - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-55004 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM |
1 | ||
| 35788D - RACE, THRUST BEARING, NO.3 | ||||
| 35788-60010 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
| 35788E - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-44005 |
KUN156..(AGTSU,SASUV)..5FC |
1 | ||
