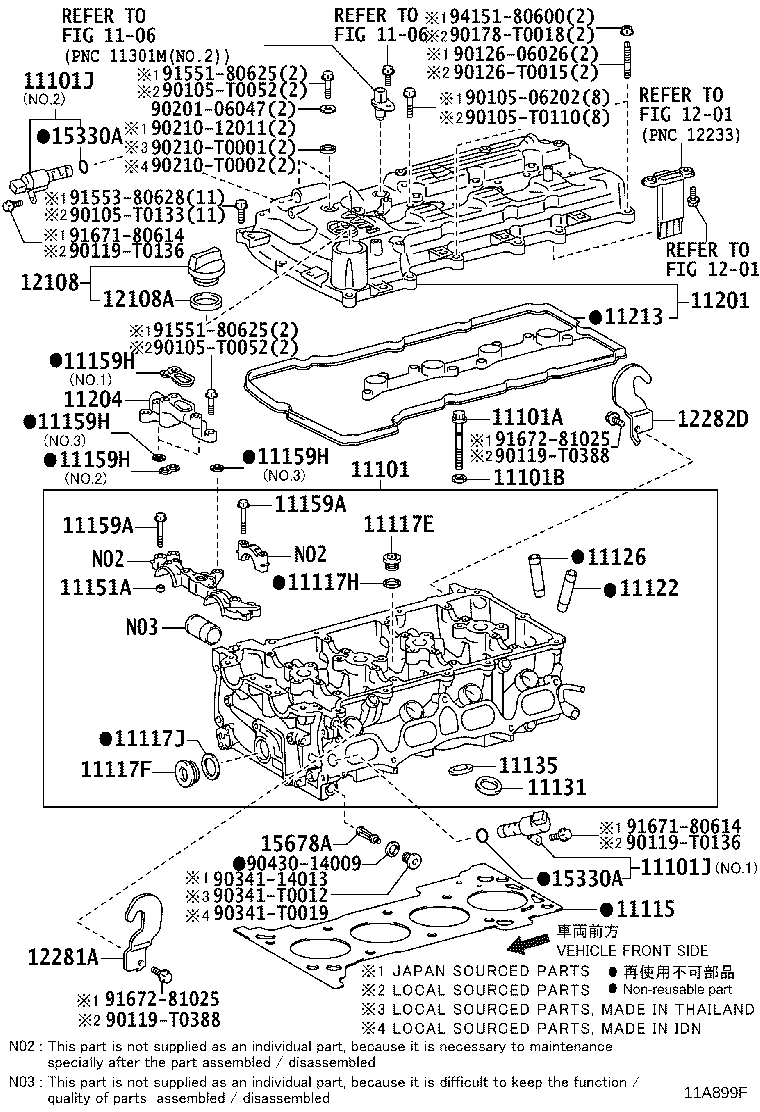

GUN166R-STTMHT (2015)
Toyota Fortuner
(1507- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.2 |
4 | ||
| 90910-T2010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.1 |
6 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.2 |
4 | ||
| 90910-T2010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.1 |
6 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05060 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-T0026 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
6 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-T0011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV L=8,OD=5,*582 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0E010D0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK D,(L) |
1 | ||
| 11115-0E010C0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK C,(L) |
1 | ||
| 11115-0E010B0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK B,(L) |
1 | ||
| 11115-0E010A0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK A,(L) |
1 | ||
| 11115-11110E0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK E,(J) |
1 | ||
| 11115-0E010E0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK E,(L) |
1 | ||
| 11115-11110C0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK C,(J) |
1 | ||
| 11115-11110A0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK A,(J) |
1 | ||
| 11115-11110D0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK D,(J) |
1 | ||
| 11115-11110B0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK B,(J) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-T0005 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV O/S 0.05 |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV O/S 0.05 |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV STD |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0E010 |
1GDFTV,2GDFTV..GUN15#,16# MARK=11201-0E010 |
1 | ||
| 11201-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV MARK=11201-0E011 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11382C - RETAINER, CAMSHAFT OIL SEAL | ||||
| 11382-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV BLACK |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *231,*501,SILVER |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12632 - BRACKET, ENGINE COVER, NO.2 | ||||
| 12632-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 23682 - GASKET, NOZZLE HOLDER | ||||
| 23682-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
4 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0073 | ||||
| 90109-06384 | ||||
| 90109-06385 | ||||
| 90109-T0055 | ||||
| 90109-T0062 | ||||
| 90119-T0219 | ||||
| 90119-T0238 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 90126-06030 | ||||
| 90176-08058 | ||||
| 90178-T0018 | ||||
| 91551-80625 | ||||
| 91552-81025 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 91671-80835 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1905 | ||||
| 8405 | ||||
(1512- )2TRFE..TGN156..H,L,M ; (1512- )2TRFE..TGN166..THSUV..5F ; (1512- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.2 |
4 | ||
| 90910-T2011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.2 |
4 | ||
| 90910-T2010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.1 |
6 | ||
| 90910-T2010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.1 |
6 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0E010D0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK D,(L) |
1 | ||
| 11115-0E010D0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK D,(L) |
1 | ||
| 11115-0E010C0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK C,(L) |
1 | ||
| 11115-0E010C0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK C,(L) |
1 | ||
| 11115-0E010B0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK B,(L) |
1 | ||
| 11115-0E010B0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK B,(L) |
1 | ||
| 11115-0E010A0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK A,(L) |
1 | ||
| 11115-0E010A0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK A,(L) |
1 | ||
| 11115-11110E0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK E,(J) |
1 | ||
| 11115-11110E0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK E,(J) |
1 | ||
| 11115-0E010E0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK E,(L) |
1 | ||
| 11115-0E010E0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK E,(L) |
1 | ||
| 11115-11110C0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK C,(J) |
1 | ||
| 11115-11110C0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK C,(J) |
1 | ||
| 11115-11110A0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK A,(J) |
1 | ||
| 11115-11110A0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK A,(J) |
1 | ||
| 11115-11110D0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK D,(J) |
1 | ||
| 11115-11110D0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK D,(J) |
1 | ||
| 11115-11110B0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK B,(J) |
1 | ||
| 11115-11110B0 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..IDNSU..LA;1GDFTV,2GDFTV..GUN15#,16#..THSUV;2GDFTV..GUN165..IDNSU..(H,S)..GCC;2GDFTV..GUN155,165..LHD..(IDNSU,SASUV)..6F..(GCC,SA) MARK B,(J) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-T0005 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
4 | ||
| 90341-T0005 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV O/S 0.05 |
8 | ||
| 11122-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV O/S 0.05 |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV STD |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV O/S 0.05 |
8 | ||
| 11122-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV O/S 0.05 |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV STD |
8 | ||
| 11123-30020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV STD |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV *582,NO.1 |
16 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90105-T0130 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,NO.3 |
2 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90119-T0551 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 90109-06080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J),*582 |
16 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11159-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0E010 |
1GDFTV,2GDFTV..GUN15#,16# MARK=11201-0E010 |
1 | ||
| 11201-0E010 |
1GDFTV,2GDFTV..GUN15#,16# MARK=11201-0E010 |
1 | ||
| 11201-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV MARK=11201-0E011 |
1 | ||
| 11201-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV MARK=11201-0E011 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11213-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12180-0H020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 90080-43027 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12281-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV BLACK |
1 | ||
| 12282-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV BLACK |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0052 | ||||
| 90105-T0110 | ||||
| 90105-T0133 | ||||
| 90119-T0136 | ||||
| 90119-T0388 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90201-06047 | ||||
| 90210-12011 | ||||
| 90210-T0001 | ||||
| 90210-T0002 | ||||
| 90341-14013 | ||||
| 90341-T0012 | ||||
| 90341-T0019 | ||||
| 90430-14009 | ||||
| 91551-80625 | ||||
| 91553-80628 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
