Toyota Fortuner GUN156 EXHAUST GAS RECIRCULATION SYSTEM

Manufacturers Home
Toyota
GR
FORTUNER
GUN156R-STFLHQ (2015)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

GUN156R-STFLHQ (2015)

Toyota Fortuner

Production Jul 2015 - May 2018

Engine 1GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1507- )2GDFTV..GUN155..H..GCC ; (1507- )1GDFTV..GUN156..H..GCC,GEN ; (1507-

Click highlighted areas on diagram

EURO 2

Part #	Description	Period	Qty
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25624 - ADAPTER, EGR VALVE
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627 - GASKET, EGR VALVE
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
Common parts
90105-T0156
90105-T0285
90119-T0342
91551-80835
91551-G0865
91671-80820
Linked diagrams
1603
1701

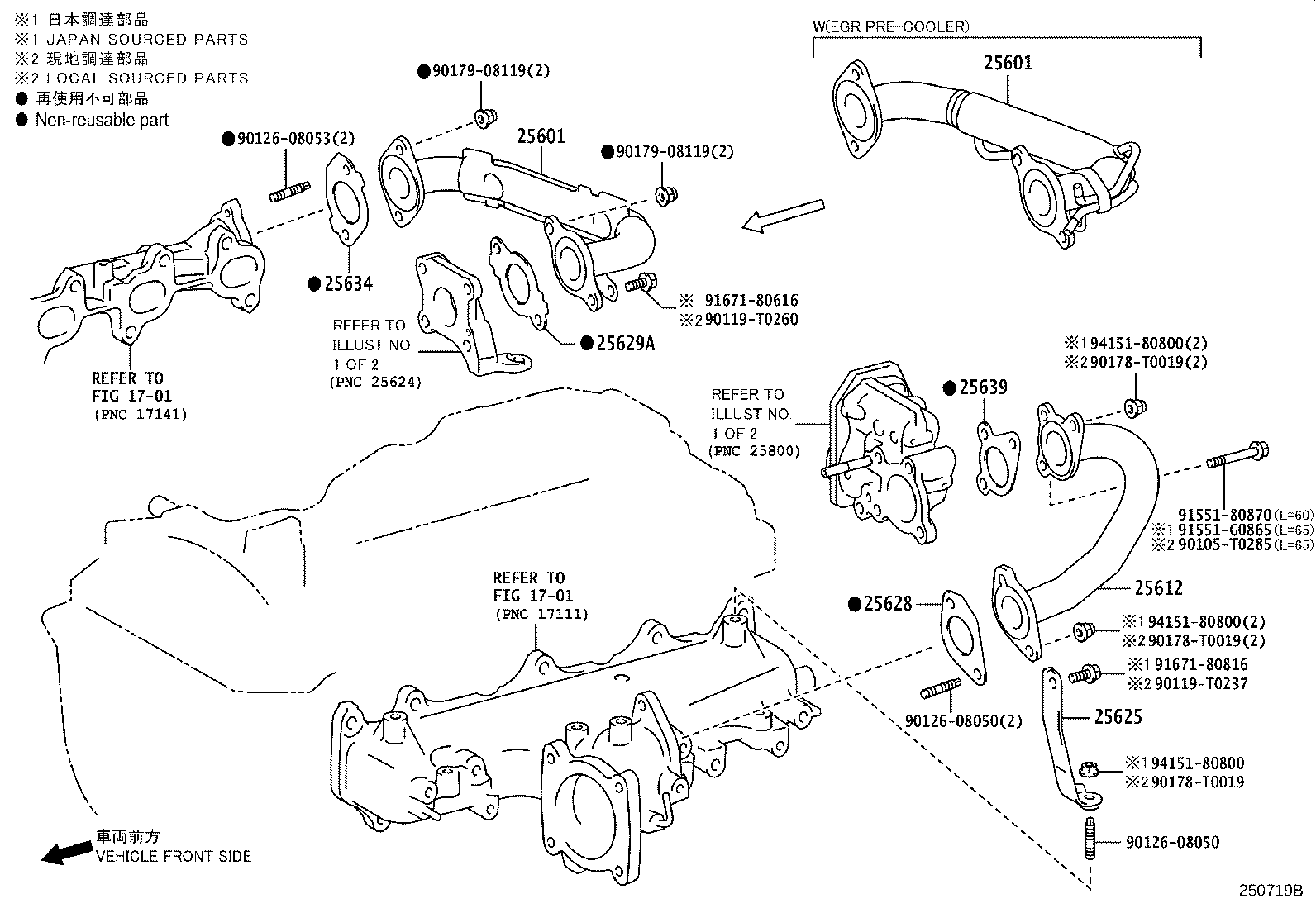

ILLUST NO. 2 OF 2(1507- )2GDFTV..GUN155..H..GCC ; (1507- )1GDFTV..GUN156..H..GCC,GEN ; (1507-

Click highlighted areas on diagram

EURO 2

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25612 - PIPE, EGR, NO.2
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625 - BRACKET, EGR VALVE
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25628 - GASKET, EGR INLET
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629A - GASKET, EGR PIPE, NO.2
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25634 - GASKET, EGR PIPE
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25639 - GASKET, EGR PIPE, NO.3
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
Common parts
90105-T0285
90119-T0237
90119-T0260
90126-08050
90126-08053
90178-T0019
90179-08119
91551-G0865
91671-80816
94151-80800
Linked diagrams
1701

ILLUST NO. 1 OF 2(1507- )1GDFTV..GUN156..IDNSU,THSUV..GCC,LA,PH,VN ; (1507- )1GDFTV..GUN156..L

Click highlighted areas on diagram

Part #	Description	Period	Qty
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25624 - ADAPTER, EGR VALVE
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627 - GASKET, EGR VALVE
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25630 - VALVE ASSY, EGR, NO.2
25630-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) IDN SOURCED PARTS	07/2015 - 04/2020	1
25630-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) IDN SOURCED PARTS	07/2015 - 04/2020	1
25630-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) IDN SOURCED PARTS	07/2015 - 04/2020	1
25630-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 05/2020	1
25630-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 05/2020	1
25630-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 05/2020	1
25633 - GASKET, EGR VALVE
25633-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25633-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25633-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25633-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25633-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25633-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25681 - COOLER, EGR, NO.1
25681-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S)	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S)	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S)	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..6F..(ARL,BZAGT,LA);1GDFTV..GUN156..6FC..S..HDCR..BZAGT;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) THA SOURCED PARTS	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..6F..(ARL,BZAGT,LA);1GDFTV..GUN156..6FC..S..HDCR..BZAGT;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) THA SOURCED PARTS	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..6F..(ARL,BZAGT,LA);1GDFTV..GUN156..6FC..S..HDCR..BZAGT;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) THA SOURCED PARTS	07/2015 - 10/2020	1
25685 - GASKET, EGR COOLER, NO.1
25685-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25685-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25685-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25685-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25685-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25685-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
Common parts
90105-T0156
90105-T0265
90105-T0285
90119-T0342
91551-10860
91551-80835
91551-80890
91551-G0865
91671-80820
Linked diagrams
1603
1701

ILLUST NO. 1 OF 2(1507- )2GDFTV..GUN155..L..MA ; (1507- )1GDFTV..GUN156..H..BZAGT ; (1507-

Click highlighted areas on diagram

Part #	Description	Period	Qty
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08064	1GDFTV..GUN156..6F..ARL (J),NO.1	07/2015 - 08/2017	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-08047	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) NO.1	07/2015 - 12/2020	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
90126-T0018	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L),NO.2	07/2015 - 12/2999	2
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25620J - BOLT(FOR EGR VALVE)
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
91671-80825	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
90119-T0238	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	7
25624 - ADAPTER, EGR VALVE
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25624-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627 - GASKET, EGR VALVE
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25627-11050	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25630 - VALVE ASSY, EGR, NO.2
25630-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) IDN SOURCED PARTS	07/2015 - 04/2020	1
25630-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) IDN SOURCED PARTS	07/2015 - 04/2020	1
25630-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) IDN SOURCED PARTS	07/2015 - 04/2020	1
25630-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 05/2020	1
25630-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 05/2020	1
25630-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 05/2020	1
25633 - GASKET, EGR VALVE
25633-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25633-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25633-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25633-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25633-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25633-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25681 - COOLER, EGR, NO.1
25681-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S)	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S)	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S)	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..6F..(ARL,BZAGT,LA);1GDFTV..GUN156..6FC..S..HDCR..BZAGT;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) THA SOURCED PARTS	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..6F..(ARL,BZAGT,LA);1GDFTV..GUN156..6FC..S..HDCR..BZAGT;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) THA SOURCED PARTS	07/2015 - 10/2020	1
25681-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..6F..(ARL,BZAGT,LA);1GDFTV..GUN156..6FC..S..HDCR..BZAGT;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) THA SOURCED PARTS	07/2015 - 10/2020	1
25685 - GASKET, EGR COOLER, NO.1
25685-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25685-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25685-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25685-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25685-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25685-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25800-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
Common parts
90105-T0156
90105-T0265
90105-T0285
90119-T0342
91551-10860
91551-80835
91551-80890
91551-G0865
91671-80820
Linked diagrams
1603
1701

ILLUST NO. 2 OF 2(1507- )1GDFTV..GUN156..IDNSU,THSUV..GCC,LA,PH,VN ; (1507- )1GDFTV..GUN156..L

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25612 - PIPE, EGR, NO.2
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625 - BRACKET, EGR VALVE
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25628 - GASKET, EGR INLET
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629A - GASKET, EGR PIPE, NO.2
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25634 - GASKET, EGR PIPE
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25639 - GASKET, EGR PIPE, NO.3
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
Common parts
90105-T0285
90119-T0237
90119-T0260
90126-08050
90126-08053
90178-T0019
90179-08119
91551-80870
91551-G0865
91671-80616
91671-80816
94151-80800
Linked diagrams
1701

ILLUST NO. 2 OF 2(1507- )2GDFTV..GUN155..L..MA ; (1507- )1GDFTV..GUN156..H..BZAGT ; (1507-

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-11060	1GDFTV..GUN156..6F..ARL (J)	07/2015 - 08/2017	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25611-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25612 - PIPE, EGR, NO.2
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) THA SOURCED PARTS	07/2015 - 12/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25612-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625 - BRACKET, EGR VALVE
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25625-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV..GUN156..IDNSU..(LA,PH,VN);1GDFTV,2GDFTV..GUN155,166..GEN,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 10/2020	1
25628 - GASKET, EGR INLET
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-0E010	1GDFTV..GUN156..LHD..SA;1GDFTV,2GDFTV..GUN15#,16#..ARL,BZAGT,GEN,LA,PH,TH,VN THA SOURCED PARTS	07/2015 - 10/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25628-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629A - GASKET, EGR PIPE, NO.2
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25629-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) (L)	07/2015 - 12/2999	1
25634 - GASKET, EGR PIPE
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25634-0E010	1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..LA,PH,TH,VN;1GDFTV,2GDFTV..GUN155,166..GEN,IND,TH;1GDFTV..GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);1GDFTV..GUN156..(IDNSU,INDSU)..(IND,LA,PH,VN) (L)	07/2015 - 12/2020	1
25639 - GASKET, EGR PIPE, NO.3
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
25639-0E010	1GDFTV..GUN156..RHD..SA;1GDFTV..GUN156..H..BZAGT;2GDFTV..GUN165..LHD..GEN;2GDFTV..GUN165..GCC,IDN,LA,PH,SA,TH,VN;1GDFTV,2GDFTV..GUN155,166..IDNSU,SASUV,THSUV;1GDFTV..GUN156..(IDNSU,THSUV)..(GCC,LA,PH,VN);1GDFTV..GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(L,M,S) THA SOURCED PARTS	07/2015 - 12/2999	1
Common parts
90105-T0285
90119-T0237
90119-T0260
90126-08050
90126-08053
90178-T0019
90179-08119
91551-80870
91551-G0865
91671-80616
91671-80816
94151-80800
Linked diagrams
1701

GUN156R-STFLHQ (2015)

ILLUST NO. 1 OF 2(1507- )2GDFTV..GUN155..H..GCC ; (1507- )1GDFTV..GUN156..H..GCC,GEN ; (1507-

ILLUST NO. 2 OF 2(1507- )2GDFTV..GUN155..H..GCC ; (1507- )1GDFTV..GUN156..H..GCC,GEN ; (1507-

ILLUST NO. 1 OF 2(1507- )1GDFTV..GUN156..IDNSU,THSUV..GCC,LA,PH,VN ; (1507- )1GDFTV..GUN156..L

ILLUST NO. 1 OF 2(1507- )2GDFTV..GUN155..L..MA ; (1507- )1GDFTV..GUN156..H..BZAGT ; (1507-

ILLUST NO. 2 OF 2(1507- )1GDFTV..GUN156..IDNSU,THSUV..GCC,LA,PH,VN ; (1507- )1GDFTV..GUN156..L

ILLUST NO. 2 OF 2(1507- )2GDFTV..GUN155..L..MA ; (1507- )1GDFTV..GUN156..H..BZAGT ; (1507-

Part Price Details
