GUN156R-STFLHQ (2015)
Toyota Fortuner
(1507-1601)THSUV

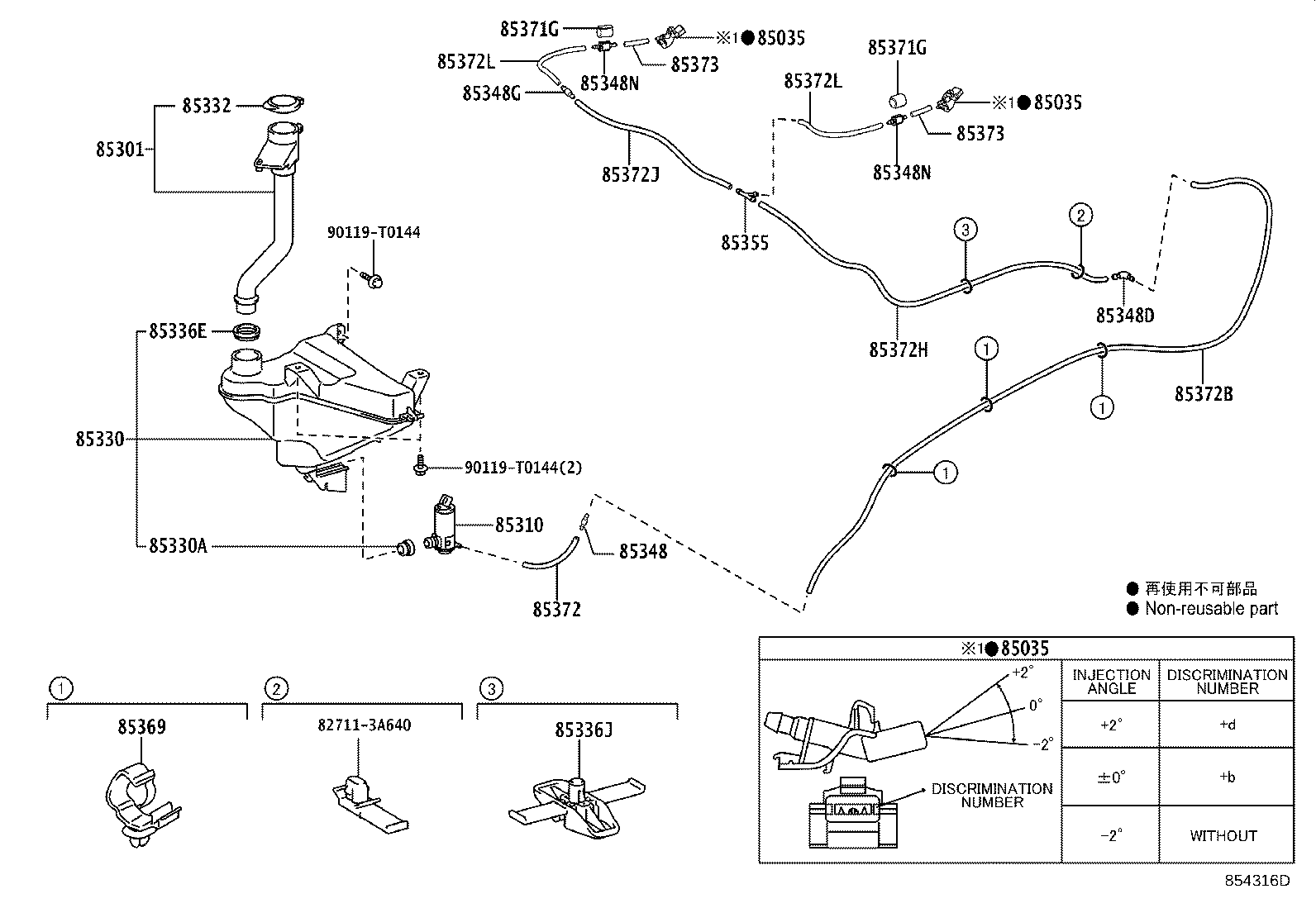

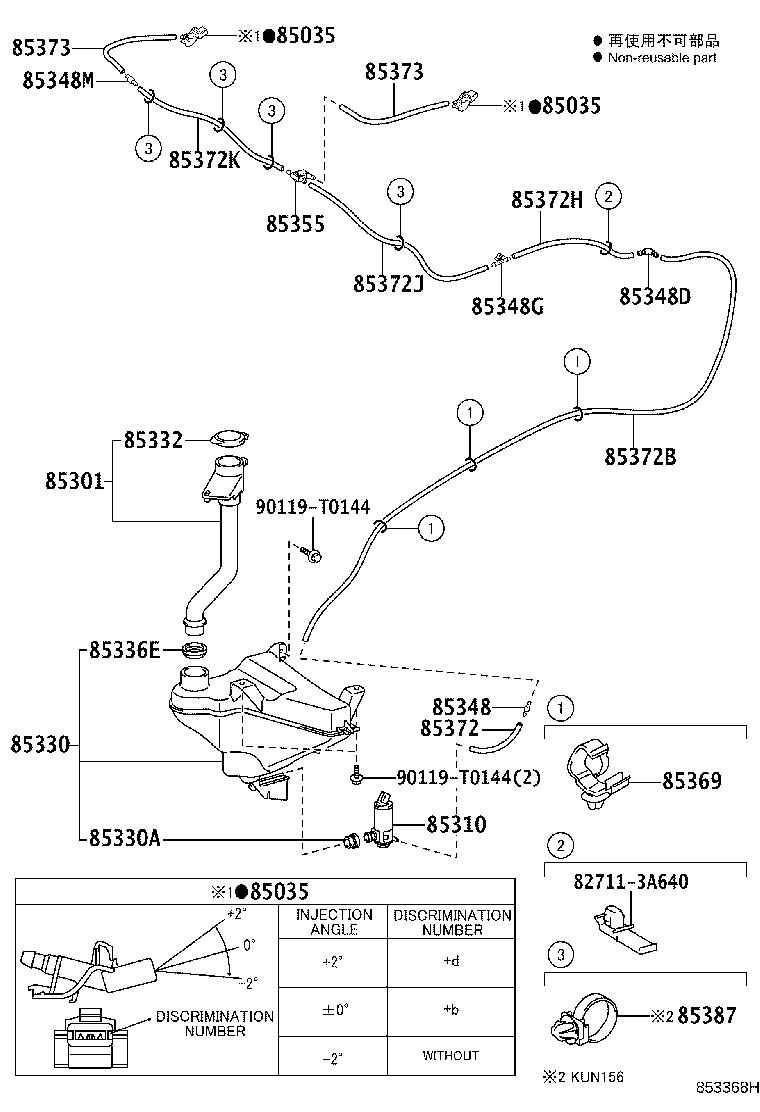

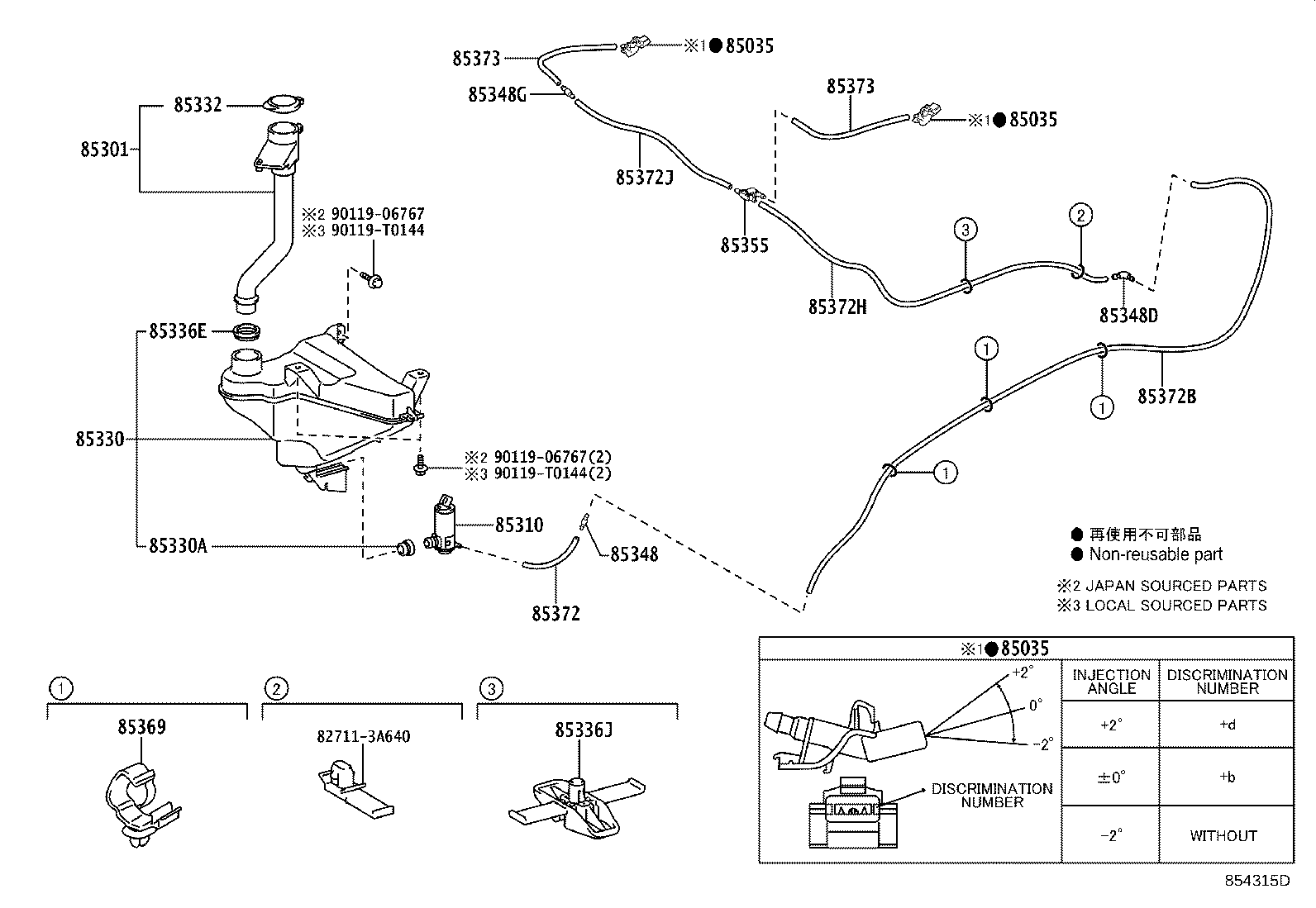

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0K070 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE 0 |
2 | ||
| 85381-0K090 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE +2 |
2 | ||
| 85381-0K080 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0K070 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE 0 |
2 | ||
| 85381-0K090 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE +2 |
2 | ||
| 85381-0K080 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0K070 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE 0 |
2 | ||
| 85381-0K090 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE +2 |
2 | ||
| 85381-0K080 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV ANGLE -2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-0K110 |
TGN156..EPTSU,THSUV;GGN155,165,GUN15#,16#,TGN166..EPTSU,PKNSU,THSUV |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0K050 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0K250 |
GUN156..THSUV..(H,L);TGN156..(EPTSU,THSUV)..(EPT,GCC);GUN156..RHD..(PKNSU,THSUV)..(M,S);GGN155,165,GUN155,16#,TGN166..EPTSU,PKNSU,THSUV |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-YE011 |
TGN156..EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-06101 |
TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85377-0D040 |
TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-17050 |
GUN156,16#,TGN166..THSUV |
1 | ||
| 85375-06101 |
GUN165..M..TH;GUN165..6F..TH;GUN156,166,TGN166..RHD..THSUV |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-06101 |
GUN156,16#,TGN166..THSUV |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GUN165..6F..TH;TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 85321-28020 |
GUN165..6FC..TH;GUN165,TGN166..IDN;GUN15#,166..IDN,TH |
1 | ||
| 85369 - CLAMP | ||||
| 82711-0K070 |
TGN166..IDNSU..5F..GCC;TGN166..LHD..(THSUV,VNSUV);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GEN,IDN,LA,PKN,SA,TH);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
3 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33160 |
GUN156..THSUV..H..GEN;TGN156..(AGTSU,EPTSU,SASUV,THSUV)..(BZAGT,EPT,GCC,LA,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(ARL,BZAGT,EPT,GCC,LA,PKN,SA,TH) L=40 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59152 |
GUN156..THSUV..H..GEN;TGN156..(AGTSU,EPTSU,SASUV,THSUV)..(BZAGT,EPT,GCC,LA,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(ARL,BZAGT,EPT,GCC,LA,PKN,SA,TH) L=1445 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33276 |
GUN156,16#,TGN166..THSUV L=205 |
1 | ||
| 90068-33295 |
GUN165..M..TH;GUN165..6F..TH;GUN156,166,TGN166..RHD..THSUV L=685 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90068-33266 |
GUN156,16#,TGN166..THSUV L=470 |
1 | ||
| 90068-33257 |
GUN165..M..TH;GUN165..6F..TH;GUN156,166,TGN166..RHD..THSUV L=430 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90068-33257 |
GUN156,16#,TGN166..THSUV L=430 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33251 |
GUN165..6F..TH;TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV;GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA);GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,168..(AGTSU,EPTSU,SASUV,THSUV)..(BZAGT,EPT,GCC,KZS,LA,SA) L=235 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33251 |
GUN165..6F..TH;TGN166..AGTSU,EPTSU,PKNSU,SASUV,THSUV;GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(ARL,BZAGT,GCC,GEN,LA,PKN,SA);GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,168..(AGTSU,EPTSU,SASUV,THSUV)..(BZAGT,EPT,GCC,KZS,LA,SA) L=235 |
2 | ||
| Common parts | ||||
| 82711-3A640 | ||||
| 90119-T0144 | ||||
(2006- )ARL,EPT,GCC,GEN,IND,MA,PH,PKN,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3A640 | ||||
| 90119-06767 | ||||
| 90119-T0144 | ||||
(2006- )TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3A640 | ||||
| 90119-T0144 | ||||
