GUN156R-STFLHQ (2015)
Toyota Fortuner
ILLUST NO. 2 OF 2(0501- )ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60353 | ||||
| 90162-T0001 | ||||
| 93383-16025 | ||||
ILLUST NO. 1 OF 2(0501- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-T0006 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
ILLUST NO. 1 OF 2(1107- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-T0006 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
ILLUST NO. 2 OF 2(1107- )IDSUV,SUVW,THSUV..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60353 | ||||
| 90162-T0001 | ||||
| 93383-16025 | ||||

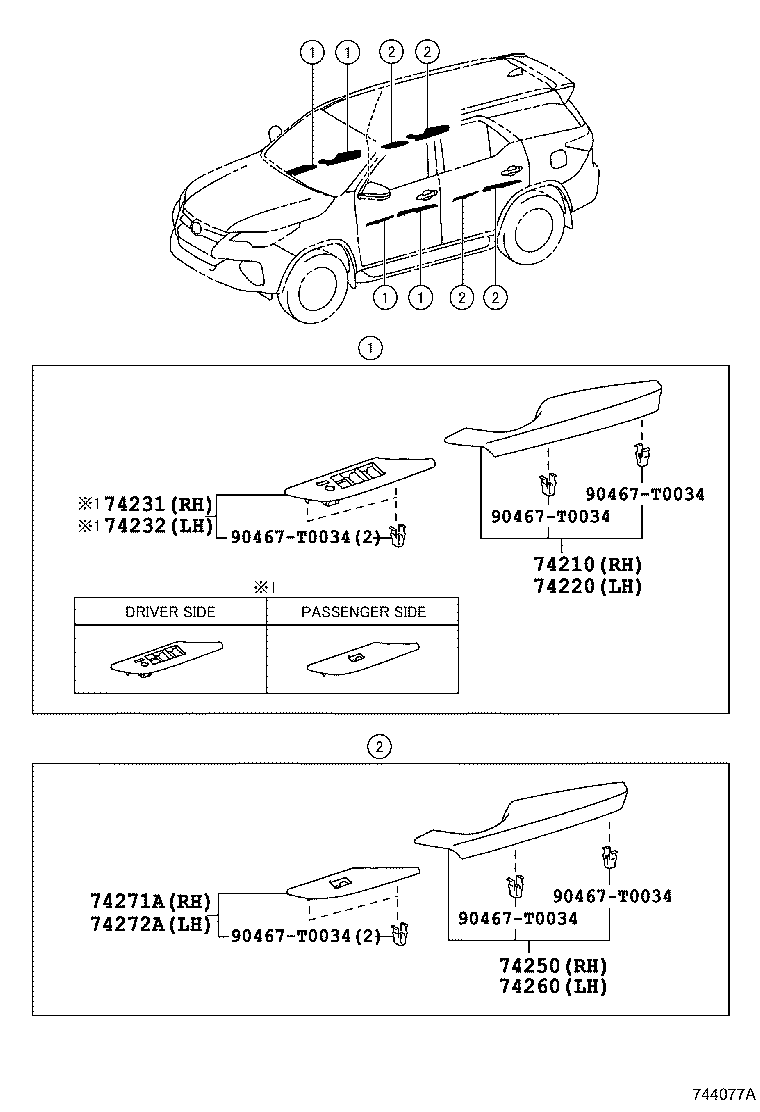

ILLUST NO. 1 OF 2(1507- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-0K100E0 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,BROWN,TRIM41 |
1 | ||
| 74210-0K090E3 |
GUN156..L..ARL CHAMOIS,TRIM42 |
1 | ||
| 74210-0K100E0 |
GUN156,16#,TGN166..M..TH BROWN,TRIM41 |
1 | ||
| 74210-0K400E3 |
GUN156..(M,S)..ARL CHAMOIS,TRIM42 |
1 | ||
| 74210-0K090E4 |
GUN156..L..ARL BROWN,TRIM41 |
1 | ||
| 74210-0K100E1 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM42 |
1 | ||
| 74210-0K100E1 |
GUN156,16#,TGN166..M..TH CHAMOIS,TRIM42 |
1 | ||
| 74210-0K100C0 |
GUN156,166..TH BLACK,TRIM3# |
1 | ||
| 74210-0K400E2 |
GUN156..(M,S)..ARL BROWN,TRIM41 |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-0K090E3 |
GUN156..L..ARL CHAMOIS,TRIM42 |
1 | ||
| 74220-0K100E0 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,BROWN,TRIM41 |
1 | ||
| 74220-0K090E4 |
GUN156..L..ARL BROWN,TRIM41 |
1 | ||
| 74220-0K400E2 |
GUN156..(M,S)..ARL BROWN,TRIM41 |
1 | ||
| 74220-0K100E1 |
GUN156,16#,TGN166..M..TH CHAMOIS,TRIM42 |
1 | ||
| 74220-0K100E1 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM42 |
1 | ||
| 74220-0K400E3 |
GUN156..(M,S)..ARL CHAMOIS,TRIM42 |
1 | ||
| 74220-0K100E0 |
GUN156,16#,TGN166..M..TH BROWN,TRIM41 |
1 | ||
| 74220-0K100C0 |
GUN156,166..TH BLACK,TRIM3# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0K650 |
GUN156,16#,TGN156,166..RHD..(MASUV,PKNSU,THSUV)..(M,S) |
1 | ||
| 74231-0K640 |
GUN15#..L..(ARL,MA) |
1 | ||
| 74231-0K651 |
GUN15#,16#,TGN166..RHD..(PKNSU,THSUV)..(M,S) |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0K610 |
GUN156,16#,TGN156,166..RHD..(MASUV,PKNSU,THSUV)..(M,S) |
1 | ||
| 74232-0K600 |
GUN15#..L..(ARL,MA) |
1 | ||
| 74232-0K611 |
GUN15#,16#,TGN166..RHD..(PKNSU,THSUV)..(M,S) |
1 | ||
| 74250 - ARMREST ASSY, REAR RH | ||||
| 74250-0K050E3 |
GUN156..L..ARL CHAMOIS,TRIM42 |
1 | ||
| 74250-0K060E1 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM42 |
1 | ||
| 74250-0K310E3 |
GUN156..(M,S)..ARL CHAMOIS,TRIM42 |
1 | ||
| 74250-0K310E2 |
GUN156..(M,S)..ARL BROWN,TRIM41 |
1 | ||
| 74250-0K050E4 |
GUN156..L..ARL BROWN,TRIM41 |
1 | ||
| 74250-0K060E0 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,BROWN,TRIM41 |
1 | ||
| 74250-0K060E0 |
GUN156,16#,TGN166..M..TH BROWN,TRIM41 |
1 | ||
| 74250-0K060E1 |
GUN156,16#,TGN166..M..TH CHAMOIS,TRIM42 |
1 | ||
| 74250-0K060C0 |
GUN156,166..TH BLACK,TRIM3# |
1 | ||
| 74260 - ARMREST ASSY, REAR LH | ||||
| 74260-0K060E1 |
GUN156,16#,TGN166..M..TH CHAMOIS,TRIM42 |
1 | ||
| 74260-0K050E4 |
GUN156..L..ARL BROWN,TRIM41 |
1 | ||
| 74260-0K060E0 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,BROWN,TRIM41 |
1 | ||
| 74260-0K060E0 |
GUN156,16#,TGN166..M..TH BROWN,TRIM41 |
1 | ||
| 74260-0K060E1 |
GGN155,165,GUN15#,165..THSUV..(H,M)..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM42 |
1 | ||
| 74260-0K310E2 |
GUN156..(M,S)..ARL BROWN,TRIM41 |
1 | ||
| 74260-0K050E3 |
GUN156..L..ARL CHAMOIS,TRIM42 |
1 | ||
| 74260-0K060C0 |
GUN156,166..TH BLACK,TRIM3# |
1 | ||
| 74260-0K310E3 |
GUN156..(M,S)..ARL CHAMOIS,TRIM42 |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0K320 |
GGN155,165,GUN15#,16#,TGN156,166..(EPTSU,MASUV,PKNSU,THSUV)..(H,M,S) |
1 | ||
| 74271-0K321 |
TGN156..THSUV..S;GGN155,165,GUN15#,16#,TGN166..(EPTSU,PKNSU,THSUV)..(H,M,S) |
1 | ||
| 74271-0K310 |
GUN15#,165,TGN156,166..(EPTSU,THSUV)..L |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0K320 |
GGN155,165,GUN15#,16#,TGN156,166..(EPTSU,MASUV,PKNSU,THSUV)..(H,M,S) |
1 | ||
| 74272-0K321 |
TGN156..THSUV..S;GGN155,165,GUN15#,16#,TGN166..(EPTSU,PKNSU,THSUV)..(H,M,S) |
1 | ||
| 74272-0K310 |
GUN15#,165,TGN156,166..(EPTSU,THSUV)..L |
1 | ||
| Common parts | ||||
| 90467-T0034 | ||||

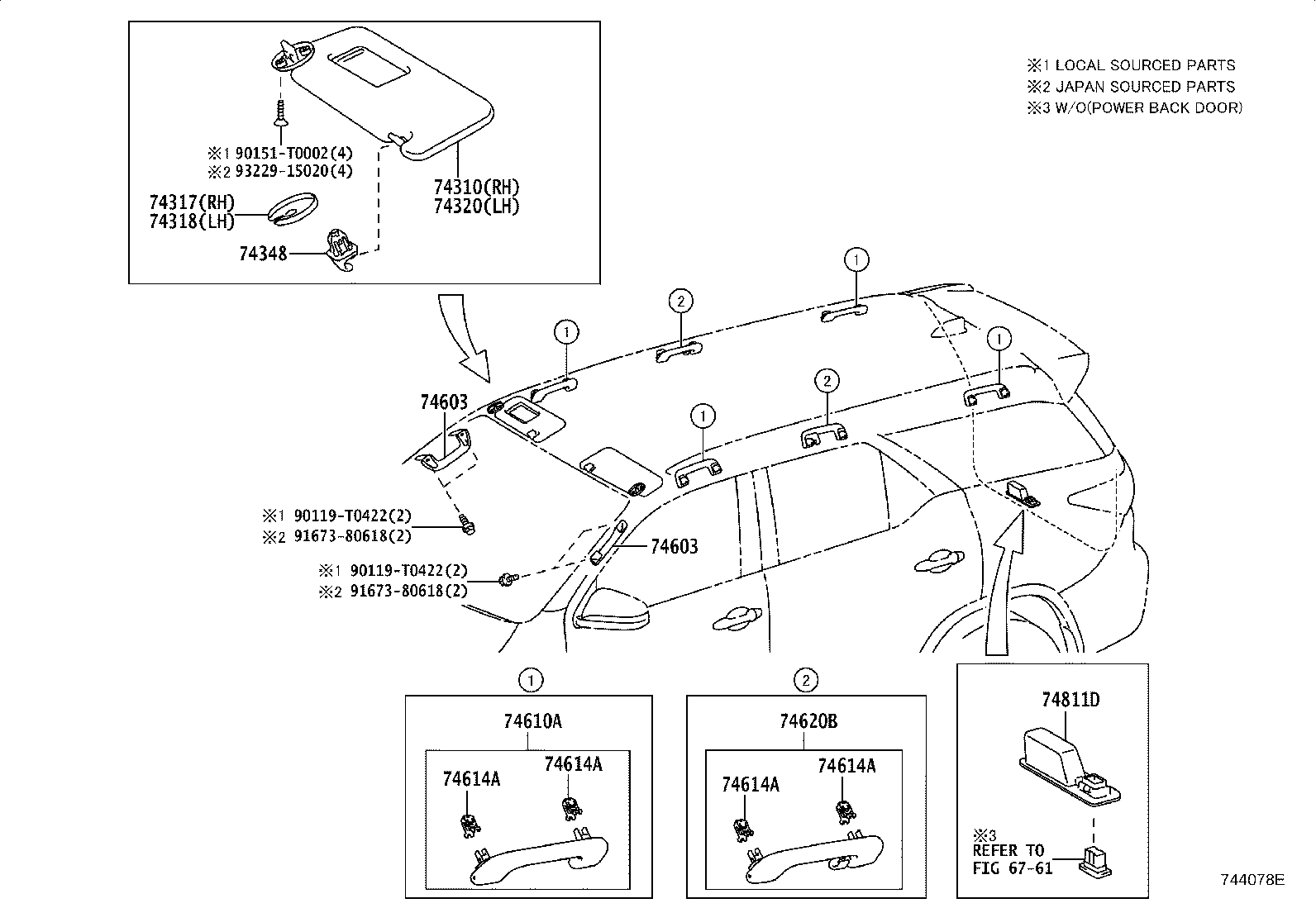

ILLUST NO. 2 OF 2(1507- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0KD40B1 |
GUN156..S..ARL LT.GRAY,TRIM3#,4# |
1 | ||
| 74310-0KD40B1 |
GUN156..L..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(L,S)..(MA,SA,TH) LT.GRAY,TRIM4# |
1 | ||
| 74310-0KL60B1 |
GUN156..PKN;GUN156..6F..M;GUN165..M..TH;TGN166..PKN,TH LT.GRAY,TRIM4# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B1 |
GUN156..6F..S..ARL;GUN156..6FC..(M,S)..ARL LT.GRAY,TRIM4# |
1 | ||
| 74317-60020B1 |
GUN15#,166..TH LT.GRAY,TRIM3#,4# |
1 | ||
| 74317-60020B1 |
GUN156..6F..M;GUN156..IDNSU..H..GEN;GUN156,TGN166..(H,L)..(ARL,GCC);LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);GUN165,TGN168..BZAGT,GCC,GEN,IDN,PH,SA,TH,VN;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,IART) LT.GRAY,TRIM4# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020B1 |
GUN156..6F..S..ARL;GUN156..6FC..(M,S)..ARL LT.GRAY,TRIM4# |
1 | ||
| 74317-60020B1 |
GUN156..6F..M;GUN156..IDNSU..H..GEN;GUN156,TGN166..(H,L)..(ARL,GCC);LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);GUN165,TGN168..BZAGT,GCC,GEN,IDN,PH,SA,TH,VN;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,IART) LT.GRAY,TRIM4# |
1 | ||
| 74317-60020B1 |
GUN15#,166..TH LT.GRAY,TRIM3#,4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0KJ90B1 |
GUN156..S..ARL LT.GRAY,TRIM3#,4# |
1 | ||
| 74320-0KJ90B1 |
GUN156..L..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(L,S)..(MA,SA,TH) LT.GRAY,TRIM4# |
1 | ||
| 74320-0KK80B1 |
GUN156..PKN;GUN156..6F..M;GUN165..M..TH;TGN166..PKN,TH LT.GRAY,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-0K070B0 |
GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
2 | ||
| 74348-0K070B0 |
GUN156..6F..M;GGN165,GUN165..THSUV;TGN156..S..(BZAGT,KZS);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);TGN166..(AGTSU,EPTSU,PKNSU,THSUV)..(BZAGT,EPT,LA,PKN,TH);GUN156..(AGTSU,PKNSU,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN);GUN156,KUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART) LT.GRAY,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74603-0K070B0 |
GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
2 | ||
| 74603-0K070B0 |
GUN156..6F..M;GUN156..IDNSU..H..GEN;GUN165..IDNSU,SASUV,THSUV,VNSUV;GUN156,TGN166..(H,L)..(ARL,GCC);LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,HTWCF,IART) LT.GRAY,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74603-0K070B0 |
GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
2 | ||
| 74603-0K070B0 |
GUN156..6F..M;GUN156..IDNSU..H..GEN;GUN165..IDNSU,SASUV,THSUV,VNSUV;GUN156,TGN166..(H,L)..(ARL,GCC);LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,HTWCF,IART) LT.GRAY,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0D080B1 |
GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
4 | ||
| 74610-0D080B1 |
GUN156..6F..M;LAN155,TGN156..S..(BZAGT,KZS,SA);GGN165,GUN165,KUN165..SASUV,THSUV;GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(HTWC,HTWCF,IART);TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(BZAGT,EPT,LA,PKN,SA,TH);GGN155,GUN155,166,KUN156..(AGTSU,EPTSU,SASUV,THSUV)..(EPT,GCC,LA,SA);GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN,SA) LT.GRAY,TRIM4# |
4 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-02020 |
TGN166..THSUV..L;GUN165..SASUV,THSUV;LAN155,TGN156..S..(BZAGT,KZS,SA);TGN156..(AGTSU,EPTSU,THSUV)..(H,L,M);GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,SASUV,THSUV;GUN156,TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(L,M,S)..(ARL,BZAGT,EPT,GEN,LA,PKN,SA,TH) |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-02020 |
TGN166..THSUV..L;GUN165..SASUV,THSUV;LAN155,TGN156..S..(BZAGT,KZS,SA);TGN156..(AGTSU,EPTSU,THSUV)..(H,L,M);GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,SASUV,THSUV;GUN156,TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(L,M,S)..(ARL,BZAGT,EPT,GEN,LA,PKN,SA,TH) |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-02020 |
TGN166..THSUV..L;GUN165..SASUV,THSUV;LAN155,TGN156..S..(BZAGT,KZS,SA);TGN156..(AGTSU,EPTSU,THSUV)..(H,L,M);GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,SASUV,THSUV;GUN156,TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(L,M,S)..(ARL,BZAGT,EPT,GEN,LA,PKN,SA,TH) |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-02020 |
TGN166..THSUV..L;GUN165..SASUV,THSUV;LAN155,TGN156..S..(BZAGT,KZS,SA);TGN156..(AGTSU,EPTSU,THSUV)..(H,L,M);GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,SASUV,THSUV;GUN156,TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(L,M,S)..(ARL,BZAGT,EPT,GEN,LA,PKN,SA,TH) |
12 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-02260B0 |
GUN156..6F..M;LAN155,TGN156..S..(BZAGT,KZS,SA);GGN165,GUN165,KUN165..SASUV,THSUV;GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(HTWC,HTWCF,IART);TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(BZAGT,EPT,LA,PKN,SA,TH);GGN155,GUN155,166,KUN156..(AGTSU,EPTSU,SASUV,THSUV)..(EPT,GCC,LA,SA);GUN156..(AGTSU,PKNSU,SASUV,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN,SA) LT.GRAY,TRIM4# |
2 | ||
| 74610-02260B0 |
GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) LT.GRAY,TRIM3#,4# |
2 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 69291-0K010C0 |
GUN156..6F..M;GGN165,GUN165..THSUV;TGN156,166..S..(BZAGT,KZS);GUN156..THSUV..(H,L)..(ARL,GCC);GUN156..LHD..(AGTSU,THSUV)..(L,M,S)..HDCR;GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);GUN156,KUN156,TGN156,16#..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART) BLACK,TRIM4# |
1 | ||
| 69291-0K010C0 |
GUN156..S..IART;GUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH) BLACK,TRIM3#,4# |
1 | ||
| Common parts | ||||
| 90119-T0422 | ||||
| 90151-T0002 | ||||
| 91673-80618 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 6761 | ||||

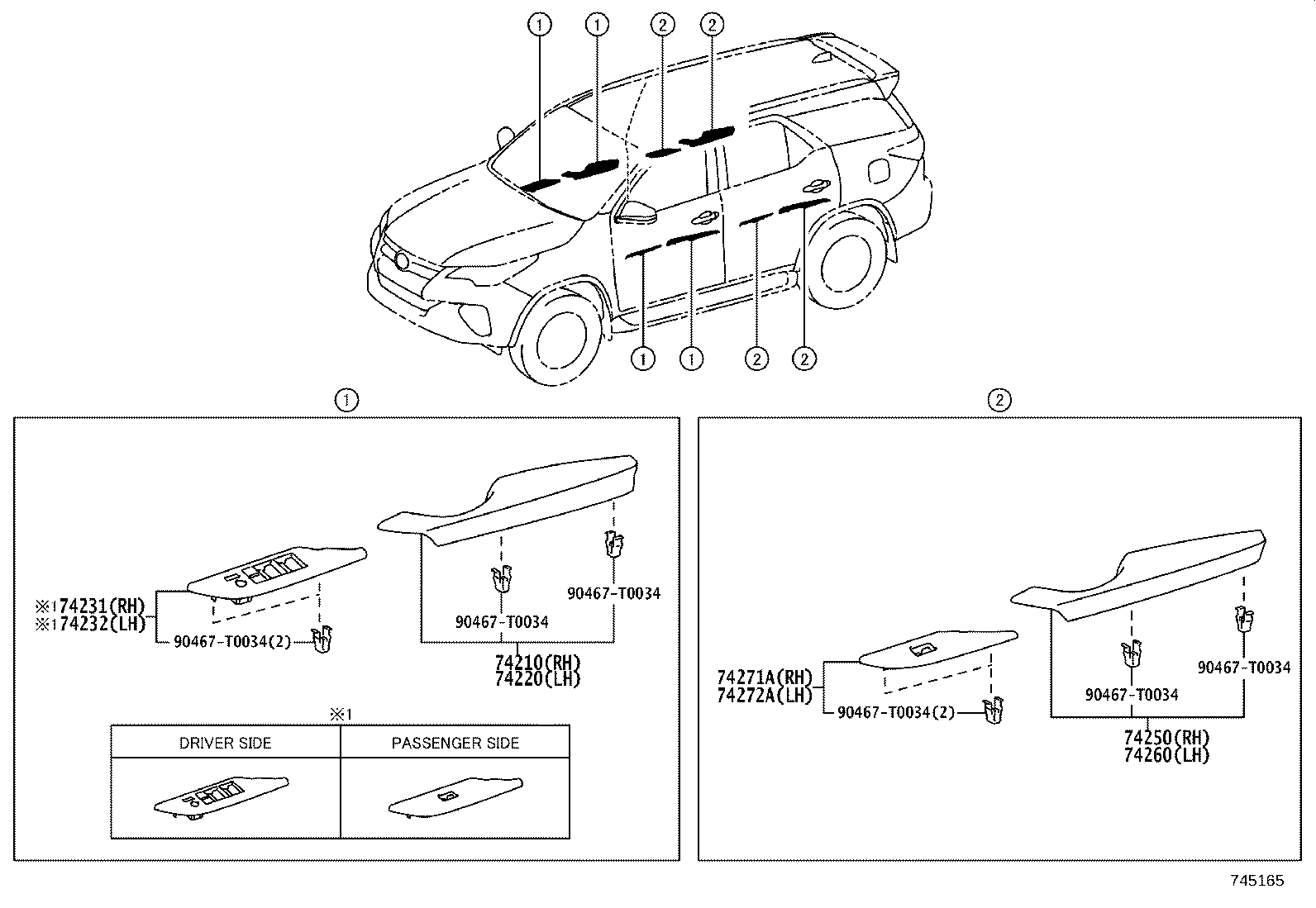

ILLUST NO. 1 OF 2(2006- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-T0034 | ||||

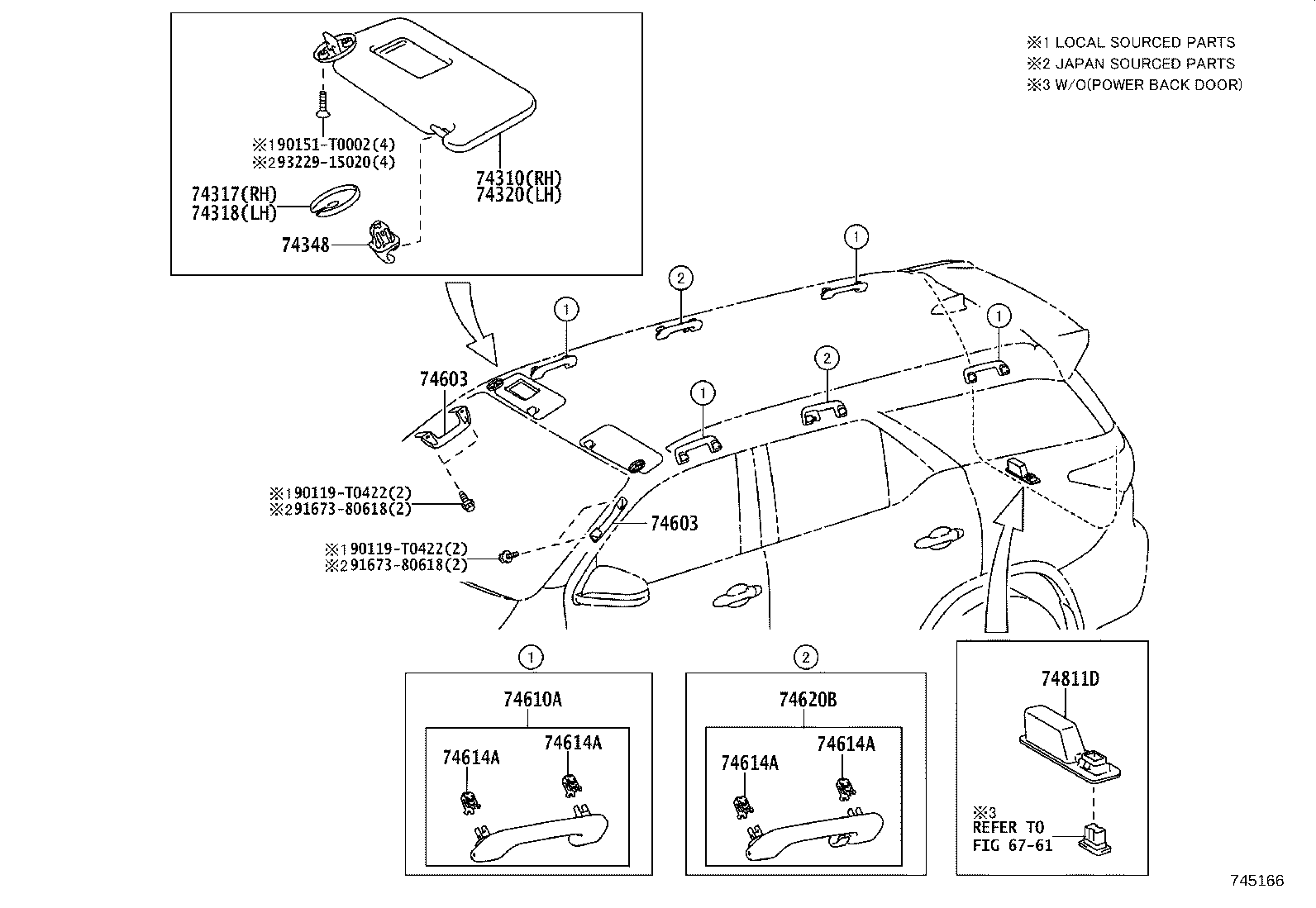

ILLUST NO. 2 OF 2(2006- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0422 | ||||
| 90151-T0002 | ||||
| 91673-80618 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 6761 | ||||
