Toyota Fortuner GUN156 INJECTION PUMP ASSEMBLY

Manufacturers Home
Toyota
GR
FORTUNER
GUN156R-STFLHQ (2015)
2202 - INJECTION PUMP ASSEMBLY

GUN156R-STFLHQ (2015)

Toyota Fortuner

Production Jul 2015 - May 2018

Engine 1GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1507- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
23271Y - HOSE, FUEL
23271-0L140	1GDFTV,2GDFTV..GUN15#,16# TMC	07/2015 - 04/2019	1
23271Z - CLIP, HOSE
90466-T0023	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	2
23271Z - CLIP, HOSE
90466-T0023	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	2
23273H - HOSE, FUEL, NO.2
23273-0L130	2GDFTV..GUN165..M;1GDFTV..GUN156,166	07/2015 - 12/2015	1
23273-0L132	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,GEN,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,SASUV,THSUV	05/2017 - 09/2017	1
23273-0L131	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,SASUV,THSUV	01/2016 - 05/2017	1
23273-0L132	2GDFTV..GUN165..M..TH;2GDFTV..GUN165..GCC,GEN,IDN,LA,PH,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	09/2017 - 12/2999	1
23273H - HOSE, FUEL, NO.2
23273-0L130	2GDFTV..GUN165..M;1GDFTV..GUN156,166	07/2015 - 12/2015	1
23273-0L132	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,GEN,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,SASUV,THSUV	05/2017 - 09/2017	1
23273-0L131	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,SASUV,THSUV	01/2016 - 05/2017	1
23273-0L132	2GDFTV..GUN165..M..TH;2GDFTV..GUN165..GCC,GEN,IDN,LA,PH,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	09/2017 - 12/2999	1
23802F - HOSE, FUEL
23801-0L050	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	09/2017 - 12/2999	1
23801-0L011	2GDFTV..GUN165..M..TH;2GDFTV..GUN165..GCC,GEN,IDN,PH,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,INDSU,SASUV,THSUV	01/2016 - 09/2017	1
23801-0L010	1GDFTV,2GDFTV..GUN156,16#	07/2015 - 12/2015	1
23841H - CLAMP, FUEL HOSE
23841-0L030	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,GEN,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,INDSU,SASUV,THSUV PLANT TKM	10/2016 - 09/2017	1
23841-0L010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV PLANT TMT	07/2015 - 12/2999	1
23842E - CLAMP, FUEL PIPE, NO.1
23841-0L061	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,GEN,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,INDSU,SASUV,THSUV PLANT TKM	10/2016 - 09/2017	1
23841-0L041	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV PLANT TMT	07/2015 - 12/2999	1
23842F - CLAMP, FUEL PIPE, NO.2
23842-0L010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV PLANT TMT	07/2015 - 12/2999	1
23842-0L030	2GDFTV..GUN165..M..(PH,TH);2GDFTV..GUN165..GCC,GEN,IDN,SA,VN;1GDFTV,2GDFTV..GUN15#,166..AGTSU,IDNSU,INDSU,SASUV,THSUV PLANT TKM	10/2016 - 09/2017	1
23881C - BRACKET, FUEL HOSE
23881-0L010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,PKNSU,SASUV,THSUV TYPE A,*652	07/2015 - 12/2999	1
Common parts
90119-T0134
90119-T0136
90466-T0038
90466-T0041
90466-T0059
96132-51300
Linked diagrams
2302
7751

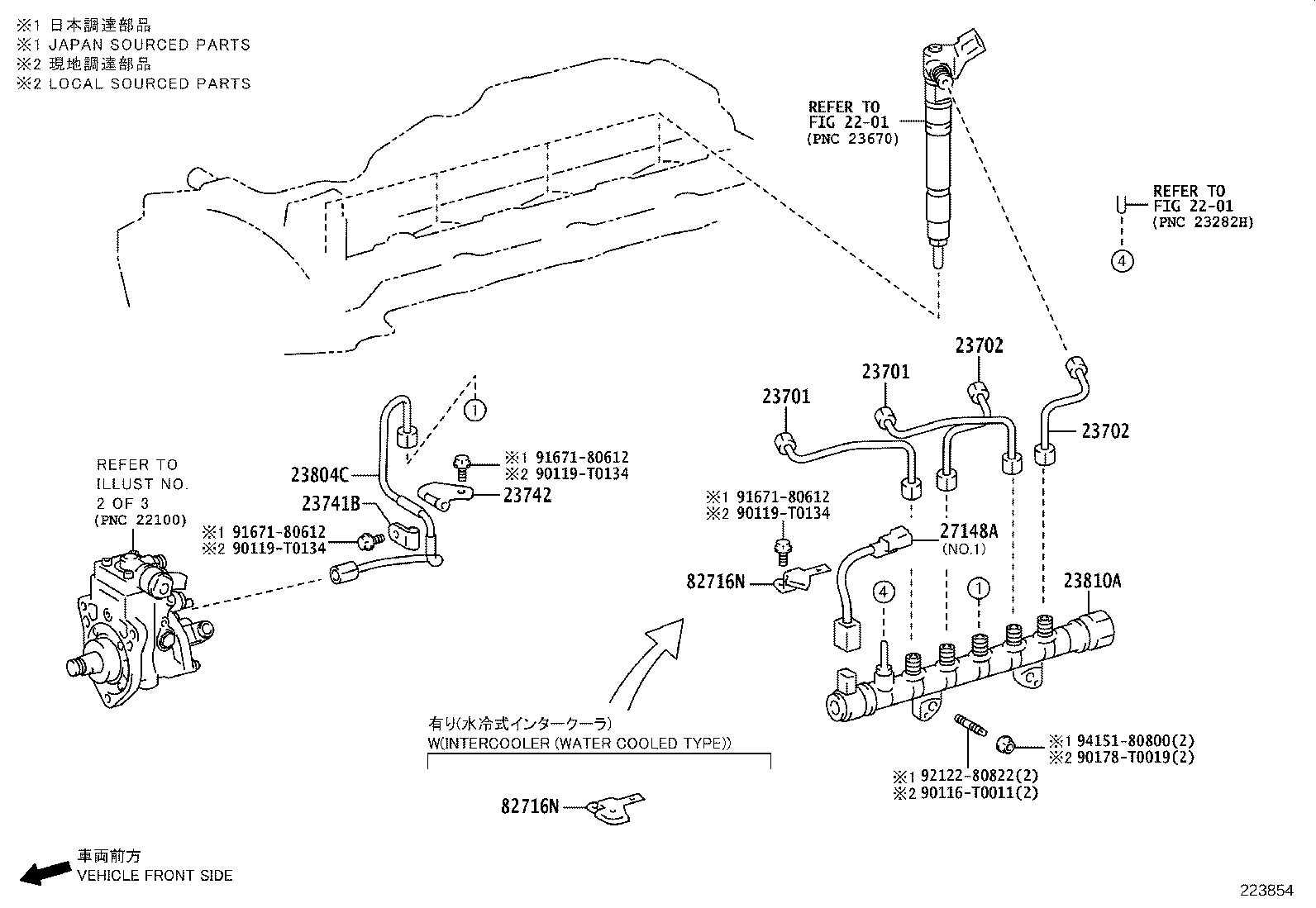

ILLUST NO. 3 OF 3(1507- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *652,NO MARK	07/2015 - 12/2018	2
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *652,NO MARK	07/2015 - 12/2018	2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *652,NO MARK	07/2015 - 12/2018	2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *652,NO MARK	07/2015 - 12/2018	2
23741B - CLAMP, INJECTION PIPE
23741-30010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
23741-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS	07/2015 - 12/2999	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-11010	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
23742-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS	07/2015 - 12/2999	1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *652,NO MARK	07/2015 - 12/2018	1
23804-11010	2GDFTV..GUN155,165..PH,TH;1GDFTV,2GDFTV..GUN156,165..(IDNSU,THSUV)..6F..(ARL,LA,VN) (J)	07/2015 - 02/2019	1
23810A - RAIL ASSY, COMMON
23810-11030	2GDFTV..GUN155,165..PH,TH;1GDFTV,2GDFTV..GUN156,165..(IDNSU,THSUV)..6F..(ARL,LA,VN) (J)	07/2015 - 01/2019	1
23810-0E010	2GDFTV..GUN155..6FC;1GDFTV..GUN156..AGTSU..6F..LA;2GDFTV..GUN165..6FC..(L,M)..(GCC,TH);2GDFTV..GUN165..GEN,IDN,LA,MA,PH,SA,VN;1GDFTV..GUN156..(AGTSU,THSUV)..6FC..(ARL,LA);1GDFTV..GUN156,166..HDCR..(BZAGT,GCC,GEN,PH,PKN,SA,TH,VN) THA SOURCED PARTS	07/2015 - 05/2019	1
23810-0E010	2GDFTV..GUN165..(H,S)..GCC;1GDFTV..GUN156..IDNSU..6FC..LA;2GDFTV..GUN165..RHD..S..(GEN,TH);1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..LHD..6F..(GCC,SA) THA SOURCED PARTS	07/2015 - 06/2019	1
27148A - WIRE, CONNECTING
27148-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) NO.2,(J)	07/2015 - 08/2020	1
27148-0E020	1GDFTV,2GDFTV..GUN15#,16#..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..HDCR NO.2,*652	07/2015 - 12/2999	1
27148-0E030	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1,*652	07/2015 - 12/2999	1
27148-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) NO.1,(J)	07/2015 - 08/2020	1
27148A - WIRE, CONNECTING
27148-11020	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) NO.2,(J)	07/2015 - 08/2020	1
27148-0E020	1GDFTV,2GDFTV..GUN15#,16#..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..HDCR NO.2,*652	07/2015 - 12/2999	1
27148-0E030	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1,*652	07/2015 - 12/2999	1
27148-11030	1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) NO.1,(J)	07/2015 - 08/2020	1
82716N - BRACKET, WIRING HARNESS CLAMP, NO.2
82715-6AC20	GUN156..(IDNSU,THSUV)..6F;GUN155,165..(THSUV,VNSUV)..(TH,VN) (J)	07/2015 - 08/2020	1
82715-0KD00	GUN15#,16#..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..HDCR MADE IN THAILAND	07/2015 - 12/2999	1
Common parts
90116-T0011
90119-T0134
90178-T0019
91671-80612
92122-80822
94151-80800
Linked diagrams
2201

ILLUST NO. 1 OF 3(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0134
90119-T0136
90466-T0038
90466-T0041
90466-T0059
96132-51300
Linked diagrams
2302
7751

ILLUST NO. 3 OF 3(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90116-T0011
90119-T0134
90178-T0019
91671-80612
92122-80822
94151-80800
Linked diagrams
2201

GUN156R-STFLHQ (2015)

ILLUST NO. 1 OF 3(1507- )1GDFTV,2GDFTV

ILLUST NO. 3 OF 3(1507- )1GDFTV,2GDFTV

ILLUST NO. 1 OF 3(2006- )1GDFTV,2GDFTV

ILLUST NO. 3 OF 3(2006- )1GDFTV,2GDFTV

Part Price Details
