GUN156R-STFLHQ (2015)
Toyota Fortuner

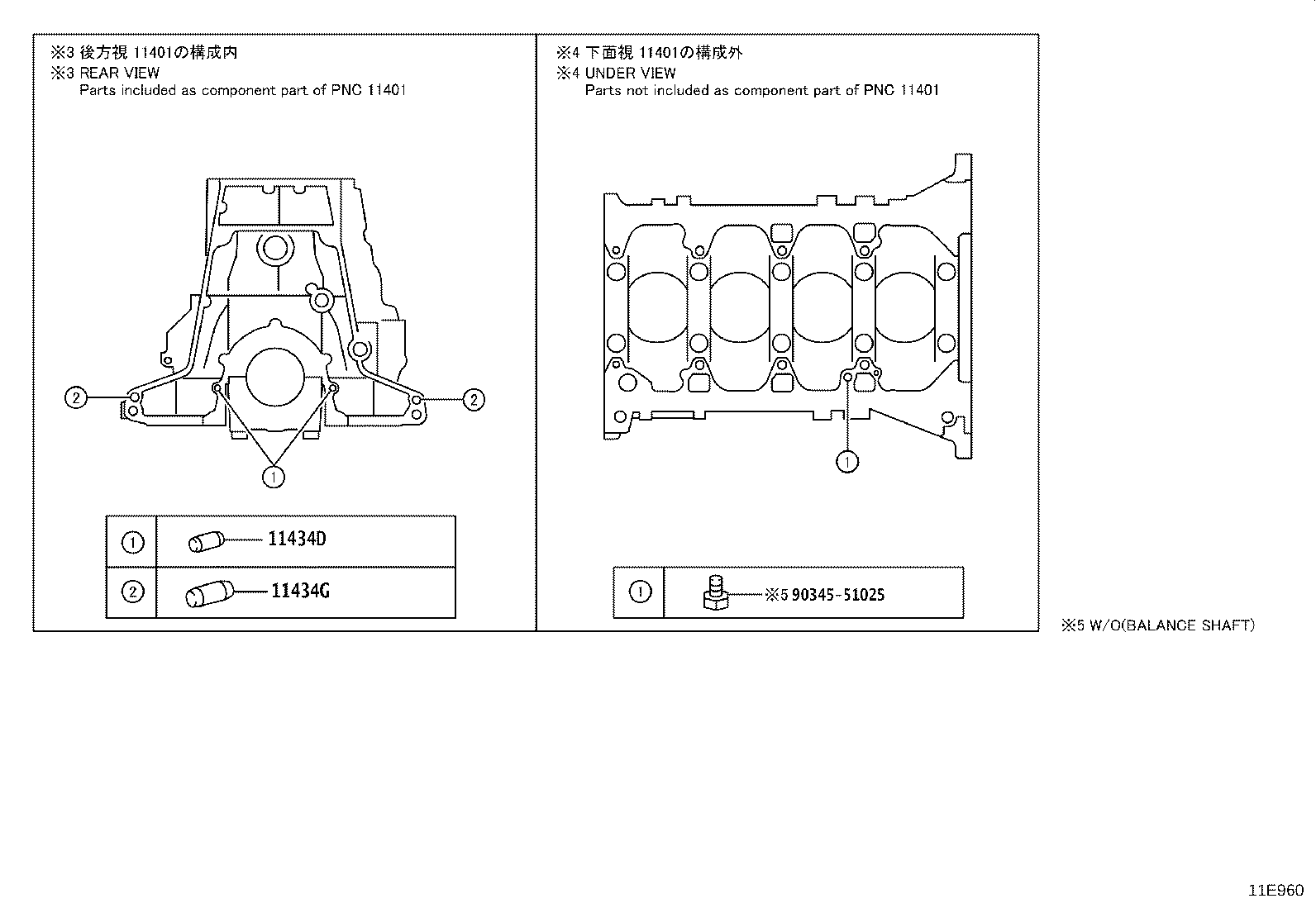

ILLUST NO. 2 OF 2(1507- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) L=11,OD=6,*272 |
2 | ||
| 90250-T0012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV L=11,OD=6,*582 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-T0008 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 90250-10192 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
2 | ||
| Common parts | ||||
| 90345-51025 | ||||

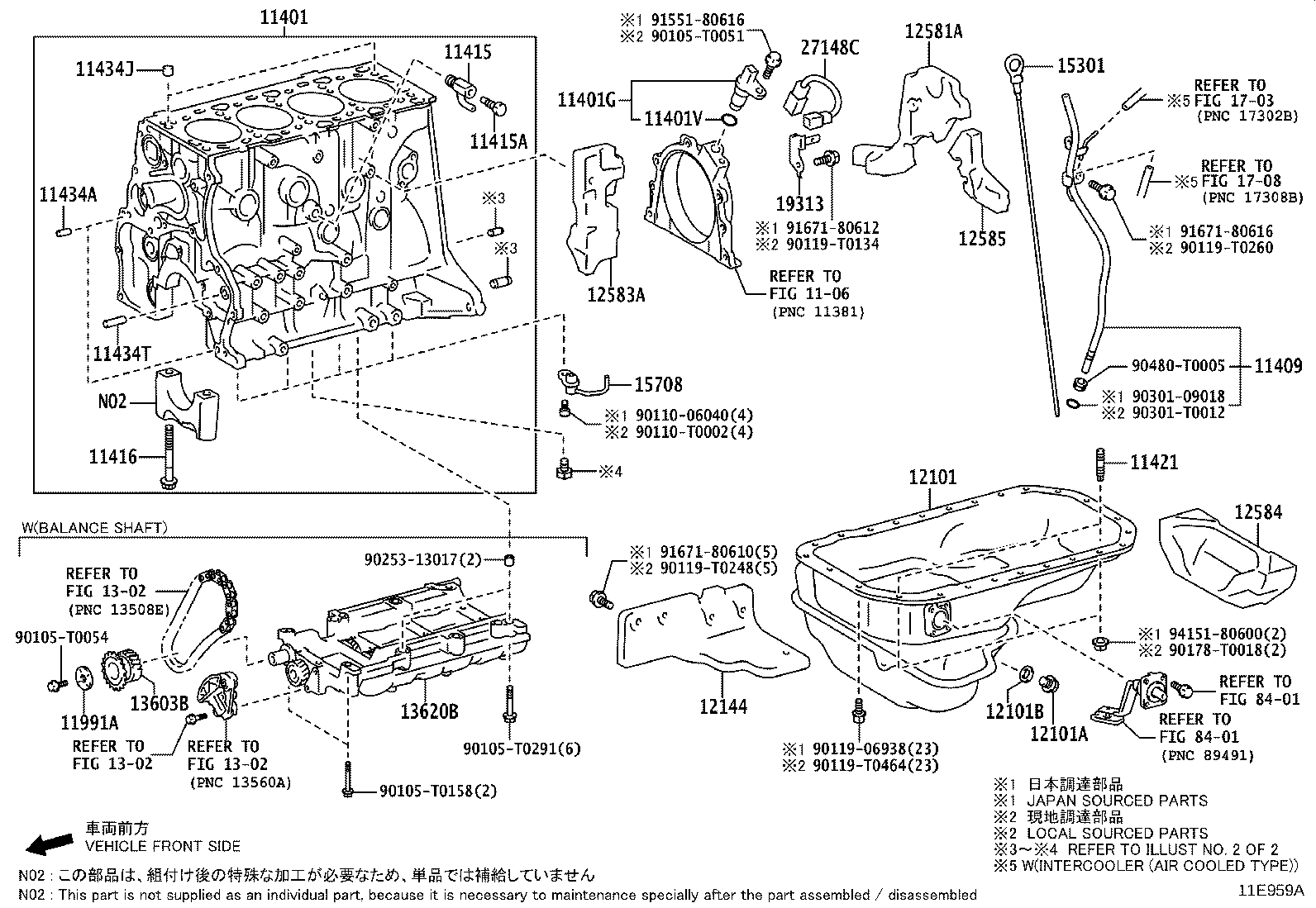

ILLUST NO. 1 OF 2(1507- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09790 |
1GDFTV..GUN156..(H,L)..IART;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..(AGTSU,THSUV)..6FC..(ARL,LA);1GDFTV..GUN156,166..HDCR..(BZAGT,GCC,GEN,PH,PKN,SA,TH,VN) |
1 | ||
| 11401-09790 |
1GDFTV..GUN156..IDNSU..6FC..LA;1GDFTV..GUN156..(IDNSU,THSUV)..6F;1GDFTV..GUN156..(AGTSU,VNSUV)..6FC..(M,S)..(BZAGT,VN) |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05073 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 11401V - O-RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
2GDFTV..GUN165..6FC..TH;1GDFTV..GUN156..(H,L)..IART;2GDFTV..GUN165..6FC..L..GCC;1GDFTV..GUN156..AGTSU..6F..LA;2GDFTV..GUN165..GEN,IDN,LA,PH,SA,VN;2GDFTV..GUN155..(IDNSU,SASUV,THSUV)..6FC;1G#..GGN155,GUN166..EPT,GCC,GEN,LA,SA,TH;1GDFTV..GUN156..(AGTSU,THSUV)..6FC..(ARL,LA);1GDFTV..GUN156..HDCR..(BZAGT,GCC,GEN,PH,PKN,SA,TH,VN) |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV |
1 | ||
| 11409-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09128 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN);1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 90910-09087 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 90910-T9001 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02191 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
10 | ||
| 90910-T2009 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) L=18,OD=8,*272 |
2 | ||
| 90250-T0007 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV L=18,OD=8,*582 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
2 | ||
| 90253-T0002 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
2 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-T0019 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 90250-10030 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-11120 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 12101-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 90341-T0004 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 90080-43030 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12144 - SILENCER, OIL PAN COVER | ||||
| 12144-11010 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 12144-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-11020 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 12581-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12583A - INSULATOR, CYLINDER BLOCK, NO.3 | ||||
| 12583-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12583-11020 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV |
1 | ||
| 12584-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 12585-11020 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *582 |
1 | ||
| 15301-11070 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-11010 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) (J) |
4 | ||
| 15708-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
4 | ||
| 19313 - BRACKET, CRANK POSITION SENSOR HARNESS | ||||
| 19313-11010 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 19313-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 27148C - WIRE, CONNECTING | ||||
| 27148-11010 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN) *272 |
1 | ||
| 27148-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV MADE IN THAILAND |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90110-06040 | ||||
| 90110-T0002 | ||||
| 90119-06938 | ||||
| 90119-T0134 | ||||
| 90119-T0248 | ||||
| 90119-T0260 | ||||
| 90119-T0464 | ||||
| 90178-T0018 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-T0005 | ||||
| 91551-80616 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
| 1708 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2006- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0054 | ||||
| 90105-T0158 | ||||
| 90105-T0291 | ||||
| 90110-06040 | ||||
| 90110-T0002 | ||||
| 90119-06938 | ||||
| 90119-T0134 | ||||
| 90119-T0248 | ||||
| 90119-T0260 | ||||
| 90119-T0464 | ||||
| 90178-T0018 | ||||
| 90253-13017 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-T0005 | ||||
| 91551-80616 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1302 | ||||
| 1703 | ||||
| 1708 | ||||
| 8401 | ||||

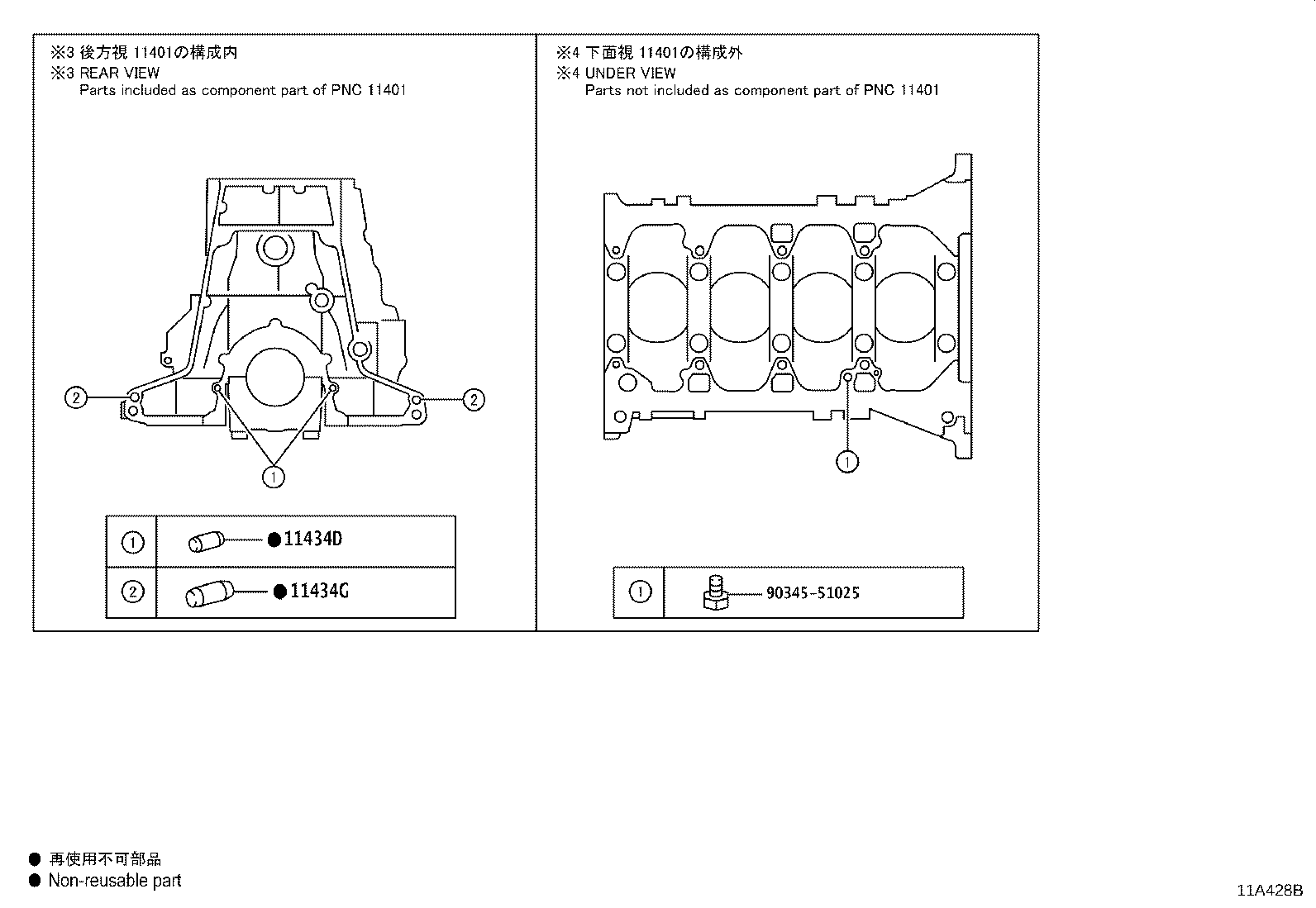

ILLUST NO. 2 OF 2(2006- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90345-51025 | ||||
