GUN156R-SNFSHN (2016)
Toyota Fortuner

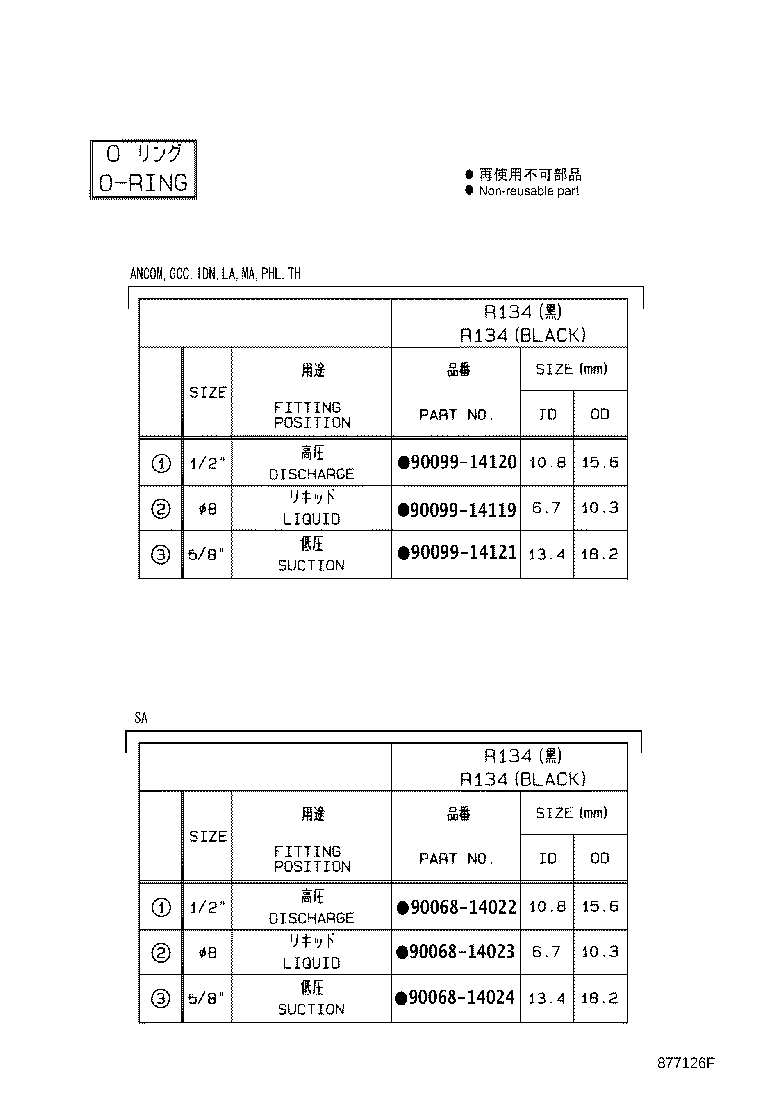

ILLUST NO. 4 OF 4(0501- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

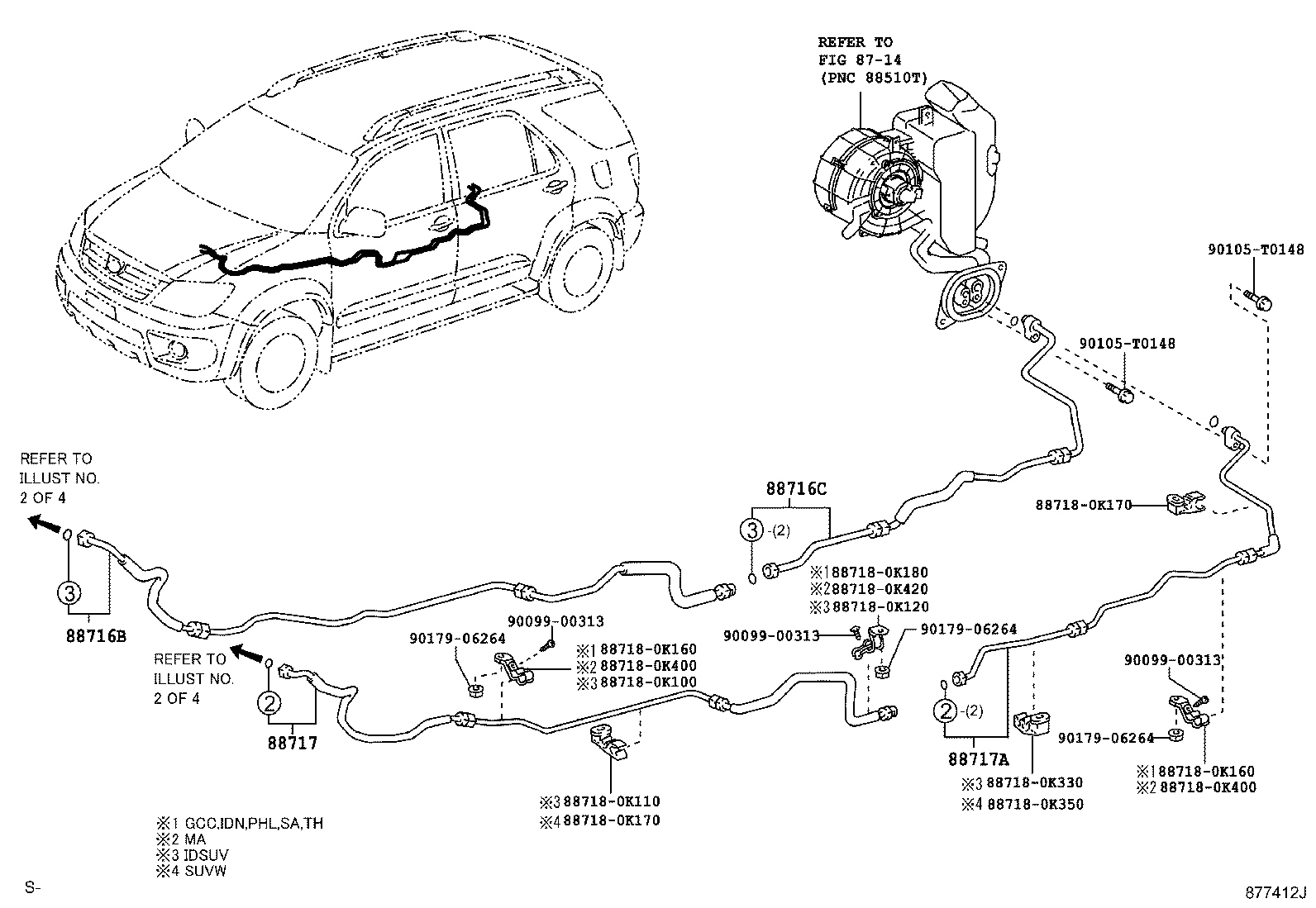

ILLUST NO. 3 OF 4(0501- )GCC,GEN,IDN,MA,PHL,SA,TH,VN
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-0K100 | ||||
| 88718-0K110 | ||||
| 88718-0K120 | ||||
| 88718-0K160 | ||||
| 88718-0K170 | ||||
| 88718-0K180 | ||||
| 88718-0K330 | ||||
| 88718-0K350 | ||||
| 88718-0K400 | ||||
| 88718-0K420 | ||||
| 90099-00313 | ||||
| 90105-T0148 | ||||
| 90179-06264 | ||||
| Linked diagrams | ||||
| 8714 | ||||

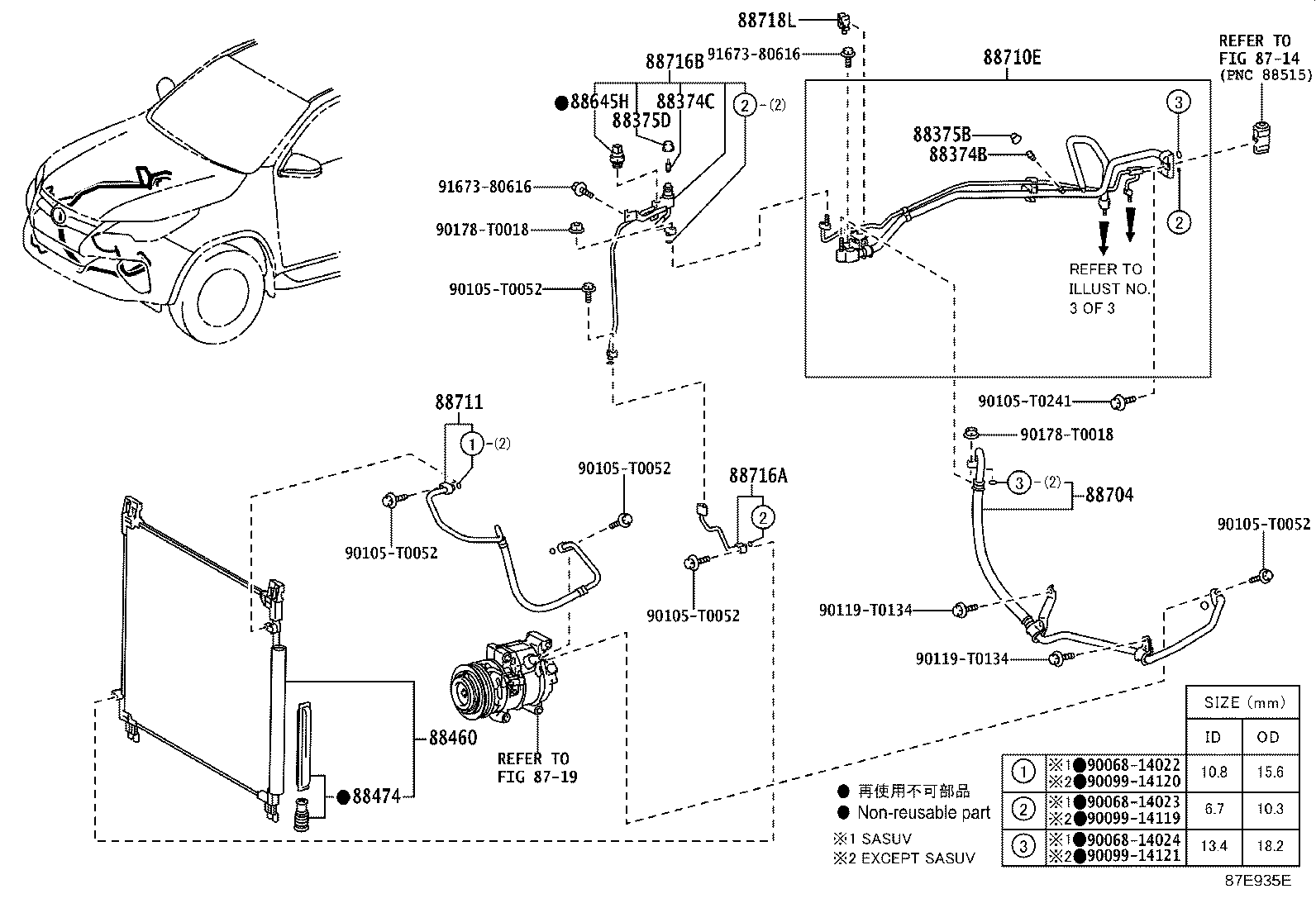

ILLUST NO. 2 OF 3(1507-1901)GUN15#,16# ; (1901-2001)6F..IND ; (1901- )GUN15#,16#..6FC..IND,MA,PKN
FRONT W/O(SCX TUBE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-02020 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-02020 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02140 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-02150 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K450 |
GGN155,GUN15#,16#,TGN156,166..SA |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-0K030 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
GUN165..6F..PH;GUN165..L..(LA,SA,VN);TGN166..BZAGT,GEN,LA,PH,PKN,SA,TH,VN;GUN166,TGN156..BZAGT,GEN,KZS,LA,SA,TH,VN;GUN165..6FC..(H,M,S)..(GCC,GEN,PH,TH,VN);GGN155,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KD90 |
GUN15#,16#..SA |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KU50 |
GUN15#,16#..SA |
1 | ||
| 88710-0KF90 |
GUN15#,16#..SA |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC20 |
GUN15#,16#..SA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KR20 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KF50 |
GUN15#,16#..SA |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KW80 |
GUN15#,16#..SA |
1 | ||
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 3(1507- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88706-0K480 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-0KV20 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88707-0KA70 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-0KQ70 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K170 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KV80 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K350 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K350 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K180 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KB40 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-0K160 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90069-32066 | ||||
| 90099-00313 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0324 | ||||
| 90178-T0053 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||

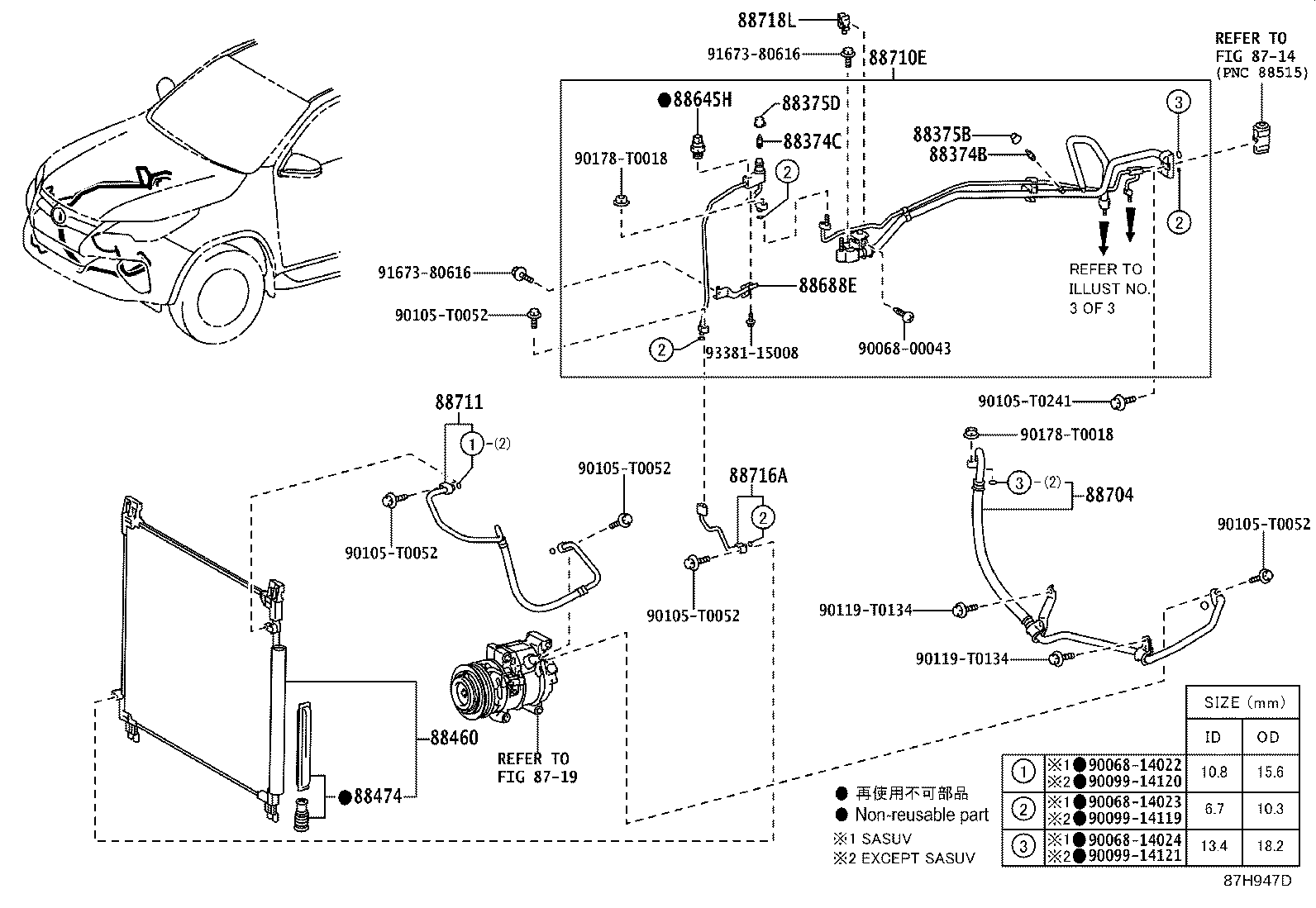

ILLUST NO. 2 OF 3(1901- )GUN15#,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV ; (2001- )6F..IND
FRONT W/O(SCX TUBE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-02020 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-02020 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02140 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-02150 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K450 |
GGN155,GUN15#,16#,TGN156,166..SA |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-0K030 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
GUN165..6F..PH;GUN165..L..(LA,SA,VN);TGN166..BZAGT,GEN,LA,PH,PKN,SA,TH,VN;GUN166,TGN156..BZAGT,GEN,KZS,LA,SA,TH,VN;GUN165..6FC..(H,M,S)..(GCC,GEN,PH,TH,VN);GGN155,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KD90 |
GUN15#,16#..SA |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KU50 |
GUN15#,16#..SA |
1 | ||
| 88710-0KF90 |
GUN15#,16#..SA |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC20 |
GUN15#,16#..SA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KR20 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KW80 |
GUN15#,16#..SA |
1 | ||
| Common parts | ||||
| 90068-00043 | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

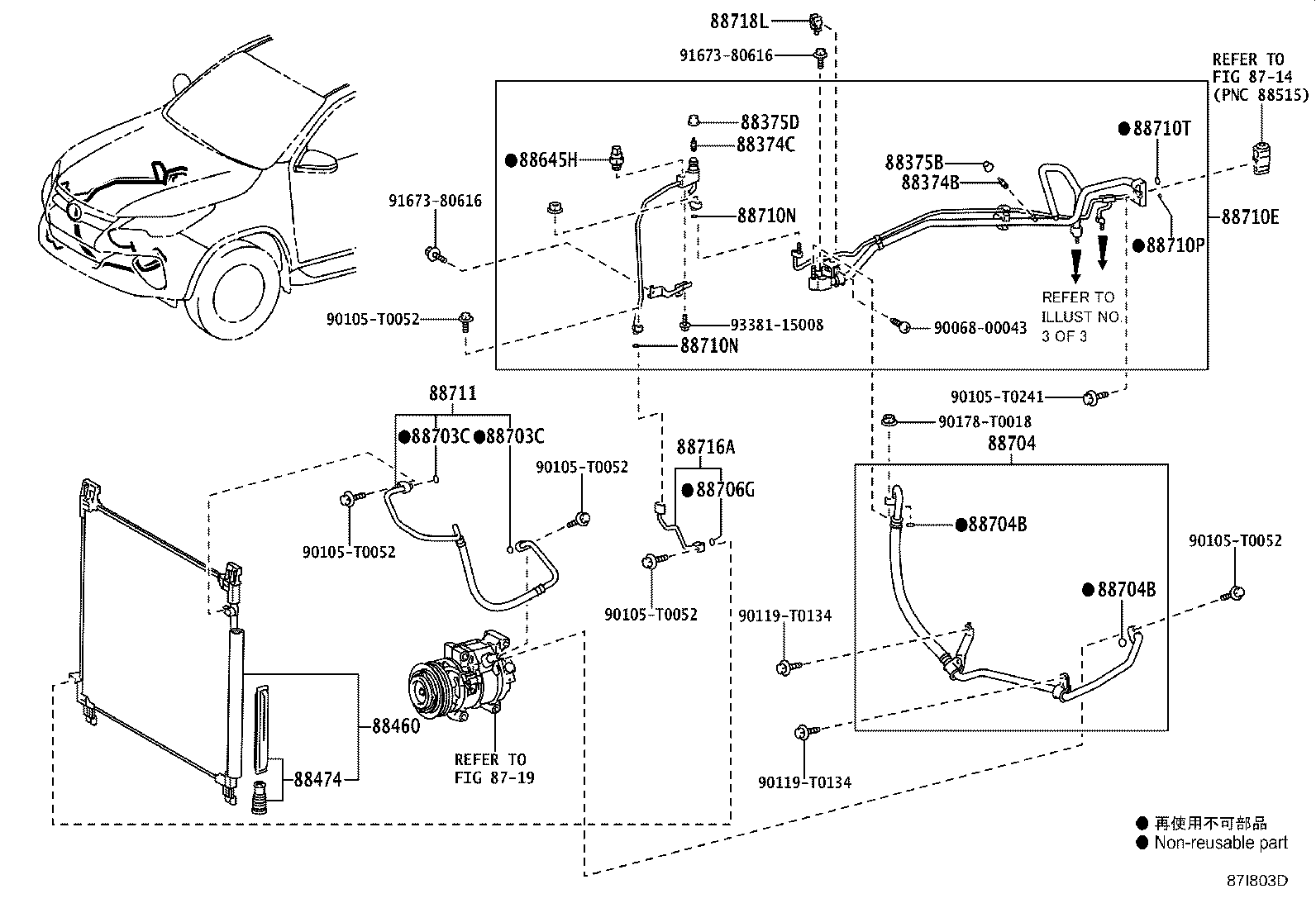

ILLUST NO. 2 OF 3(2006- )GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV
FRONT W/O(SUB-COOL ACCELERATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-00043 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 3(2006- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-32066 | ||||
| 90099-00313 | ||||
| 90105-T0324 | ||||
| 90178-T0053 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
