GUN156R-SNFSHN (2016)
Toyota Fortuner
ILLUST NO. 1 OF 3(1107- )RHD
FRONT(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-32033 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 3(1107- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1107- )
O-RING FOR FRONT AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90068-14042 | ||||
| 90068-14043 | ||||
| 90068-14044 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 2 OF 2(1507- )
REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K310 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 87103-0K311 |
GGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K290 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K320 |
GUN165..M..TH;GUN165..THSUV..(H,S)..GCC;GUN156,KUN156..RHD..(SA,TH);GUN156..THSUV..(H,M)..(ARL,GCC,GEN);GUN155,TGN156..THSUV..(H,M,S)..(GCC,TH);GGN155,165,GUN166,TGN166..(EPTSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88500-0K321 |
GUN165..M..TH;GUN156..RHD..(SA,TH);TGN156..THSUV..S..GCC;GUN156..THSUV..(H,M)..(ARL,GCC,GEN);GGN155,GUN155,166,TGN166..(EPTSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K570 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K540 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88600 - CONTROL ASSY, AIR CONDITIONER | ||||
| 87165-0K020 |
GUN165..M..TH;GUN165..THSUV..(H,S)..GCC;GUN156,KUN156..RHD..(SA,TH);GUN156..THSUV..(H,M)..(ARL,GCC,GEN);GUN155,TGN156..THSUV..(H,M,S)..(GCC,TH);GGN155,165,GUN166,TGN166..(EPTSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KN30 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K150 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K160 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-0A020 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
ILLUST NO. 2 OF 2(1507- )
REAR MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K310 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 87103-0K311 |
GGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K290 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K320 |
GUN165..M..TH;GUN165..THSUV..(H,S)..GCC;GUN156,KUN156..RHD..(SA,TH);GUN156..THSUV..(H,M)..(ARL,GCC,GEN);GUN155,TGN156..THSUV..(H,M,S)..(GCC,TH);GGN155,165,GUN166,TGN166..(EPTSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88500-0K321 |
GUN165..M..TH;GUN156..RHD..(SA,TH);TGN156..THSUV..S..GCC;GUN156..THSUV..(H,M)..(ARL,GCC,GEN);GGN155,GUN155,166,TGN166..(EPTSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K570 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K540 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KN30 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K150 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K160 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,SASUV,THSUV |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-0A020 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
| Linked diagrams | ||||
| 8401 | ||||

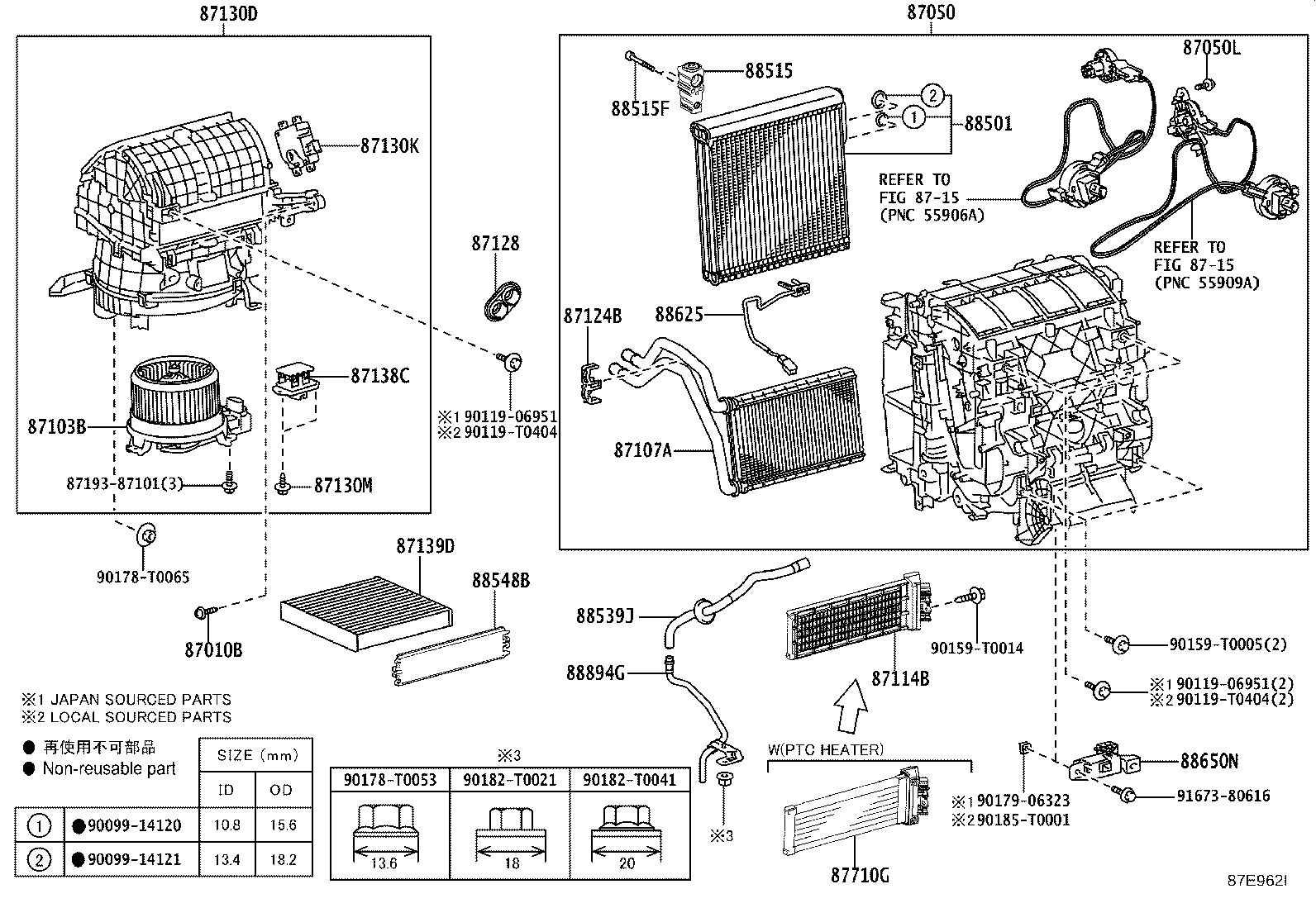

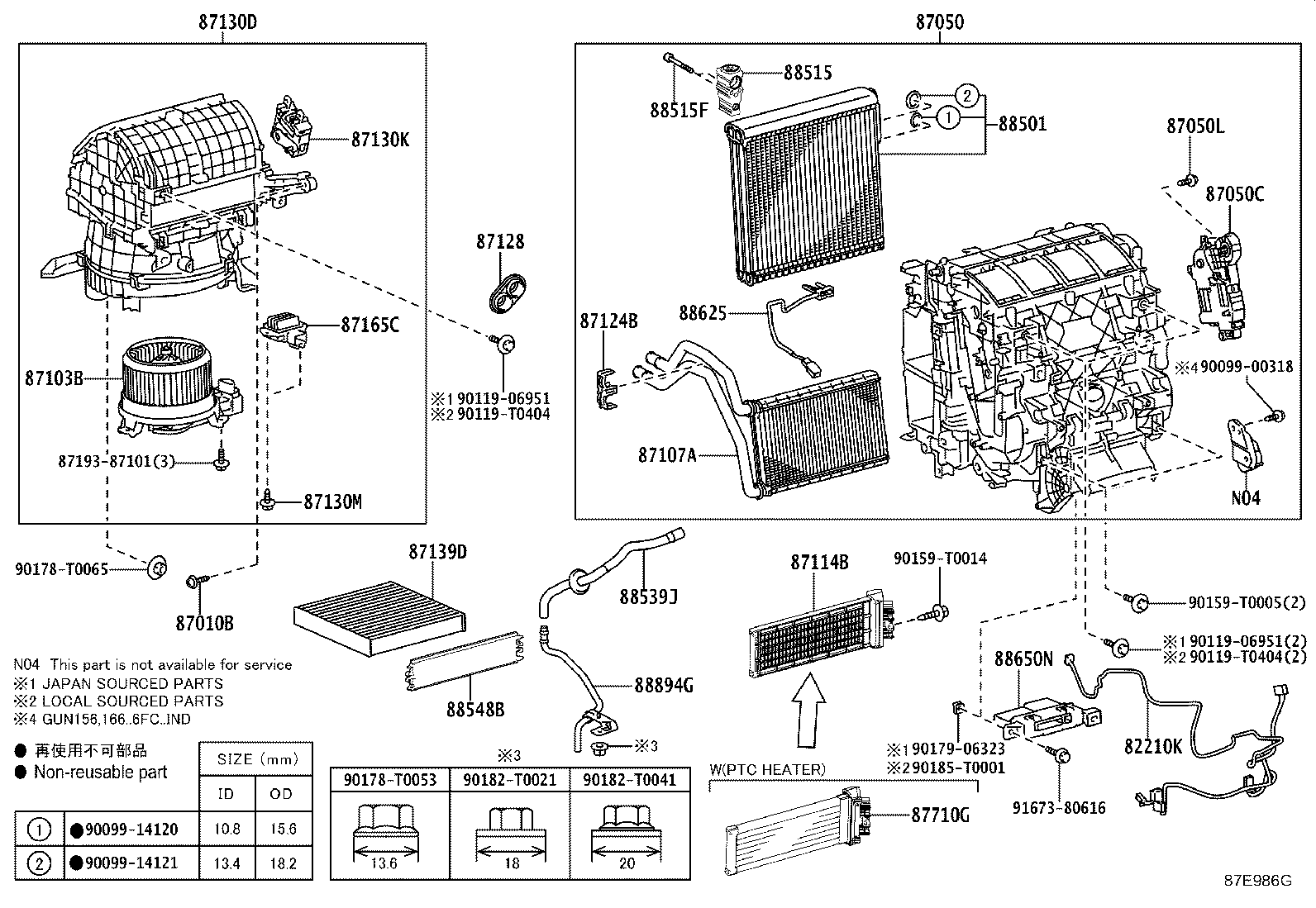

ILLUST NO. 1 OF 2(1507- )RHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KG50 |
GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K491 |
GGN155,GUN15#,16#,TGN166..RHD..SA |
1 | ||
| 87103-0K490 |
GGN155,GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K170 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K050 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0K230 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K200 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K810 |
GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA |
1 | ||
| 87130-0K811 |
GGN155,GUN156,166..RHD..SA |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K250 |
GGN155,GUN156,166..RHD..SA |
1 | ||
| 87106-0K250 |
KUN156..RHD;GUN156..6F..M;GUN156,166..IND;TGN166..M..(IND,TH);TGN156,166..RHD..(H,S)..(GEN,IND,SA) |
1 | ||
| 87106-0K251 |
GUN165..M..TH;GUN156..M..ARL;GUN165,TGN156..RHD..IDNSU;GGN155,GUN15#,166,TGN166..RHD..(M,S)..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DEODORANT FILTER |
1 | ||
| 87139-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K430 |
GGN155,GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,SA;GUN16#,TGN156..BZAGT,GEN,IDN,KZS,LA,PH,SA,TH,VN;GUN156,KUN156,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K430 |
GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K120 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88548-0K121 |
GGN155,GUN15#,16#,LAN155,TGN156,166..SA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,EPT,GCC,GEN,IDN,PH,PKN,SA,TH,VN;GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K440 |
KUN156..RHD;GUN156..M..ARL;GUN165..GEN,IDN;GUN165..M..(PH,TH);GUN156..THSUV..H..GEN;GUN156,166..RHD..(SA,TH);KUN156..LHD..IDNSU..(H,M);TGN156..IDNSU..(M,S)..(GEN,LA,VN);GUN156..(IDNSU,PKNSU,VNSUV)..(H,M)..(GEN,LA,PH,PKN,VN);GGN155,GUN155,TGN166..(EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC..(H,M,S)..(EPT,GEN,IDN,LA,PKN,SA,TH,VN) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K110 |
GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90182-T0021 | ||||
| 90182-T0041 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

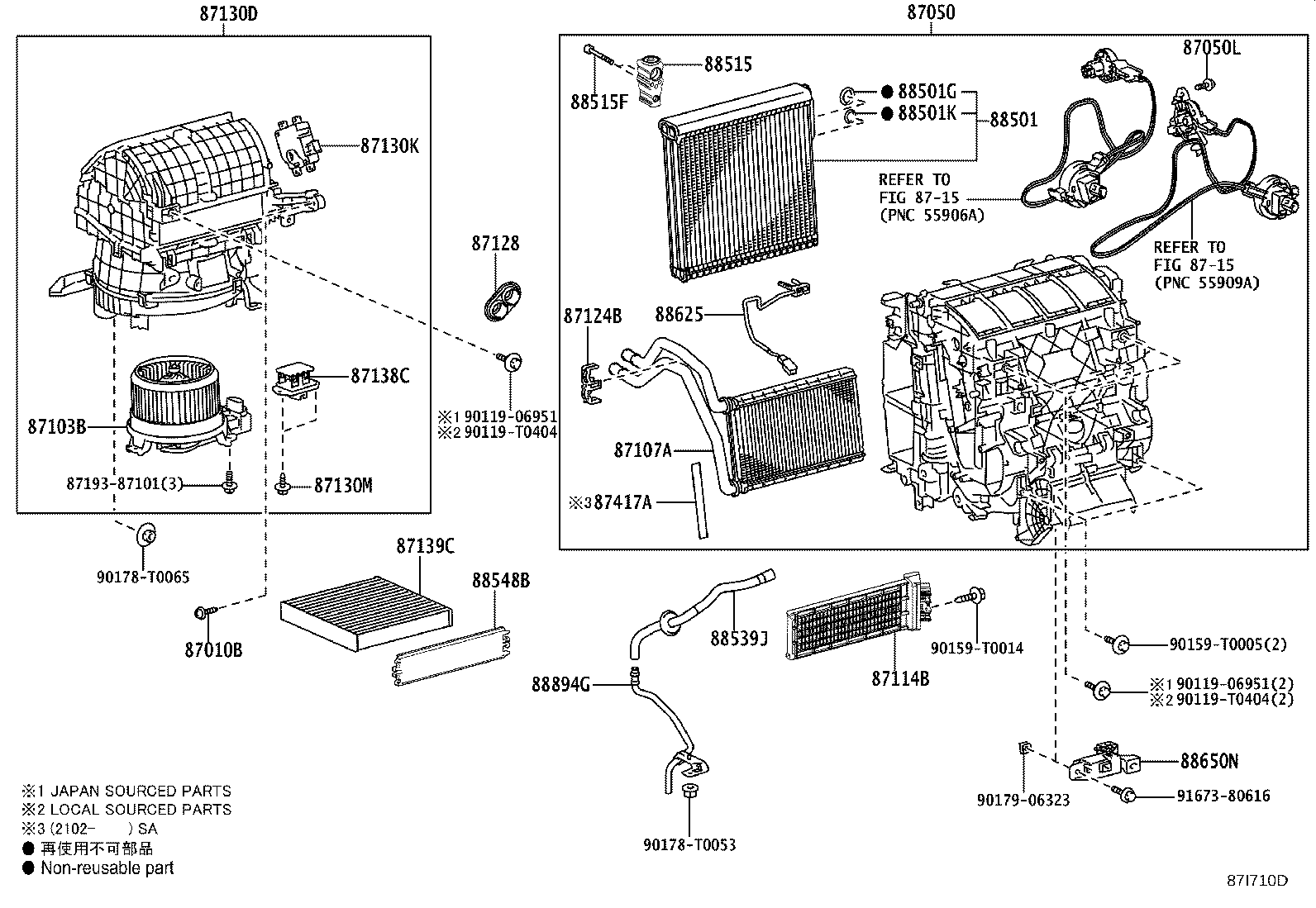

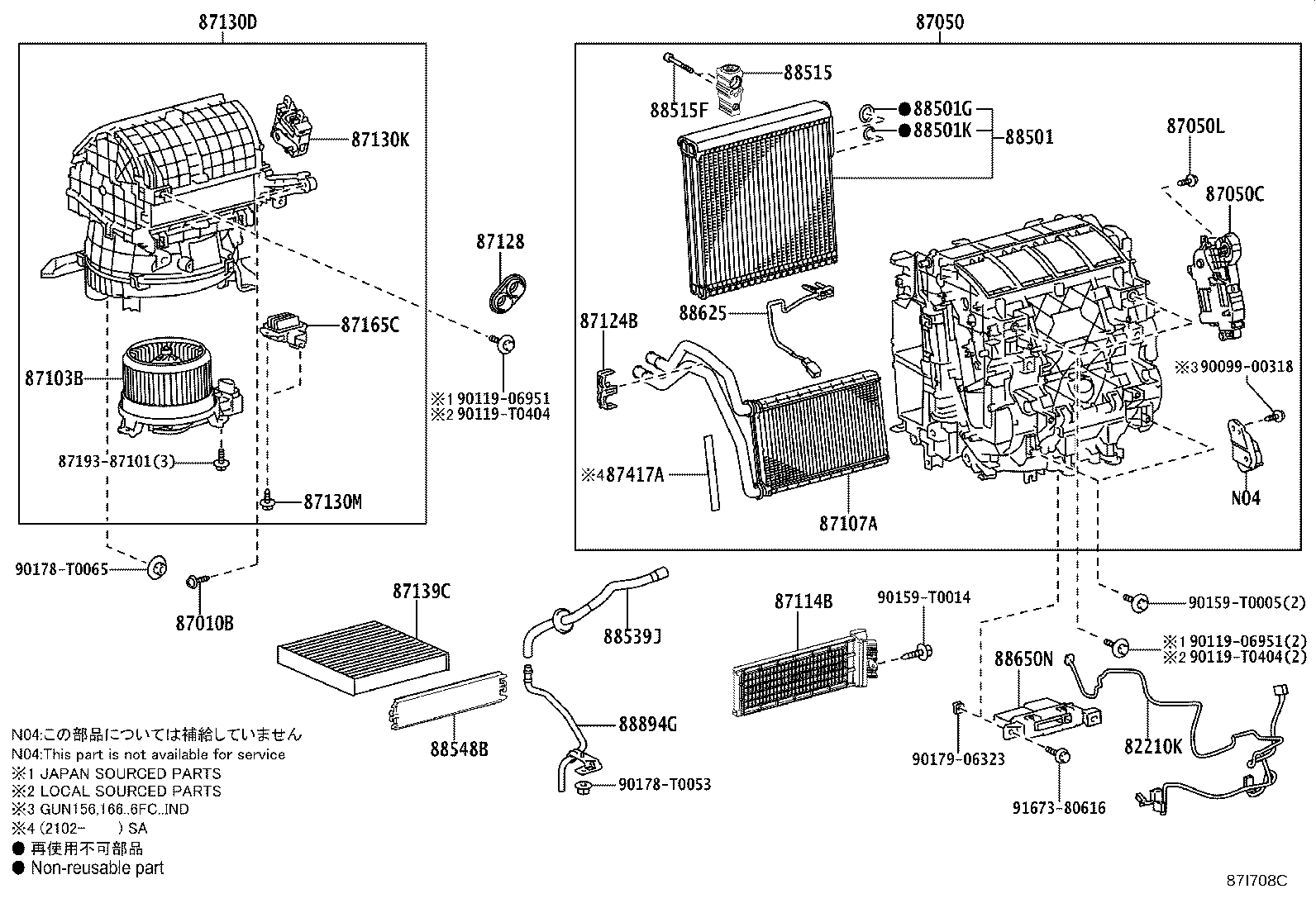

ILLUST NO. 1 OF 2(1507- )RHD
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0K050 |
GUN165..M..TH;GUN156..M..ARL;GUN165,TGN156..RHD..IDNSU;GGN155,GUN15#,166,KUN156,TGN166..RHD..(H,M,S)..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KG50 |
GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0K210 |
KUN156..RHD;GUN156..S..IART;GUN156..RHD..SA;TGN166..AGTSU..M;KUN156..LHD..(H,M);GUN165..(H,M,S)..(GCC,GEN,IDN);GUN165,TGN156..(H,M)..(BZAGT,PH,TH);TGN166..(H,M,S)..(GCC,GEN,IDN,PKN,SA,TH,VN);GUN155,TGN156..(H,M,S)..(GCC,GEN,IDN,LA,TH,VN);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M);GGN155,165,GUN166,TGN168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K491 |
GGN155,GUN15#,16#,TGN166..RHD..SA |
1 | ||
| 87103-0K490 |
GGN155,GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K170 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K050 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0K230 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K200 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K810 |
GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA |
1 | ||
| 87130-0K811 |
GGN155,GUN156,166..RHD..SA |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K250 |
GGN155,GUN156,166..RHD..SA |
1 | ||
| 87106-0K250 |
KUN156..RHD;GUN156..6F..M;GUN156,166..IND;TGN166..M..(IND,TH);TGN156,166..RHD..(H,S)..(GEN,IND,SA) |
1 | ||
| 87106-0K251 |
GUN165..M..TH;GUN156..M..ARL;GUN165,TGN156..RHD..IDNSU;GGN155,GUN15#,166,TGN166..RHD..(M,S)..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DEODORANT FILTER |
1 | ||
| 87139-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA POLLEN FILTER |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0K060 |
KUN156..RHD;GUN156..S..IART;GUN156..RHD..SA;TGN166..AGTSU..M;KUN156..LHD..(H,M);GUN165..(H,M,S)..(GCC,GEN,IDN);GUN165,TGN156..(H,M)..(BZAGT,PH,TH);TGN166..(H,M,S)..(GCC,GEN,IDN,PKN,SA,TH,VN);GUN155,TGN156..(H,M,S)..(GCC,GEN,IDN,LA,TH,VN);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M);GGN155,165,GUN166,TGN168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K430 |
GGN155,GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,SA;GUN16#,TGN156..BZAGT,GEN,IDN,KZS,LA,PH,SA,TH,VN;GUN156,KUN156,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K430 |
GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K120 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88548-0K121 |
GGN155,GUN15#,16#,LAN155,TGN156,166..SA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,EPT,GCC,GEN,IDN,PH,PKN,SA,TH,VN;GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K440 |
KUN156..RHD;GUN156..M..ARL;GUN165..GEN,IDN;GUN165..M..(PH,TH);GUN156..THSUV..H..GEN;GUN156,166..RHD..(SA,TH);KUN156..LHD..IDNSU..(H,M);TGN156..IDNSU..(M,S)..(GEN,LA,VN);GUN156..(IDNSU,PKNSU,VNSUV)..(H,M)..(GEN,LA,PH,PKN,VN);GGN155,GUN155,TGN166..(EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC..(H,M,S)..(EPT,GEN,IDN,LA,PKN,SA,TH,VN) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K110 |
GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90182-T0021 | ||||
| 90182-T0041 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||

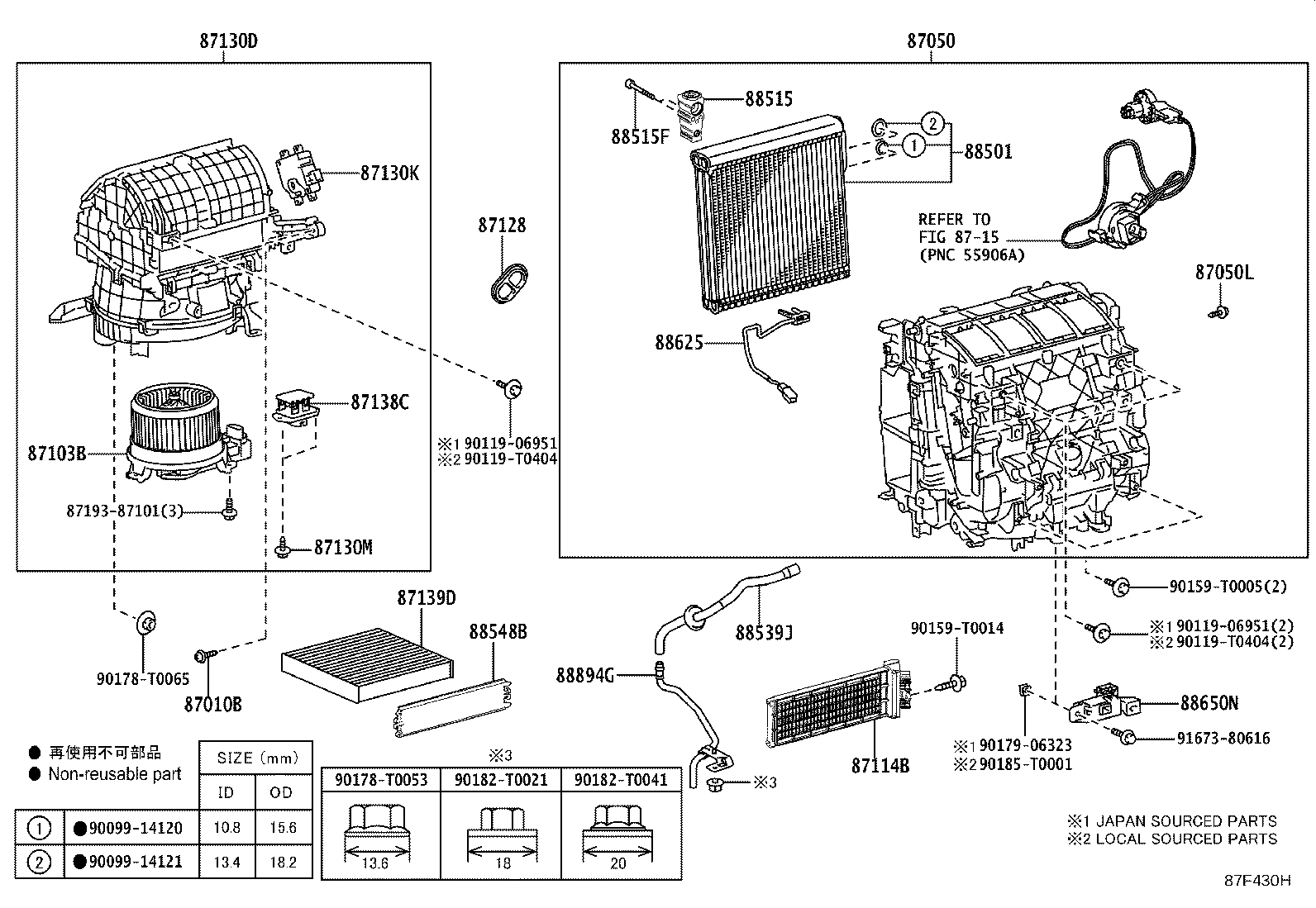

ILLUST NO. 1 OF 2(1507- )RHD
FRONT MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KG50 |
GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K491 |
GGN155,GUN15#,16#,TGN166..RHD..SA |
1 | ||
| 87103-0K490 |
GGN155,GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K050 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K200 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K810 |
GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA |
1 | ||
| 87130-0K811 |
GGN155,GUN156,166..RHD..SA |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K250 |
GGN155,GUN156,166..RHD..SA |
1 | ||
| 87106-0K250 |
KUN156..RHD;GUN156..6F..M;GUN156,166..IND;TGN166..M..(IND,TH);TGN156,166..RHD..(H,S)..(GEN,IND,SA) |
1 | ||
| 87106-0K251 |
GUN165..M..TH;GUN156..M..ARL;GUN165,TGN156..RHD..IDNSU;GGN155,GUN15#,166,TGN166..RHD..(M,S)..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-58010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DEODORANT FILTER |
1 | ||
| 87139-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K430 |
GGN155,GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,SA;GUN16#,TGN156..BZAGT,GEN,IDN,KZS,LA,PH,SA,TH,VN;GUN156,KUN156,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K430 |
GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K120 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 88548-0K121 |
GGN155,GUN15#,16#,LAN155,TGN156,166..SA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,EPT,GCC,GEN,IDN,PH,PKN,SA,TH,VN;GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K440 |
KUN156..RHD;GUN156..M..ARL;GUN165..GEN,IDN;GUN165..M..(PH,TH);GUN156..THSUV..H..GEN;GUN156,166..RHD..(SA,TH);KUN156..LHD..IDNSU..(H,M);TGN156..IDNSU..(M,S)..(GEN,LA,VN);GUN156..(IDNSU,PKNSU,VNSUV)..(H,M)..(GEN,LA,PH,PKN,VN);GGN155,GUN155,TGN166..(EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC..(H,M,S)..(EPT,GEN,IDN,LA,PKN,SA,TH,VN) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K110 |
GUN15#,16#,KUN156,TGN166..RHD..SA |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90182-T0021 | ||||
| 90182-T0041 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(2006- )RHD
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00318 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(2006- )RHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(2006- )
REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
ILLUST NO. 2 OF 2(2006- )
REAR MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2006- )RHD
MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
