GUN156R-SNFSHN (2016)

Toyota Fortuner

Production Mar 2016 - Sep 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67750 67751A 67751A 74811G
Part # Description Qty Price

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5752 64795A 64818B 64819 64819 64819B 64827A 64828 64885C 64886B 67005 67152A 67837L 67848F 67881A 68131 68294A 68294B 68294B 68294B 75129C 76811A 76817 76818 76818 76821 76822A 76825 9010805002 9010906358 9011605036 90178T0001 90178T0001 90178T0023 9043005003 9043005003 9043005003 90467T0030 90467T0030
Part # Description Qty Price
Common parts
90108-05002
90109-06358
90116-05036
90178-T0001
90178-T0023
90430-05003
90467-T0030
Linked diagrams
5752

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67750 67751A 67751A 74811G
Part # Description Qty Price

ILLUST NO. 1 OF 2(1107- )ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN

Click highlighted areas on diagram

DOOR PANEL

diagram 5752 64795A 64818B 64819 64819 64819B 64827A 64828 64885C 64886B 67005 67005B 67005B 67152A 67837L 67848F 67881A 68131 68294A 68294B 68294B 68294B 75129C 76801 76811A 76817 76818 76818 76825 76825B 76825C 9010805002 9010906358 9011605036 90178T0001 90178T0023 9043005003 9043005003 9043005003 90467T0030 90467T0030 9095006051 90950T6001 90950T6002
Part # Description Qty Price
Common parts
90108-05002
90109-06358
90116-05036
90178-T0001
90178-T0023
90430-05003
90467-T0030
90950-06051
90950-T6001
90950-T6002
Linked diagrams
5752

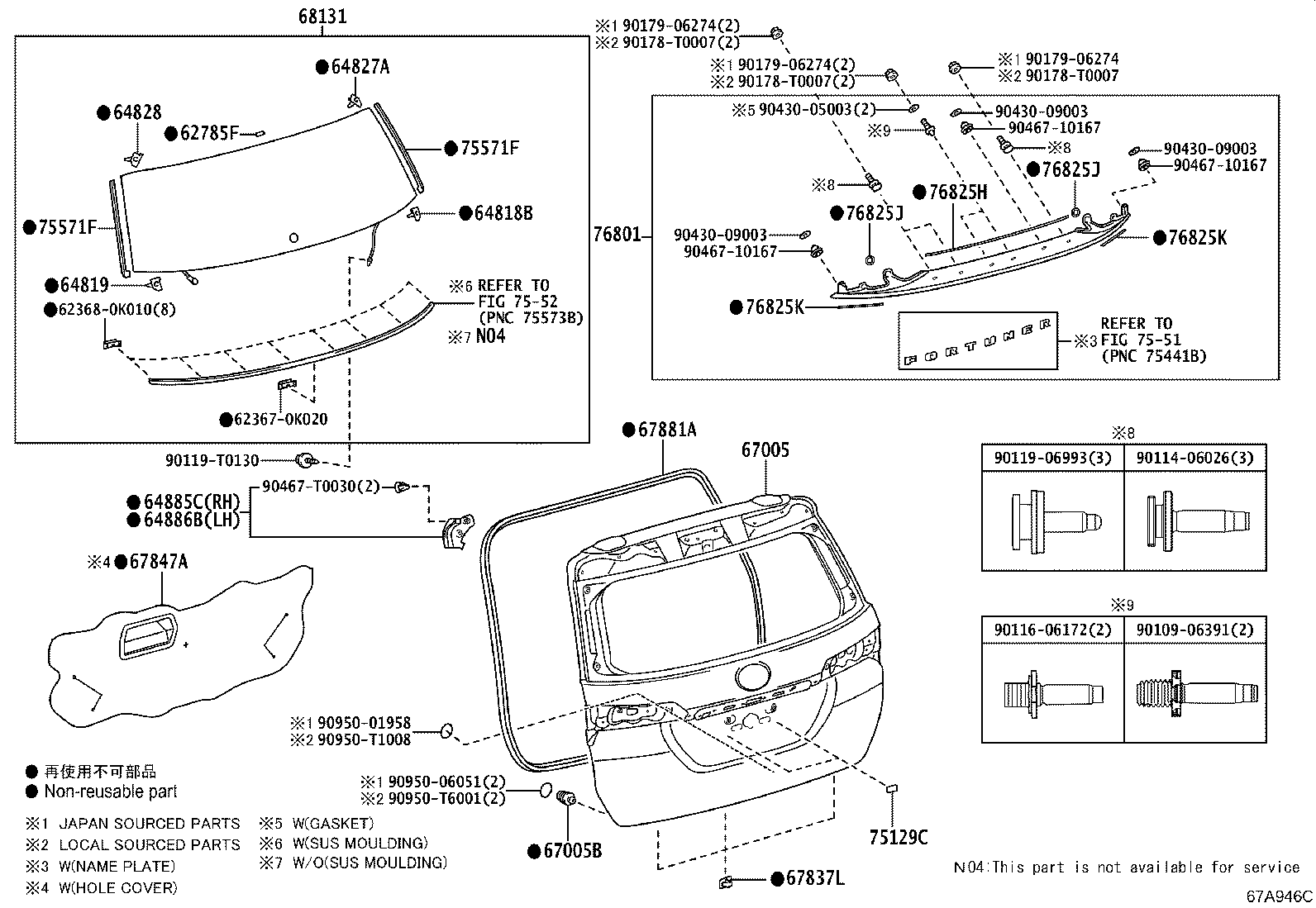

ILLUST NO. 1 OF 2(1507- )

Click highlighted areas on diagram

DOOR PANEL

diagram 623670K020 623680K010 623680K010 623680K010 62785F 62785F 62785F 64818B 64819 64827A 64828 64885C 64886B 67005 67005B 67837L 67847A 67881A 68131 75129C 7551 7552 75571F 75571F 76801 76825H 76825J 76825J 76825K 76825K 9010906391 9011406026 9011606172 9011906993 90119T0130 90178T0007 90178T0007 90178T0007 9017906274 9017906274 9017906274 9043005003 9043009003 9043009003 9043009003 9046710167 9046710167 9046710167 90467T0030 9095001958 9095006051 90950T1008 90950T6001
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
68294-26030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
62785F - SPACER, BACK DOOR GLASS
68294-26030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
62785F - SPACER, BACK DOOR GLASS
68294-26030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-0K120

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-0K140

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
64827A - CLIP, BACK WINDOW GLASS, RH
64827-0K060

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-0K060

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
64885C - CHANNEL, BACK DOOR GLASS, RH
64885-0K080

TGN156..EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..EPTSU,PKNSU,SASUV,THSUV

 1
64886B - CHANNEL, BACK DOOR GLASS, LH
64886-0K080

TGN156..EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..EPTSU,PKNSU,SASUV,THSUV

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-KK060

GUN156,166,KUN156,LAN155,TGN156..SA

 1
67005-KK010

GUN156,166,KUN156..RHD..SA

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

 1
67005-KK150

GUN156,166..RHD..SA

POWER BACK DOOR-WITH

 1
67005-KK140

LAN155;GUN15#,166,KUN156,TGN156..S..SA

 1
67005-KK130

GUN156,166..RHD..SA

POWER BACK DOOR-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

 1
67005-KK120

GUN156,166,KUN156..RHD..SA

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
69478-48010

TGN166..THSUV..L;TGN156..S..(BZAGT,KZS,SA);TGN156..(AGTSU,EPTSU,THSUV)..(H,L,M);GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,SASUV,THSUV;GUN156,TGN166..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..(L,M,S)..(ARL,BZAGT,EPT,GEN,LA,PKN,SA,TH)

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-0K060

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
68131 - GLASS, BACK DOOR
68105-0K480

GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA

 1
68105-0K481

GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-13020

GGN165..GCC;GUN156..6F..M;TGN166..THSUV..5F;GUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;GGN155,GUN155,16#,KUN156,165,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,VNSUV

 2
75571F - MOULDIMG, BACK DOOR WINDOW
75571-0K090

TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV

RH

 1
75572-0K010

TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV

LH

 1
75571F - MOULDIMG, BACK DOOR WINDOW
75571-0K090

TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV

RH

 1
75572-0K010

TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV

LH

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0K340

GUN165..6FC..TH;GUN15#,TGN156,166..(M,S)..(ARL,SA,TH);GGN155,GUN166,KUN156,LAN155..EPT,SA,TH

 1
76801-0K350

GUN165..6FC..S..TH;GUN156,166,KUN156,TGN166..RHD..S..SA;GGN155,GUN155..6FC..(H,M,S)..(EPT,SA,TH)

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

 1
76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825-0K120

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV

 1
76825J - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76825-0K130

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV

 2
76825J - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76825-0K130

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV

 2
76825K - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3
76825-0K140

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV

 2
76825K - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3
76825-0K140

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV

 2
Common parts
62367-0K020
62368-0K010
90109-06391
90114-06026
90116-06172
90119-06993
90119-T0130
90178-T0007
90179-06274
90430-05003
90430-09003
90467-10167
90467-T0030
90950-01958
90950-06051
90950-T1008
90950-T6001
Linked diagrams
7551
7552

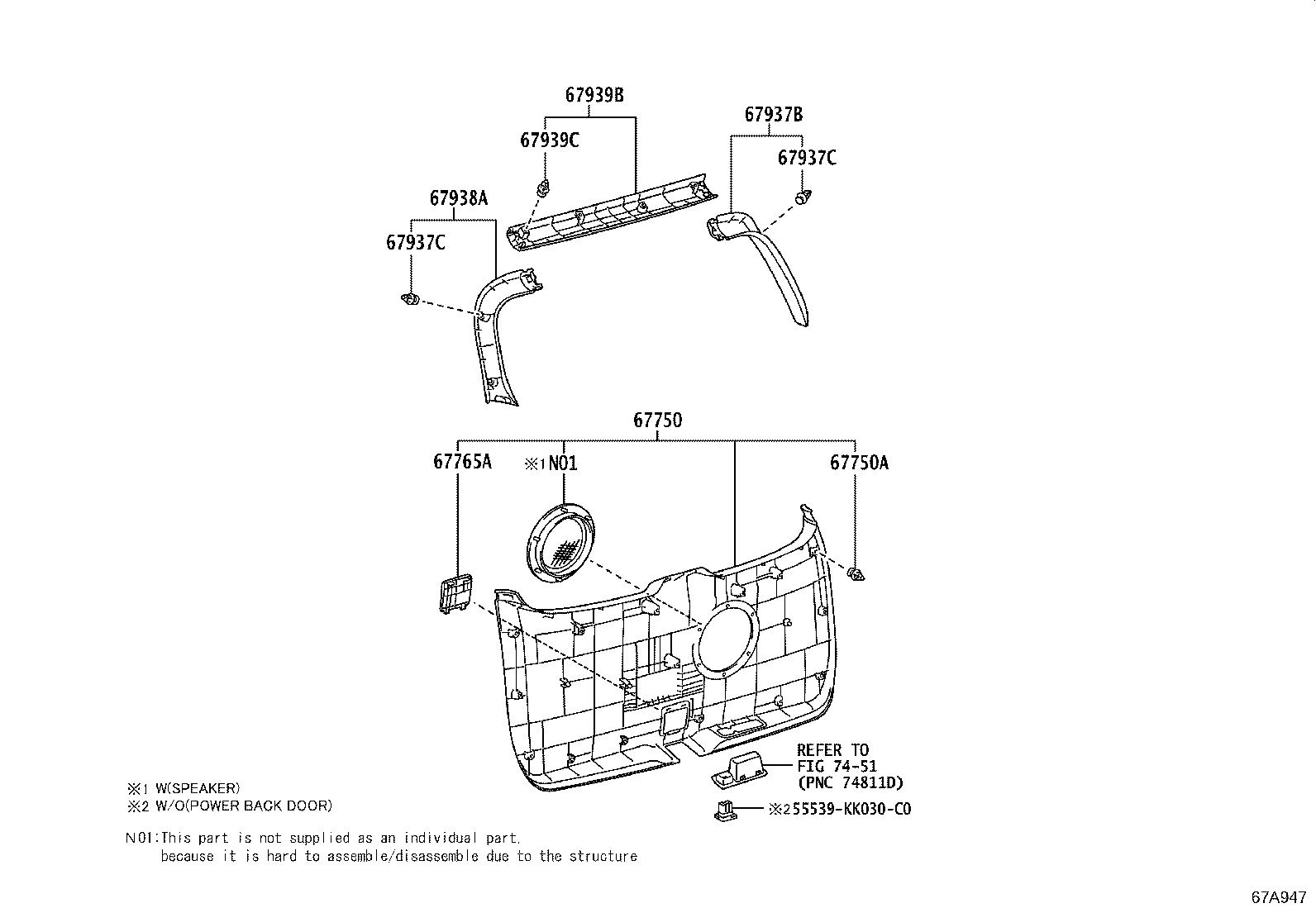

ILLUST NO. 2 OF 2(1507- )

Click highlighted areas on diagram

DOOR TRIM

diagram 55539KK030C0 67750 67750A 67765A 67937B 67937C 67937C 67938A 67939B 67939C 7451
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-0K270C0

GUN156..6F..M

SPEAKER-11SPEAKER & JBL,BLACK,TRIM4#

 1
67750-0K280C0

GUN156..6F..M;TGN156..S..KZS;TGN166..THSUV..L;GGN155,165,GUN155,16#..EPTSU,THSUV;GUN156,TGN156..(EPTSU,THSUV)..(H,L)..(ARL,EPT,GCC,KZS);GUN156,TGN166..(EPTSU,PKNSU,THSUV)..(L,M,S)..(EPT,GEN,PKN,TH)

BLACK,TRIM4#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-T0019

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);TGN156..S..(BZAGT,GEN,KZS,SA);GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 15
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-0K030C0

GUN156..6F..M;TGN156..S..KZS;TGN166..THSUV..L;GGN155,165,GUN155,16#..EPTSU,THSUV;GUN156,TGN156..(EPTSU,THSUV)..(H,L)..(ARL,EPT,GCC,KZS);GUN156,TGN166..(EPTSU,PKNSU,THSUV)..(L,M,S)..(EPT,GEN,PKN,TH)

BLACK,TRIM4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-0K030B0

GUN156..6F..M;GUN156..IDNSU..H..GEN;GUN165..IDNSU,SASUV,THSUV,VNSUV;GUN156,TGN166..(H,L)..(ARL,GCC);LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,HTWCF,IART)

LT.GRAY,TRIM4#

 1
67938A - GARNISH, BACK DOOR SIDE, LH
67938-0K030B0

GUN156..6F..M;GUN156..IDNSU..H..GEN;GUN165..IDNSU,SASUV,THSUV,VNSUV;GUN156,TGN166..(H,L)..(ARL,GCC);LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,HTWCF,IART)

LT.GRAY,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-0K030B0

GUN156..6F..M;TGN156..S..KZS;TGN166..THSUV..L;TGN166..EPT,PKN,TH;GUN155..THSUV..GCC;GGN155,165,GUN165..EPTSU,THSUV;GUN156..(PKNSU,THSUV)..(M,S)..(GEN,PKN);GUN156,TGN156..(EPTSU,THSUV)..(H,L)..(ARL,EPT,GCC,KZS)

LT.GRAY,TRIM4#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-T0021

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 4
Common parts
55539-KK030C0
Linked diagrams
7451

ILLUST NO. 1 OF 2(2005- )

Click highlighted areas on diagram

DOOR PANEL

diagram 623670K020 623680K010 62785F 64818B 64819 64827A 64828 64885C 64886B 67005 67005B 67837L 67847A 67881A 68131 75129C 7551 7552 75571F 75571F 76801 76825H 76825J 76825J 76825K 76825K 9010906391 9011406026 9011606172 9011906993 90119T0130 90178T0007 90178T0007 90178T0007 9017906274 9017906274 9017906274 9043005003 9043009003 9043009003 9043009003 9046710167 9046710167 9046710167 90467T0030 9095001958 9095006051 90950T1008 90950T6001
Part # Description Qty Price
Common parts
62367-0K020
62368-0K010
90109-06391
90114-06026
90116-06172
90119-06993
90119-T0130
90178-T0007
90179-06274
90430-05003
90430-09003
90467-10167
90467-T0030
90950-01958
90950-06051
90950-T1008
90950-T6001
Linked diagrams
7551
7552

ILLUST NO. 2 OF 2(2005- )

Click highlighted areas on diagram

DOOR TRIM

diagram 55539KK030C0 67750 67750A 67765A 67937B 67937C 67937C 67938A 67939B 67939C 7451
Part # Description Qty Price
Common parts
55539-KK030C0
Linked diagrams
7451
