GUN156R-SNFSHN (2016)

Toyota Fortuner

Production Mar 2016 - Sep 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )RHD

Click highlighted areas on diagram

diagram 58572A 58804A 58804A 58804A 58804A 58808 58808 58808 58810J 58811D 58837A 58837A 58839A 58844 58901A 58903A 58904B 58904B 58904B 58904B 58905 58907 58908A 58959B 58964 58965A 58995E 58996A 9011906812 90119T0075 90119T0234 90163T0001 90163T0001 90167T0007 90167T0007 90167T0007 90167T0012 90167T0012 90167T0023
Part # Description Qty Price
Common parts
90119-06812
90119-T0075
90119-T0234
90163-T0001
90167-T0007
90167-T0012
90167-T0023

(1107- )RHD

Click highlighted areas on diagram

diagram 58572A 58804A 58804A 58804A 58804A 58808 58810J 58811D 58837A 58837A 58839A 58840P 58844 58878 58901A 58903A 58904B 58904B 58904B 58904B 58905 58907 58959B 58964 58965A 58995E 58996A 9011906812 90119T0234 90119T0234 90163T0001 90163T0001 90167T0007 90167T0007 90167T0012 90167T0012
Part # Description Qty Price
Common parts
90119-06812
90119-T0234
90163-T0001
90167-T0007
90167-T0012

(1507- )RHD..INDSU,SASUV,THSUV..MTM

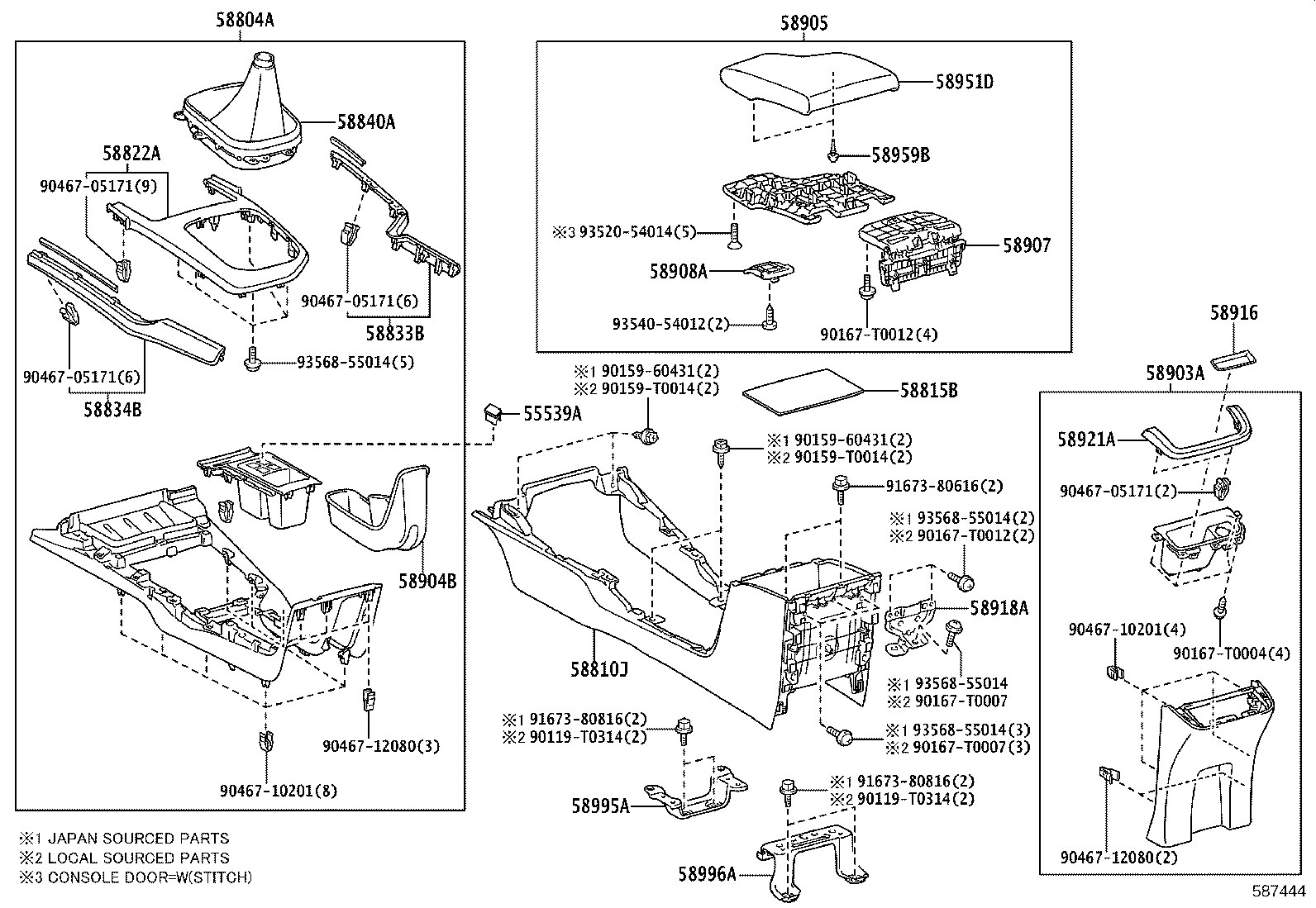

Click highlighted areas on diagram

diagram 55539A 58804A 58810J 58815B 58822A 58833A 58833B 58834B 58840A 58903A 58904B 58905 58907 58908A 58916 58918A 58921A 58951D 58959B 58995A 58996A 90119T0314 90119T0314 9015960431 9015960431 90159T0014 90159T0014 90167T0004 90167T0007 90167T0007 90167T0012 90167T0012 9046705171 9046705171 9046705171 9046705171 9046710201 9046710201 9046712080 9046712080 9167380616 9167380816 9167380816 9352054014 9354054012 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-KK030C0

TGN168..6FC..L;TGN156..AGTSU..(H,L,S);GGN155,GUN156,16#..RHD..SA;TGN166..(AGTSU,SASUV)..(L,S)

BLACK

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-KK110C4

GUN156..6F..M

BLACK/GRAY,TRIM42

 1
58804-KK110C5

GUN156..6F..M

BLACK/BROWN,TRIM41

 1
58804-KK110C5

GUN156,166,KUN156..RHD..6F..SA

BLACK/BROWN,TRIM4#

 1
58804-KK270C0

GUN156..6F..M

BLACK/GRAY,TRIM42

 1
58804-KK270C1

GUN156..6F..M

BLACK/BROWN,TRIM41

 1
58810J - BOX ASSY, CONSOLE
58810-KK110C0

GUN156..6F..S..BZAGT;GUN156..(AGTSU,INDSU,SASUV)..6F..(IND,LA,SA);GUN155,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,INDSU,SASUV,THSUV)..MTM..(BZAGT,GCC,IND,LA,SA,TH)

BLACK,TRIM4#

 1
58815B - CARPET, CONSOLE BOX
58815-KK010

TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-KK010B1

GUN156..6F..M

GRAY,TRIM42

 1
58822-KK010E1

GUN156..6F..M

BROWN,TRIM41

 1
58822-KK010E1

GUN156,16#,KUN156,TGN166..RHD..MTM..(H,M,S)..(IDN,IND,SA,TH)

BROWN,TRIM4#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-KK040

GUN156..6F..M;GUN156,16#,KUN156,TGN166..RHD..MTM..(H,M,S)..(IDN,IND,SA,TH)

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-KK040

GUN156..6F..M;GUN156,16#,KUN156,TGN166..RHD..MTM..(H,M,S)..(IDN,IND,SA,TH)

 1
58840A - COVER ASSY, SHIFTING HOLE
58840-KK030C0

GUN156..6F..(L,M)..ARL;GUN156,16#,KUN156,TGN166..RHD..MTM..(IND,SA,TH)

BLACK,TRIM4#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-KK040C1

GUN156..RHD..SA

EXPORT FROM SOUTH AFRICA,BLACK,TRIM4#

 1
58903-KK030C2

GGN155,GUN156,166..RHD..SA

BLACK/SILVER 21SV85,TRIM4#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-KK060C1

TGN166..TH;KUN156..RHD;TGN156..S..GEN;GUN156..(L,M)..ARL;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GGN155,GUN15#,16#..RHD..(PKN,SA,TH)

BLACK/BEIGE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-KK030C8

TGN166..(H,M,S)..(IND,SA);GGN155,GUN15#,16#,KUN156,TGN156..RHD..(M,S)..(MA,SA)

BLACK/BROWN,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-KK010C0

GUN156..6F..M;TGN166..THSUV..GCC;GUN156..IDNSU..H..GEN;GUN156..(H,L)..(ARL,GCC);TGN156..IDNSU..(GEN,LA,VN);GUN165..AGTSU,IDNSU,SASUV,THSUV,VNSUV;TGN156..(AGTSU,EPTSU,SASUV,THSUV)..(L,M,S);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165,LAN155..EPT,GCC,GEN,IDN,LA,SA

BLACK,TRIM4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-KK010

TGN166..THSUV..GCC;TGN156,166..IDNSU..L..GCC;TGN156..IDNSU..(GEN,LA,VN);TGN156..AGTSU,EPTSU,SASUV,THSUV;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
58916 - MAT, BOX BOTTOM
58916-KK010

TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
58918A - BRACKET, BOX SUPPORT
58918-KK010

TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
58921A - PANEL, REAR CONSOLE, UPPER
58921-KK020B1

GUN156..S..IART;TGN156..(H,M)..(BZAGT,GEN);TGN156..(M,S)..(KZS,LA,SA,VN);GUN156..6F..(H,M)..(ARL,BZAGT);GUN156..(H,M,S)..(GCC,GEN,LA,PH,PKN,SA,TH,VN);TGN166..(H,M,S)..(GEN,IDN,LA,PH,PKN,SA,TH,VN);GGN155,165,GUN155,16#,KUN156,LAN155,TGN168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV)..(H,M,S)

SILVER 21SV85,TRIM4#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-KK030E5

TGN166..(H,M,S)..(IND,SA);GGN155,GUN15#,16#,KUN156,TGN156..RHD..(M,S)..(MA,SA)

BROWN/BEIGE,TRIM4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-T0008

TGN166..THSUV..GCC;TGN156,166..IDNSU..L..GCC;TGN156..IDNSU..(GEN,LA,VN);TGN156..AGTSU,EPTSU,SASUV,THSUV;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-KK020

GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-KK020

TGN166..L..GCC;TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90119-T0314
90159-60431
90159-T0014
90167-T0004
90167-T0007
90167-T0012
90467-05171
90467-10201
90467-12080
91673-80616
91673-80816
93520-54014
93540-54012
93568-55014

(2008- )RHD..MTM..IND,SA

Click highlighted areas on diagram

diagram 55539A 58804A 58810J 58815B 58822A 58833B 58834B 58840A 58903A 58904B 58905 58907 58908A 58916 58918A 58921A 58951D 58959B 58995A 58996A 90119T0314 90119T0314 9015960431 9015960431 90159T0014 90159T0014 90167T0004 90167T0007 90167T0007 90167T0012 90167T0012 9046705171 9046705171 9046705171 9046705171 9046710201 9046710201 9046712080 9046712080 9167380616 9167380816 9167380816 9352054014 9354054012 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
Common parts
90119-T0314
90159-60431
90159-T0014
90167-T0004
90167-T0007
90167-T0012
90467-05171
90467-10201
90467-12080
91673-80616
91673-80816
93520-54014
93540-54012
93568-55014
