GUN156R-SNFSHN (2016)
Toyota Fortuner
ILLUST NO. 1 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-T0047 | ||||
| 90119-T0004 | ||||
| 90178-T0029 | ||||
| 90467-07175 | ||||
| 90950-T6002 | ||||
ILLUST NO. 2 OF 2(1107- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60496 | ||||
| 90189-T0014 | ||||
| Linked diagrams | ||||
| 5252 | ||||
ILLUST NO. 1 OF 2(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153E - GUIDE, FRONT SIDE AIR | ||||
| 53153-0K050 |
GUN15#,16#,KUN156,165..SA |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-KK030 |
GGN155,165,GUN15#,16#,KUN165,LAN155,TGN156,16# |
1 | ||
| 53301-KK031 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0K270 |
GGN155,GUN15#,16#,KUN165,LAN155,TGN156,166..SA |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
TGN166..L..(EPT,LA,SA);TGN156..(M,S)..(GCC,GEN);TGN156..BZAGT,EPT,KZS,LA,SA,VN;TGN166..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(H,M,S);GGN155,165,GUN15#,16#,KUN165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
12 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0K080 |
GUN155,TGN166..L..SA;GGN155,GUN156,16#,LAN155,TGN156..SA |
1 | ||
| 53381-0K120 |
GGN155,GUN15#,16#,LAN155,TGN156,166..SA |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-T0013 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
6 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-0K040 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-KK020 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-KK020 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0K020 |
GGN155,GUN15#,166,KUN156,LAN155,TGN156,166..S..SA |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0K020 |
GGN155,GUN15#,166,KUN156,LAN155,TGN156,166..S..SA |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
GUN165..VNSUV..S;GUN165..(H,M,S)..(GCC,GEN,IDN,MA,PH,TH);TGN156..(AGTSU,IDNSU,MASUV,SASUV,THSUV)..(H,M,S);GGN155,165,GUN15#,166,KUN156,LAN155,TGN16#..H,M,S |
3 | ||
| 53857-06030 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S) (L) |
3 | ||
| 53857-47011 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S) (J) |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-06030 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S) (L) |
3 | ||
| 53857-47011 |
GUN165..VNSUV..S;GUN165..(H,M,S)..(GCC,GEN,IDN,MA,PH,TH);TGN156..(AGTSU,IDNSU,MASUV,SASUV,THSUV)..(H,M,S);GGN155,165,GUN15#,166,KUN156,LAN155,TGN16#..H,M,S |
3 | ||
| 53857-47011 |
GGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S) (J) |
3 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
6 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
6 | ||
| 53885G - SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH | ||||
| 53807-0K200 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53886G - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53808-0K200 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH | ||||
| 53941-KK070 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH | ||||
| 53942-KK070 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| Common parts | ||||
| 75875-0K020 | ||||
| 90109-T0047 | ||||
| 90119-T0004 | ||||
| 90178-T0029 | ||||
| 90467-10204 | ||||
| 90904-67036 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
ILLUST NO. 2 OF 2(1507- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-0K090 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-0K201 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-0K201 |
GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA |
1 | ||
| Common parts | ||||
| 9004A-46388 | ||||
| 90159-60496 | ||||
| 90189-T0014 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7552 | ||||
ILLUST NO. 1 OF 2(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 75875-0K020 | ||||
| 90119-T0004 | ||||
| 90467-10204 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
ILLUST NO. 2 OF 2(2005- )AGTSU,EPTSU,INDSU,MASUV,PKNSU,SASUV,THSUV

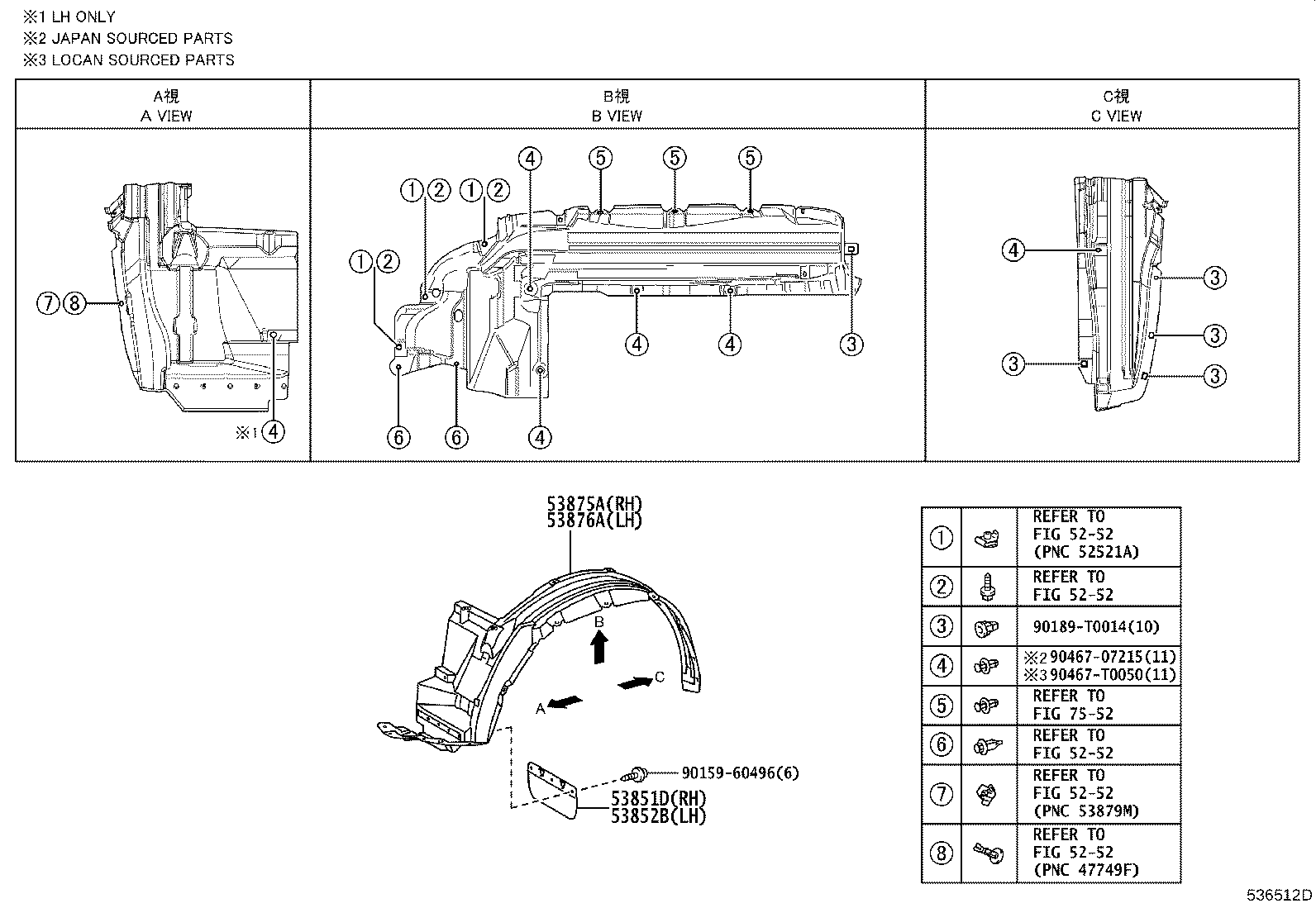

FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60496 | ||||
| 90189-T0014 | ||||
| 90467-07215 | ||||
| 90467-T0050 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7552 | ||||
