GUN156R-SNFSHN (2016)

Toyota Fortuner

Production Mar 2016 - Sep 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

Click highlighted areas on diagram

diagram 52161R 53111 53121A 53145B 53155D 7551 90164T0008 90164T0008 9016750063
Part # Description Qty Price
Common parts
90164-T0008
90167-50063
Linked diagrams
7551

(1507-1908) ; (1908- )BZAGT,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PH,PKN,SA,TH,VEN,VN

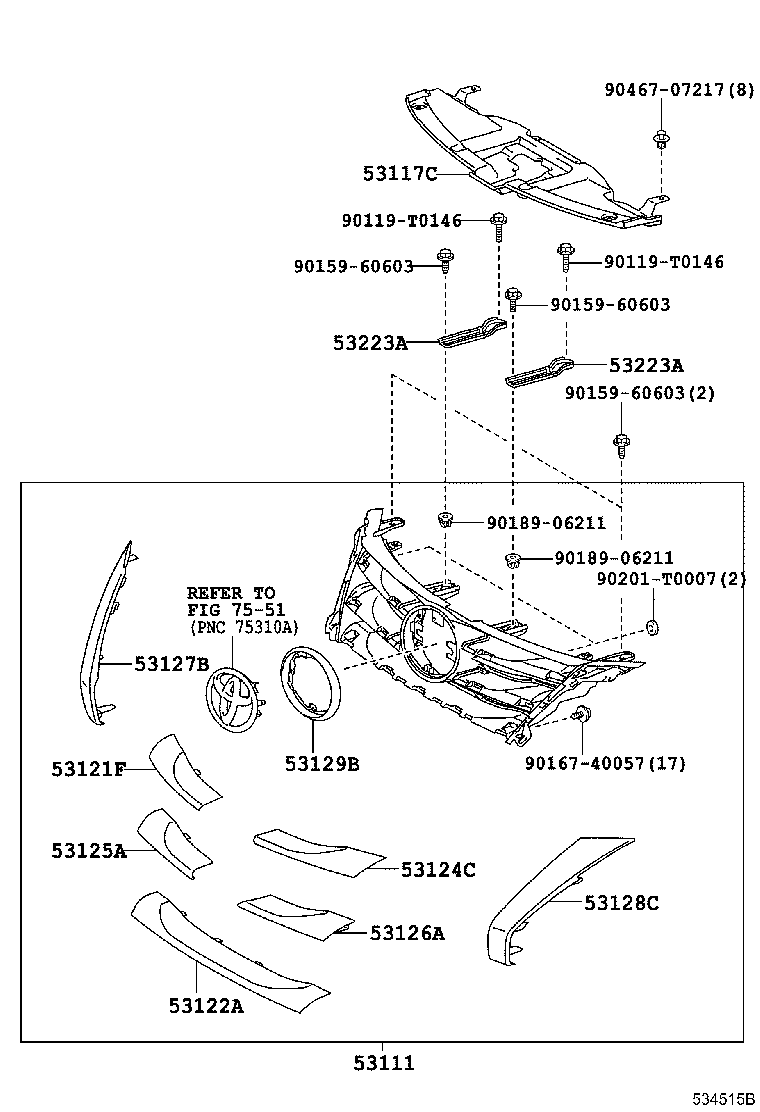

Click highlighted areas on diagram

diagram 53111 53117C 53121F 53122A 53124C 53125A 53126A 53127B 53128C 53129B 53223A 53223A 7551 90119T0146 90119T0146 9015960603 9015960603 9015960603 9016740057 9018906211 9018906211 90201T0007 9046707217
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-0KC40

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-0K080

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-0K680

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53125-0K130

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53122-0K320

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53125A - MOULDING, RADIATOR GRILLE, CENTER RH
53123-0K150

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53126A - MOULDING, RADIATOR GRILLE, CENTER LH
53124-0K150

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53127B - MOULDING, RADIATOR GRILLE, NO.7
53127-0K150

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53128C - MOULDING, RADIATOR GRILLE, NO.8
53128-0K150

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53129B - MOULDING, RADIATOR GRILLE, NO.9
53129-0K020

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
53223A - BRACKET, RADIATOR GRILLE MOUNTING
53115-0K090

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 2
53223A - BRACKET, RADIATOR GRILLE MOUNTING
53115-0K090

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 2
Common parts
90119-T0146
90159-60603
90167-40057
90189-06211
90201-T0007
90467-07217
Linked diagrams
7551

(2006- )

Click highlighted areas on diagram

diagram 53111 53111F 53117C 53121B 53121F 53122A 53124C 53129B 53129B 53223A 53223A 7551 7551 7551 90119T0146 90119T0146 9015960603 9015960603 9015960603 9016740057 9016740057 9018206009 9018906211 9018906211 9046707217 90467T0048
Part # Description Qty Price
Common parts
90119-T0146
90159-60603
90167-40057
90182-06009
90189-06211
90467-07217
90467-T0048
Linked diagrams
7551

(2006- )

Click highlighted areas on diagram

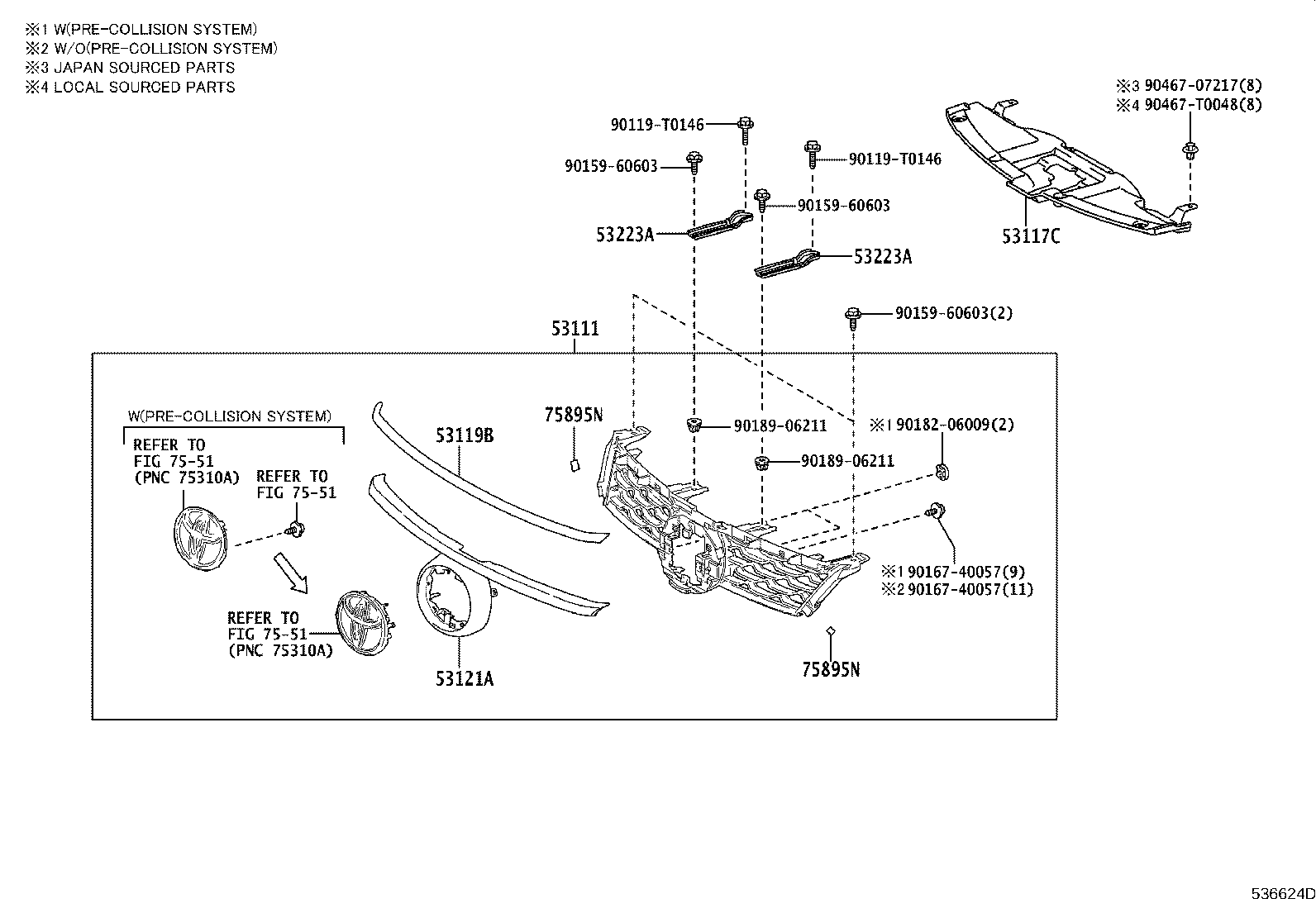

MLM PACKAGE

diagram 53111 53117C 53119B 53121A 53223A 53223A 7551 7551 7551 75895N 75895N 90119T0146 90119T0146 9015960603 9015960603 9015960603 9016740057 9016740057 9018206009 9018906211 9018906211 9046707217 90467T0048
Part # Description Qty Price
Common parts
90119-T0146
90159-60603
90167-40057
90182-06009
90189-06211
90467-07217
90467-T0048
Linked diagrams
7551
