GUN156R-SNFSHN (2016)

Toyota Fortuner

Production Mar 2016 - Sep 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

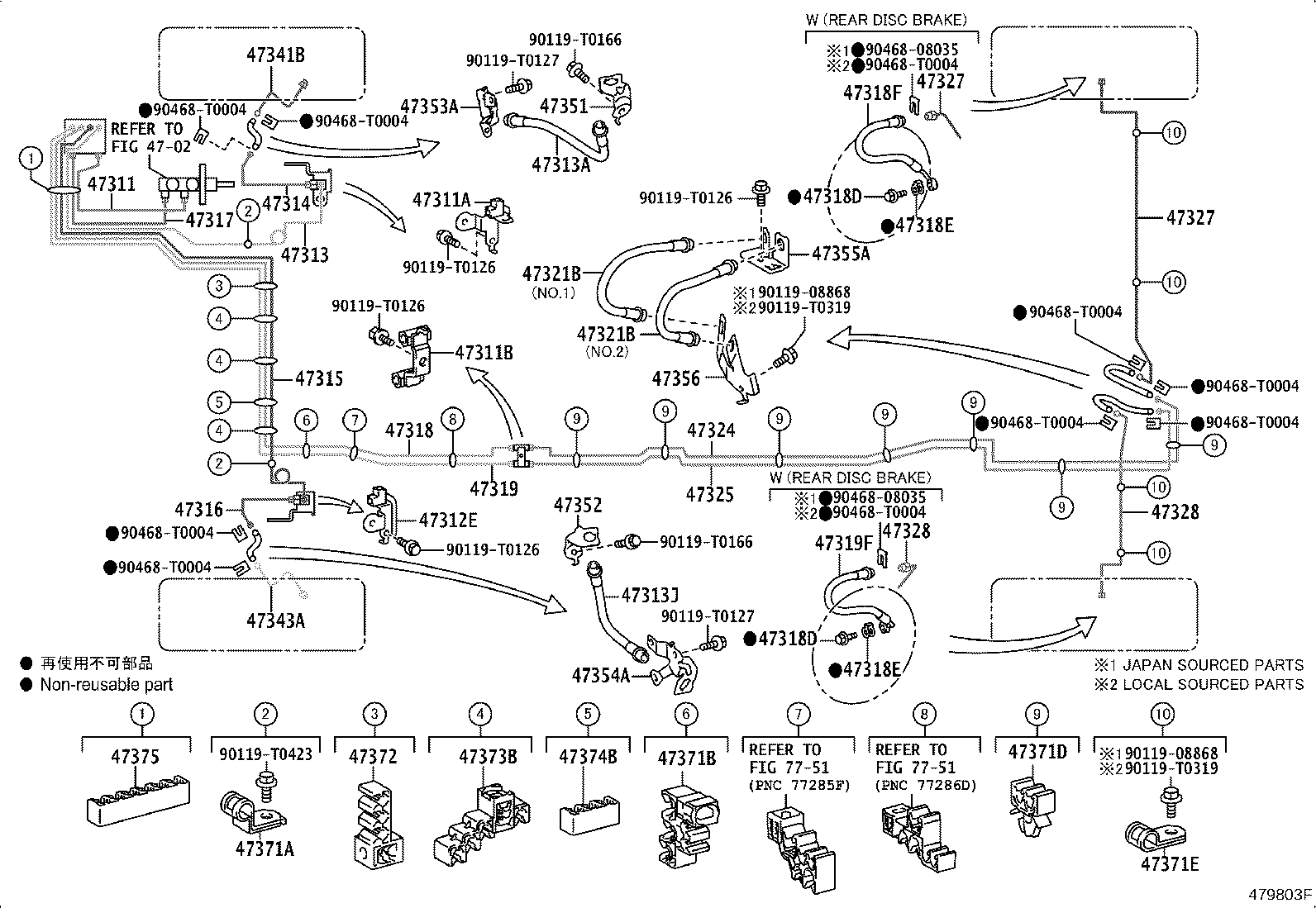

ILLUST NO. 1 OF 2(1107- )RHD..SASUV ; (1107- )RHD..5F..SA ;(1210- )GGN50,60,KUN51..RHD..4F

Click highlighted areas on diagram

W(ABS)

diagram 31478D 4702 47311 47311A 47311A 47311B 47312 47313 47313A 47313A 47313H 47314 47315 47316 47317 47318 47321 47321B 47321D 47323 47325 47327 47328 47329 47341B 47343A 47351 47351A 47352 47352A 47355A 47371A 47371B 47371C 47372 47373B 47374B 47375 47375 47381J 47900 47903 47910B 7751 7751 7751 9011908868 90119T0029 90119T0126 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0127 90119T0127 90119T0166 90119T0166 90119T0244 90119T0339 90178T0115 9017908025 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
Common parts
90119-08868
90119-T0029
90119-T0126
90119-T0127
90119-T0166
90119-T0244
90119-T0339
90178-T0115
90179-08025
90468-T0004
Linked diagrams
4702
7751

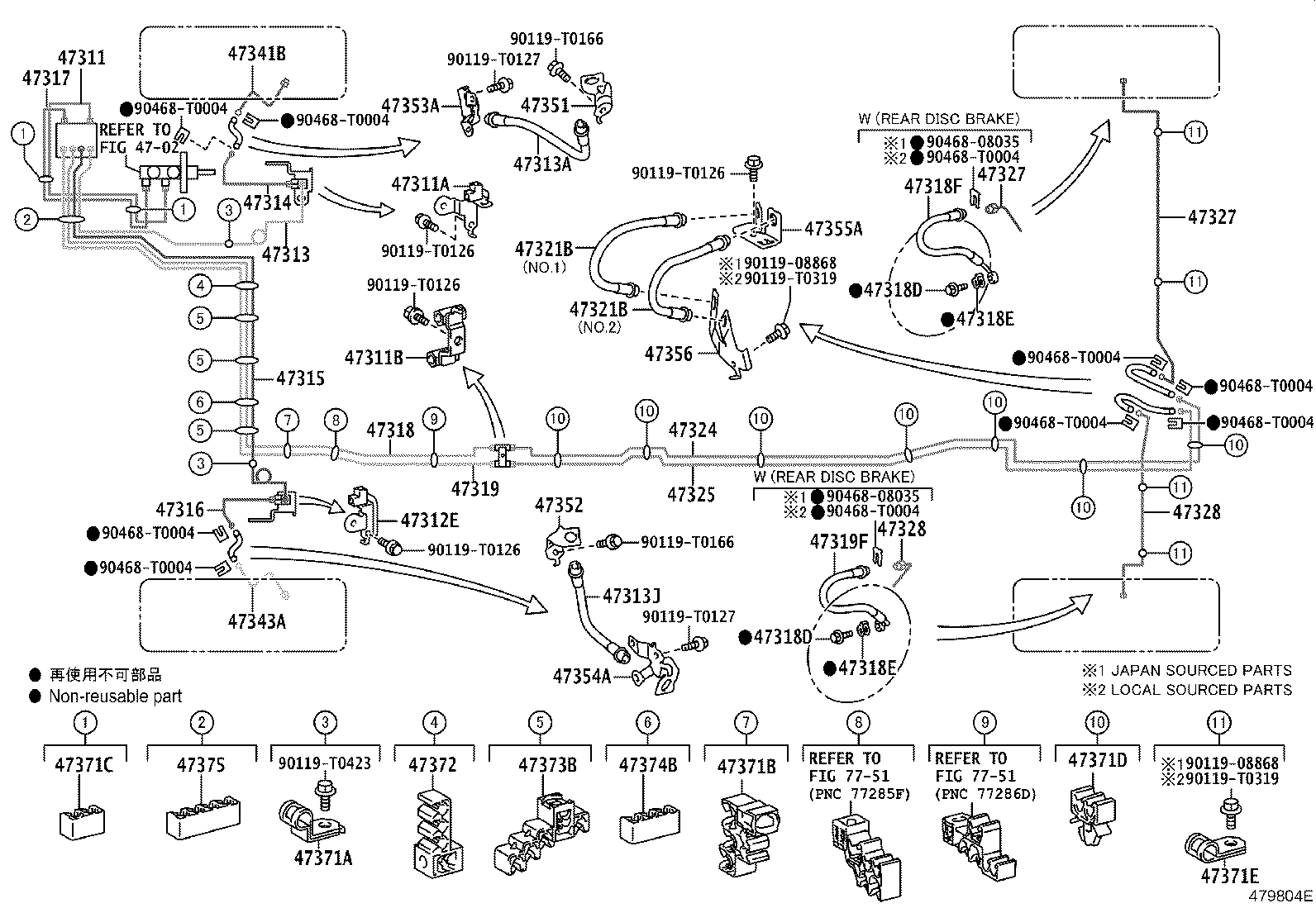

ILLUST NO. 1 OF 2(1507- )RHD

Click highlighted areas on diagram

BRAKE TUBE, W(ABS)

diagram 4702 47311 47311A 47311B 47312E 47313 47313A 47313J 47314 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321B 47321B 47324 47325 47327 47327 47328 47328 47341B 47343A 47351 47352 47353A 47354A 47355A 47356 47371A 47371B 47371D 47371E 47372 47373B 47374B 47375 7751 7751 9011908868 9011908868 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0127 90119T0166 90119T0166 90119T0319 90119T0319 90119T0423 9046808035 9046808035 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-KK030

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47311-KK020

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10307

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(J)

 1
90412-10307

TGN156..LHD;GGN155,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,VNSUV

 1
90412-10307

GUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156..HDCR..(BZAGT,GCC,GEN,IND,PH,PKN,SA,TH,VN);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,MA,SA,VN);GUN156,TGN166..(AGTSU,INDSU,SASUV)..(H,L,M)..(HTWC,IART);TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,TH,VN)

 1
90412-T0009

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(L)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10301

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(J)

 1
90412-10301

TGN156..LHD;GGN155,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,VNSUV

 1
90412-T0007

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(L)

 1
90412-10301

GUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156..HDCR..(BZAGT,GCC,GEN,IND,PH,PKN,SA,TH,VN);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,MA,SA,VN);GUN156,TGN166..(AGTSU,INDSU,SASUV)..(H,L,M)..(HTWC,IART);TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,TH,VN)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10308

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(J)

 1
90412-10308

GUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156..HDCR..(BZAGT,GCC,GEN,IND,PH,PKN,SA,TH,VN);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,MA,SA,VN);GUN156,TGN166..(AGTSU,INDSU,SASUV)..(H,L,M)..(HTWC,IART);TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,TH,VN)

 1
90412-10308

TGN156..LHD;GGN155,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,VNSUV

 1
90412-T0010

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(L)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-KK010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47313-KK030

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2098

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2098

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-KK010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47315-KK030

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47317 - TUBE, FRONT BRAKE, NO.7
47321-KK010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47321-KK020

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47322-KK020

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47322-KK010

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
90401-10058

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
90401-10058

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
47389-50021

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
47389-50021

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2115

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,SASUV

 1
90947-T2115

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 1
47319 - TUBE, FRONT BRAKE, NO.9
47323-KK040

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47323-KK030

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2116

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,SASUV

 1
90947-T2116

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2099

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.1:REFER ILLUST.

 1
90947-T2103

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.2:REFER ILLUST.

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2099

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.1:REFER ILLUST.

 1
90947-T2103

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.2:REFER ILLUST.

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-KK050

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-0K090

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-0K090

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47353-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47354-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90461-T0007

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-T1032

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-T1006

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 7
47371E - CLAMP, BRAKE TUBE, NO.9
90461-T0001

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1003

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1016

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1027

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1029

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
90949-T1028

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
Common parts
90119-08868
90119-T0126
90119-T0127
90119-T0166
90119-T0319
90119-T0423
90468-08035
90468-T0004
Linked diagrams
4702
7751

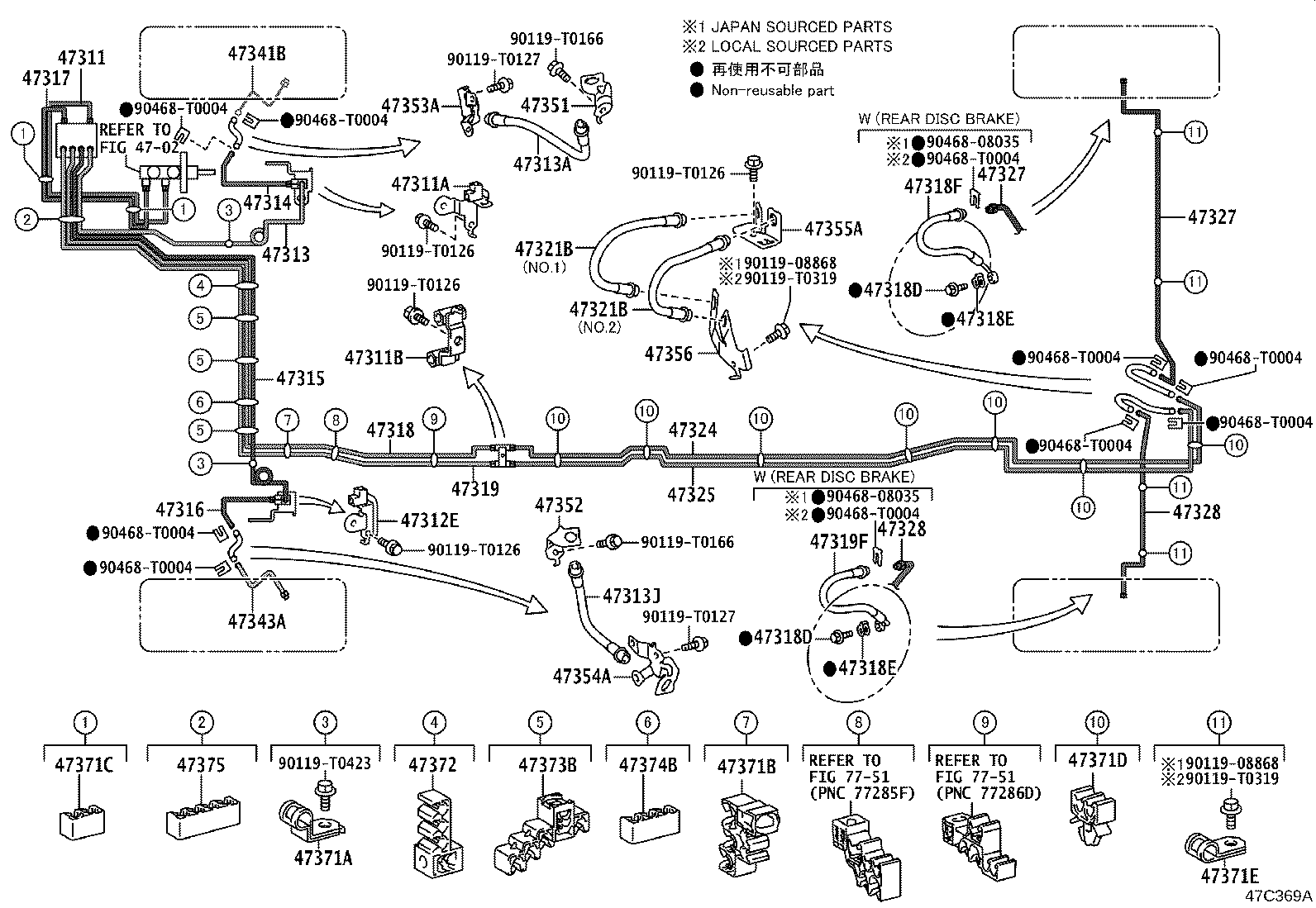

ILLUST NO. 1 OF 2(1507- )RHD

Click highlighted areas on diagram

BRAKE TUBE, W(VSC)

diagram 4702 47311 47311A 47311B 47312E 47313 47313A 47313J 47314 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321B 47321B 47324 47325 47327 47327 47328 47328 47341B 47343A 47351 47352 47353A 47354A 47355A 47356 47371A 47371B 47371C 47371D 47371E 47372 47373B 47374B 47375 7751 7751 9011908868 9011908868 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0127 90119T0166 90119T0166 90119T0319 90119T0319 90119T0423 9046808035 9046808035 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-KK030

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47311-KK020

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10307

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(J)

 1
90412-10307

TGN156..LHD;GGN155,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,VNSUV

 1
90412-10307

GUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156..HDCR..(BZAGT,GCC,GEN,IND,PH,PKN,SA,TH,VN);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,MA,SA,VN);GUN156,TGN166..(AGTSU,INDSU,SASUV)..(H,L,M)..(HTWC,IART);TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,TH,VN)

 1
90412-T0009

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(L)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10301

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(J)

 1
90412-10301

TGN156..LHD;GGN155,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,VNSUV

 1
90412-T0007

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(L)

 1
90412-10301

GUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156..HDCR..(BZAGT,GCC,GEN,IND,PH,PKN,SA,TH,VN);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,MA,SA,VN);GUN156,TGN166..(AGTSU,INDSU,SASUV)..(H,L,M)..(HTWC,IART);TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,TH,VN)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10308

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(J)

 1
90412-10308

GUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156..HDCR..(BZAGT,GCC,GEN,IND,PH,PKN,SA,TH,VN);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,MA,SA,VN);GUN156,TGN166..(AGTSU,INDSU,SASUV)..(H,L,M)..(HTWC,IART);TGN166..6FC..(L,M,S)..(BZAGT,EPT,GCC,GEN,IDN,PH,PKN,TH,VN)

 1
90412-10308

TGN156..LHD;GGN155,GUN15#,16#,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,VNSUV

 1
90412-T0010

GGN155,GUN15#,16#,LAN155,TGN16#;TGN156..AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV

(L)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-KK010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47313-KK030

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2098

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2098

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-KK010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47315-KK030

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47317 - TUBE, FRONT BRAKE, NO.7
47321-KK010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47321-KK020

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47322-KK020

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47322-KK010

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
90401-10058

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
90401-10058

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
47389-50021

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV

 2
47389-50021

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2115

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,SASUV

 1
90947-T2115

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 1
47319 - TUBE, FRONT BRAKE, NO.9
47323-KK040

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
47323-KK030

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2116

GGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,SASUV

 1
90947-T2116

GUN156..RHD..SA;GUN156..6F..S..BZAGT;GGN155,GUN16#..BZAGT,SA;GUN156,LAN155..(H,S)..(DEFI,IART);TGN156,166..(AGTSU,SASUV)..(H,L,S);GUN156,TGN168..AGTSU..(H,L,M)..(HDCR,HTWCF)

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2099

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.1:REFER ILLUST.

 1
90947-T2103

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.2:REFER ILLUST.

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2099

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.1:REFER ILLUST.

 1
90947-T2103

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

NO.2:REFER ILLUST.

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-KK050

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-KK190

KUN156..LA,SA;TGN156..S..GCC;TGN166..L..(GEN,LA,SA);GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(M,S)..(BZAGT,GCC,LA,PKN,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-0K090

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-0K090

GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47353-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47354-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90461-T0007

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-T1032

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-T1033

GUN156..RHD..SA;GUN165..LA,SA,TH;GUN156..LHD..IDNSU;KUN156..LHD..(GEN,LA);TGN166..(L,M)..(LA,SA);TGN156..(M,S)..(GCC,LA,VN);GUN156..AGTSU,PKNSU,THSUV,VNSUV;TGN156..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA);GUN155,165,TGN166..LHD..(L,S)..(GEN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);TGN166..(H,S)..(BZAGT,GCC,GEN,PKN,SA,VN);GGN155,GUN166,TGN168..BZAGT,EPT,GEN,LA,SA,TH

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-T1006

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 7
47371E - CLAMP, BRAKE TUBE, NO.9
90461-T0001

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1003

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1016

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1027

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1029

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
90949-T1028

TGN156..S..GEN;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(PKNSU,SASUV,THSUV)

 1
Common parts
90119-08868
90119-T0126
90119-T0127
90119-T0166
90119-T0319
90119-T0423
90468-08035
90468-T0004
Linked diagrams
4702
7751

ILLUST NO. 2 OF 2(1507- )RHD

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 445210D010 445210D010 445210D010 445210D010 445210D010 445210D010 4452112050 4452112050 4452112050 4452112050 4452112050 4452112050 44540A 44546A 44546A 44546A 44546A 44546A 44546A 44590 44590 90119T0199 90119T0199 90119T0199 90119T0199 90119T0199 90119T0199 9017908200 9017908200 9017908200 9017908200 9017908200 9017908200 90182T0036 90182T0036 90182T0036 90182T0036 90182T0036 90182T0036
Part # Description Qty Price

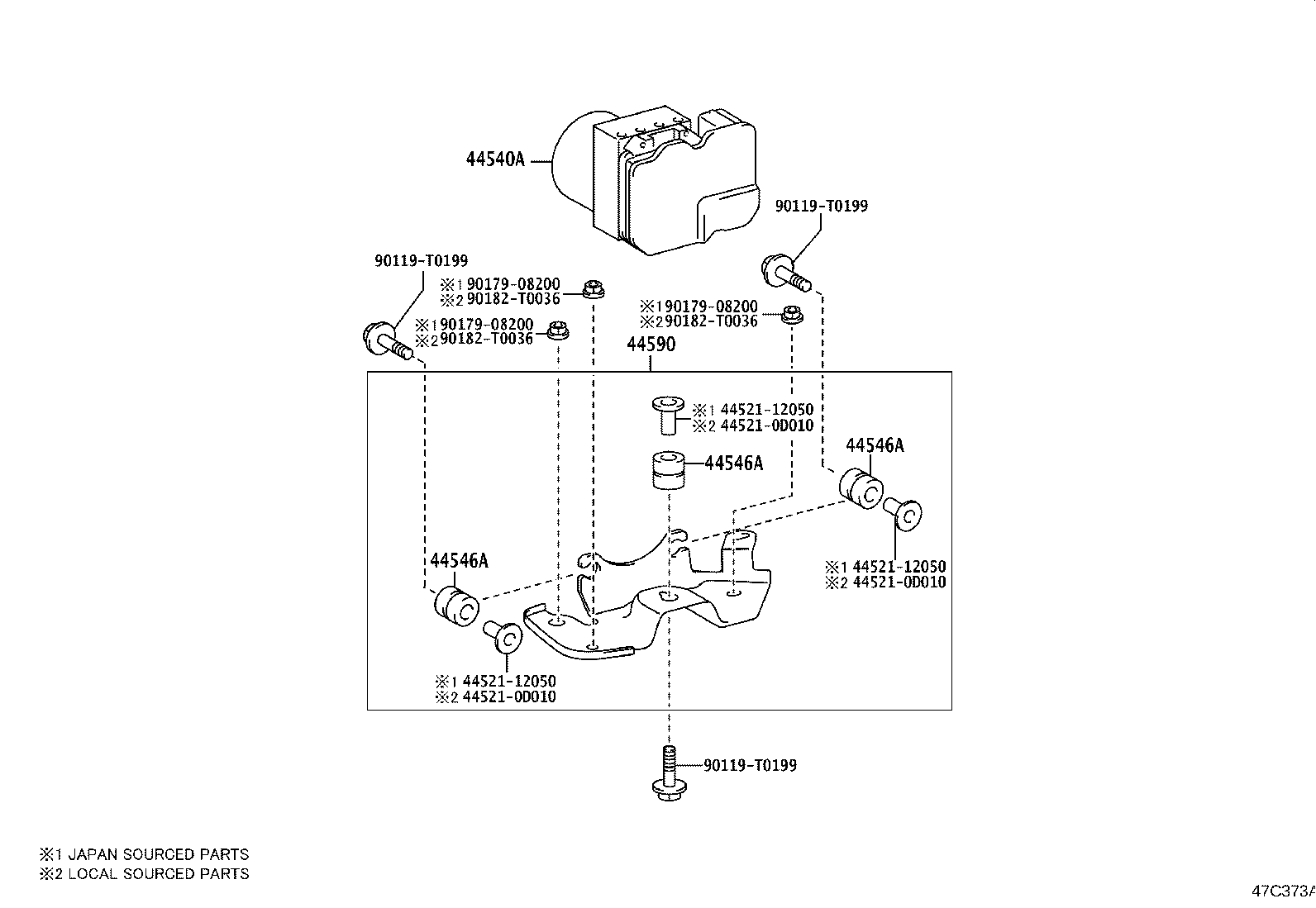

44510 - ACTUATOR ASSY, BRAKE
44050-0K160

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
44540A - ACTUATOR ASSY, VSC
44050-71630

GUN156..RHD..SA;GGN155..AGTSU,SASUV;GUN156..AGTSU..6FC..L..LA;GUN156,TGN156..AGTSU..(H,M,S)

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(J)

 3
44546-12120

KUN156;TGN166..IND;GUN156,166,KUN165..(H,L,M)..(IND,SA)

 3
44546-0K010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(L)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(J)

 3
44546-12120

KUN156;TGN166..IND;GUN156,166,KUN165..(H,L,M)..(IND,SA)

 3
44546-0K010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(L)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(J)

 3
44546-12120

KUN156;TGN166..IND;GUN156,166,KUN165..(H,L,M)..(IND,SA)

 3
44546-0K010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(L)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(J)

 3
44546-12120

KUN156;TGN166..IND;GUN156,166,KUN165..(H,L,M)..(IND,SA)

 3
44546-0K010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(L)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(J)

 3
44546-12120

KUN156;TGN166..IND;GUN156,166,KUN165..(H,L,M)..(IND,SA)

 3
44546-0K010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(L)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(J)

 3
44546-12120

KUN156;TGN166..IND;GUN156,166,KUN165..(H,L,M)..(IND,SA)

 3
44546-0K010

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT,(L)

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0K170

GGN155,GUN15#,16#,TGN166..RHD..SA

 1
44590-0K070

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0K170

GGN155,GUN15#,16#,TGN166..RHD..SA

 1
44590-0K070

GUN156..RHD..SA

VEHICLE STABILITY CONTROL-WITHOUT

 1
Common parts
44521-0D010
44521-12050
90119-T0199
90179-08200
90182-T0036

ILLUST NO. 1 OF 2(2005- )RHD

Click highlighted areas on diagram

BRAKE TUBE

diagram 4702 47311 47311A 47311B 47312E 47313 47313A 47313J 47314 47315 47316 47317 47318 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321B 47321B 47324 47325 47327 47327 47328 47328 47341B 47343A 47351 47352 47353A 47354A 47355A 47356 47371A 47371B 47371C 47371D 47371E 47372 47373B 47374B 47375 7751 7751 9011908868 9011908868 90119T0126 90119T0126 90119T0126 90119T0126 90119T0127 90119T0127 90119T0166 90119T0166 90119T0319 90119T0319 90119T0423 9046808035 9046808035 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
Common parts
90119-08868
90119-T0126
90119-T0127
90119-T0166
90119-T0319
90119-T0423
90468-08035
90468-T0004
Linked diagrams
4702
7751

ILLUST NO. 2 OF 2(2005- )RHD

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 445210D010 445210D010 445210D010 4452112050 4452112050 4452112050 44540A 44546A 44546A 44546A 44590 90119T0199 90119T0199 90119T0199 9017908200 9017908200 9017908200 90182T0036 90182T0036 90182T0036
Part # Description Qty Price
Common parts
44521-0D010
44521-12050
90119-T0199
90179-08200
90182-T0036
