GUN156R-SNFSHN (2016)
Toyota Fortuner
(1107- )KUN5#,6#..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90178-T0067 | ||||
| 90182-T0001 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||
| 4708 | ||||
| 8401 | ||||
(1107- )KUN5#,6#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90178-T0067 | ||||
| 90182-T0001 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||
| 8401 | ||||

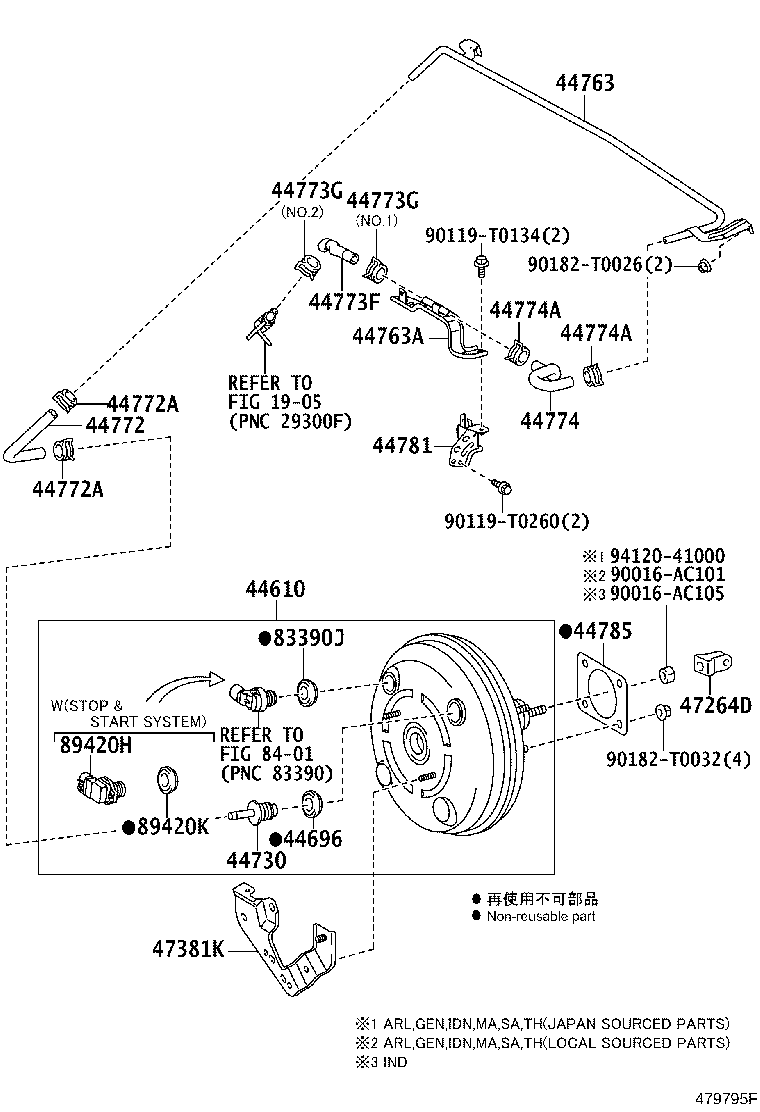

(1507- )GUN15#,16#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0K580 |
GUN15#..RHD..(ARL,PKN,SA);GUN16#,KUN156..RHD..(SA,TH) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48050 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155..EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60070 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-KK040 |
GUN15#,16#..RHD..(IDNSU,PKNSU,SASUV,THSUV) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-KK080 |
GUN15#,16#..AGTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-KK010 |
GUN15#,16#..RHD..(IDNSU,PKNSU,SASUV,THSUV) |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90466-T0019 |
TGN156..6FC..GEN;TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV);GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90466-T0019 |
TGN156..6FC..GEN;TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV);GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-KK030 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90466-T0019 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1 |
1 | ||
| 90467-16014 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.2 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90466-T0019 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1 |
1 | ||
| 90467-16014 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.2 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-KK040 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90466-T0019 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,GUN166,KUN165,TGN168..(L,M,S)..(BZAGT,SA,TH);GUN15#,165,KUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90466-T0019 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,GUN166,KUN165,TGN168..(L,M,S)..(BZAGT,SA,TH);GUN15#,165,KUN156,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-KK020 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-17010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-04010 |
TGN156..EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP | ||||
| 47381-0K070 |
TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90080-48050 |
GUN16#,KUN156,165,LAN155..SASUV,THSUV;GUN15#..(PKNSU,SASUV,THSUV)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| Common parts | ||||
| 90016-AC101 | ||||
| 90016-AC105 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90182-T0026 | ||||
| 90182-T0032 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8401 | ||||
(2006- )GUN15#,16#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC101 | ||||
| 90016-AC105 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90182-T0026 | ||||
| 90182-T0032 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8401 | ||||
