GUN156R-SNFSHN (2016)
Toyota Fortuner
ILLUST NO. 1 OF 2(1507- )RHD..6F
CLUTCH PEDAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-KK040 |
GUN156,16#,KUN156..RHD..6F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06063 |
GUN156,16#..RHD..6F..SA (J) |
1 | ||
| 90541-T0004 |
GUN156,16#..RHD..6F..SA (L) |
1 | ||
| 90541-T0004 |
TGN166..M..IND;GUN156,16#..RHD..6F..SA |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-T0005 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GUN15#,16#,KUN156,165,TGN156,16#..MTM |
2 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GUN15#,16#,KUN156,165,TGN156,16#..MTM |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-02020 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90105-T0112 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
GUN15#,16#,KUN156,165..6F NO.1:REFER ILLUST. |
1 | ||
| 31394-KK010 |
GUN15#,16#,KUN156,165..6F NO.2:REFER ILLUST. |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
GUN15#,16#,KUN156,165..6F NO.1:REFER ILLUST. |
1 | ||
| 31394-KK010 |
GUN15#,16#,KUN156,165..6F NO.2:REFER ILLUST. |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33020 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-T0002 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM L=31.9 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
GUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-KK030 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| Common parts | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90185-08002 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||

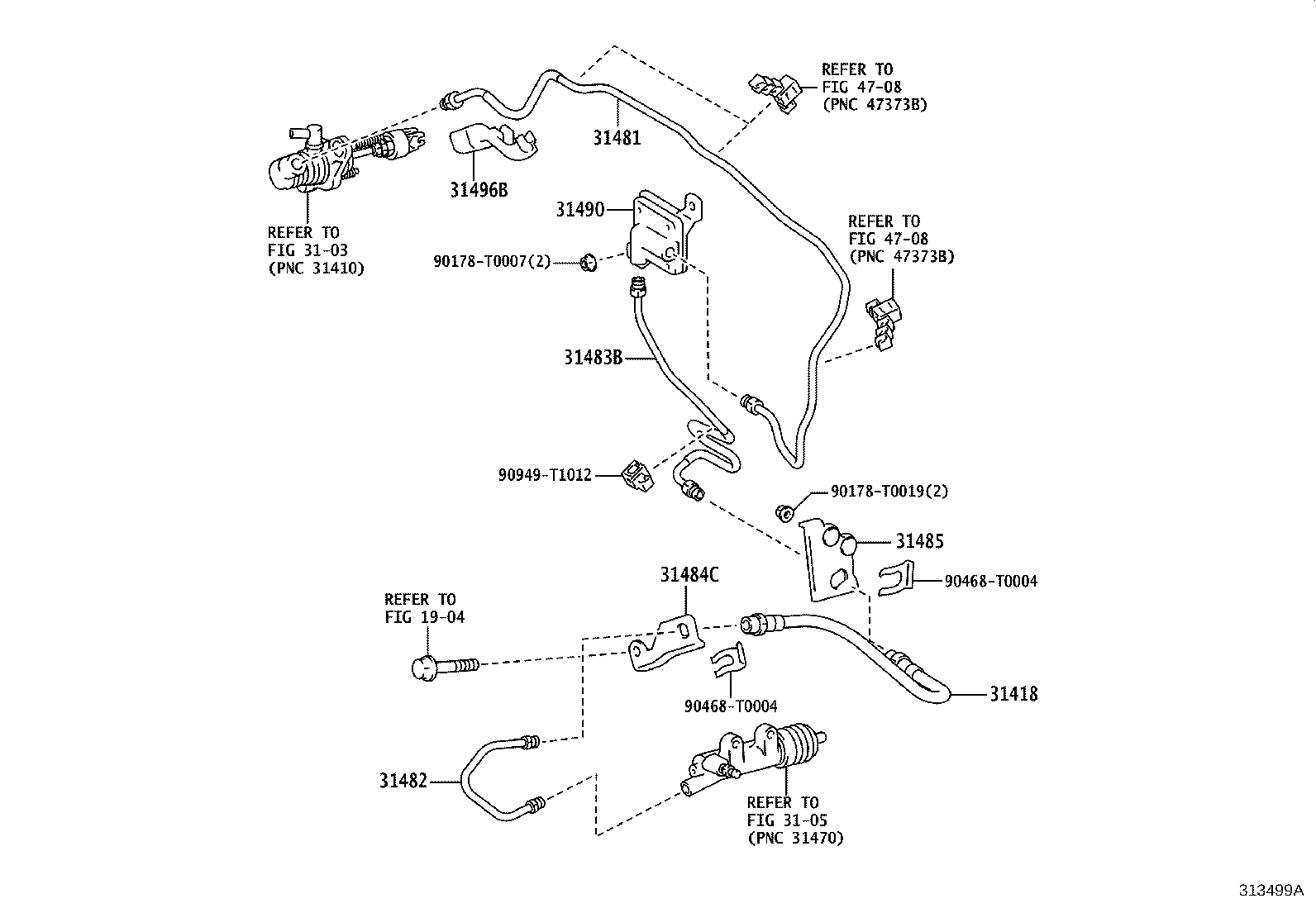

ILLUST NO. 2 OF 2(1507-2002)RHD..6F ; (2002- )RHD..6F..IDN,SA
CLUTCH PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90080-94215 |
GUN15#,16#,KUN156,165,LAN155..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-KK040 |
GUN156,166..RHD..6F..(H,M,S) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-KK040 |
GUN156,166..RHD..6F..(H,M,S) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-KK030 |
GUN15#,16#,KUN156,165..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..6F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-KK010 |
GUN15#,16#,KUN156,165,LAN155..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-KK010 |
GUN15#,16#,KUN156,165..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..6F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-KK010 |
GUN156,166..6F..(ARL,BZAGT,LA,SA);GUN155,165,KUN156,165,LAN155,TGN156,16#..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-0K030 |
GUN156,16#,LAN155..MTM..SA |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90178-T0019 | ||||
| 90468-T0004 | ||||
| 90949-T1012 | ||||
| Linked diagrams | ||||
| 1904 | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(2008- )RHD..6F
CLUTCH PEDAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90185-08002 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(2008- )RHD..6F..IDN,SA
CLUTCH PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-T0007 | ||||
| 90178-T0019 | ||||
| 90468-T0004 | ||||
| 90949-T1012 | ||||
| Linked diagrams | ||||
| 1904 | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
