GUN156R-SNFSHN (2016)

Toyota Fortuner

Production Mar 2016 - Sep 2020
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1603- )GUN15#,16#..6F..SA ; (1609-1710)GUN156..AGTSU..6F

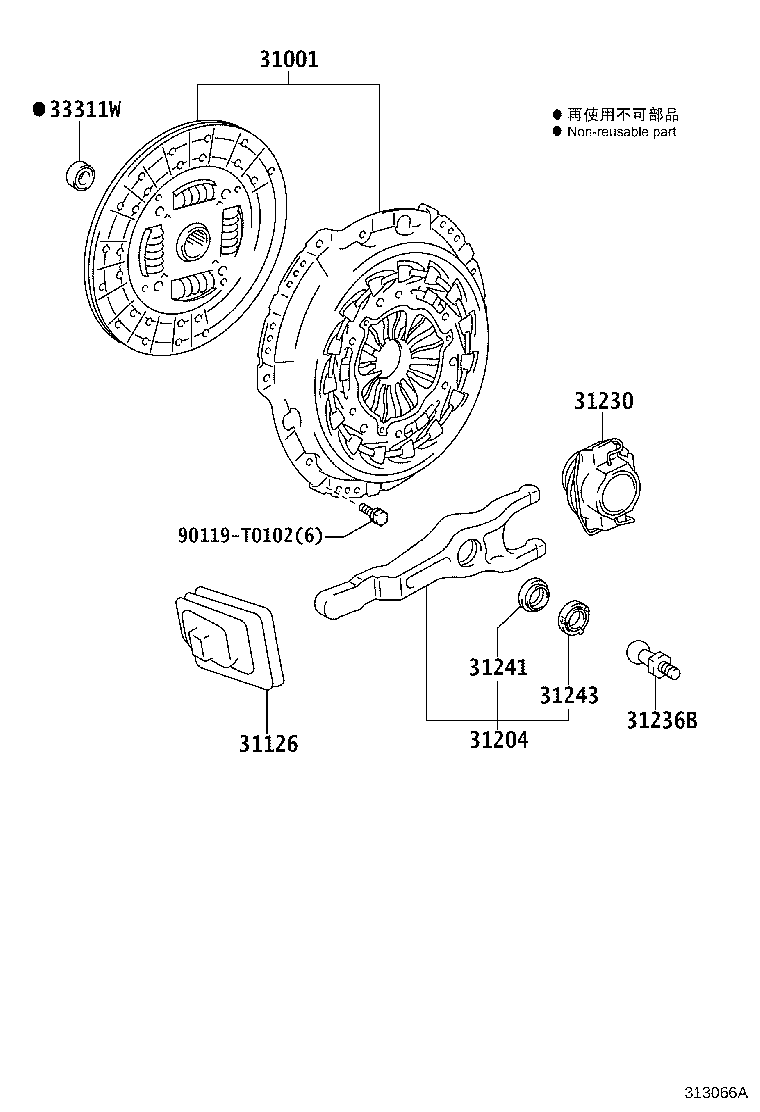

Click highlighted areas on diagram

diagram 31001 31126 31204 31230 31236B 31241 31243 33311W 90119T0102
Part # Description Qty Price
31001 - CLUTCH SET, COVER & DISC
31001-0K010

GUN15#,16#..6F..SA

 1
31126 - BOOT, CLUTCH RELEASE FORK
31126-0K080

GUN15#,16#,KUN156,165..6F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K110

GUN15#,16#,KUN156,165..6F

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-71051

GUN15#,16#..6F

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
31230-71050

GUN15#,16#,KUN156,165..6F

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
31236B - SUPPORT, RELEASE FORK
31236-0K010

GUN15#,16#,KUN156,165..6F

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
31241 - SEAL, CLUTCH RELEASE FORK DUST
31241-71010

GUN15#,16#,KUN156,165..6F

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
31243 - COLLAR, CLUTCH RELEASE FORK
31243-0K010

GUN15#,16#,KUN156,165..6F

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-T0006

GUN156,16#..6F..SA

 1
Common parts
90119-T0102
