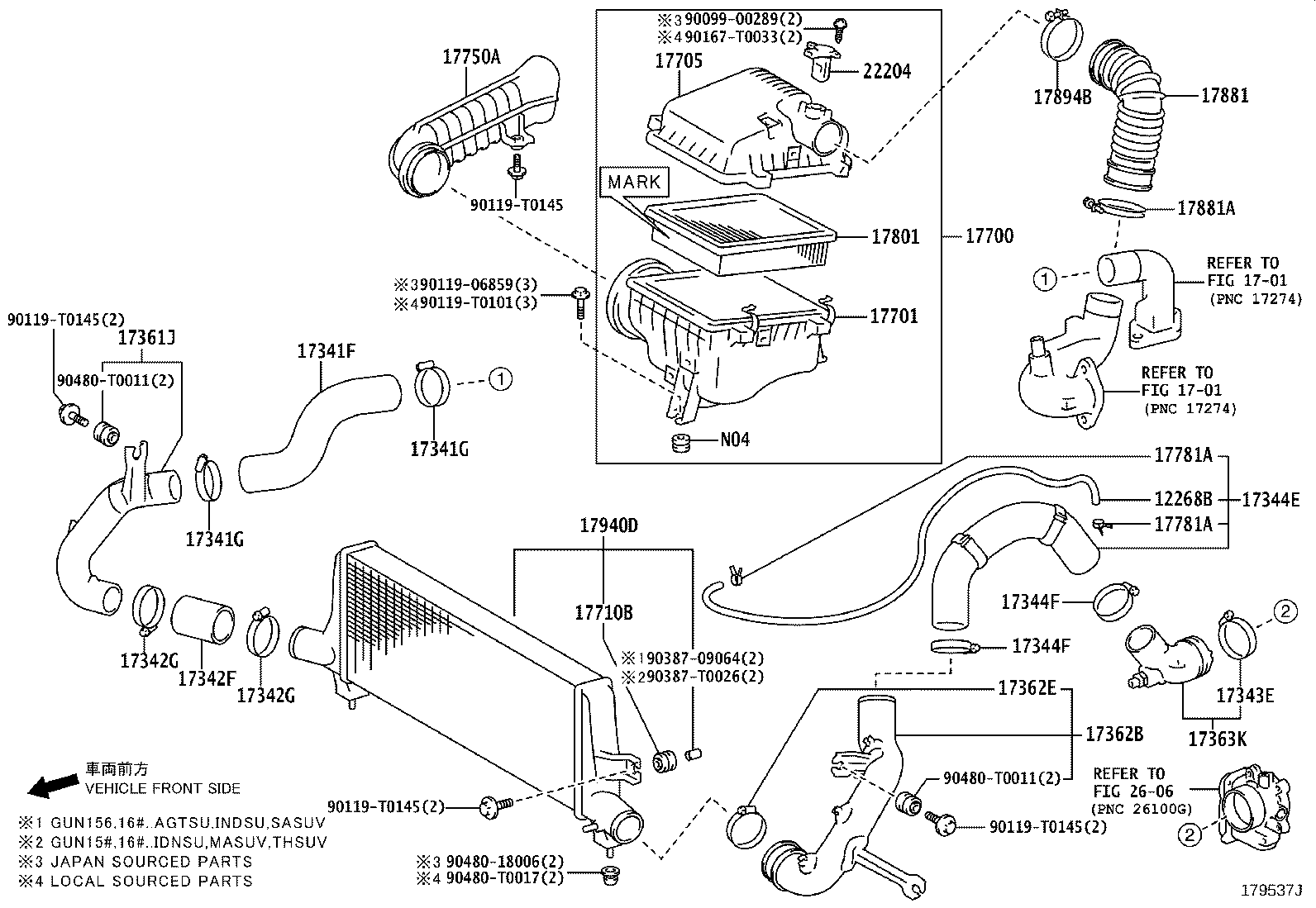

GUN156R-SNFSHN (2016)
Toyota Fortuner
(1507- )1GDFTV,2GDFTV..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV ; (1610-2002)1G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-80006 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-65012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-0L021 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90460-67008 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L380 |
1GDFTV,2GDFTV..GUN15#,16#..SA |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0C180 |
1G#,2GDFTV..GGN155,GUN15#,16#..SA |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L320 |
1GDFTV,2GDFTV..GUN15#,16#..SA |
1 | ||
| 17710B - GROMMET | ||||
| 90480-T0011 |
1GDFTV,2GDFTV..GUN156,16#..RHD..SA (L) |
2 | ||
| 90480-F0002 |
1GDFTV,2GDFTV..GUN15#,16#..SA (L) |
2 | ||
| 90480-11016 |
1GDFTV,2GDFTV..GUN156,16#..AGTSU,SASUV (L) |
2 | ||
| 17781A - CLAMP, HOSE | ||||
| 90466-07002 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17781A - CLAMP, HOSE | ||||
| 90466-07002 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0L040 |
1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L120 |
1GDFTV,2GDFTV..GUN15#,16#..SA |
1 | ||
| 17881-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..SA MADE IN SOUTH AFRICA |
1 | ||
| 17881-0E020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,PKNSU,SASUV,THSUV MADE IN THAILAND |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 90460-T0020 |
1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L130 |
1GDFTV,2GDFTV..GUN15#,16#..SA |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30030 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0145 | ||||
| 90167-T0033 | ||||
| 90387-09064 | ||||
| 90387-T0026 | ||||
| 90480-18006 | ||||
| 90480-T0011 | ||||
| 90480-T0017 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||

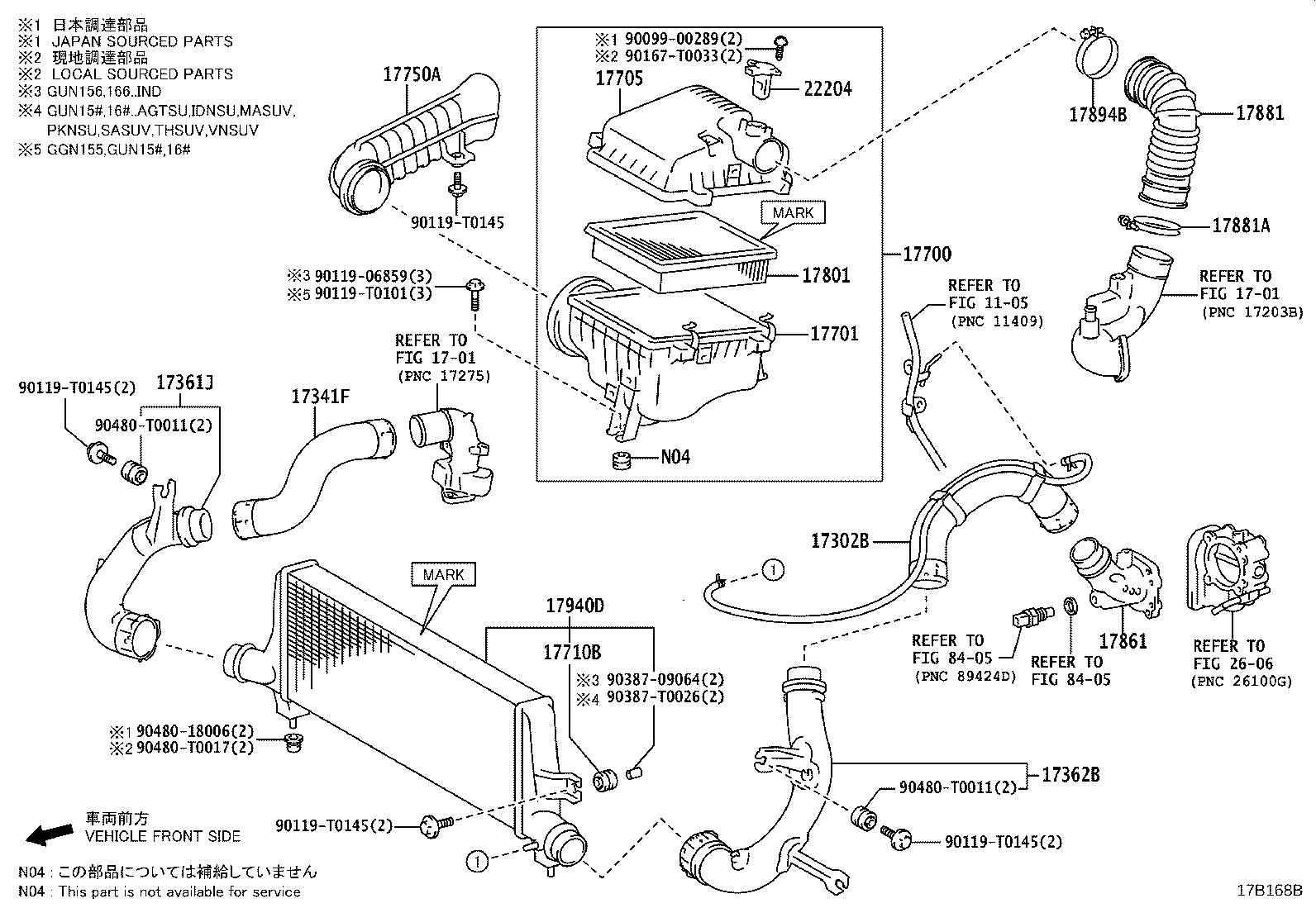

(2006- )1GDFTV,2GDFTV
W(INTERCOOLER (AIR COOLED TYPE))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0145 | ||||
| 90167-T0033 | ||||
| 90387-09064 | ||||
| 90387-T0026 | ||||
| 90480-18006 | ||||
| 90480-T0011 | ||||
| 90480-T0017 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
