GUN156L-SGTMHF (2015)
Toyota Fortuner
ILLUST NO. 3 OF 3(0501- )ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 3(1107- )LHD
FRONT(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-00034 | ||||
| 90094-90426 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 3(1107- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1107- )
O-RING FOR FRONT AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90068-14042 | ||||
| 90068-14043 | ||||
| 90068-14044 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 2 OF 2(1507- )
REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K350 |
GUN156..AGTSU..(H,L,M);GUN156..S..HDCR..BZAGT;GGN155,GUN165,TGN156,16#..AGTSU..(L,M,S) |
1 | ||
| 87103-0K351 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K350 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K330 |
GUN156..S..HDCR..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,165,TGN168..AGTSU..L |
1 | ||
| 88500-0K341 |
GGN155,TGN168..AGTSU..(M,S);GUN156,TGN156,166..AGTSU..(H,M) |
1 | ||
| 88500-0K331 |
GUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S) |
1 | ||
| 88500-0K340 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K610 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K560 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88600 - CONTROL ASSY, AIR CONDITIONER | ||||
| 87165-0K030 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KQ90 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K150 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K170 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K180 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-0A020 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
ILLUST NO. 2 OF 2(1507- )
REAR MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K350 |
GUN156..AGTSU..(H,L,M);GUN156..S..HDCR..BZAGT;GGN155,GUN165,TGN156,16#..AGTSU..(L,M,S) |
1 | ||
| 87103-0K351 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-0K340 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K350 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K330 |
GUN156..S..HDCR..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,165,TGN168..AGTSU..L |
1 | ||
| 88500-0K341 |
GGN155,TGN168..AGTSU..(M,S);GUN156,TGN156,166..AGTSU..(H,M) |
1 | ||
| 88500-0K331 |
GUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S) |
1 | ||
| 88500-0K340 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K610 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K560 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KQ90 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K150 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K170 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K180 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-0A020 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
| Linked diagrams | ||||
| 8401 | ||||

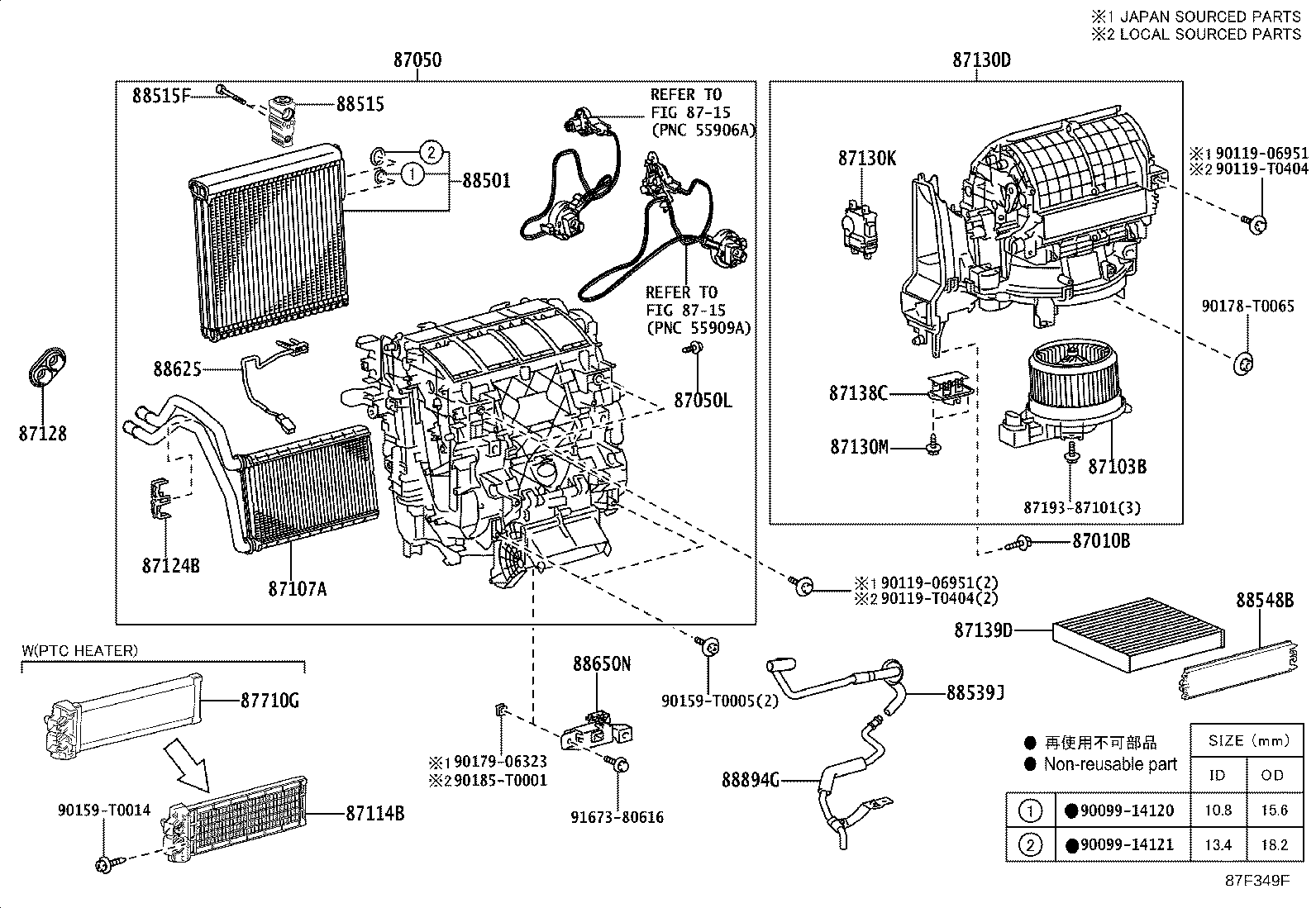

ILLUST NO. 1 OF 2(1512- )LHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KE90 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 87050-0KF00 |
GUN156,TGN156,166..AGTSU..(H,M);GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90094-90426 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K460 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87103-0K461 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K150 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K070 |
GUN156..(H,S)..IART;GUN156..AGTSU..(L,M);GGN155,GUN165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0K220 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K190 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K720 |
GUN156..S..HDCR..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,165,KUN156,TGN168..AGTSU..L |
1 | ||
| 87130-0K730 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 87130-0K721 |
GUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S) |
1 | ||
| 87130-0K731 |
GGN155,TGN168..AGTSU..(M,S);GUN156,TGN156,166..AGTSU..(H,M) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K240 |
GUN156..S..IART;GUN156..LHD..(H,M);TGN156..(M,S)..(GCC,LA,VN);TGN166..IDNSU..S..(GCC,VN);GUN165,TGN156..(H,M)..(BZAGT,PH);TGN166..(AGTSU,THSUV,VNSUV)..(M,S)..(GCC,LA,VN);GGN155,165,GUN155,165,KUN156,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 87106-0K250 |
KUN156..RHD;GUN156..6F..M;GUN156,166..IND;TGN166..M..(IND,TH);TGN156,166..RHD..(H,S)..(GEN,IND,SA) |
1 | ||
| 87106-0K220 |
TGN156,166..L;GUN165..L..GCC;GUN156..(L,S)..ARL;GUN165..(L,S)..(LA,SA,TH,VN);GUN15#,TGN168..L..(BZAGT,GCC,SA);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) |
1 | ||
| 87106-0K241 |
GUN156..LHD..(H,M);TGN156,166..(M,S)..(GCC,LA,PH,VN);GGN155,GUN155,165,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA,PH) |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 90094-90426 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
GUN165..LA,VN;TGN156,166..LHD..L;GUN15#,165,TGN168..L..(BZAGT,GCC);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0K080 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU POLLEN FILTER |
1 | ||
| 87139-58010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K480 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,SA;GUN16#,TGN156..BZAGT,GEN,IDN,KZS,LA,PH,SA,TH,VN;GUN156,KUN156,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04042 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K410 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K111 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 88548-0K110 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,EPT,GCC,GEN,IDN,PH,PKN,SA,TH,VN;GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K500 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 88650-0K490 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K090 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

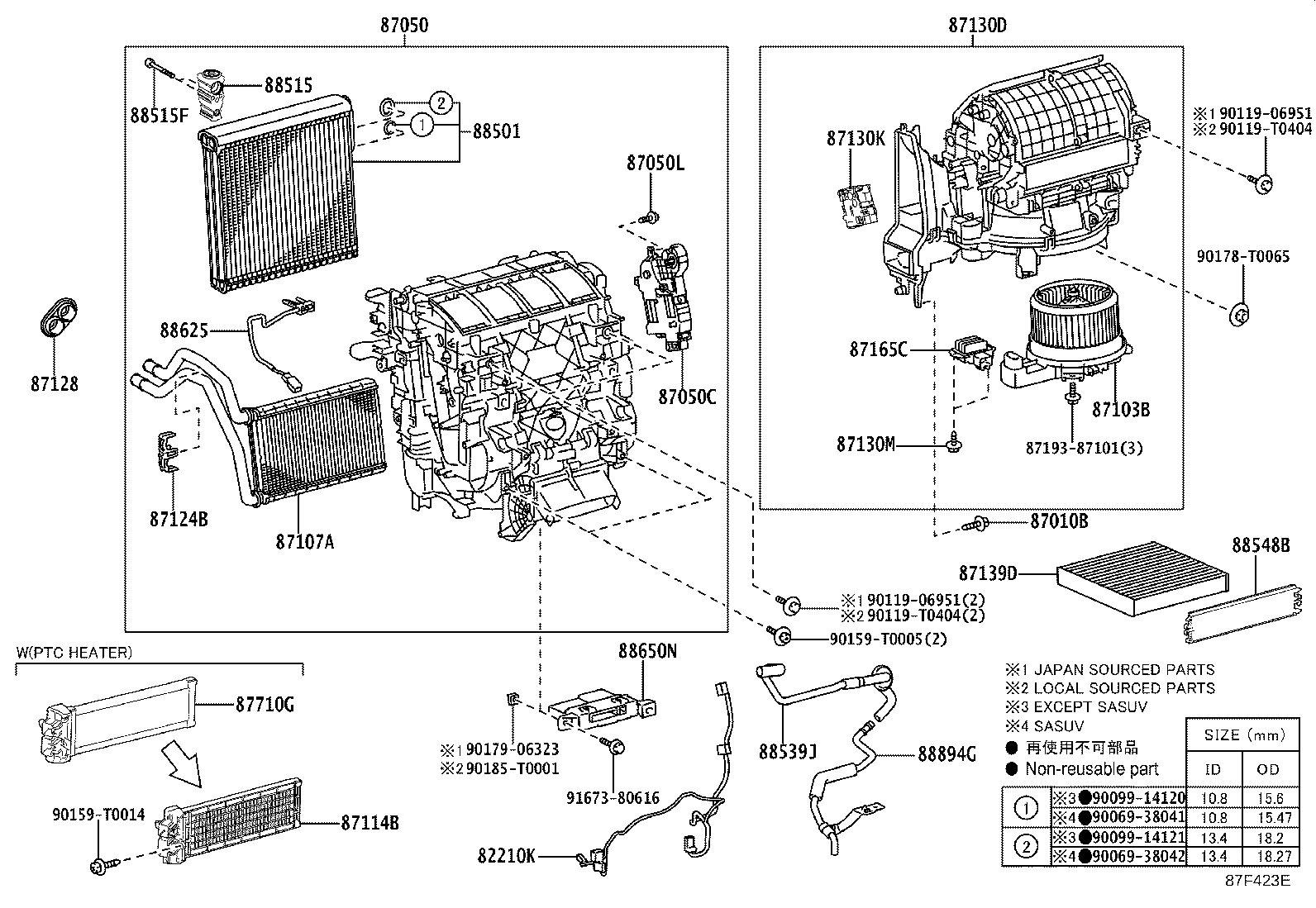

ILLUST NO. 1 OF 2(1512- )LHD
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0K060 |
GUN156..S..IART;GUN156..LHD..(H,M);TGN156..(M,S)..(GCC,LA,VN);TGN166..IDNSU..S..(GCC,VN);GUN165,TGN156..(H,M)..(BZAGT,PH);TGN166..(AGTSU,THSUV,VNSUV)..(M,S)..(GCC,LA,VN);GGN155,165,GUN155,165,KUN156,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KE90 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 87050-0KF00 |
GUN156,TGN156,166..AGTSU..(H,M);GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART) |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0K210 |
KUN156..RHD;GUN156..S..IART;GUN156..RHD..SA;TGN166..AGTSU..M;KUN156..LHD..(H,M);GUN165..(H,M,S)..(GCC,GEN,IDN);GUN165,TGN156..(H,M)..(BZAGT,PH,TH);TGN166..(H,M,S)..(GCC,GEN,IDN,PKN,SA,TH,VN);GUN155,TGN156..(H,M,S)..(GCC,GEN,IDN,LA,TH,VN);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M);GGN155,165,GUN166,TGN168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90094-90426 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K460 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87103-0K461 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K150 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K070 |
GUN156..(H,S)..IART;GUN156..AGTSU..(L,M);GGN155,GUN165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0K220 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K190 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K720 |
GUN156..S..HDCR..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,165,KUN156,TGN168..AGTSU..L |
1 | ||
| 87130-0K730 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 87130-0K721 |
GUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S) |
1 | ||
| 87130-0K731 |
GGN155,TGN168..AGTSU..(M,S);GUN156,TGN156,166..AGTSU..(H,M) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K240 |
GUN156..S..IART;GUN156..LHD..(H,M);TGN156..(M,S)..(GCC,LA,VN);TGN166..IDNSU..S..(GCC,VN);GUN165,TGN156..(H,M)..(BZAGT,PH);TGN166..(AGTSU,THSUV,VNSUV)..(M,S)..(GCC,LA,VN);GGN155,165,GUN155,165,KUN156,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 87106-0K250 |
KUN156..RHD;GUN156..6F..M;GUN156,166..IND;TGN166..M..(IND,TH);TGN156,166..RHD..(H,S)..(GEN,IND,SA) |
1 | ||
| 87106-0K220 |
TGN156,166..L;GUN165..L..GCC;GUN156..(L,S)..ARL;GUN165..(L,S)..(LA,SA,TH,VN);GUN15#,TGN168..L..(BZAGT,GCC,SA);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) |
1 | ||
| 87106-0K241 |
GUN156..LHD..(H,M);TGN156,166..(M,S)..(GCC,LA,PH,VN);GGN155,GUN155,165,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA,PH) |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 90094-90426 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0K080 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU POLLEN FILTER |
1 | ||
| 87139-58010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DEODORANT FILTER |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0K060 |
KUN156..RHD;GUN156..S..IART;GUN156..RHD..SA;TGN166..AGTSU..M;KUN156..LHD..(H,M);GUN165..(H,M,S)..(GCC,GEN,IDN);GUN165,TGN156..(H,M)..(BZAGT,PH,TH);TGN166..(H,M,S)..(GCC,GEN,IDN,PKN,SA,TH,VN);GUN155,TGN156..(H,M,S)..(GCC,GEN,IDN,LA,TH,VN);GUN156..(AGTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M);GGN155,165,GUN166,TGN168..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(H,M,S) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K480 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,SA;GUN16#,TGN156..BZAGT,GEN,IDN,KZS,LA,PH,SA,TH,VN;GUN156,KUN156,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04042 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K410 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K111 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 88548-0K110 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,EPT,GCC,GEN,IDN,PH,PKN,SA,TH,VN;GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K500 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 88650-0K490 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K090 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90069-38041 | ||||
| 90069-38042 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1601- )LHD
MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90094-90426 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KE90 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 87050-0KF00 |
GUN156,TGN156,166..AGTSU..(H,M);GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90094-90426 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K460 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87103-0K461 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K070 |
GUN156..(H,S)..IART;GUN156..AGTSU..(L,M);GGN155,GUN165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K190 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K720 |
GUN156..S..HDCR..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,165,KUN156,TGN168..AGTSU..L |
1 | ||
| 87130-0K730 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 87130-0K721 |
GUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S) |
1 | ||
| 87130-0K731 |
GGN155,TGN168..AGTSU..(M,S);GUN156,TGN156,166..AGTSU..(H,M) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K240 |
GUN156..S..IART;GUN156..LHD..(H,M);TGN156..(M,S)..(GCC,LA,VN);TGN166..IDNSU..S..(GCC,VN);GUN165,TGN156..(H,M)..(BZAGT,PH);TGN166..(AGTSU,THSUV,VNSUV)..(M,S)..(GCC,LA,VN);GGN155,165,GUN155,165,KUN156,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA) |
1 | ||
| 87106-0K250 |
KUN156..RHD;GUN156..6F..M;GUN156,166..IND;TGN166..M..(IND,TH);TGN156,166..RHD..(H,S)..(GEN,IND,SA) |
1 | ||
| 87106-0K220 |
TGN156,166..L;GUN165..L..GCC;GUN156..(L,S)..ARL;GUN165..(L,S)..(LA,SA,TH,VN);GUN15#,TGN168..L..(BZAGT,GCC,SA);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) |
1 | ||
| 87106-0K241 |
GUN156..LHD..(H,M);TGN156,166..(M,S)..(GCC,LA,PH,VN);GGN155,GUN155,165,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA,PH) |
1 | ||
| 87130M - SCREW(FOR BLOWER) | ||||
| 90094-90426 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
GUN165..LA,VN;TGN156,166..LHD..L;GUN15#,165,TGN168..L..(BZAGT,GCC);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0K080 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU POLLEN FILTER |
1 | ||
| 87139-58010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K480 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,SA;GUN16#,TGN156..BZAGT,GEN,IDN,KZS,LA,PH,SA,TH,VN;GUN156,KUN156,TGN168..ARL,BZAGT,GEN,LA,PH,PKN,SA,VN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04042 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K410 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K111 |
GGN155,GUN156,165,TGN156,16#..AGTSU |
1 | ||
| 88548-0K110 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
TGN166..L..LA;TGN166..AGTSU..M;TGN166..BZAGT,EPT,GCC,GEN,IDN,PH,PKN,SA,TH,VN;GUN16#,TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,KUN156,165,LAN155,TGN168..ARL,BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K500 |
GUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S) |
1 | ||
| 88650-0K490 |
GUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K090 |
GGN155,GUN156,165,KUN156,TGN156,16#..AGTSU |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(2006- )LHD
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(2006- )LHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(2006- )LHD
MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(2006- )
REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
ILLUST NO. 2 OF 2(2006- )
REAR MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 88899-02140 | ||||
| 90094-90426 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
