GUN156L-SGTMHF (2015)
Toyota Fortuner
(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0193 | ||||
| 94188-01201 | ||||
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0193 | ||||
| 94188-01201 | ||||
(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

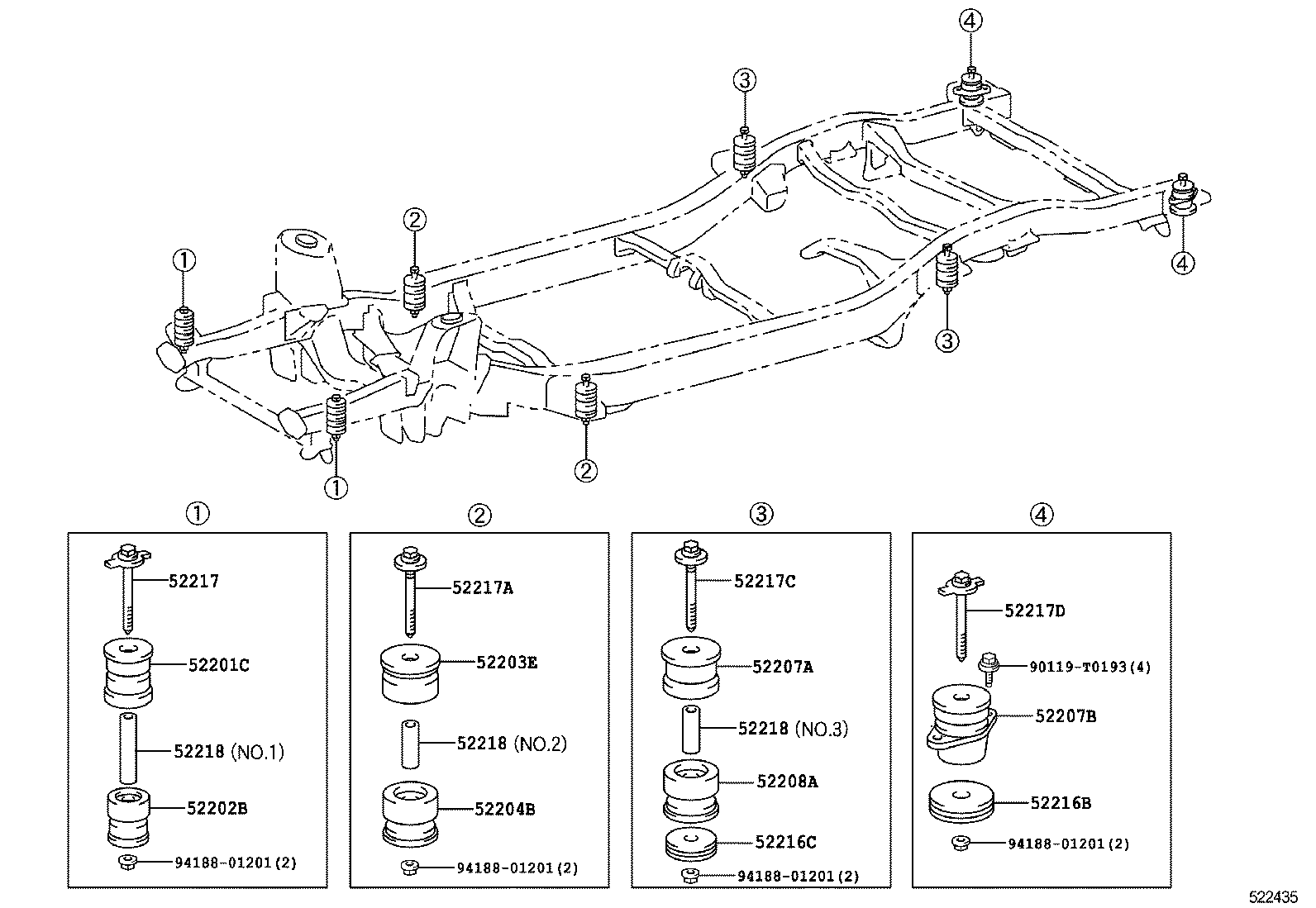

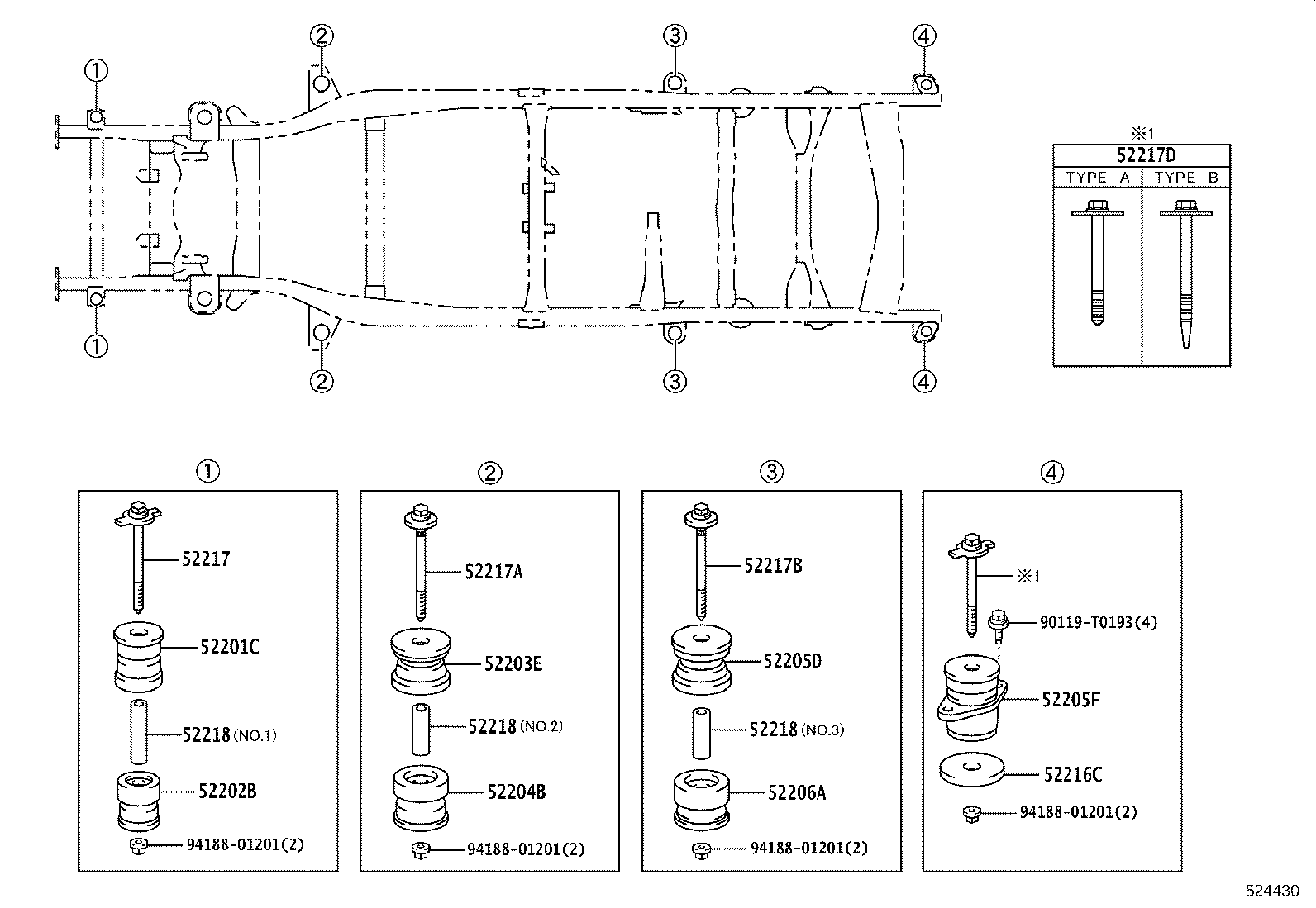

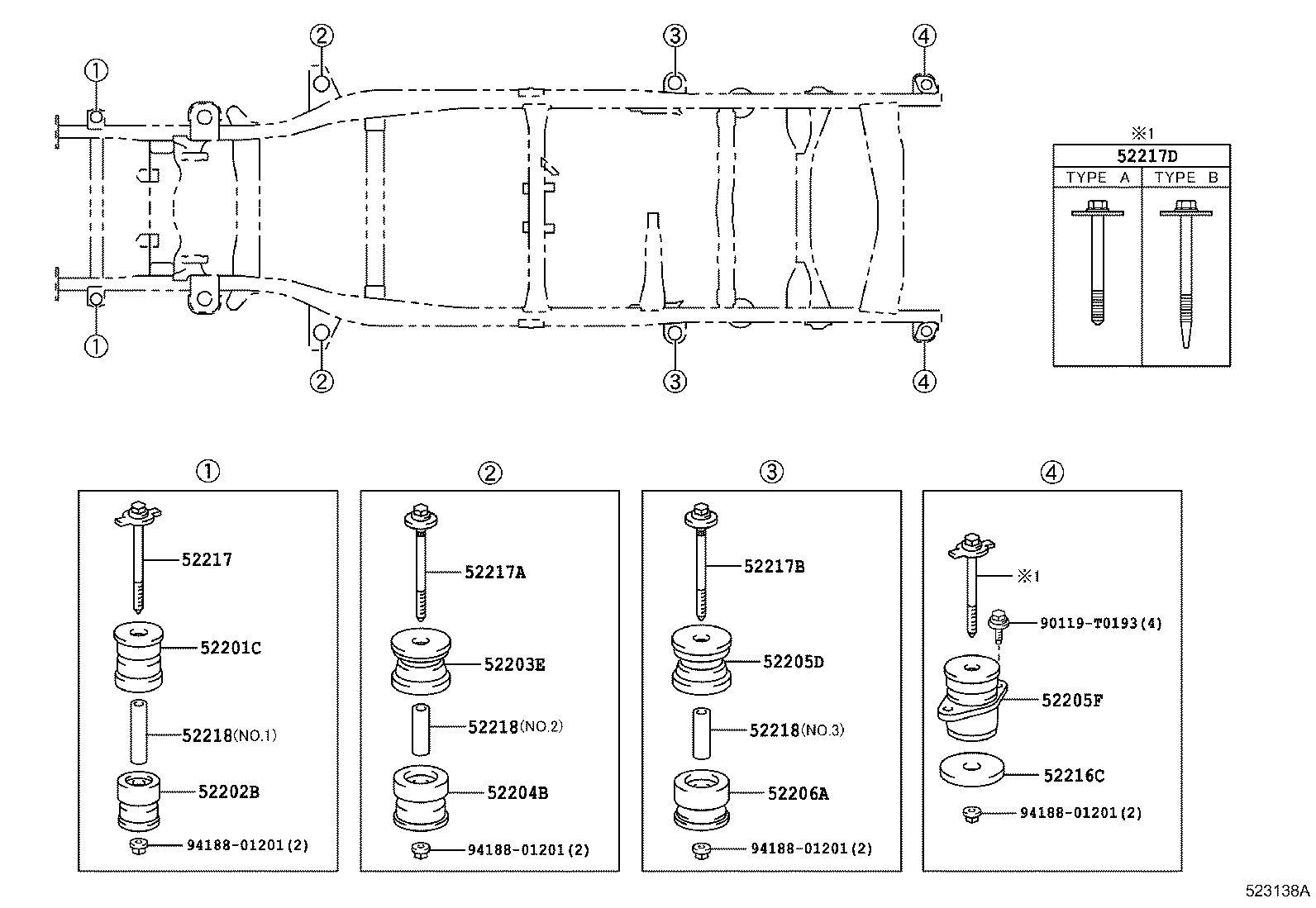

| 52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER | ||||
| 52201-0K080 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52201-0K100 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER | ||||
| 52202-0K080 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52202-0K100 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-0K130 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52203-0K110 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-0K110 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52204-0K130 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52205-0K190 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52205-0K180 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52205F - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER | ||||
| 52207-0K090 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52207-0K100 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52206A - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER | ||||
| 52206-0K150 |
GGN155,GUN156,KUN156,TGN156,16#..AGTSU |
2 | ||
| 52206-0K140 |
GUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M) |
2 | ||
| 52216C - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-KK010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 52217 - BOLT, BODY MOUNTING | ||||
| 52217-0K010 |
LAN155..S;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-0K020 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 52217B - BOLT, BODY MOUNTING | ||||
| 52217-0K020 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 52217D - BOLT, BODY MOUNTING | ||||
| 52217-0K050 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV TYPE A:REFER ILLUST. |
1 | ||
| 52217-0K060 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV TYPE B:REFER ILLUST. |
1 | ||
| 52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1 | ||||
| 52218-0K010 |
LAN155..S;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1 |
2 | ||
| 52219-KK010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.3 |
2 | ||
| 52219-0K010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.2 |
2 | ||
| 52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1 | ||||
| 52218-0K010 |
LAN155..S;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1 |
2 | ||
| 52219-KK010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.3 |
2 | ||
| 52219-0K010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.2 |
2 | ||
| 52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1 | ||||
| 52218-0K010 |
LAN155..S;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.1 |
2 | ||
| 52219-KK010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.3 |
2 | ||
| 52219-0K010 |
LAN155..S;GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,166,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV NO.2 |
2 | ||
| Common parts | ||||
| 90119-T0193 | ||||
| 94188-01201 | ||||
(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0193 | ||||
| 94188-01201 | ||||
