GUN156L-SGTMHF (2015)

Toyota Fortuner

Production Dec 2015 - Oct 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCR..CO,GEN,LA,PHL ; (1107- )KUN51..RHD..5F..SA,TH ; (1107- )GGN50

Click highlighted areas on diagram

W/O(VSC)

diagram 47101 47101A 47101B 47101B 47121 47124A 47264A 47264C 55106 8401 8401 90105T0112 9011908C27 90178T0062
Part # Description Qty Price
Common parts
90105-T0112
90119-08C27
90178-T0062
Linked diagrams
8401

(1512- )LHD

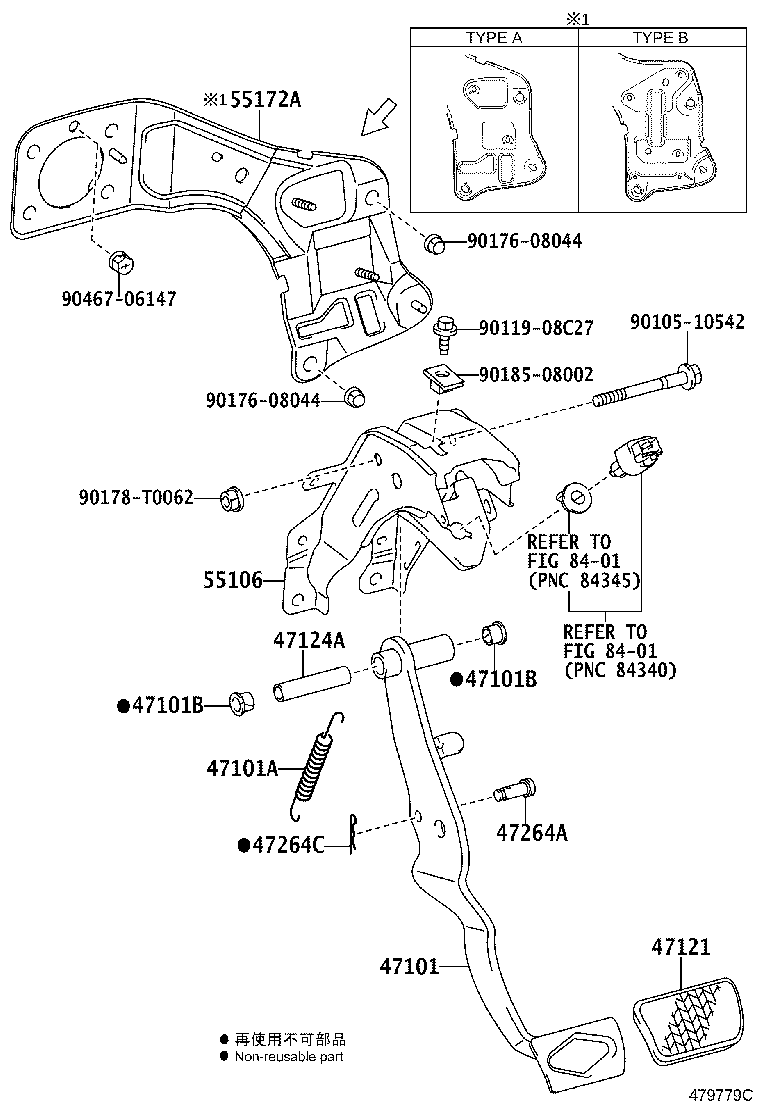

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124A 47264A 47264C 55106 55172A 8401 8401 9010510542 9011908C27 9017608044 9017608044 90178T0062 9018508002 9046706147
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-KK040

GGN155,165,GUN15#,165,KUN156,TGN156,16#..LHD..(AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV)..ATM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-T0002

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
47121 - PAD, BRAKE PEDAL
47121-02030

TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN15#,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10121

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47264A - PIN(FOR PUSH ROD)
47148-35010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90468-16012

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-KK010

TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV,VNSUV

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-KK020

GGN155,GUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD..(BZAGT,EPT,GEN,KZS,LA,PH,SA,VN)

TYPE A:REFER ILLUST.

 1
Common parts
90105-10542
90119-08C27
90176-08044
90178-T0062
90185-08002
90467-06147
Linked diagrams
8401

(2006- )LHD

Click highlighted areas on diagram

diagram 4703 47101 47101A 47101B 47101B 47121 47124A 47264A 47264C 55106 55172A 8401 8401 9010510542 9011908C27 9017608044 9017608044 90178T0062 9018508002 9046706147
Part # Description Qty Price
Common parts
90105-10542
90119-08C27
90176-08044
90178-T0062
90185-08002
90467-06147
Linked diagrams
4703
8401
