GUN156L-SGTMHF (2015)
Toyota Fortuner
(1710- )AGTSU..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

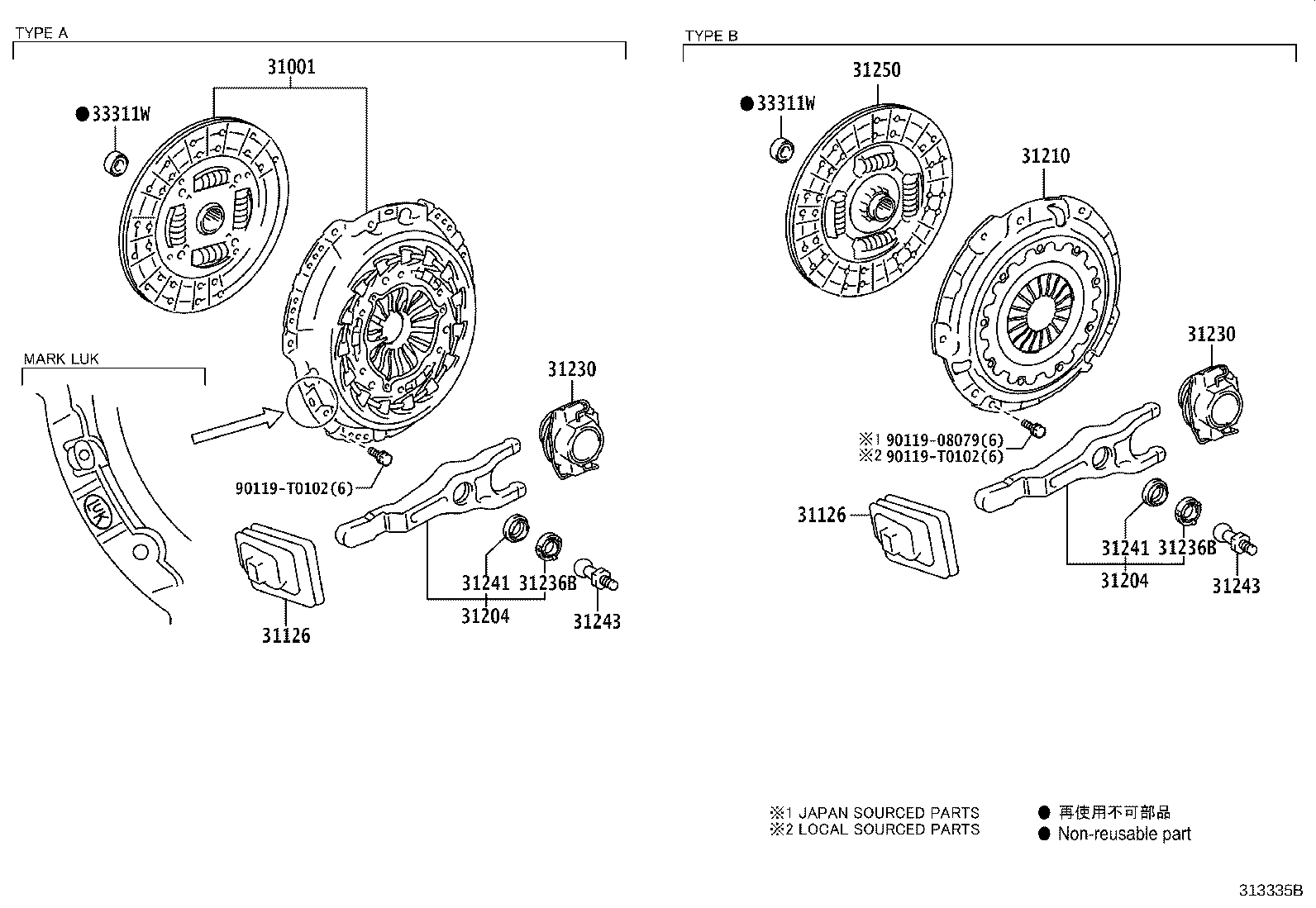

| 31001 - CLUTCH SET, COVER & DISC | ||||
| 31001-0K020 |
GUN156..AGTSU..6F |
1 | ||
| 31001-0K020 |
GUN156..AGTSU..6F TYPE A:REFER ILLUST. |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K080 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K080 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K110 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K110 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K281 |
GUN156..AGTSU..6F TYPE B:REFER ILLUST. |
1 | ||
| 31210-0K280 |
GUN156..AGTSU..6F |
1 | ||
| 31210-0K280 |
GUN156..AGTSU..6F TYPE B:REFER ILLUST. |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71051 |
GUN15#,16#..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71050 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71051 |
GUN15#,16#..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71050 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-0K010 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-0K010 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31241 - SEAL, CLUTCH RELEASE FORK DUST | ||||
| 31241-71010 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31241 - SEAL, CLUTCH RELEASE FORK DUST | ||||
| 31241-71010 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31243 - COLLAR, CLUTCH RELEASE FORK | ||||
| 31243-0K010 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31243 - COLLAR, CLUTCH RELEASE FORK | ||||
| 31243-0K010 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K280 |
GUN156..AGTSU..6F |
1 | ||
| 31250-0K280 |
GUN156..AGTSU..6F TYPE B:REFER ILLUST. |
1 | ||
| 31250-0K281 |
GUN156..AGTSU..6F TYPE B:REFER ILLUST. |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-T0006 |
GUN155,KUN156,165..6F;GUN156,16#..(AGTSU,IDNSU,INDSU,THSUV,VNSUV)..6F |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-T0006 |
GUN155,KUN156,165..6F;GUN156,16#..(AGTSU,IDNSU,INDSU,THSUV,VNSUV)..6F |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-T0102 | ||||
