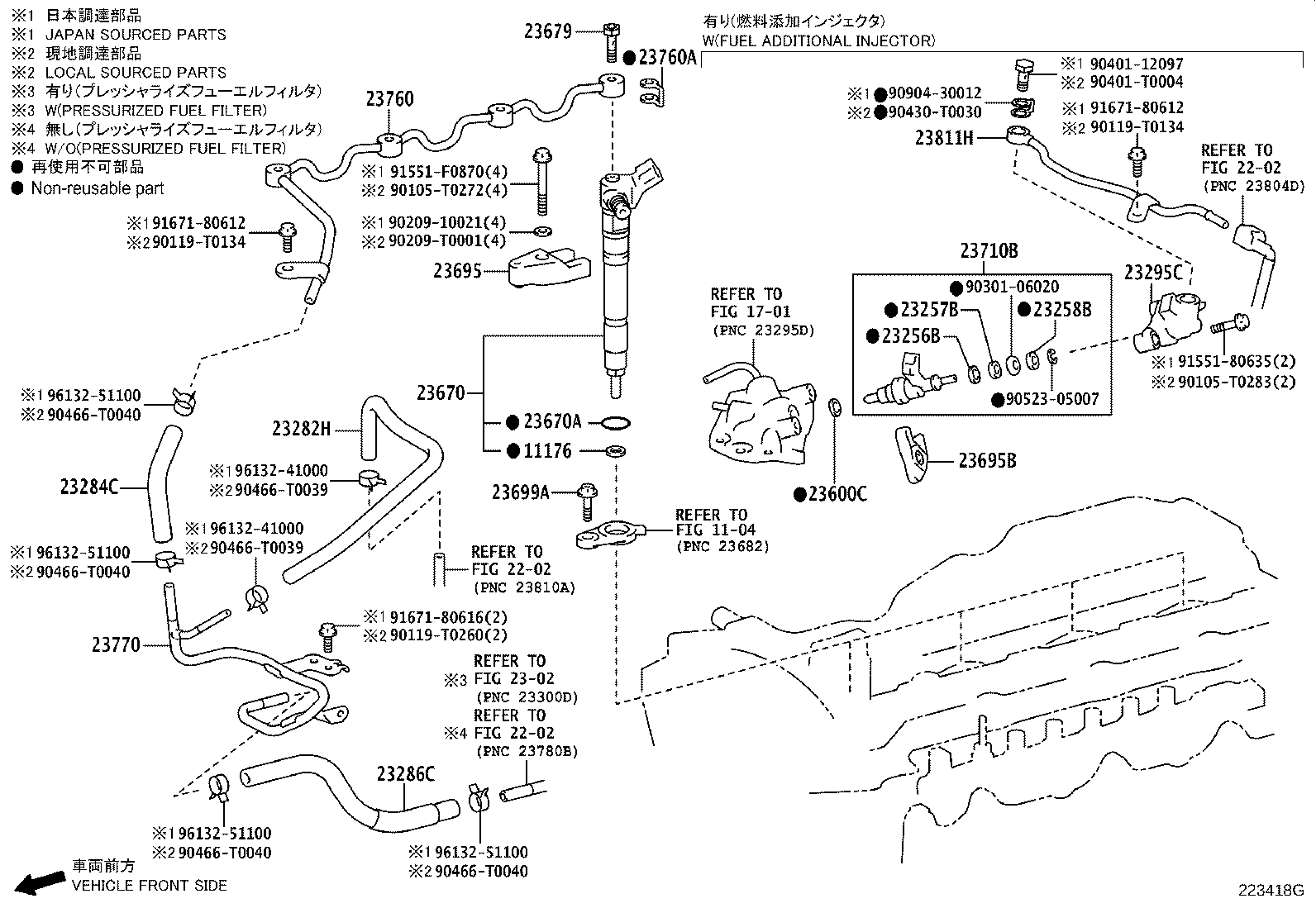

GUN156L-SGTMHF (2015)
Toyota Fortuner
(1507- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-33010 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272 |
4 | ||
| 11176-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
4 | ||
| 11176-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
4 | ||
| 11176-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..HDCR (L) |
4 | ||
| 11176-0E010 |
1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
4 | ||
| 11176-0E010 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA |
4 | ||
| 23256B - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1GDFTV..GUN156..LA CHILE SPEC |
1 | ||
| 23257B - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1GDFTV..GUN156..LA CHILE SPEC |
1 | ||
| 23258B - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28011 |
1GDFTV..GUN156..LA CHILE SPEC |
1 | ||
| 23282H - HOSE, FUEL, NO.4 | ||||
| 23282-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *582 |
1 | ||
| 23282-0E010 |
2GDFTV..GUN165..6F..(SA,VN);1GDFTV..GUN156..6F..(BZAGT,LA);2GDFTV..GUN155,165..(M,S)..(PH,SA,TH);1GDFTV..GUN156,166..RHD..6F..(ARL,SA) *272 |
1 | ||
| 23282-0E010 |
1GDFTV..GUN156..AGTSU..6FC..L..LA;1GDFTV..GUN156..AGTSU..(H,M,S)..HDCR *468 |
1 | ||
| 23282-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA *468 |
1 | ||
| 23282-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,*468 |
1 | ||
| 23282-0E011 |
1GDFTV..GUN156..LA CS AMERICA SPEC,*468,MARK=WHITE |
1 | ||
| 23282-0E011 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272,MARK=WHITE |
1 | ||
| 23282-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,*468 |
1 | ||
| 23282-0E011 |
1GDFTV..GUN156..AGTSU *468,MARK=WHITE |
1 | ||
| 23282-0E012 |
1GDFTV,2GDFTV..GUN156,165..AGTSU *468,MARK=PINK |
1 | ||
| 23282-0E012 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582,MARK=PINK |
1 | ||
| 23282-0E012 |
1GDFTV,2GDFTV..GUN156,165..LA CS AMERICA SPEC,*468,MARK=PINK |
1 | ||
| 23282-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV *582,MARK=WHITE |
1 | ||
| 23284C - HOSE, FUEL, NO.5 | ||||
| 23284-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
1 | ||
| 23284-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
1 | ||
| 23284-11010 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272 |
1 | ||
| 23284-0E010 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA |
1 | ||
| 23284-0E010 |
1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
1 | ||
| 23284-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 23286C - HOSE, FUEL, NO.6 | ||||
| 23286-11010 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272 |
1 | ||
| 23286-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
1 | ||
| 23286-0E010 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA |
1 | ||
| 23286-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
1 | ||
| 23286-0E011 |
1GDFTV,2GDFTV..GUN156,165..AGTSU |
1 | ||
| 23286-0E010 |
1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
1 | ||
| 23286-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 23286-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,VNSUV *582 |
1 | ||
| 23295C - HOLDER, INJECTOR | ||||
| 23296-11020 |
1GDFTV..GUN156..6F..LA CHILE SPEC,*272 |
1 | ||
| 23296-0E010 |
1GDFTV..GUN156..AGTSU..LA CHILE SPEC,*468 |
1 | ||
| 23296-0E010 |
1GDFTV..GUN156..LA CHILE SPEC,*582 |
1 | ||
| 23600C - GASKET(FOR HOLDER & NOZZLE SET) | ||||
| 90430-T0019 |
1GDFTV..GUN156..LA CHILE SPEC,(L),MADE IN THAILAND |
1 | ||
| 90430-08017 |
1GDFTV..GUN156..6F..LA CHILE SPEC,(J) |
1 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-19015 |
1GDFTV..GUN156..6F..(BZAGT,LA);1GDFTV..GUN156,166..RHD..6F..(ARL,SA) *272 |
4 | ||
| 23670-09420 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
4 | ||
| 23670-09420 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
4 | ||
| 23670-09420 |
1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
4 | ||
| 23670-09420 |
1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA;1GDFTV..GUN156..AGTSU..(H,M)..HDCR |
4 | ||
| 23670-09420 |
1GDFTV..GUN156,166..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..HDCR *582 |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
4 | ||
| 96721-19017 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
4 | ||
| 96721-19017 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 90401-T0007 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
4 | ||
| 90401-T0007 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
4 | ||
| 90401-06002 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA (J) |
4 | ||
| 90401-T0007 |
1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
4 | ||
| 90401-T0007 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA |
4 | ||
| 90401-T0007 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA (L) |
4 | ||
| 90401-T0007 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,(L) |
4 | ||
| 23695-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,(L) |
4 | ||
| 23695-11010 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272 |
4 | ||
| 23695-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
4 | ||
| 23695-11010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
4 | ||
| 23695B - CLAMP, NOZZLE HOLDER, NO.2 | ||||
| 23695-28010 |
1GDFTV..GUN156..6F..LA CHILE SPEC,*272 |
1 | ||
| 23695-0E020 |
1GDFTV..GUN156..LA CHILE SPEC,(L) |
1 | ||
| 23695-28010 |
1GDFTV..GUN156..LA CHILE SPEC,(J) |
1 | ||
| 23699A - SEAT, NOZZLE HOLDER CLAMP | ||||
| 23699-11010 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA (J) |
4 | ||
| 23699-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,THA SOURCED PARTS |
4 | ||
| 23699-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,THA SOURCED PARTS |
4 | ||
| 23699-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS |
4 | ||
| 23710B - INJECTOR ASSY, EXHAUST FUEL ADDITION | ||||
| 23710-11010 |
1GDFTV..GUN156..LA CHILE SPEC |
1 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0E010 |
2GDFTV..GUN155..S..SA;1GDFTV..GUN156..6F..(ARL,BZAGT,LA) *272 |
1 | ||
| 23760-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,THA SOURCED PARTS |
1 | ||
| 23760-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS |
1 | ||
| 23760-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,THA SOURCED PARTS |
1 | ||
| 23760-0E011 |
1GDFTV,2GDFTV..GUN156,165..LA CS AMERICA SPEC,THA SOURCED PARTS |
1 | ||
| 23760-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS |
1 | ||
| 23760A - GASKET | ||||
| 90430-06013 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272 |
4 | ||
| 90430-T0017 |
1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
4 | ||
| 90430-T0017 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA |
4 | ||
| 90430-T0017 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
4 | ||
| 90430-T0017 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
4 | ||
| 90430-T0017 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
4 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-0E010 |
2GDFTV..GUN155..S..SA;1GDFTV..GUN156..6F..(ARL,BZAGT,LA) *272 |
1 | ||
| 23770-0E010 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC |
1 | ||
| 23770-0E010 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC |
1 | ||
| 23770-0E010 |
1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA |
1 | ||
| 23770-0E010 |
1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT |
1 | ||
| 23770-0E011 |
1GDFTV,2GDFTV..GUN156,165..AGTSU |
1 | ||
| 23770-0E011 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,VNSUV *582 |
1 | ||
| 23770-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 23811H - PIPE, FUEL, NO.1 | ||||
| 23811-0E010 |
1GDFTV..GUN156..LA CHILE SPEC,(L),MADE IN THAILAND |
1 | ||
| Common parts | ||||
| 90105-T0272 | ||||
| 90105-T0283 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-06020 | ||||
| 90401-12097 | ||||
| 90401-T0004 | ||||
| 90430-T0030 | ||||
| 90466-T0039 | ||||
| 90466-T0040 | ||||
| 90523-05007 | ||||
| 90904-30012 | ||||
| 91551-80635 | ||||
| 91551-F0870 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 2202 | ||||
| 2302 | ||||
(2006- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0272 | ||||
| 90105-T0283 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-06020 | ||||
| 90401-T0004 | ||||
| 90430-T0030 | ||||
| 90466-T0039 | ||||
| 90466-T0040 | ||||
| 90523-05007 | ||||
| 90904-30012 | ||||
| 91551-80635 | ||||
| 91551-F0870 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 2202 | ||||
| 2302 | ||||
