GUN156L-SGTLXF (2020)

Toyota Fortuner

Production Nov 2020 - Nov 2021
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

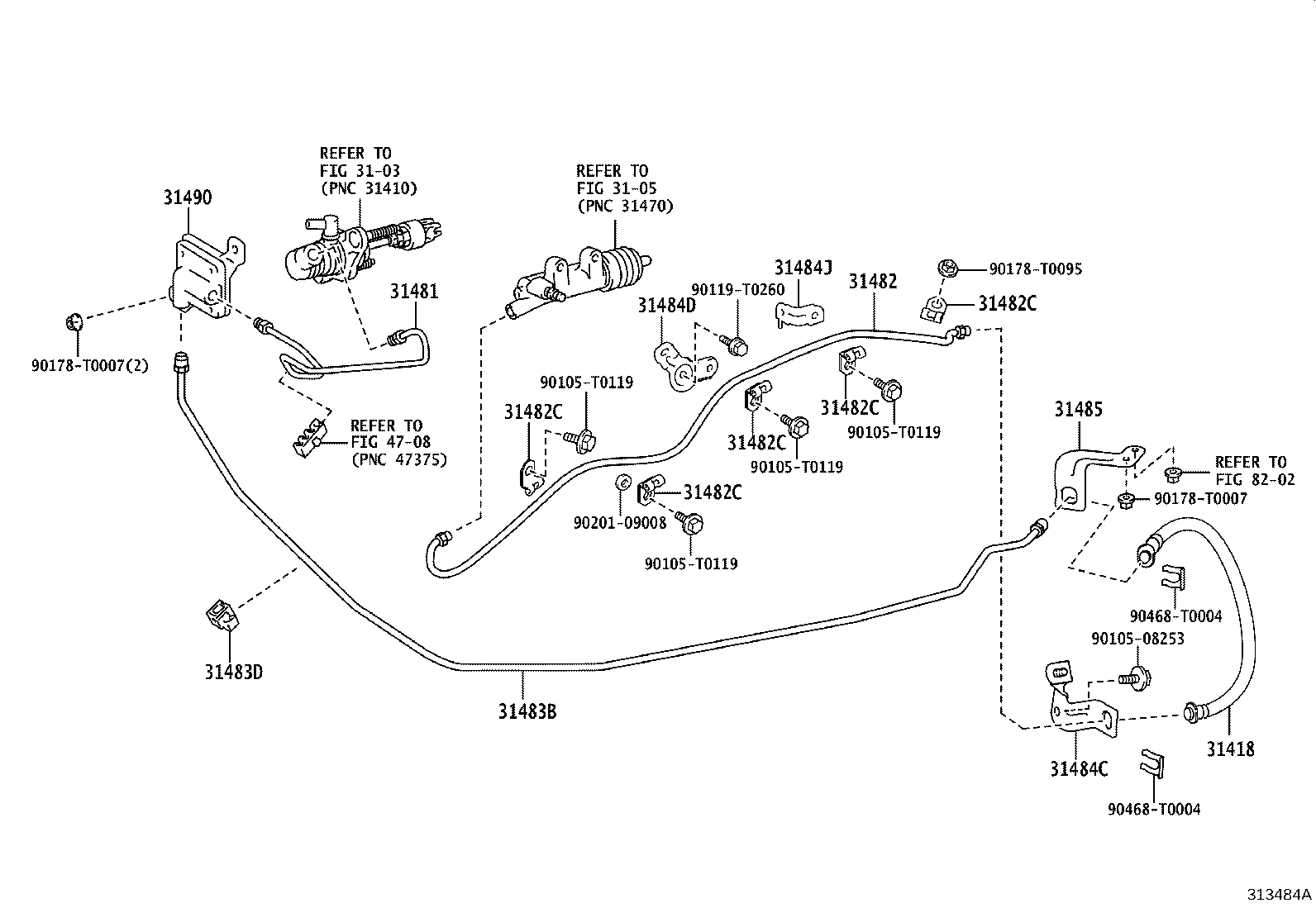

ILLUST NO. 2 OF 2(2011- )6F..LA

Click highlighted areas on diagram

CLUTCH PIPING,EURO6C OR EURO6D-TEMP

diagram 3103 3105 31418 31481 31482 31482C 31482C 31482C 31482C 31482C 31483B 31483D 31484C 31484D 31484J 31485 31490 4708 8202 9010508253 90105T0119 90105T0119 90105T0119 90105T0119 90119T0260 90178T0007 90178T0007 90178T0095 9020109008 90468T0004 90468T0004
Part # Description Qty Price
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0K130

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90461-12413

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 5
31482C - CLAMP(FOR CLUTCH TUBE)
90461-12413

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 5
31482C - CLAMP(FOR CLUTCH TUBE)
90461-12413

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 5
31482C - CLAMP(FOR CLUTCH TUBE)
90461-12413

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 5
31482C - CLAMP(FOR CLUTCH TUBE)
90461-12413

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 5
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-KK030

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
31483D - CLAMP(FOR ACCUMULATOR TO FLEXIBLE HOSE TUBE)
90949-T1012

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-KK030

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-0K050

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
31484J - BRACKET, CLUTCH TUBE, NO.3
31484-0K070

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-KK030

GUN156..6F..LA

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

 1
Common parts
90105-08253
90105-T0119
90119-T0260
90178-T0007
90178-T0095
90201-09008
90468-T0004
Linked diagrams
3103
3105
4708
8202
