GUN156L-SGTLHF (2015)

Toyota Fortuner

Production Dec 2015 - Oct 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )2TRFE..TGN166..L..GCC ; (1512- )2TRFE..TGN156..L,M..GCC,GEN,MA,VN ; (

Click highlighted areas on diagram

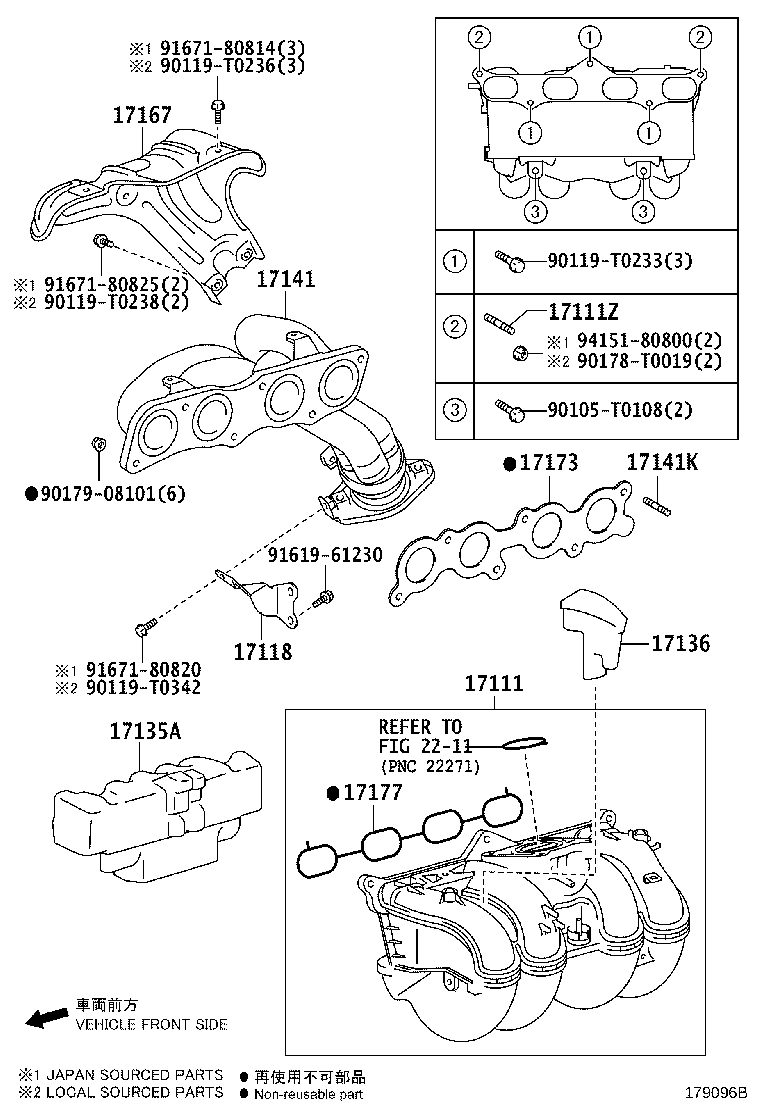

diagram 17111 17111Z 17118 17135A 17136 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 9161961230 9167180814 9167180820 9167180825 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-11400

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17101-11400

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17101-11401

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17101-11401

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17101-0E020

1GDFTV..GUN156..LA

CHILE SPEC,*582

 1
17101-0E020

1GDFTV..GUN156..LA

CHILE SPEC,*582

 1
17101-11390

1GDFTV..GUN156..RHD..6F..SA;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17101-11390

1GDFTV..GUN156..RHD..6F..SA;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17101-0E010

1GDFTV..GUN156..TH;1GDFTV..GUN156..THSUV..H;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

*582

 1
17101-0E010

1GDFTV..GUN156..TH;1GDFTV..GUN156..THSUV..H;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,MASUV,SASUV,THSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

*582

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

*468

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

*468

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17101-0E011

1GDFTV,2GDFTV..GUN156,165..LA

CS AMERICA SPEC,*468

 1
17101-0E011

1GDFTV,2GDFTV..GUN156,165..LA

CS AMERICA SPEC,*468

 1
17101-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*468

 1
17101-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*468

 1
17101-0E021

1GDFTV..GUN156..LA

CHILE SPEC,*582

 1
17101-0E021

1GDFTV..GUN156..LA

CHILE SPEC,*582

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17101-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17101-0E011

1GDFTV..GUN156..TH;1GDFTV..GUN156..THSUV..H;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

(L)

 1
17101-0E011

1GDFTV..GUN156..TH;1GDFTV..GUN156..THSUV..H;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

(L)

 1
17101-0E011

1GDFTV,2GDFTV..GUN156,165..LA

*468

 1
17101-0E011

1GDFTV,2GDFTV..GUN156,165..LA

*468

 1
17101-11391

1GDFTV..GUN156..TH;1GDFTV..GUN156..THSUV..H;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

(J)

 1
17101-11391

1GDFTV..GUN156..TH;1GDFTV..GUN156..THSUV..H;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

(J)

 1
17101-0E021

1GDFTV..GUN156..LA

CHILE SPEC,*468

 1
17101-0E021

1GDFTV..GUN156..LA

CHILE SPEC,*468

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J)

 2
92122-80822

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,(J)

 2
92122-80822

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,(J)

 2
92122-80822

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,(J)

 2
92122-80822

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,(J)

 2
92122-80822

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J)

 2
90116-T0011

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L)

 2
90116-T0011

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L)

 2
17118 - STAY, MANIFOLD
17118-0E010

1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17118-0E010

1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17118-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17118-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17118-11390

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17118-11390

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17118-0E030

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17118-0E030

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17118-0E030

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17118-0E030

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17118-0E030

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 1
17118-0E030

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 1
17118-0E030

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 1
17118-0E030

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 1
17118-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 1
17118-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 1
17141 - MANIFOLD, EXHAUST
17141-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*582

 1
17141-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*582

 1
17141-11350

1GDFTV..GUN156..RHD..6F..SA;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17141-11350

1GDFTV..GUN156..RHD..6F..SA;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17141-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17141-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17141-11360

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17141-11360

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17141-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17141-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17141-0E010

1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..AGTSU..6FC..LA

*468

 1
17141-0E010

1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..AGTSU..6FC..LA

*468

 1
17141-0E040

1GDFTV..GUN156..LA

CHILE SPEC,ARG SOURCED PARTS

 1
17141-0E040

1GDFTV..GUN156..LA

CHILE SPEC,ARG SOURCED PARTS

 1
17141-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,THA SOURCED PARTS

 1
17141-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,THA SOURCED PARTS

 1
17141-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17141-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17141-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582

 1
17141-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582

 1
17141-0E010

1GDFTV..GUN156..THSUV..H;1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..(L,M)..(BZAGT,TH);1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

*582

 1
17141-0E010

1GDFTV..GUN156..THSUV..H;1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..(L,M)..(BZAGT,TH);1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

*582

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-10034

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 8
90126-10034

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 8
90126-10034

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 8
90126-10034

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 8
90126-10034

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 8
90126-10034

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 8
90126-10034

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 8
90126-10034

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 8
90126-10034

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 8
90126-10034

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 8
90126-10034

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 8
90126-10034

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*582

 1
17167-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*582

 1
17167-11340

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17167-11340

1GDFTV..GUN156..6F..LA

CHILE SPEC,*272

 1
17167-11330

1GDFTV..GUN156..RHD..6F..SA;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17167-11330

1GDFTV..GUN156..RHD..6F..SA;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17167-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17167-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17167-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17167-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17167-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17167-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA

*468

 1
17167-0E010

1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..AGTSU..6FC..LA

*468

 1
17167-0E010

1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..AGTSU..6FC..LA

*468

 1
17167-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582

 1
17167-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*582

 1
17167-0E010

1GDFTV..GUN156..THSUV..H;1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..(L,M)..(BZAGT,TH);1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

*582

 1
17167-0E010

1GDFTV..GUN156..THSUV..H;1GDFTV..GUN156..(H,S)..IART;1GDFTV..GUN156..(L,M)..(BZAGT,TH);1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;1GDFTV..GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN)

*582

 1
17167-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*468

 1
17167-0E020

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,*468

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11060

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17173-11060

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17173-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17173-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17173-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17173-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17173-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 1
17173-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 1
17173-0E010

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 1
17173-0E010

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 1
17173-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 1
17173-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11080

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17177-11080

1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA

*272

 1
17177-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17177-0E010

1GDFTV..GUN156..AGTSU..6F..LA

CS AMERICA SPEC,*468

 1
17177-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17177-0E010

1GDFTV..GUN156..AGTSU..6FC..LA

CS AMERICA SPEC,*468

 1
17177-0E010

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 1
17177-0E010

1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA

*468

 1
17177-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 1
17177-0E010

1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT

*468

 1
17177-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 1
17177-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

*582

 1
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91619-61230
91671-80814
91671-80820
91671-80825
94151-80800
Linked diagrams
2211

(2006- )2TRFE..TGN156..SA ; (2006- )2TRFE..TGN156..H,L..GCC,GEN,MA,PKN ; (200

Click highlighted areas on diagram

PNC 17141=TYPE A

diagram 17111 17111Z 17118 17135A 17136 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 9161961230 9167180814 9167180820 9167180825 9415180800
Part # Description Qty Price
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91619-61230
91671-80814
91671-80820
91671-80825
94151-80800
Linked diagrams
2211

ILLUST NO. 1 OF 5(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

COMPRESSOR INLET ELBOW

diagram 15407 15407A 15407B 15407F 15407F 15471 15472 15474 15474A 1703 17203B 17203B 17275 17275 17276 17276 17277 17293 17293B 17293C 17298 9010508359 9010508359 90105T0120 90105T0120 90119T0260 9012608052 9012608052 90126T0016 90126T0016 90178T0018 90178T0019 90178T0019 9155180820 9155180820 9167180616 9415180600 9415180800 9415180800
Part # Description Qty Price
Common parts
90105-08359
90105-T0120
90119-T0260
90126-08052
90126-T0016
90178-T0018
90178-T0019
91551-80820
91671-80616
94151-80600
94151-80800
Linked diagrams
1703

ILLUST NO. 2 OF 5(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

INTAKE MANIFOLD

diagram 17111 17111Z 17118 17177 2606 2606 90105T0121 90105T0247 90178T0019 9155180825 9155180830 9415180800
Part # Description Qty Price
Common parts
90105-T0121
90105-T0247
90178-T0019
91551-80825
91551-80830
94151-80800
Linked diagrams
2606

ILLUST NO. 3 OF 5(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

EXHAUST MANIFOLD

diagram 17141 17141 17141K 17167 17167 17168 17173 17198 17271 17278 17278 174450E010 1744511060 23295D 90119T0238 90119T0238 9012610033 9014860053 90178T0018 9017910070 9017910167 9020110109 90560T0006 9167180825 9167180825 9418401041
Part # Description Qty Price
Common parts
17445-0E010
17445-11060
90119-T0238
90126-10033
90148-60053
90178-T0018
90179-10070
90179-10167
90201-10109
90560-T0006
91671-80825
94184-01041

ILLUST NO. 4 OF 5(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

EXHAUST MANIFOLD CONVERTER

diagram 1702 17279 17291 17452B 17568A 17569D 17569D 25051 25051 90119T0388 90119T0388 90119T0388 9012610033 9012610033 9017910070 9017910070 9167281025 9167281025 9167281025 9418800841
Part # Description Qty Price
Common parts
90119-T0388
90126-10033
90179-10070
91672-81025
94188-00841
Linked diagrams
1702

ILLUST NO. 5 OF 5(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

TURBOCHARGER

diagram 04175 17201 89674 9011606048 9011606048 9011610175 9052304002 9155180614
Part # Description Qty Price
Common parts
90116-06048
90116-10175
90523-04002
91551-80614
