Toyota Fortuner GUN156 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
GR
FORTUNER
GUN156L-SGTLHF (2015)
1603 - RADIATOR & WATER OUTLET

GUN156L-SGTLHF (2015)

Toyota Fortuner

Production Dec 2015 - Oct 2020

Engine 1GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

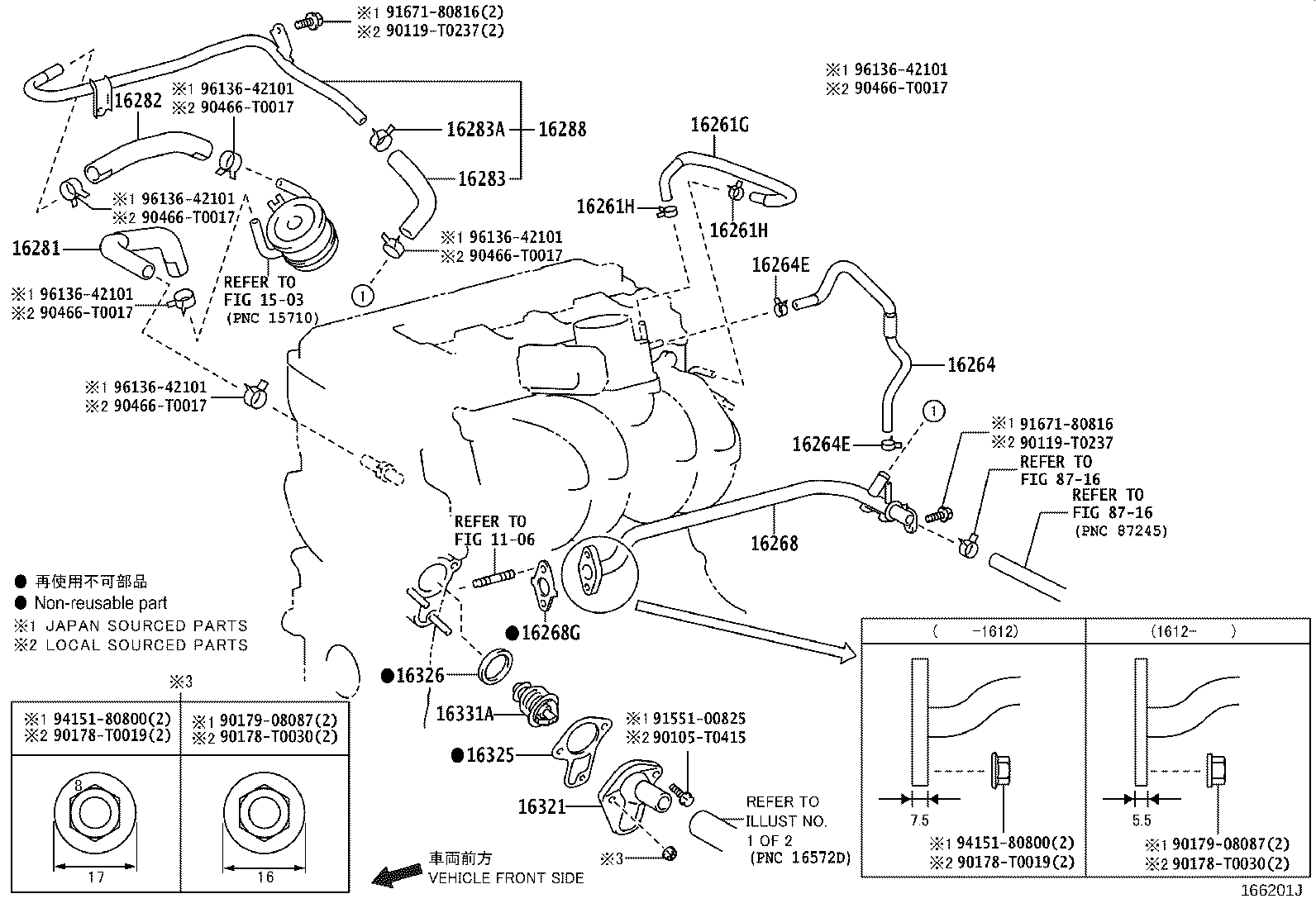

ILLUST NO. 2 OF 2(1512- )2TRFE..TGN156..M..GEN ; (1512- )2TRFE..TGN156,168..6FC..BZAGT,LA,SA ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
16264 - HOSE, WATER BY-PASS, NO.2
16264-0L120	1GDFTV..GUN156..AGTSU	12/2015 - 12/2017	1
16264-0L110	1GDFTV..GUN156..S..IART;1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..(H,L,M)	12/2017 - 12/2999	1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42101	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J)	07/2015 - 12/2999	2
90466-T0017	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L)	03/2018 - 12/2999	2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42101	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J)	07/2015 - 12/2999	2
90466-T0017	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L)	03/2018 - 12/2999	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0E030	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA ARG SOURCED PARTS	10/2016 - 07/2019	1
16268-0E030	1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,ARG SOURCED PARTS	10/2016 - 07/2019	1
16268-0E030	1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,ARG SOURCED PARTS	10/2017 - 07/2019	1
16268-0E010	1GDFTV..GUN156..LA CS AMERICA SPEC,THA SOURCED PARTS	07/2018 - 02/2020	1
16268-0E010	1GDFTV..GUN156..THSUV..(H,L);1GDFTV..GUN156..RHD..THSUV..(M,S);1GDFTV..GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;1GDFTV,2GDFTV..GUN155,16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS	07/2015 - 12/2999	1
16268-0E030	1GDFTV..GUN156..AGTSU..(H,M,S);1GDFTV..GUN156..AGTSU..6FC..L..LA ARG SOURCED PARTS	10/2017 - 07/2019	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-11010	1GDFTV..GUN156..6F..LA CHILE SPEC,*272	12/2015 - 09/2018	1
16281-0E010	1GDFTV..GUN156..LA CHILE SPEC,*582	12/2015 - 10/2020	1
16281-0E010	1GDFTV..GUN156..AGTSU..LA CHILE SPEC	10/2017 - 10/2020	1
16282 - HOSE, WATER BY-PASS, NO.5
16282-0E010	1GDFTV..GUN156..LA CHILE SPEC,*582	12/2015 - 10/2020	1
16282-0E010	1GDFTV..GUN156..AGTSU..LA CHILE SPEC	10/2017 - 10/2020	1
16282-11010	1GDFTV..GUN156..6F..LA CHILE SPEC,*272	12/2015 - 09/2018	1
16283 - HOSE, WATER BY-PASS, NO.6
16283-11010	1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272	07/2015 - 09/2018	1
16283-11010	1GDFTV..GUN156..6F..LA CHILE SPEC,*272	12/2015 - 09/2018	1
16283-0E010	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT	10/2016 - 10/2020	1
16283-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582	07/2015 - 12/2999	1
16283-0E010	1GDFTV..GUN156..AGTSU..LA CHILE SPEC	10/2017 - 10/2020	1
16283-0E010	1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA	10/2017 - 10/2020	1
16283-0E010	1GDFTV..GUN156..LA CHILE SPEC,*582	12/2015 - 10/2020	1
16283-0E010	1GDFTV..GUN156..AGTSU..LA CS AMERICA SPEC,*582	10/2017 - 10/2020	1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96136-42501	1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA (J)	07/2015 - 09/2018	2
96136-42501	2GDFTV..GUN165..IDN,LA,SA;1GDFTV..GUN156..(H,L)..BZAGT;1GDFTV..GUN156..6F..S..BZAGT;2GDFTV..GUN155..(L,M,S)..(GEN,IDN,SA);1GDFTV..GUN156,166..(AGTSU,IDNSU,PKNSU,SASUV,THSUV)..(ARL,GCC,GEN,LA,PH,PKN,SA,TH,VN) (J)	11/2018 - 12/2999	2
90466-T0020	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L)	07/2015 - 12/2999	2
16321 - INLET, WATER
16321-0E010	1GDFTV..GUN156..AGTSU..6F..LA	10/2016 - 06/2017	1
16321-0E010	1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC	10/2016 - 06/2017	1
16321-11050	1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA *272	07/2015 - 09/2018	1
16321-0E030	1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC	06/2017 - 02/2020	1
16321-0E030	1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC	10/2017 - 02/2020	1
16321-0E030	1GDFTV..GUN156..S..IART;1GDFTV..GUN156..AGTSU..(H,M);1GDFTV..GUN156..6F..S..BZAGT;1GDFTV..GUN156..AGTSU..6FC..L..LA	10/2017 - 10/2020	1
16321-0E030	1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT	06/2017 - 10/2020	1
16321-0E010	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV 231 OR 501	07/2015 - 12/2999	1
16331A - THERMOSTAT
90916-03118	1GDFTV..GUN156..AGTSU..6FC..LA *WAX 82-95,CS AMERICA SPEC	10/2017 - 02/2020	1
90916-03118	1GDFTV..GUN156..AGTSU..6F..LA *WAX 82-95,CS AMERICA SPEC	10/2016 - 02/2020	1
90916-03118	1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *WAX 82-95	07/2015 - 12/2999	1
Common parts
90105-T0415
90119-T0237
90178-T0019
90178-T0030
90179-08087
90466-T0017
91551-00825
91671-80816
94151-80800
96136-42101
Linked diagrams
1106
1503
8716

(2006- )1GDFTV..GUN156..LA

Click highlighted areas on diagram

W(INTERCOOLER (WATER COOLED TYPE))

Part #	Description	Period	Qty	Price
Common parts
82711-51020
88718-48360
90105-T0052
90119-T0145
90119-T0273
90119-T0283
90119-T0526
90387-T0026
90480-16044
90480-18006
Linked diagrams
1703

ILLUST NO. 1 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0384
90119-T0526
90119-T0610
90179-06293
Linked diagrams
5151

ILLUST NO. 2 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0051
90105-T0052
91551-80616
91551-80625
Linked diagrams
1201
1601

ILLUST NO. 3 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-06385
90109-T0062
90119-T0283
90339-07001
90466-T0015
90466-T0023
Linked diagrams
2501
8716

ILLUST NO. 4 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0051
90119-T0260
90126-06029
90126-T0012
90178-T0018
90469-10005
91551-80616
91671-80616
94151-80600
Linked diagrams
8716

ILLUST NO. 5 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0260
90178-T0018
90469-14003
90469-T0015
91671-80616
94151-80600
Linked diagrams
1701

ILLUST NO. 6 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0120
90119-T0136
91551-80820
91671-80614
Linked diagrams
1503
1701

ILLUST NO. 7 OF 7(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0260
90119-T0342
91671-80616
91671-80820
Linked diagrams
2501
2606
