GUN156L-SGTLHF (2015)
Toyota Fortuner
(1512- )2TRFE..TGN156..M..GEN ; (1512- )2TRFE..TGN156,168..6FC..BZAGT,LA,SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

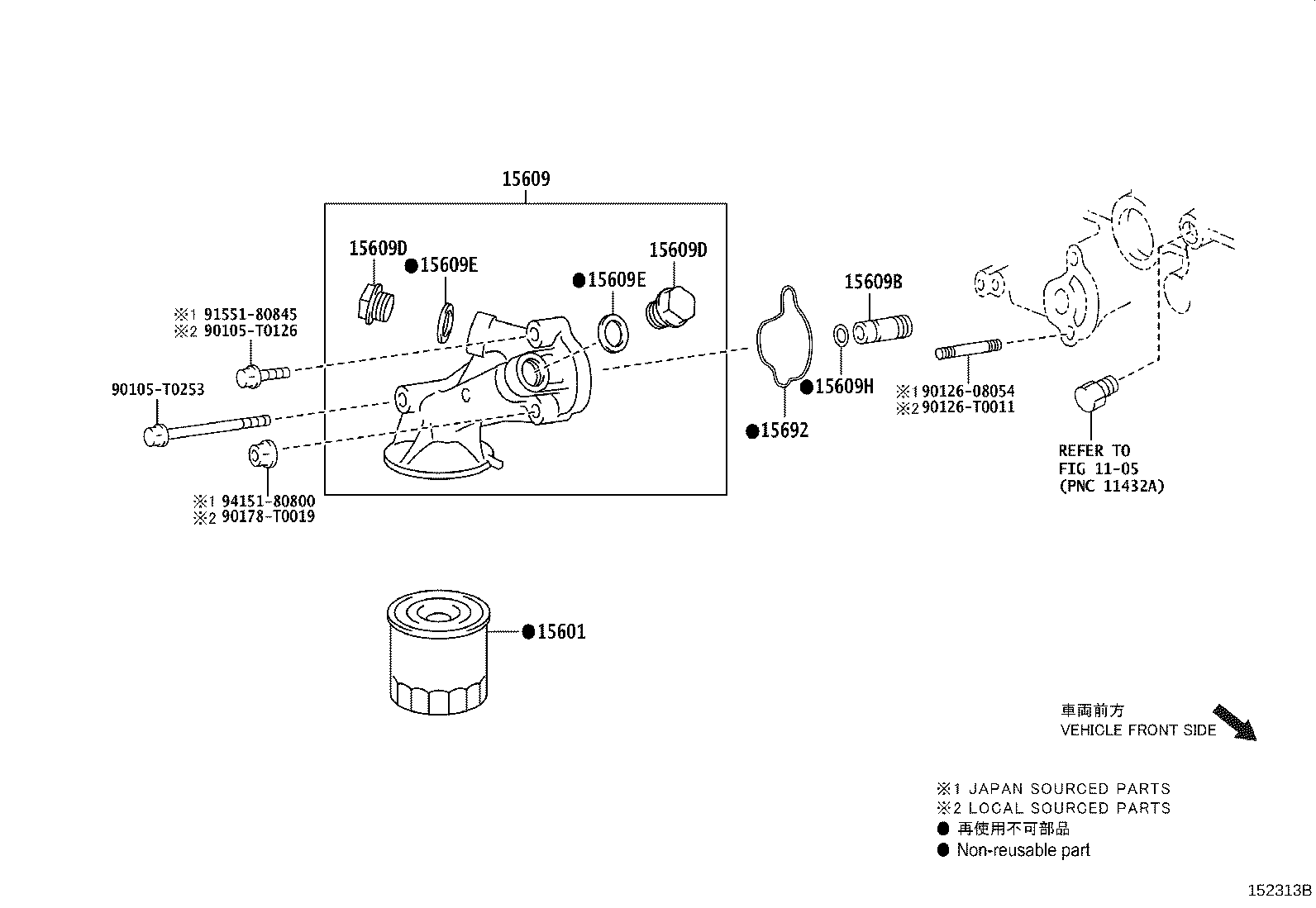

| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-TB001 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,(L) |
1 | ||
| 90915-20003 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA #,(J) |
1 | ||
| 90915-TB001 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 90915-TB001 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,(L) |
1 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24030 |
1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA #,(J) |
2 | ||
| 90301-T0046 |
1GDFTV..GUN156..AGTSU..6F..LA CS AMERICA SPEC,THA SOURCED PARTS |
2 | ||
| 90301-T0046 |
1GDFTV..GUN156..AGTSU..6FC..LA CS AMERICA SPEC,THA SOURCED PARTS |
2 | ||
| 90301-T0046 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV THA SOURCED PARTS |
2 | ||
| Common parts | ||||
| 90105-T0126 | ||||
| 90105-T0253 | ||||
| 90126-08054 | ||||
| 90126-T0011 | ||||
| 90178-T0019 | ||||
| 91551-80845 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
(2006- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0120 | ||||
| 90126-08053 | ||||
| 90178-T0019 | ||||
| 91551-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
