GUN156L-SGTLHF (2015)

Toyota Fortuner

Production Dec 2015 - Oct 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1512- )2TRFE..TGN166..L..GCC ; (1512- )2TRFE..TGN156..L,M..GCC,GEN,MA,VN ; (

Click highlighted areas on diagram

TYPE C

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1106 1106 1106 1302 1302 1302 1302 1501 1501 1502 1502 1502 1503 1601 1601 1603 1603 1603 1701 1701 1702 2211 2211 2211
Part # Description Qty Price

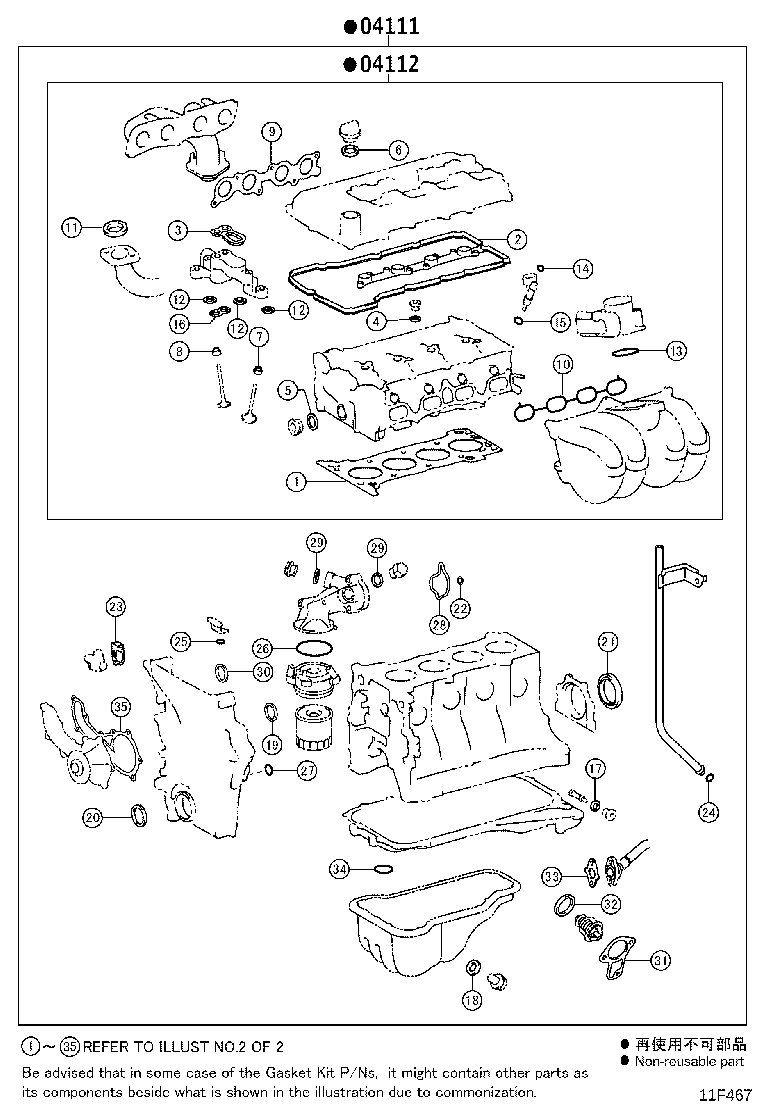

04111 - GASKET KIT, ENGINE OVERHAUL
04111-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,TYPE A:REFER ILLUST.

 1
04111-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,TYPE A:REFER ILLUST.

 1
04111-0E040

1GDFTV,2GDFTV..GUN156,165..LA

PERU SPEC,TYPE D:REFER ILLUST.

 1
04111-0E040

1GDFTV,2GDFTV..GUN156,165..LA

PERU SPEC,TYPE D:REFER ILLUST.

 1
04111-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

 1
04111-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

 1
04111-0E070

1GDFTV..GUN156..AGTSU..LA

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE E:REFER ILLUST.

 1
04111-0E070

1GDFTV..GUN156..AGTSU..LA

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE E:REFER ILLUST.

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,TYPE A:REFER ILLUST.

 1
04112-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC,TYPE A:REFER ILLUST.

 1
04112-0E040

1GDFTV,2GDFTV..GUN156,165..LA

PERU SPEC,TYPE D:REFER ILLUST.

 1
04112-0E040

1GDFTV,2GDFTV..GUN156,165..LA

PERU SPEC,TYPE D:REFER ILLUST.

 1
04112-0E070

1GDFTV..GUN156..AGTSU..LA

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE E:REFER ILLUST.

 1
04112-0E070

1GDFTV..GUN156..AGTSU..LA

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE E:REFER ILLUST.

 1
04112-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

 1
04112-0E010

1GDFTV..GUN156..AGTSU..LA

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2211
