GUN156L-SGTHJG (2015)

Toyota Fortuner

Production Dec 2015 - Oct 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )BZAGT

Click highlighted areas on diagram

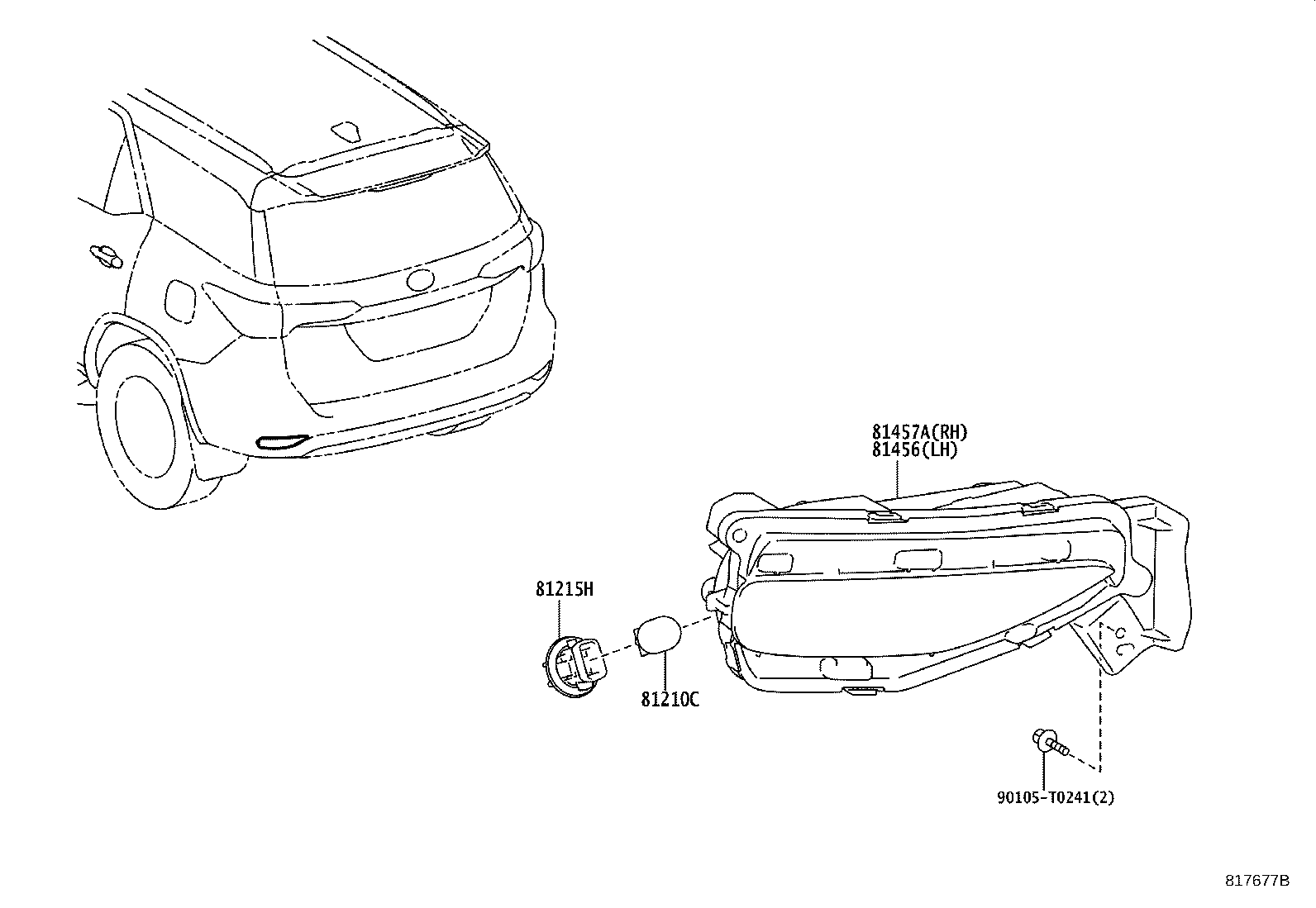

diagram 81210C 81215H 81456 81457A 90105T0241
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-13043

TGN156..S..GCC;GUN156..H..(BZAGT,GCC);GUN155..(M,S)..(SA,TH);TGN166..(M,S)..(BZAGT,GCC,TH);GUN155,165,TGN166..LHD..6FC..(EPT,GEN);GGN155,GUN16#,TGN156,168..BZAGT,EPT,KZS,TH;GUN156..(AGTSU,THSUV)..(L,M,S)..(BZAGT,GEN,TH)

12V 21W

 2
81215H - SOCKET, REAR FOG LAMP
90069-81115

GGN155,GUN156,TGN156,16#..BZAGT

 2
81456 - LENS & BODY, REAR FOG LAMP, LH
81456-0K040

GGN155,GUN156,TGN156,16#..BZAGT

 1
81457A - LENS & BODY, REAR FOG LAMP, RH
81457-0K040

GGN155,GUN156,TGN156,16#..BZAGT

 1
Common parts
90105-T0241

(2006- )EPT,GCC,GEN,IND,MA,SA,TH,VN

Click highlighted areas on diagram

diagram 81210C 81480A 81490C 90105T0241
Part # Description Qty Price
Common parts
90105-T0241
