GUN156L-SDTHX (2020)

Toyota Fortuner

Production Jul 2020 - Aug 2021
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )IDN

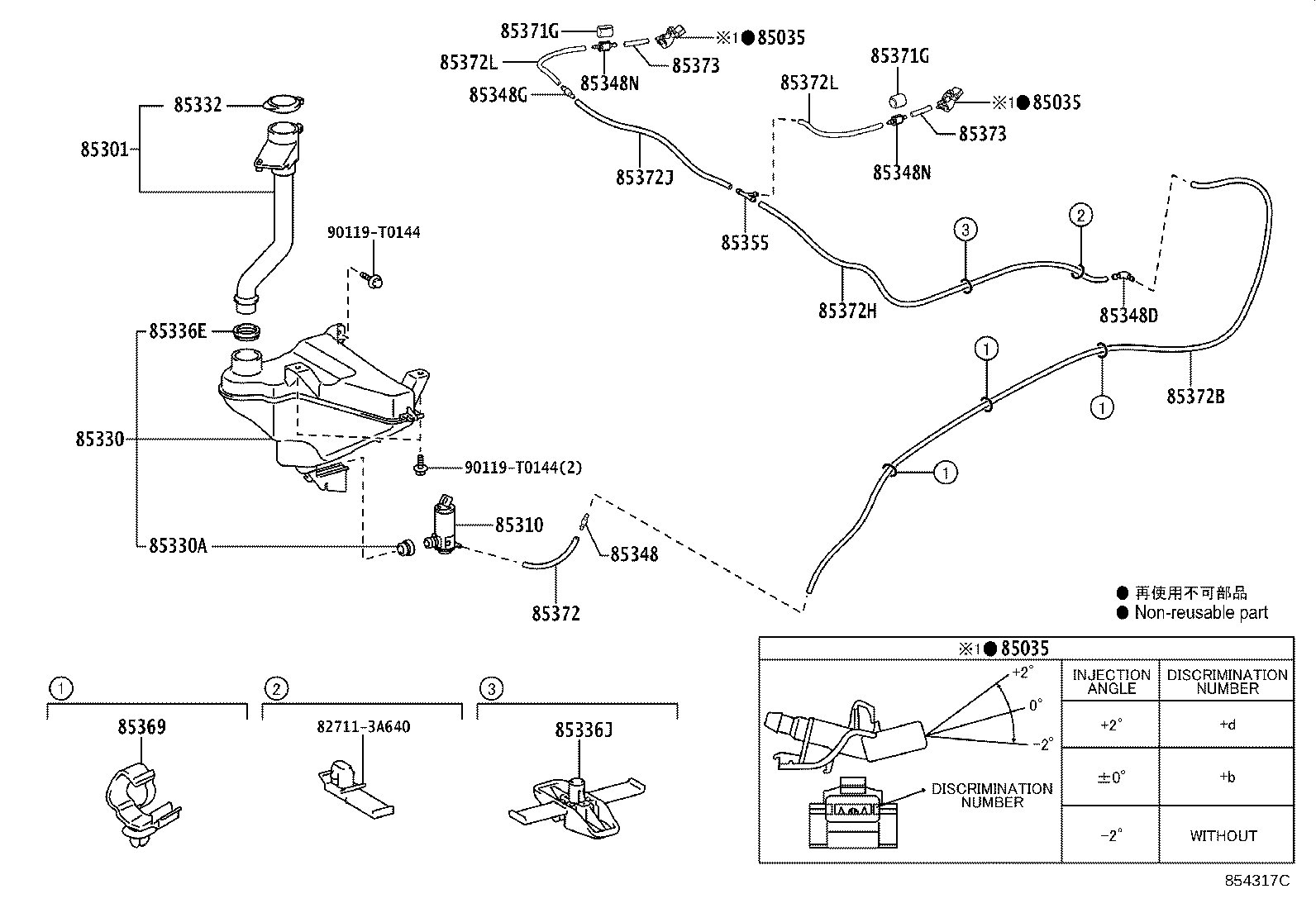

Click highlighted areas on diagram

diagram 827113A640 85035 85035 85035 85301 85310 85330 85330A 85332 85336E 85336J 85348 85348D 85348G 85348N 85348N 85355 85369 85371G 85371G 85372 85372B 85372H 85372J 85372L 85372L 85373 85373 90119T0144 90119T0144
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K090

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE +2

 2
85381-0K070

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE 0

 2
85381-0K080

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE -2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K090

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE +2

 2
85381-0K070

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE 0

 2
85381-0K080

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE -2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K090

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE +2

 2
85381-0K070

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE 0

 2
85381-0K080

GGN155,GUN15#,16#,LAN155,TGN156,16#

ANGLE -2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0K051

GGN155,GUN15#,16#,LAN155,TGN156,16#..AGTSU,IDNSU,SASUV,VNSUV

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
85336J - PROTECTOR, WASHER JAR
85372-0K020

GGN155,GUN15#,16#,LAN155,TGN156,16#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85321-26020

GUN15#,16#,TGN166..IDN,TH

 2
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85321-26020

GUN15#,16#,TGN166..IDN,TH

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85348-14390

GUN15#,16#,TGN166..IDN,TH

 1
85321-28020

GGN155,GUN15#,16#,LAN155,TGN156,16#..ARL,BZAGT,EPT,GCC,GEN,IND,LA,MA,PH,PKN,SA,VN

 1
85369 - CLAMP
82711-0K070

GGN155,GUN15#,16#,LAN155,TGN156,16#

 3
85371G - PROTECTOR, FRONT WASHER
85389-26080

GUN15#,16#,TGN166..IDN,TH

 2
85371G - PROTECTOR, FRONT WASHER
85389-26080

GUN15#,16#,TGN166..IDN,TH

 2
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90068-33398

GUN15#,16#..TH

L=175

 2
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90068-33398

GUN15#,16#..TH

L=175

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33019

GUN15#,16#..TH

L=40

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33019

GUN15#,16#..TH

L=40

 2
Common parts
82711-3A640
90119-T0144
