GUN155R-SDTMH (2017)
Toyota Fortuner

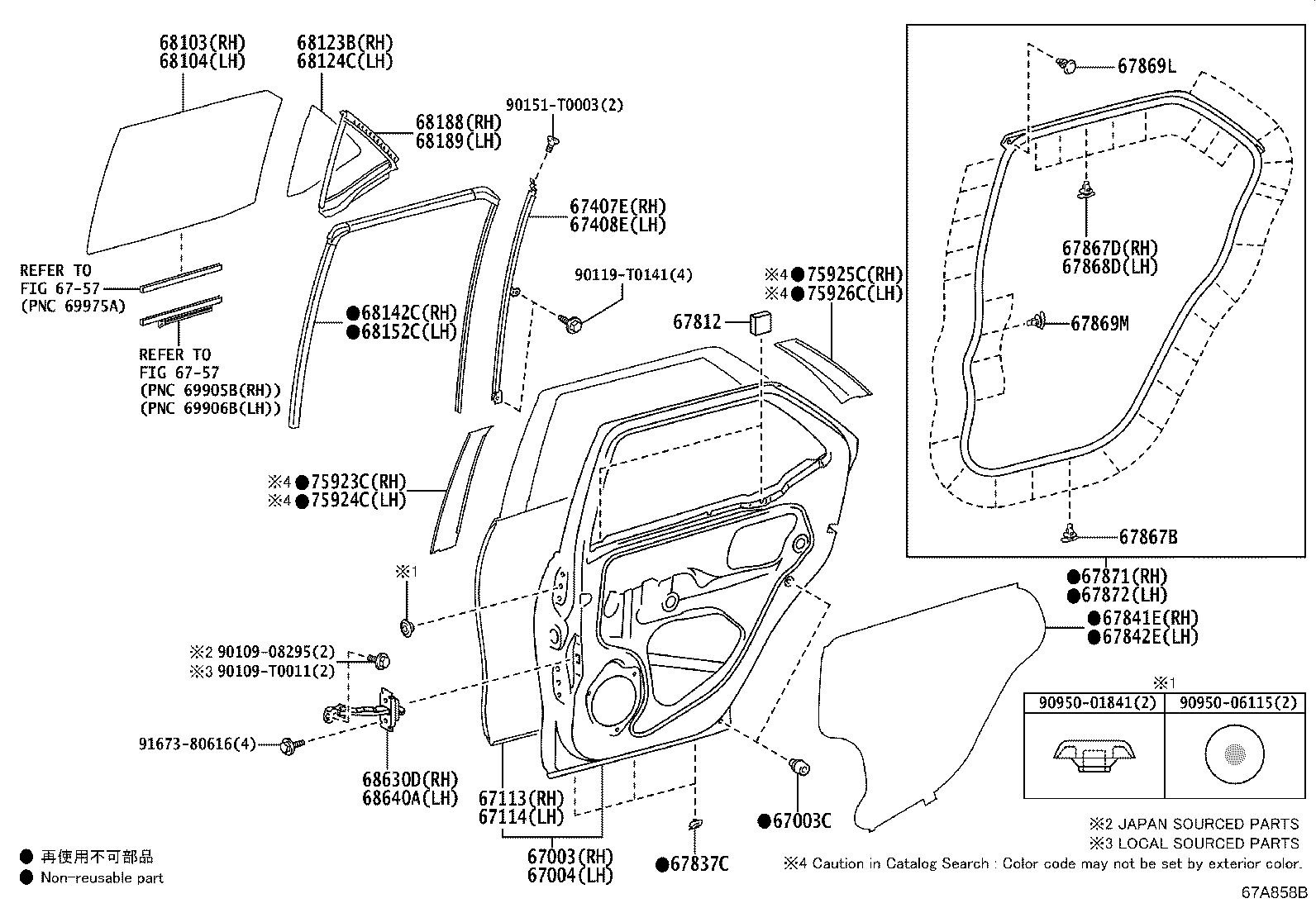

ILLUST NO. 1 OF 2(1507- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-KK030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09131 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-KK030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-KK030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-KK030 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 69759-0K030 |
TGN156..AGTSU,EPTSU,IDNSU,THSUV;GGN155,165,GUN15#,16#,KUN156,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV |
4 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
44 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-52020 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
8 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-52040 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
8 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-0K350 |
GUN155..M..GEN BACK GLASS-FIX TYPE(GREEN) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-0K350 |
GUN155..M..GEN BACK GLASS-FIX TYPE(GREEN) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0K200 |
GUN155..M..GEN BACK GLASS-FIX TYPE(GREEN) |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0K200 |
GUN155..M..GEN BACK GLASS-FIX TYPE(GREEN) |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90151-T0003 | ||||
| 90950-01841 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6757 | ||||

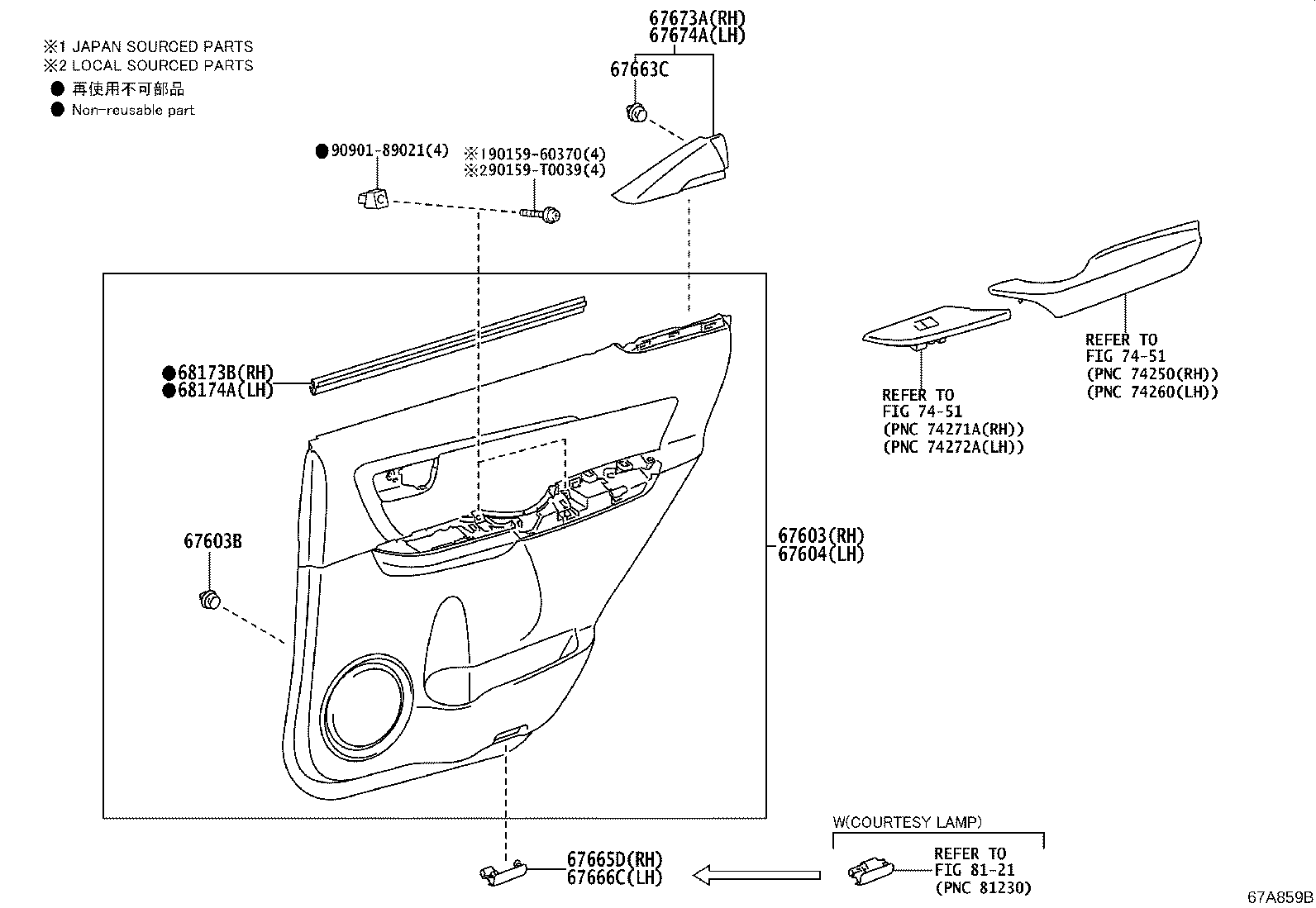

ILLUST NO. 2 OF 2(1507- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8121 | ||||

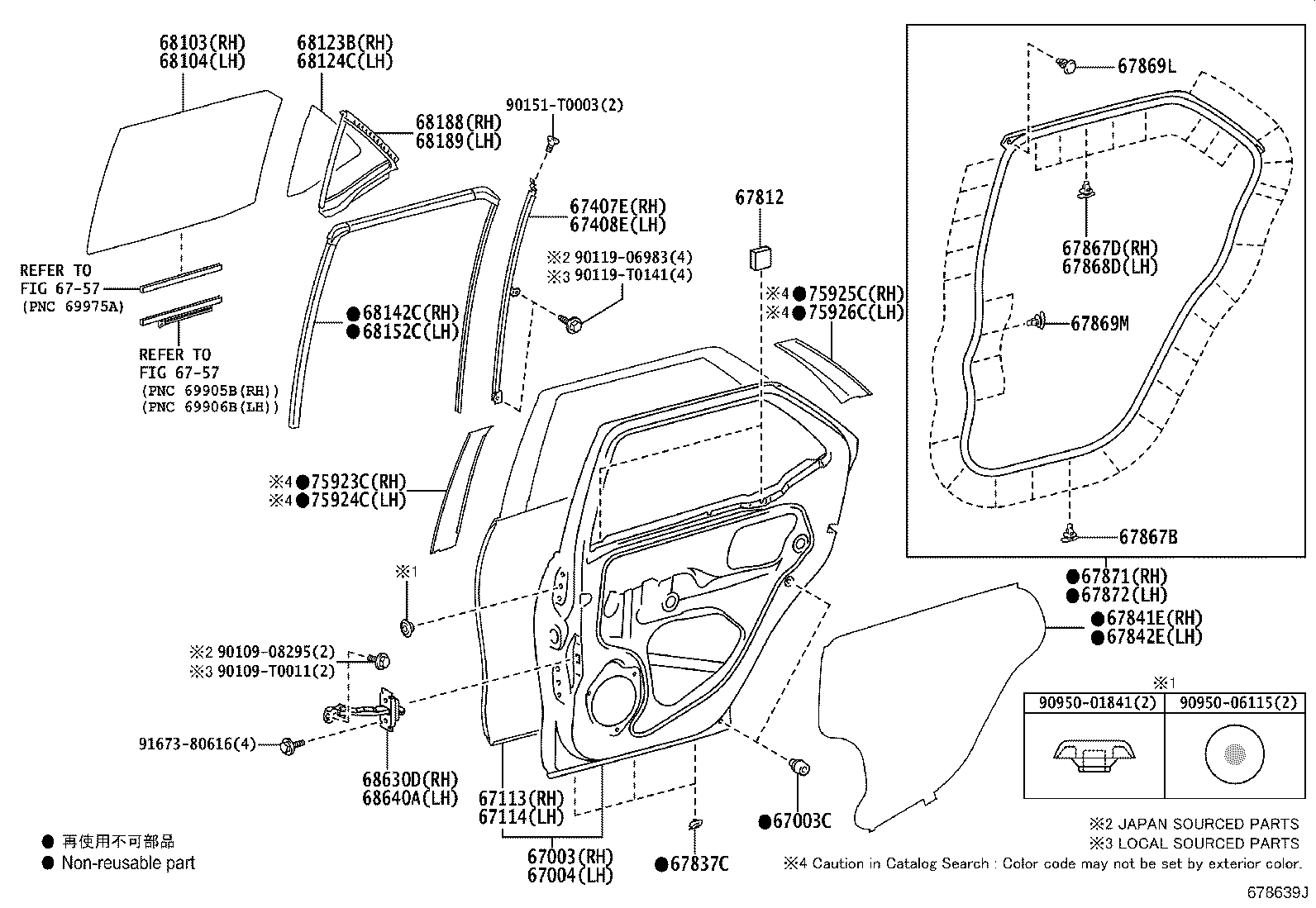

ILLUST NO. 1 OF 2(2006- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-T0141 | ||||
| 90151-T0003 | ||||
| 90950-01841 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6757 | ||||

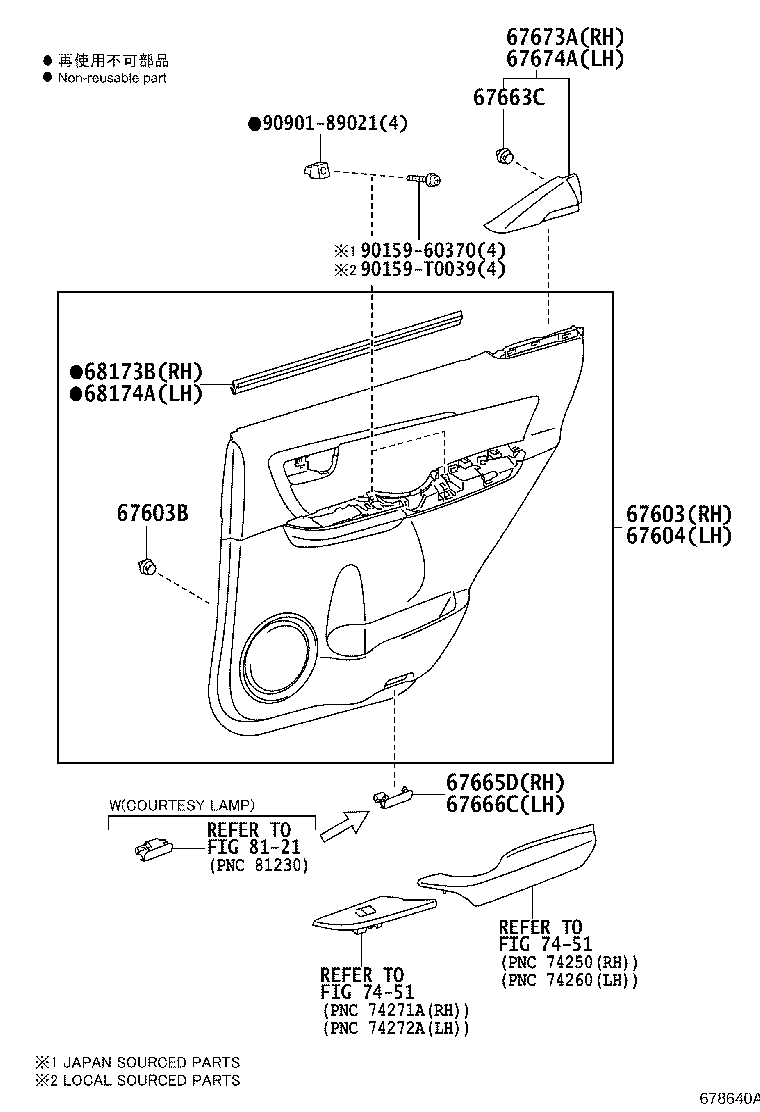

ILLUST NO. 2 OF 2(2006- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8121 | ||||
