Toyota Fortuner GUN155 ELECTRONIC CONTROLED DIESEL (ECD)

Manufacturers Home
Toyota
GR
FORTUNER
GUN155R-SDTMH (2017)
8405 - ELECTRONIC CONTROLED DIESEL (ECD)

GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020

Engine 2GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

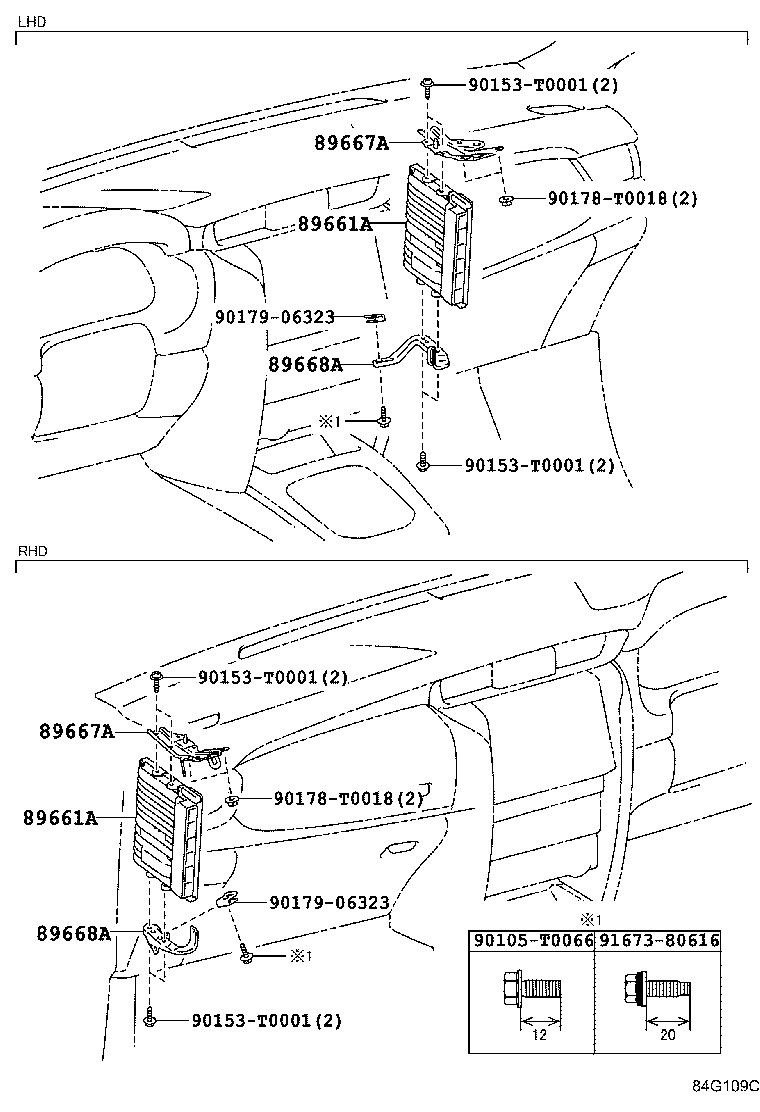

ILLUST NO. 2 OF 2(1507- )GUN15#,16#

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
89661A - COMPUTER, ENGINE CONTROL
89666-0KQ40	GUN155..M..GEN KENYA SPEC,P/N LABEL=896660KQ40	08/2017 - 05/2019	1
89661-FAF40	GUN155..M..GEN DENSO,EXHAUST EMISSION CONTROL-WITHOUT	05/2019 - 06/2019	1
89666-0K890	GUN155..M..GEN KENYA SPEC,P/N LABEL=896660K890	08/2017 - 05/2019	1
89666-0K890	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),P/N LABEL=896660K890	05/2019 - 07/2020	1
89666-0KQ40	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),P/N LABEL=896660KQ40	05/2019 - 07/2020	1
89661A - COMPUTER, ENGINE CONTROL
89666-0KQ40	GUN155..M..GEN KENYA SPEC,P/N LABEL=896660KQ40	08/2017 - 05/2019	1
89661-FAF40	GUN155..M..GEN DENSO,EXHAUST EMISSION CONTROL-WITHOUT	05/2019 - 06/2019	1
89666-0K890	GUN155..M..GEN KENYA SPEC,P/N LABEL=896660K890	08/2017 - 05/2019	1
89666-0K890	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),P/N LABEL=896660K890	05/2019 - 07/2020	1
89666-0KQ40	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),P/N LABEL=896660KQ40	05/2019 - 07/2020	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K100	GUN155..M..GEN KENYA SPEC	08/2017 - 05/2019	1
89667-0K100	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K100	GUN155..M..GEN KENYA SPEC	08/2017 - 05/2019	1
89667-0K100	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K110	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
89668-0K110	GUN155..M..GEN KENYA SPEC	08/2017 - 05/2019	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K110	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
89668-0K110	GUN155..M..GEN KENYA SPEC	08/2017 - 05/2019	1
Common parts
90105-T0066
90153-T0001
90178-T0018
90179-06323
91673-80616

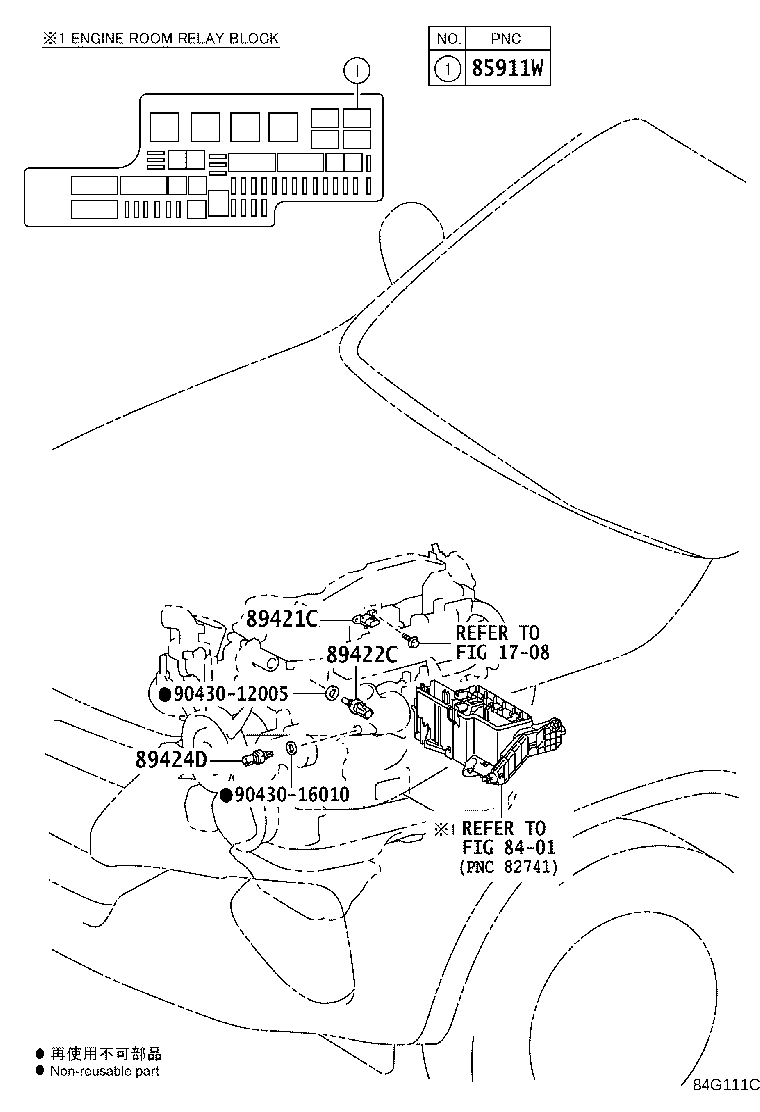

ILLUST NO. 1 OF 2(1507- )GUN15#,16#

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
85911W - RELAY, ELECTRONIC DRIVER UNIT
90987-02027	GUN155..L..MA;GUN15#,16#,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J)	07/2015 - 12/2999	1
90987-T2001	GUN155..L..MA;GUN15#,16#,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L)	07/2015 - 12/2999	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156,165,LAN155..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	GUN155..IDNSU..GCC;GUN155..GEN,IDN,SA,TH;GUN165..(IDNSU,THSUV,VNSUV)..(H,M,S);GUN165..(AGTSU,IDNSU,SASUV,VNSUV)..L;GUN156,166,KUN156..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
Common parts
90430-12005
90430-16010
Linked diagrams
1708
8401

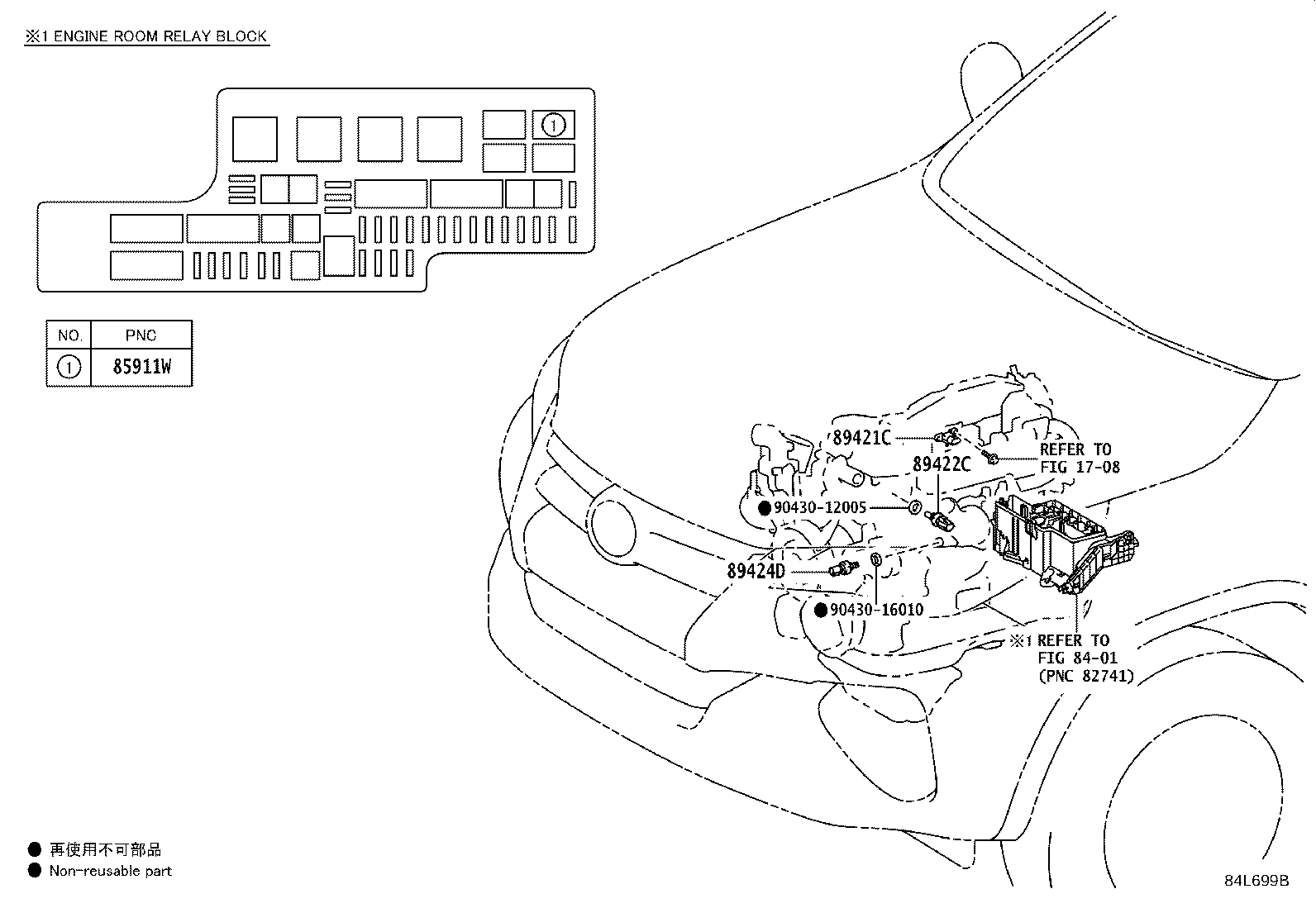

ILLUST NO. 1 OF 2(2006- )GUN15#,16#

Click highlighted areas on diagram

ENGINE ROOM,EURO 6

Part #	Description	Period	Qty	Price
Common parts
90430-12005
90430-12221
Linked diagrams
1708
8401

ILLUST NO. 2 OF 2(2006- )GUN15#,16#

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty	Price
Common parts
90153-T0001
90178-T0018
90179-06323
90185-T0001
91673-80616

ILLUST NO. 1 OF 2(2006- )GUN15#,16#

Click highlighted areas on diagram

ENGINE ROOM,EXCEPT EURO 6

Part #	Description	Period	Qty	Price
Common parts
90430-12005
90430-16010
Linked diagrams
1708
8401
