GUN155R-SDTMH (2017)
Toyota Fortuner
ILLUST NO. 1 OF11(1507- )GUN15#,16#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
GUN15#,16#,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV YAZAKI |
1 | ||
| 83530-28010 |
GUN15#,16#,KUN156,165..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV DENSO |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-71010 |
GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV TYPE A:REFER ILLUST. |
1 | ||
| 89491-26190 |
GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,VNSUV TYPE B:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 82715-71200 | ||||
| 8946A-KK020 | ||||
| 8946A-KK030 | ||||
| 90105-T0066 | ||||
| 90119-T0126 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90153-50015 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-T0055 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| 94151-80840 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO.11 OF11(1507- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0K190 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0K190 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-0K091 |
TGN156..6FC..GEN;GUN15#,165,TGN166..RHD..IDNSU..(H,M) |
1 | ||
| 84040-0K091 |
GUN155,165..RHD..IDNSU..S WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK) |
1 | ||
| 84820-0D640 |
GUN155,165..RHD..IDNSU..S |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-0K091 |
TGN156..6FC..GEN;GUN15#,165,TGN166..RHD..IDNSU..(H,M) |
1 | ||
| 84040-0K091 |
GUN155,165..RHD..IDNSU..S WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK) |
1 | ||
| 84820-0D640 |
GUN155,165..RHD..IDNSU..S |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-71010 |
GUN155..M..(GEN,TH);TGN166..BZAGT,PKN,TH;GUN156..S..HDCR..BZAGT;GUN16#,TGN156..BZAGT,TH;GUN156..(H,M)..HDCR..(ARL,BZAGT,PKN,TH) |
1 | ||
| 86247A - BRACKET, VOLTAGE INVERTER | ||||
| 86247-0K010 |
GUN155..M..(GEN,TH);TGN166..BZAGT,PKN,TH;GUN156..S..HDCR..BZAGT;GUN16#,TGN156..BZAGT,TH;GUN156..(H,M)..HDCR..(ARL,BZAGT,PKN,TH) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-71051 |
GGN155..SA;GUN155..H..GCC;GUN156..THSUV..H;GUN156..RHD..THSUV..M;GUN155..(IDNSU,THSUV)..M;GUN156..(AGTSU,IDNSU,PKNSU,VNSUV)..(H,M);GGN155,165,GUN16#,TGN156,166..(AGTSU,IDNSU,THSUV)..(H,M) |
1 | ||
| 89222-71071 |
GUN156..THSUV..M..GEN;GGN155,GUN155..H..(EPT,GEN) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
GGN155..SA;GGN155,165,GUN15#,16#,KUN156,TGN156,166..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M) |
1 | ||
| G9221A - COVER, INVERTER, UPPER | ||||
| G9221-0K010 |
GUN155..M..(GEN,TH);TGN166..BZAGT,PKN,TH;GUN156..S..HDCR..BZAGT;GUN16#,TGN156..BZAGT,TH;GUN156..(H,M)..HDCR..(ARL,BZAGT,PKN,TH) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-T0018 | ||||
| 90189-06227 | ||||

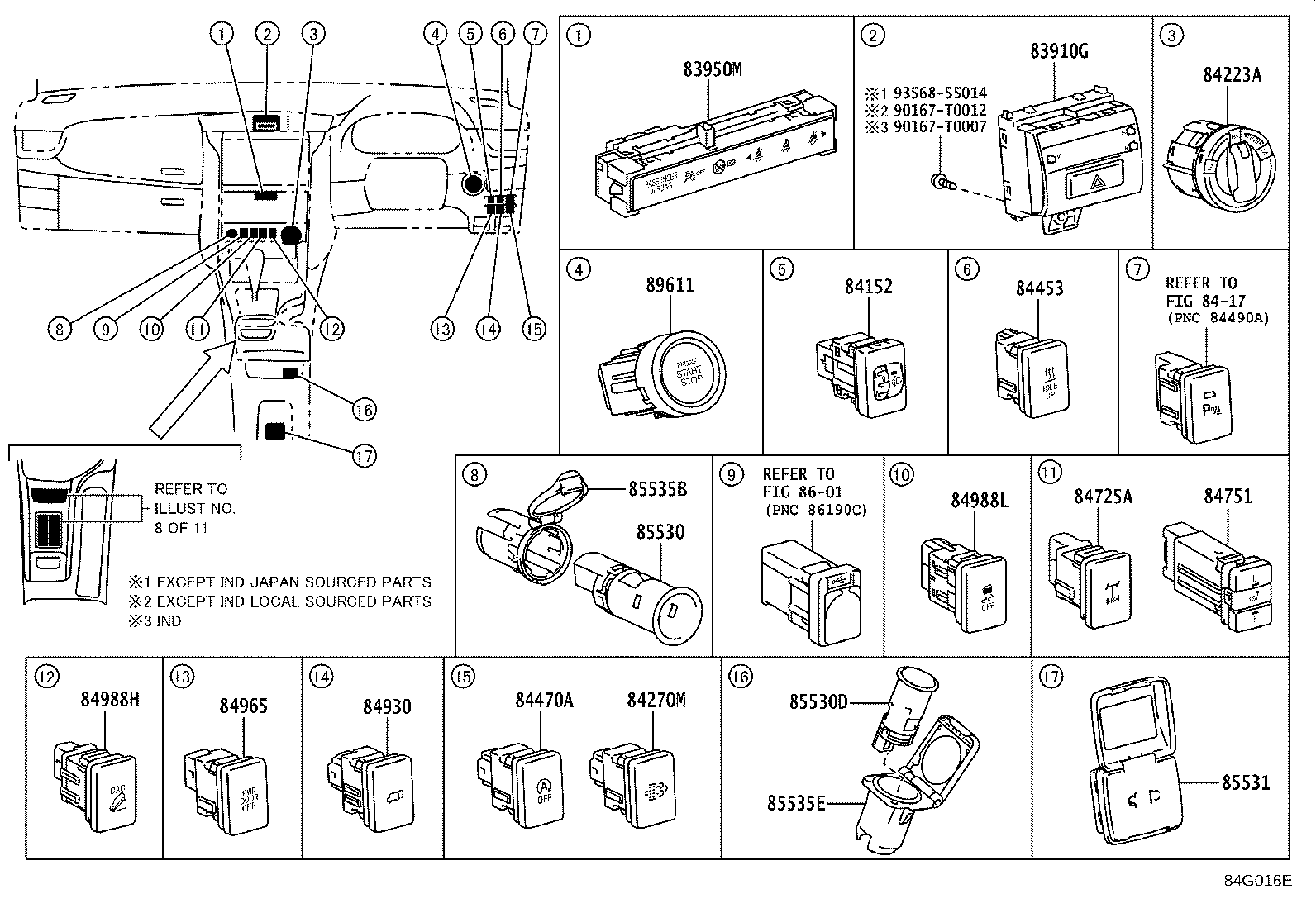

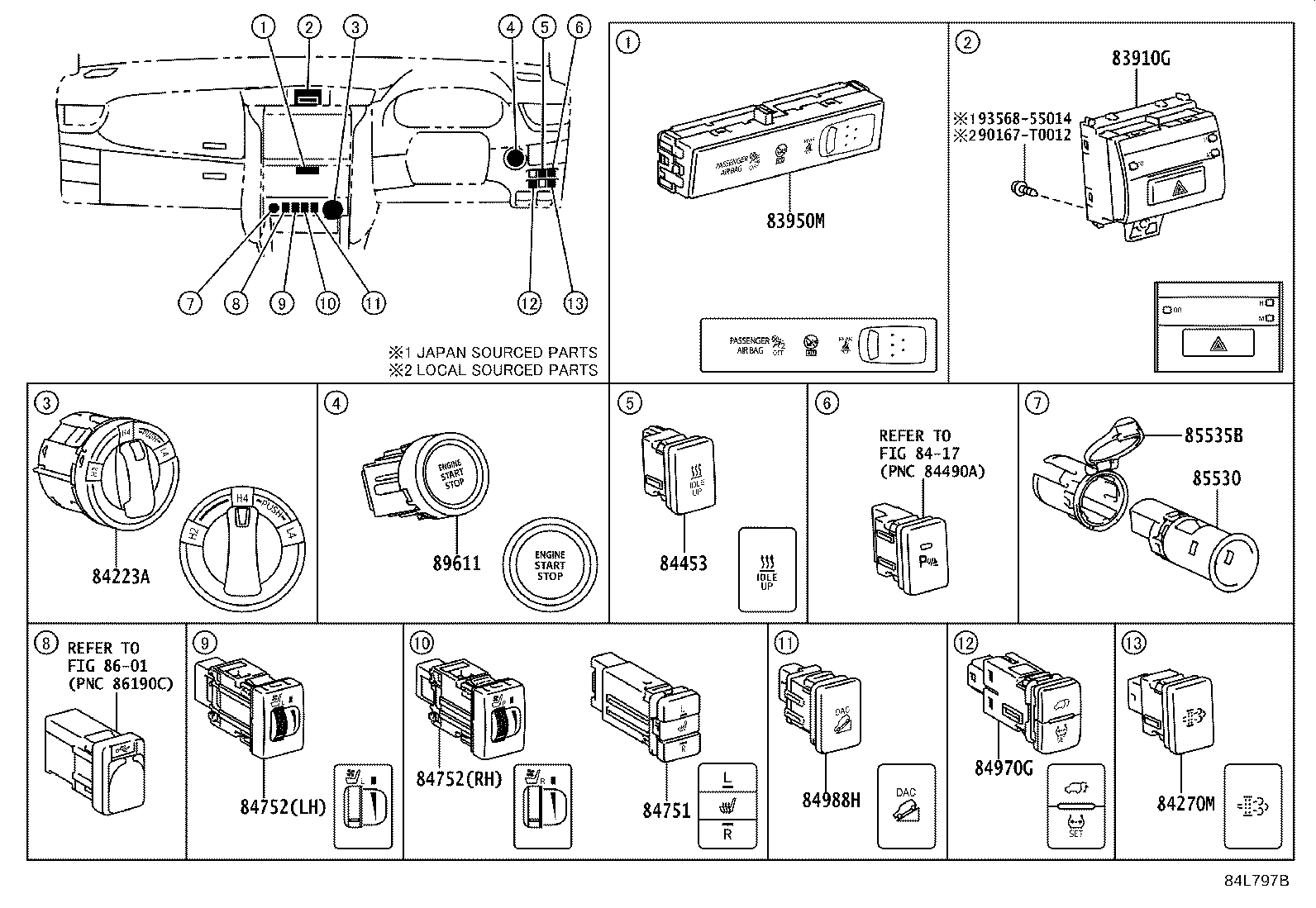

ILLUST NO. 7 OF11(1507- )RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0K120 |
GUN165..RHD..IDNSU;TGN166..IDN,PKN,TH,VN;GUN15#,166..IDN,PH,PKN,TH,VN;GUN165,TGN156..M..(PH,TH,VN) |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-0K040 |
GUN15#..M..(IDN,PH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 84988-0K040 |
GUN155..M..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-71010C0 |
GUN156..PKN;GUN155..M..GEN;GUN165,TGN166..PKN,TH BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 90167-T0007 | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||

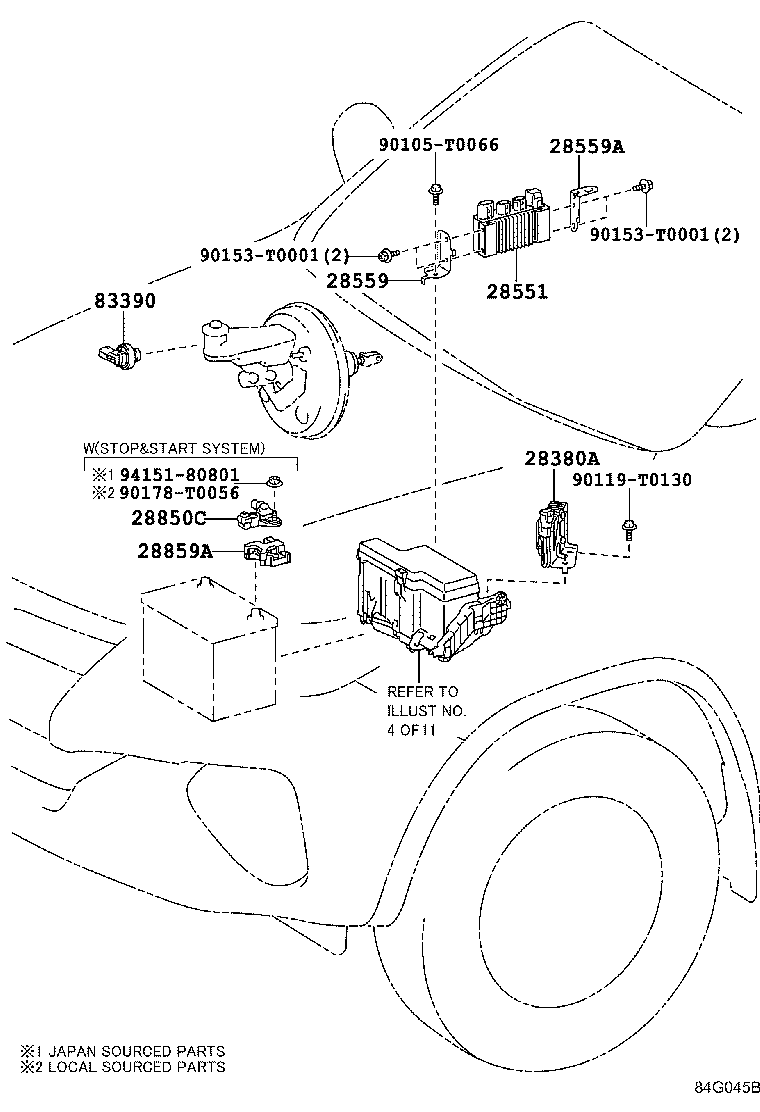

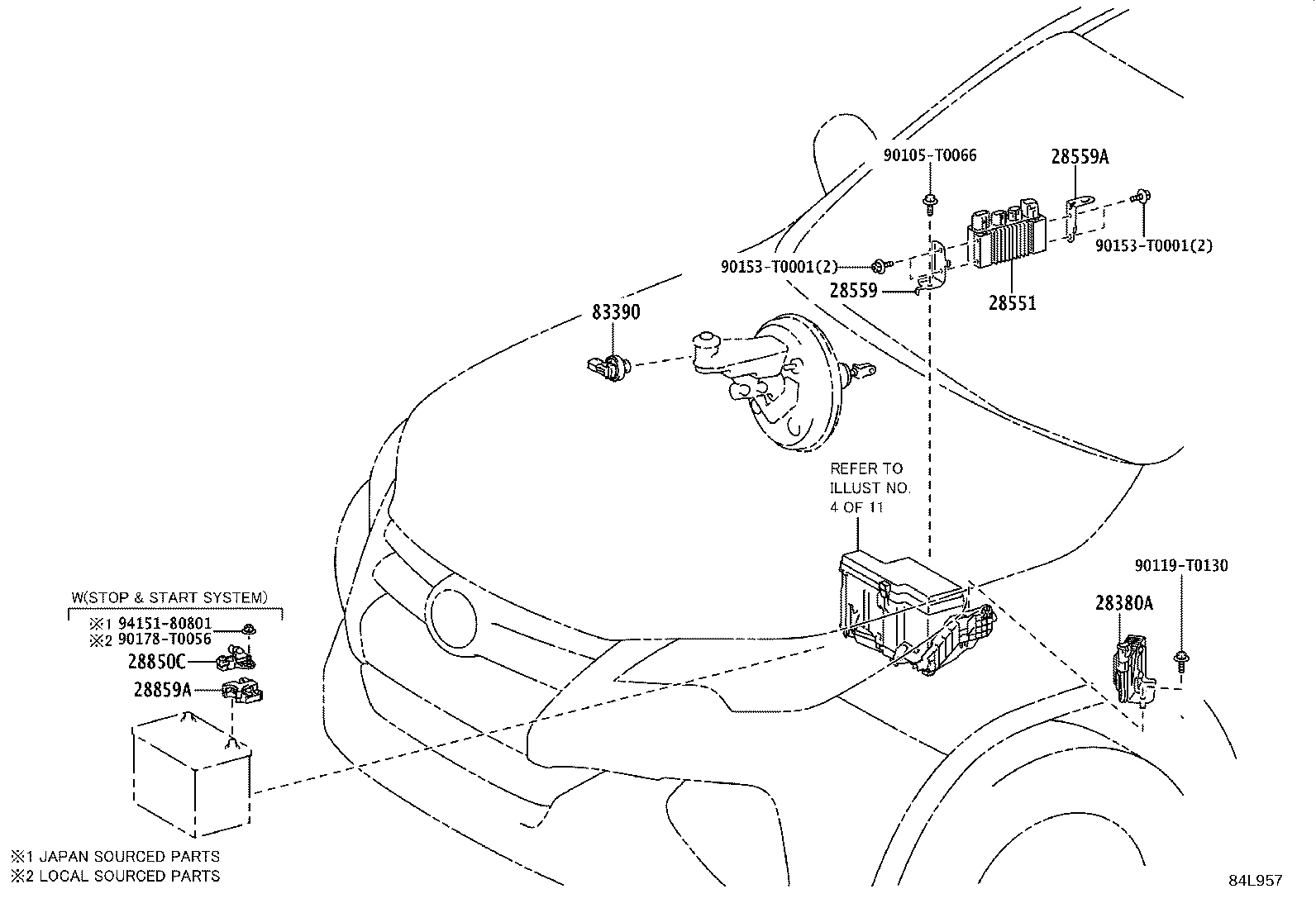

ILLUST NO. 3 OF11(1507- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-0E010 |
1GDFTV,2GDFTV,2TRFE..GUN15#,16#,TGN168..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 28551-30010 |
1GDFTV,2GDFTV,2TRFE..GUN15#,16#,TGN168..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-0L140 |
1GDFTV,2GDFTV..GUN15#,16#..RHD..(IDNSU,PKNSU,SASUV,THSUV) MADE IN SOUTH AFRICA |
1 | ||
| 28559-0L010 |
1GDFTV,2GDFTV..GUN15#,16#..RHD..(IDNSU,PKNSU,SASUV,THSUV) MADE IN THAILAND |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..RHD..(IDNSU,PKNSU,SASUV,THSUV) MADE IN THAILAND |
1 | ||
| 28559-0L150 |
1GDFTV,2GDFTV..GUN15#,16#..RHD..(IDNSU,PKNSU,SASUV,THSUV) MADE IN SOUTH AFRICA |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GUN16#..AGTSU,IDNSU,SASUV,THSUV,VNSUV;GUN15#,KUN156,165,LAN155..ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,VN |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90119-T0130 | ||||
| 90153-T0001 | ||||
| 90178-T0056 | ||||
| 94151-80801 | ||||

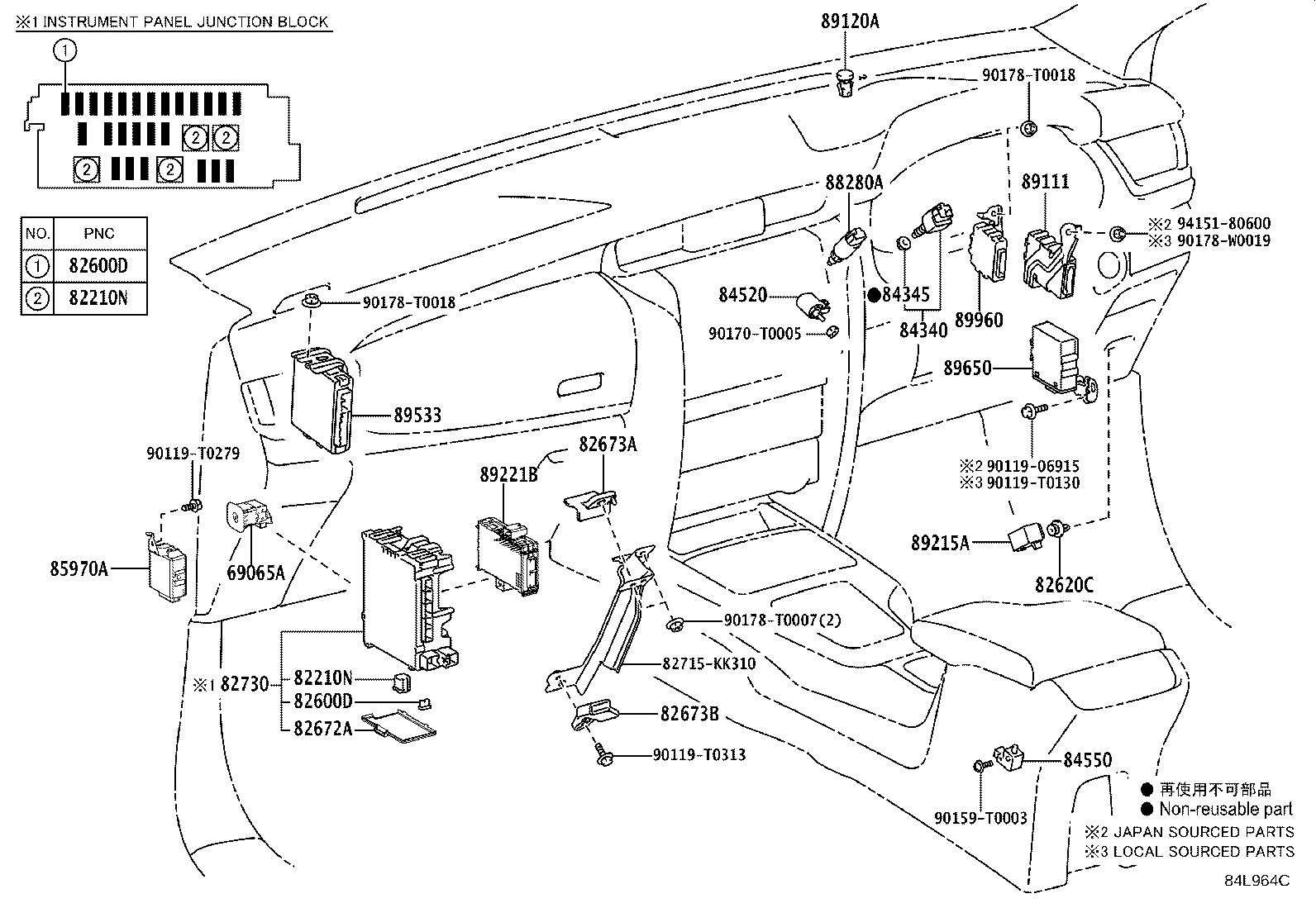

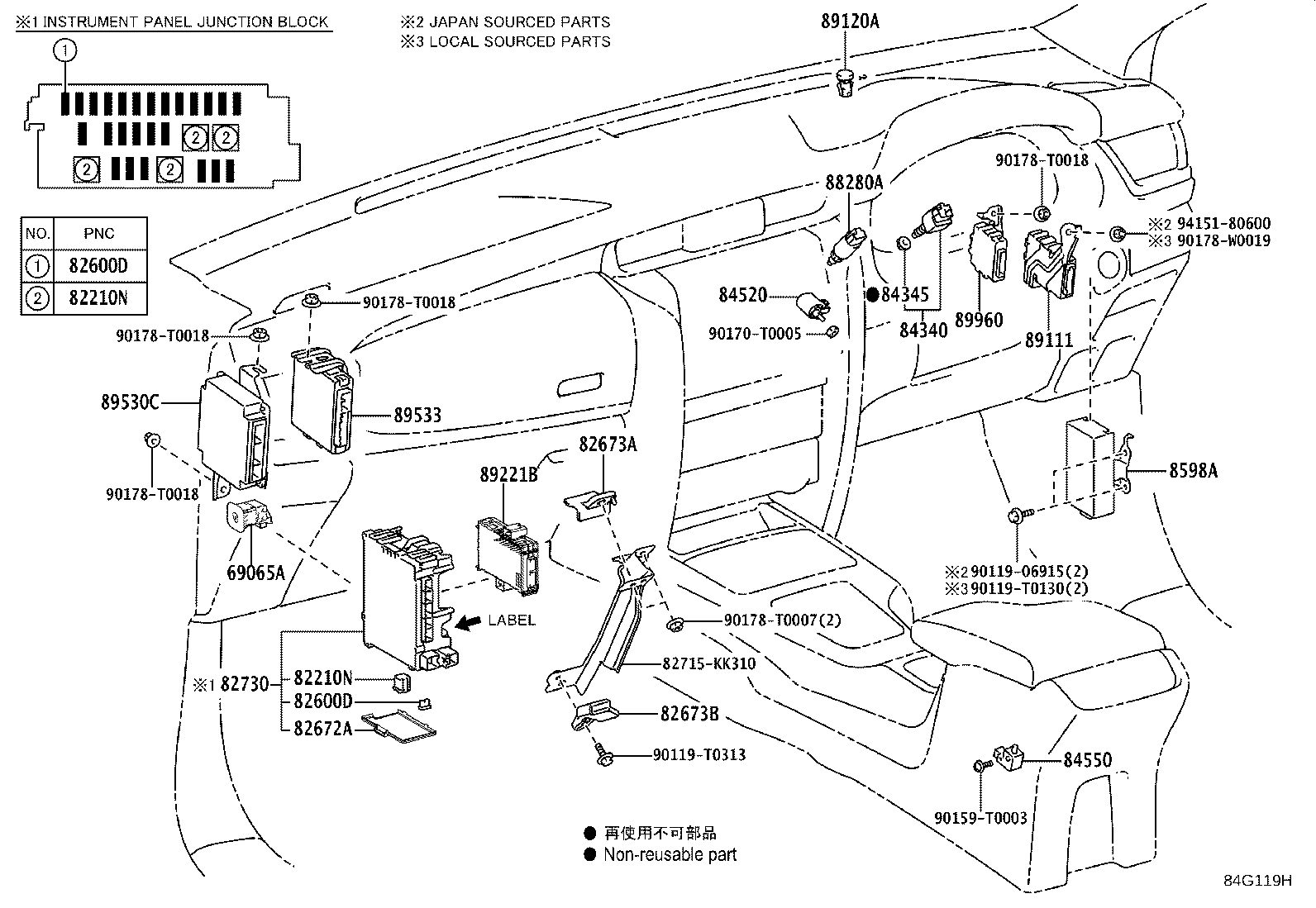

ILLUST NO. 5 OF11(1507- )RHD
COWL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-0K010 |
GUN165..PH,VN;TGN166..L..GEN;GUN165..RHD..(IDNSU,THSUV);TGN156..LHD..(BZAGT,GEN,LA,VN);GGN155,GUN166,TGN168..BZAGT,GEN,LA,TH;GUN15#,KUN156,TGN166..BZAGT,IDN,LA,PH,PKN,TH,VN |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 10A,MINI FUSE,RED |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0K010 |
GUN156..(H,L)..IART;GUN165..6FC..L..GCC;GUN156..AGTSU..6F..LA;GUN165..S..(GEN,PH,VN);GUN155..6FC..(GCC,GEN,SA,TH);GUN165..(L,M)..(LA,PH,SA,TH,VN);GUN156..(AGTSU,THSUV)..6FC..(ARL,LA);GUN156,166..HDCR..(BZAGT,GCC,GEN,PH,PKN,SA,TH,VN) |
1 | ||
| 82672-0K100 |
GUN155,165..RHD..IDNSU..S WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK) |
1 | ||
| 82672-0K100 |
GUN155..THSUV..H;GUN156..IDNSU..H..GEN;GUN156..6FC..S..BZAGT;GUN155..IDNSU..(GCC,GEN);GUN156..(H,S)..(ARL,GCC);GUN165..LHD..(IDNSU,VNSUV);GUN156..(L,M)..(ARL,GEN,PH,VN) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K070 |
GUN155,165..RHD..IDNSU..S |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0K050 |
GUN155,165..RHD..IDNSU..S |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0K781 |
GUN155..IDNSU..H;GUN156..IDNSU..GCC |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-0K010 |
GUN165..PH,VN;TGN156..S..BZAGT;GUN156..THSUV..H..GEN;GUN156..(L,M)..(BZAGT,TH);TGN156..(AGTSU,IDNSU)..(H,M);GUN155,165..RHD..(IDNSU,THSUV);GGN155,GUN166,TGN168..BZAGT,GEN,LA,TH;KUN156,TGN166..(H,M,S)..(BZAGT,GEN,IDN,LA,PH,PKN,SA,TH,VN);GUN156..(AGTSU,IDNSU,PKNSU,VNSUV)..(H,M,S)..(BZAGT,GEN,LA,PH,PKN,VN) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GUN156..M..LA;TGN166..AGTSU..M;TGN156..IDNSU..S..GCC;GUN165,TGN166..(L,M)..(EPT,PH);TGN156..BZAGT,EPT,GEN,KZS,SA,VN;TGN156..(AGTSU,THSUV)..(M,S)..(GCC,LA);TGN166..(H,M,S)..(BZAGT,GCC,GEN,IDN,PKN,TH,VN);GUN156,LAN155..ARL,BZAGT,GCC,GEN,PH,PKN,SA,TH,VN;GGN155,165,GUN155,16#,KUN156,TGN168..(H,M,S)..(BZAGT,EPT,GCC,GEN,IDN,LA,SA,TH) |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0K671 |
GUN155,165,TGN166..M..IDN |
1 | ||
| 89221-0K670 |
GUN155,165..S..IDN DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89221-0K671 |
GUN155,165..S..IDN DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89221-0K671 |
GUN15#,TGN156,166..RHD..(H,M)..GEN |
1 | ||
| 89221-0KA71 |
GUN155,165..RHD..IDNSU..S |
1 | ||
| 89221-0K680 |
GUN155,165,TGN166..M..IDN |
1 | ||
| 89221-0K680 |
GUN155,165..S..IDN DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-71121 |
GUN155..M..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-71060 |
GUN156..RHD..SA;KUN156..LHD..(H,M);TGN166..(H,M,S)..(GEN,IDN,IND,LA,SA);GGN155,GUN166,KUN156..RHD..(GEN,IND,SA);GGN155,165,GUN15#,165,TGN156..(H,M)..(ARL,BZAGT,EPT,GCC,GEN,IDN,IND,LA,MA,PKN,VN) |
1 | ||
| 89960-71060 |
GUN165..S..IDN;GUN155,LAN155,TGN156..(5F,6FC)..S..(IDN,SA) HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 82715-KK310 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90119-T0313 | ||||
| 90159-T0003 | ||||
| 90170-T0005 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||

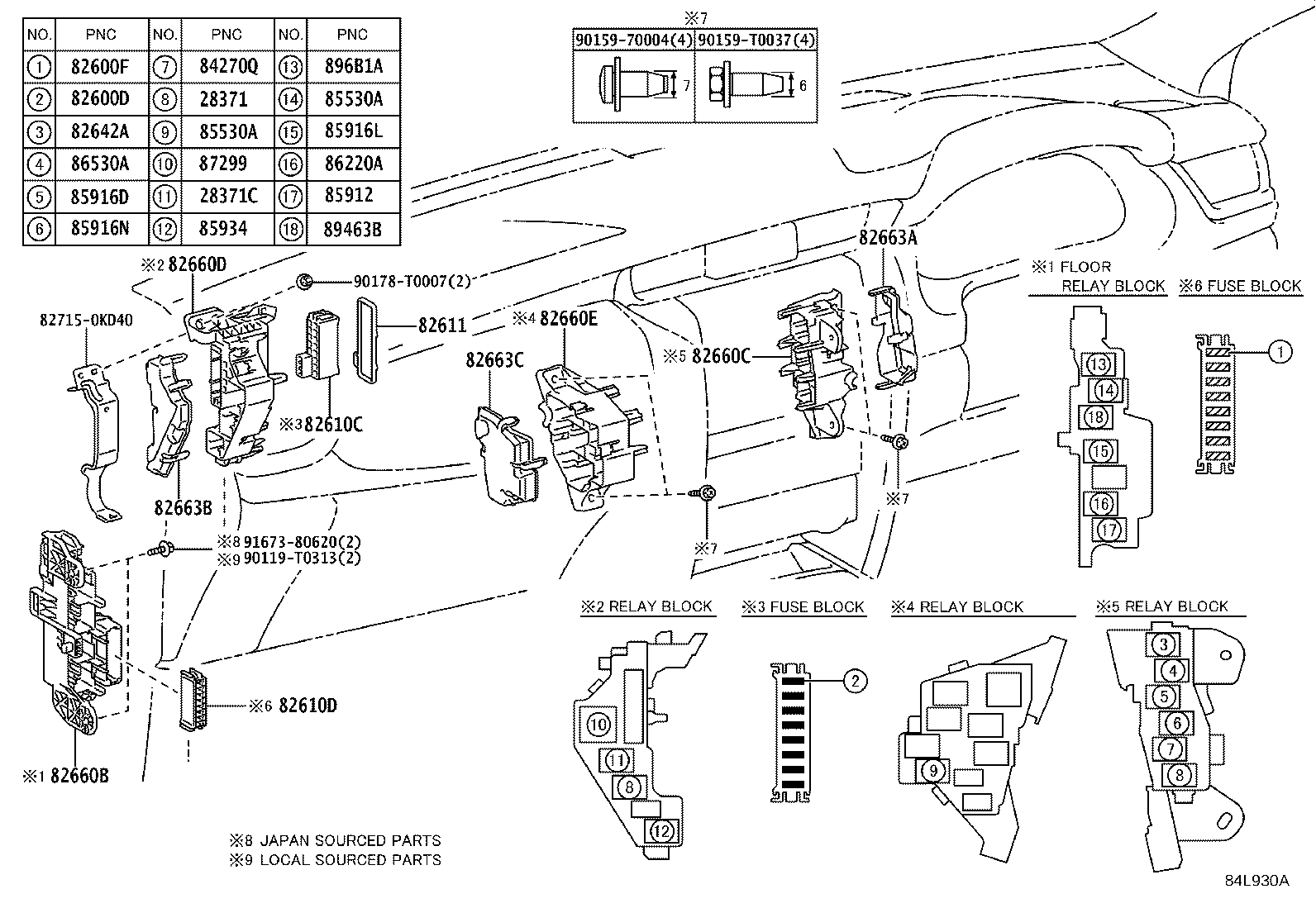

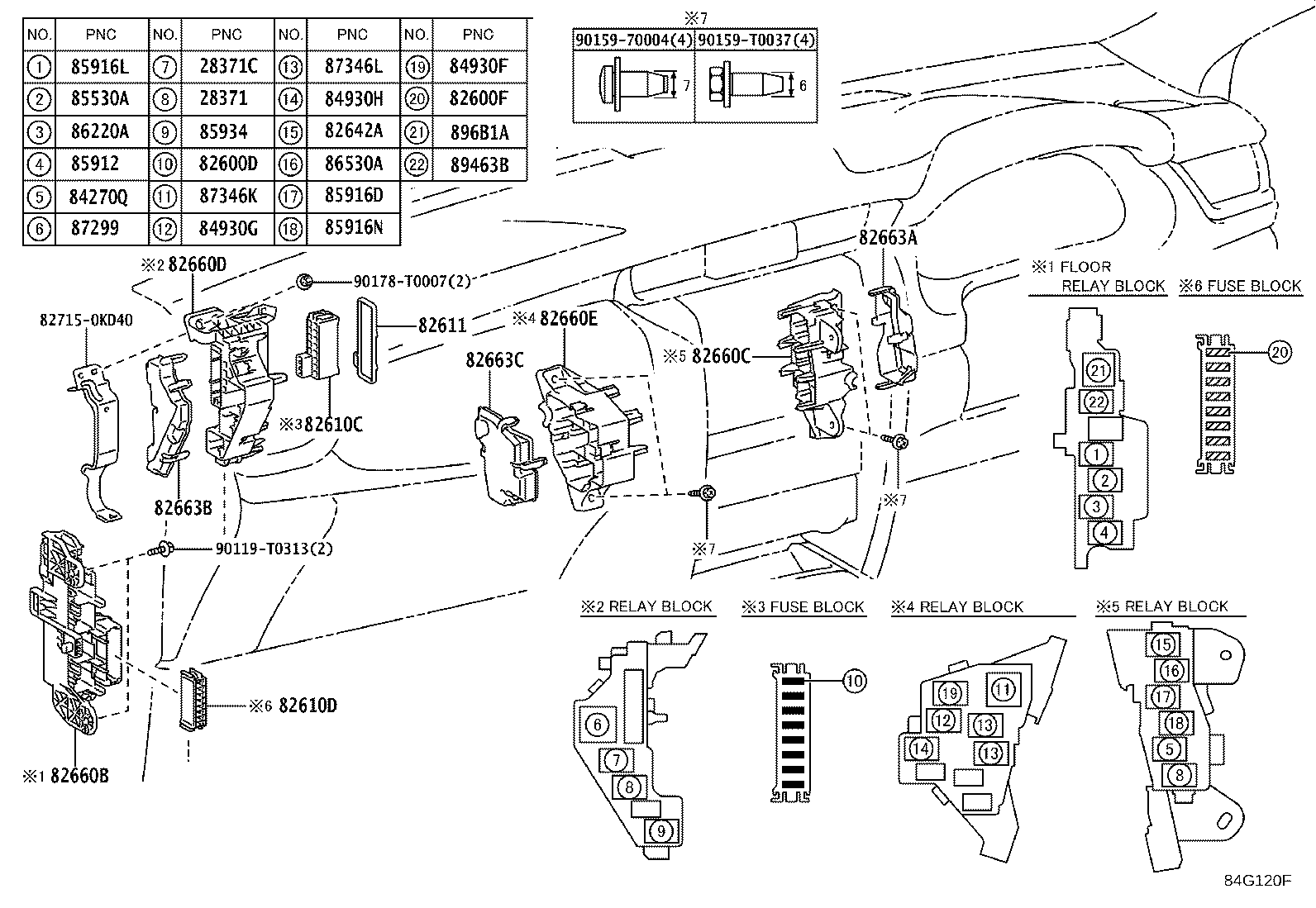

ILLUST NO. 6 OF11(1507- )RHD
COWL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2001 |
2TRFE..TGN166..M..LA;1GDFTV..GUN156..S..IART;2TRFE..TGN156..(M,S)..(GEN,LA,VN);2TRFE..TGN166..6FC..(GEN,IDN,PKN,SA,TH,VN);1GDFTV,2GDFTV..GUN156,165..RHD..S..(SA,TH);2GDFTV,2TRFE..GUN155,165,TGN156..H..(BZAGT,GCC);2GDFTV..GUN155,165..(H,L,M)..(GEN,IDN,PH,SA,TH);1G#,2TRFE..GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);1G#,1KDFTV..GGN155,165,GUN156,KUN156..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M) (L) |
2 | ||
| 90987-02027 |
2TRFE..TGN166..M..LA;1GDFTV..GUN156..S..IART;2TRFE..TGN156..(M,S)..(GEN,LA,VN);2TRFE..TGN166..6FC..(GEN,IDN,PKN,SA,TH,VN);1GDFTV,2GDFTV..GUN156,165..RHD..S..(SA,TH);2GDFTV,2TRFE..GUN155,165,TGN156..H..(BZAGT,GCC);2GDFTV..GUN155,165..(H,L,M)..(GEN,IDN,PH,SA,TH);1G#,2TRFE..GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);1G#,1KDFTV..GGN155,165,GUN156,KUN156..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(H,M) (J) |
2 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2TRFE..TGN168..6FC;1GRFE,2GDFTV..GGN165,GUN165..H;2GDFTV..GUN165..(L,M)..(IDN,PH,SA,TH);2TRFE..TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..BZAGT,GEN,IDN,LA,PKN,SA,TH,VN;1G#,2GDFTV,1KDFTV,5LE..GGN155,GUN15#,166,KUN156,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 90987-T2001 |
2TRFE..TGN168..6FC;1GRFE,2GDFTV..GGN165,GUN165..H;2GDFTV..GUN165..(L,M)..(IDN,PH,SA,TH);2TRFE..TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;2TRFE..TGN166..BZAGT,GEN,IDN,LA,PKN,SA,TH,VN;1G#,2GDFTV,1KDFTV,5LE..GGN155,GUN15#,166,KUN156,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 15A,MINI FUSE,BLUE |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-0K010 |
TGN156..L..KZS;GUN156..H..IART;GUN155,165..H..GCC;GUN156..THSUV..(H,L);GUN156..(L,S)..BZAGT;GUN156..RHD..THSUV..M;GGN155,TGN168..(H,S)..BZAGT;TGN156..BZAGT,EPT,GEN,LA,SA,VN;GUN155,165,KUN156,TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(GCC,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN166,KUN165,LAN155..(AGTSU,IDNSU,SASUV,THSUV)..(L,M,S) |
1 | ||
| 82610D - BLOCK ASSY, FUSE | ||||
| 82610-0K010 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 82610-0K010 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 82610-0K010 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN) |
1 | ||
| 82610-0K010 |
GUN155..H..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN) |
1 | ||
| 82610-0K010 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(*DRS &SIDE & CURTAIN) |
1 | ||
| 82610-0K010 |
GUN155..H..GEN;GUN165,TGN166..PH |
1 | ||
| 82610-0K010 |
GUN155..H..GCC;TGN166..L..GEN;GUN165..GCC,LA,VN;TGN166..THSUV..5F;GUN165..RHD..(IDNSU,SASUV,THSUV);GUN155..(IDNSU,SASUV,THSUV)..(L,M,S);TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;TGN166..6FC..(BZAGT,EPT,GCC,GEN,IDN,LA,PKN,SA,VN);GGN155,165,GUN156,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-0K010 |
GUN15#..RHD..GEN ASEAN GENERAL SPEC |
1 | ||
| 82611-0K030 |
GUN15#,165..IDN,PKN;TGN156,166..RHD..IDNSU..M |
1 | ||
| 82611-0K030 |
GUN15#..RHD..GEN ASEAN GENERAL SPEC |
1 | ||
| 82611-0K030 |
GUN15#..RHD..GEN W/O(MARK=IG1 NO.6) |
1 | ||
| 82611-0K060 |
GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-*DA & CD & *BT & 4SPEAKER |
1 | ||
| 82611-0K060 |
GUN15#..IDN,PKN;GUN16#,TGN156,166..RHD..(IDNSU,THSUV) |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-T2001 |
GUN165..H,M;GUN156..M..ARL;GUN155..H..GCC;TGN156..L..GEN;TGN156..M..(GEN,LA);GUN155,165..S..(GEN,SA,TH);TGN166..(M,S)..(IND,LA,SA);TGN156..BZAGT,EPT,KZS,MA,PKN,VN;GUN155..(H,L,M)..(GEN,IDN,MA,TH);TGN166..6FC..(BZAGT,EPT,GEN,IDN,IND,PKN,TH);GUN156..LHD..(AGTSU,IDNSU,THSUV)..(H,M,S)..HDCR;GGN155,GUN156,166,KUN156..RHD..(GEN,IND,PKN,SA,TH);GGN155,165,GUN156,KUN156..LHD..(H,M)..(DCR,HTWC,IART) |
1 | ||
| 90987-T2001 |
GUN156..LHD..SA;GUN155,165..S..IDN;GUN165..THSUV..6FC..L DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02027 |
GUN156..M..ARL;GUN156..RHD..SA;GUN155,165..S..(SA,TH);GUN165,TGN156,166..LHD..(M,S)..(GEN,LA);TGN166..6FC..(BZAGT,EPT,GEN,IDN,PKN,TH);GGN155,GUN166,TGN168..(L,M,S)..(BZAGT,SA,TH);GUN156..(H,M,S)..(BZAGT,GCC,GEN,LA,PH,PKN,TH,VN);GGN155,GUN155,165..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M);GUN156,TGN156..(L,M,S)..(HTWC,IART)..(BZAGT,EPT,GEN,KZS,VN) (J) |
1 | ||
| 90987-T2001 |
GUN156..M..ARL;GUN156..RHD..SA;GUN155,165..S..(SA,TH);GUN165,TGN156,166..LHD..(M,S)..(GEN,LA);TGN166..6FC..(BZAGT,EPT,GEN,IDN,PKN,TH);GGN155,GUN166,TGN168..(L,M,S)..(BZAGT,SA,TH);GUN156..(H,M,S)..(BZAGT,GCC,GEN,LA,PH,PKN,TH,VN);GGN155,GUN155,165..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M);GUN156,TGN156..(L,M,S)..(HTWC,IART)..(BZAGT,EPT,GEN,KZS,VN) (L) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0K160 |
GUN155..H..GEN;GUN165,TGN166..PH VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(*DRS &SIDE & CURTAIN) |
1 | ||
| 82660-0K160 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN) |
1 | ||
| 82660-0K160 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 82660-0K160 |
GUN155..H..GEN;GUN165,TGN166..PH SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN) |
1 | ||
| 82660-0K160 |
GUN155..H..GCC;GUN165..IDN,VN;TGN156..L..KZS;TGN156..M..GEN;GUN165..6FC..L..GCC;GUN156..THSUV..(M,S)..GEN;GUN155..(IDNSU,THSUV)..(L,M,S);GUN156..RHD..(IDNSU,THSUV)..6FC;TGN166..6FC..(L,M,S)..(GCC,GEN,IDN,VN);GGN155,GUN156,TGN156..6FC..(GCC,KZS,PH,VN) |
1 | ||
| 82660-0K160 |
GUN155..H..GEN;GUN165,TGN166..PH |
1 | ||
| 82660-0K160 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),MARK=20A(NOX PM) |
1 | ||
| 82660-0K161 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),MARK=10A(NOX PM) |
1 | ||
| 82660-0K161 |
GUN165..M..PH;GUN165..RHD..IDNSU;GUN165..(L,S)..(GCC,PH,TH,VN);GUN156,TGN156..RHD..(IDNSU,THSUV);GUN155,TGN166..(IDNSU,THSUV,VNSUV)..6FC;GGN155,GUN156,TGN156..(IDNSU,THSUV)..(GCC,KZS,PH,VN);GUN156..(AGTSU,THSUV,VNSUV)..6FC..(M,S)..(BZAGT,GEN,VN) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0K050 |
TGN156..6FC..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0K070 |
TGN156..6FC..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0K090 |
GUN156..M..ARL;TGN156..M..GEN;GUN156..6F..L..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,PKN,SA,TH) |
1 | ||
| 82660-0K090 |
GUN155,165,TGN166..IDN |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0K050 |
TGN156..6FC..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-0K070 |
TGN156..6FC..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,IDN,PKN,SA,TH) |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-0K090 |
GUN155,165,TGN166..IDN |
1 | ||
| 82663-0K090 |
TGN156..M..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,PKN,SA,TH) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 90987-T2001 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 84930F - RELAY, DOOR LOCK CONTOROL | ||||
| 90987-04004 |
GUN165..PH,VN;TGN166..M..LA;TGN156..M..GEN;GUN156..THSUV..H..GEN;GUN156..(L,M)..(BZAGT,TH);GUN165..RHD..(IDNSU,SASUV,THSUV);TGN156..(H,M,S)..(BZAGT,LA,SA,VN);TGN166..6FC..(BZAGT,GEN,IDN,PH,PKN,SA,TH,VN);GGN155,GUN166,KUN156..(H,M,S)..(BZAGT,GEN,LA,SA,TH);GUN155,LAN155,TGN168..(L,M,S)..(BZAGT,GEN,IDN,SA,TH);GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(H,M,S)..(BZAGT,GEN,LA,PH,PKN,SA,VN) (J) |
1 | ||
| 90080-87009 |
GUN165..PH,VN;TGN166..M..LA;TGN156..M..GEN;GUN156..THSUV..H..GEN;GUN156..(L,M)..(BZAGT,TH);GUN165..RHD..(IDNSU,SASUV,THSUV);TGN156..(H,M,S)..(BZAGT,LA,SA,VN);TGN166..6FC..(BZAGT,GEN,IDN,PH,PKN,SA,TH,VN);GGN155,GUN166,KUN156..(H,M,S)..(BZAGT,GEN,LA,SA,TH);GUN155,LAN155,TGN168..(L,M,S)..(BZAGT,GEN,IDN,SA,TH);GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(H,M,S)..(BZAGT,GEN,LA,PH,PKN,SA,VN) (L) |
1 | ||
| 84930G - RELAY, DOOR LOCK CONTROL, NO.2 | ||||
| 90987-04004 |
GUN165..PH,VN;TGN166..M..LA;TGN156..M..GEN;GUN156..THSUV..H..GEN;GUN156..(L,M)..(BZAGT,TH);GUN165..RHD..(IDNSU,SASUV,THSUV);TGN156..(H,M,S)..(BZAGT,LA,SA,VN);TGN166..6FC..(BZAGT,GEN,IDN,PH,PKN,SA,TH,VN);GGN155,GUN166,KUN156..(H,M,S)..(BZAGT,GEN,LA,SA,TH);GUN155,LAN155,TGN168..(L,M,S)..(BZAGT,GEN,IDN,SA,TH);GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(H,M,S)..(BZAGT,GEN,LA,PH,PKN,SA,VN) (J) |
1 | ||
| 90080-87009 |
GUN165..PH,VN;TGN166..M..LA;TGN156..M..GEN;GUN156..THSUV..H..GEN;GUN156..(L,M)..(BZAGT,TH);GUN165..RHD..(IDNSU,SASUV,THSUV);TGN156..(H,M,S)..(BZAGT,LA,SA,VN);TGN166..6FC..(BZAGT,GEN,IDN,PH,PKN,SA,TH,VN);GGN155,GUN166,KUN156..(H,M,S)..(BZAGT,GEN,LA,SA,TH);GUN155,LAN155,TGN168..(L,M,S)..(BZAGT,GEN,IDN,SA,TH);GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..(H,M,S)..(BZAGT,GEN,LA,PH,PKN,SA,VN) (L) |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-T2001 |
TGN156..6FC..GEN;TGN156..BZAGT,EPT,GCC,KZS,LA,SA,VN;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87009 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
TGN168..6FC;TGN166..L..SA;GUN155..(H,S)..GCC;GUN155,KUN165,LAN155..GEN,IDN,SA,TH;GUN156,165,TGN156..L..(BZAGT,EPT,SA,VN);TGN156..(AGTSU,IDNSU,SASUV,THSUV)..(H,M,S);GGN155,165,GUN156,16#,KUN156,TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(H,M,S) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-T2001 |
GUN155..M..(GEN,TH);TGN166..BZAGT,PKN,TH;GUN156..S..HDCR..BZAGT;GUN16#,TGN156..BZAGT,TH;GUN156..(H,M)..HDCR..(ARL,BZAGT,PKN,TH) (L) |
1 | ||
| 90987-02027 |
GUN155..M..(GEN,TH);TGN166..BZAGT,PKN,TH;GUN156..S..HDCR..BZAGT;GUN16#,TGN156..BZAGT,TH;GUN156..(H,M)..HDCR..(ARL,BZAGT,PKN,TH) (J) |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-T2001 |
GUN156..S..ARL;GUN155,165..(L,M)..(GEN,LA);GUN156,KUN156..LHD..IDNSU..M..GEN;GUN156,TGN156..(H,L)..(ARL,GEN,LA);KUN156,TGN166..LHD..(H,L)..(GEN,LA) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| Common parts | ||||
| 82715-0KD40 | ||||
| 90119-T0313 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90178-T0007 | ||||
ILLUST NO. 9 OF11(1507- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
GUN156,TGN168..L..BZAGT;GGN165,KUN156,165,LAN155..L,S;GGN155,GUN15#..(L,S)..(ARL,GCC,IDN);GUN165..(L,S)..(GCC,GEN,IDN,LA,PH,VN);GUN15#..LHD..(L,S)..HDCR..(BZAGT,GEN,LA,SA);TGN156,166..LHD..(L,S)..(BZAGT,EPT,GCC,GEN,KZS,LA,PH,SA) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K680 |
GUN155,165..RHD..IDNSU..S DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0K810 |
GUN165..LHD..GEN;GUN156..IDNSU..GCC;GGN155,165,GUN155,165..IDNSU..H |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K680 |
GUN155,165..RHD..IDNSU..S DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-0K810 |
GUN165..LHD..GEN;GUN156..IDNSU..GCC;GGN155,165,GUN155,165..IDNSU..H |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K010 |
GUN165..PH,VN;GUN156,TGN156..LHD..SA;GUN155..(H,S)..(GEN,IDN);TGN166..(M,S)..(GEN,IDN,PH,TH);GUN156,165,KUN156..RHD..IDNSU..(M,S) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 84308-0K010 |
GUN156..RHD..SA;GUN165..LA,SA,TH;KUN156..LHD..(GEN,LA);TGN166..(L,M)..(LA,SA);GUN156..LHD..IDNSU..6FC;GUN156..(IDNSU,THSUV)..6F;TGN156..(M,S)..(GCC,LA,VN);TGN156..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA);GUN155,165,TGN166..LHD..(L,S)..(GEN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);TGN166..(H,S)..(BZAGT,GCC,GEN,PKN,SA,VN);GGN155,GUN166,TGN168..BZAGT,EPT,GEN,LA,SA,TH;GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(BZAGT,GCC,GEN,LA,PKN,TH,VN) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0K010 |
GUN165..PH,VN;GUN156,TGN156..LHD..SA;GUN155..(H,S)..(GEN,IDN);TGN166..(M,S)..(GEN,IDN,PH,TH);GUN156,165,KUN156..RHD..IDNSU..(M,S) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 84308-0K010 |
GUN156..RHD..SA;GUN165..LA,SA,TH;KUN156..LHD..(GEN,LA);TGN166..(L,M)..(LA,SA);GUN156..LHD..IDNSU..6FC;GUN156..(IDNSU,THSUV)..6F;TGN156..(M,S)..(GCC,LA,VN);TGN156..(H,L,S)..(BZAGT,EPT,GEN,KZS,LA);GUN155,165,TGN166..LHD..(L,S)..(GEN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);TGN166..(H,S)..(BZAGT,GCC,GEN,PKN,SA,VN);GGN155,GUN166,TGN168..BZAGT,EPT,GEN,LA,SA,TH;GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..(BZAGT,GCC,GEN,LA,PKN,TH,VN) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0K070 |
GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02040 |
GUN156,TGN168..L..BZAGT;GGN165,KUN156,165,LAN155..L,S;GGN155,GUN15#..(L,S)..(ARL,GCC,IDN);GUN165..(L,S)..(GCC,GEN,IDN,LA,PH,VN);GUN15#..LHD..(L,S)..HDCR..(BZAGT,GEN,LA,SA);TGN156,166..LHD..(L,S)..(BZAGT,EPT,GCC,GEN,KZS,LA,PH,SA) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-30020 |
TGN156..THSUV..S..GCC;GUN156..6FC..H..HDCR..BZAGT;GUN156..6FC..(H,M,S)..(ARL,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN156,TGN156..(H,M,S)..(HTWC,IART)..(BZAGT,GEN,LA,SA,VN);GGN155,165,GUN155,16#,KUN156,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..ATM..(H,M,S) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K230 |
GUN15#..RHD..GEN KENYA SPEC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0K230 |
GUN15#..RHD..GEN KENYA SPEC |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-0D010 |
KUN156..5FC..(L,S);GUN156,TGN168..6FC..L..BZAGT;GUN165..6FC..(L,S)..(GCC,GEN,IDN,LA,PH,VN);GGN155,165,GUN15#..6FC..(L,S)..(ARL,GCC,IDN);GUN156,TGN156,166..LHD..6FC..(L,S)..(HDCR,HTWC)..(BZAGT,EPT,GCC,GEN,KZS,LA,PH,SA) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D020 |
GUN165..PH,VN;TGN156..M..GEN;GUN156,165..RHD..IDNSU;GUN156,TGN156..LHD..SA;GUN155..(H,S)..(GEN,IDN);TGN166..(M,S)..(GEN,IDN,PH,TH) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL) |
1 | ||
| 8924B-0D020 |
GUN156..RHD..SA;GUN165..LHD..GEN;GUN156..AGTSU..6F;TGN156..AGTSU..LA;GUN165..6FC..L..GCC;GUN165..6F..(GCC,SA);GUN155..(H,S)..(GCC,SA);GUN165..6FC..(LA,SA,TH);TGN156,166..L..(GEN,KZS,SA);TGN166..6FC..(BZAGT,GCC,PKN,VN);GUN155..(IDNSU,SASUV,THSUV)..(L,M);GUN156..LHD..IDNSU..(GCC,GEN,PH,VN);GUN156,TGN166..AGTSU..(H,L,M)..(HTWC,IART);TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,VN);GUN156..(AGTSU,PKNSU,THSUV,VNSUV)..6FC..HDCR;GGN155,GUN166,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF11(1507- )GUN15#,16#,KUN156,165,LAN155
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE..GUN15#,16#,KUN156,165,LAN155..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-02025 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (J) |
1 | ||
| 90987-T2002 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV (L) |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV 140A,TERM.:MALE,RBR |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08286 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV 140A,TERM.:MALE,RBR |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08299 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 40A-40A-40A,FEMALE |
1 | ||
| 90982-08302 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 50A,TERM.:FEMALE,RED,MARK=58V |
1 | ||
| 90982-08294 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08300 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08304 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08301 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08305 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08308 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 40A-30A-30A,FEMALE |
1 | ||
| 90982-08307 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 50A,TERM.:FEMALE,RED,MARK=32V |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# 25A,MINI FUSE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0K030 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GUN156..6FC..S..HDCR..BZAGT;GUN155,165..6FC..(GEN,LA,VN);GUN156..(IDNSU,VNSUV)..(GCC,GEN,VN);GUN156,165..(AGTSU,VNSUV)..L..(BZAGT,VN);TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-0K020 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0K090 |
GUN155,165..S..IDN DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82661-0K090 |
GUN155,165..S..IDN HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82661-0K050 |
GUN155,165..S..IDN HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH,EXCEPT INDONESIA |
1 | ||
| 82661-0K090 |
GUN155,165..S..IDN HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH,INDONESIA |
1 | ||
| 82661-0K050 |
TGN166..S..SA;TGN166..L..GCC;GUN165..M..(PH,TH);GUN156..6FC..S..ARL;GUN156..RHD..6F..(ARL,SA);GUN166,KUN156..RHD..(SA,TH);GUN155..6FC..(GCC,GEN,IDN,SA);TGN156..(M,S)..(BZAGT,GEN,KZS);TGN166..BZAGT,EPT,GEN,LA,PH,PKN,TH,VN;GUN156,KUN156..(AGTSU,IDNSU)..(5FC,6F);GUN165..(H,L,S)..(GCC,IDN,LA,PH,SA,TH,VN);TGN156..(H,L,M)..(BZAGT,EPT,GCC,KZS,LA,VN);GUN156..(AGTSU,THSUV)..6FC..(H,L)..HDCR..(ARL,BZAGT,GCC,GEN);GGN155,165,GUN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M,S)..(HTWC,IART);GUN156..(AGTSU,IDNSU,PKNSU,SASUV,VNSUV)..6FC..(GCC,GEN,LA,PH,PKN,SA,VN) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0K630 |
GUN15#,165,KUN156..AGTSU,IDNSU,VNSUV MARK 82662-0K630 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0K020 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0K150 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0K020 |
GUN156..6F..M;GUN156..THSUV..(H,L);GUN155,165..(H,L)..GCC;GUN165..GEN,IDN,LA,PH,SA,TH,VN;GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,VN;GUN155,TGN156..BZAGT,EPT,GEN,IDN,KZS,LA,SA,VN;GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2002 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 2 OF11(1507- )
TRANSMISSION 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33576D - BRACKET, BACK-UP LAMP SWITCH, NO.1 | ||||
| 33576-0K010 |
GUN15#,16#,KUN156,165..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K040 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01 |
1 | ||
| 33576E - BRACKET, BACK-UP LAMP SWITCH, NO.2 | ||||
| 33576-0K020 |
GUN15#,16#,KUN156,165..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K050 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01 |
1 | ||
| 33576F - BRACKET, BACK-UP LAMP SWITCH, NO.3 | ||||
| 33576-0K030 |
GUN15#,16#,KUN156,165..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K060 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN15#,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN15#,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| Common parts | ||||
| 82715-0K680 | ||||
| 82715-71120 | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90461-08365 | ||||
ILLUST NO. 2 OF11(1507- )
TRANSMISSION 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33576D - BRACKET, BACK-UP LAMP SWITCH, NO.1 | ||||
| 33576-0K010 |
GUN15#,16#,KUN156,165..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K040 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01 |
1 | ||
| 33576E - BRACKET, BACK-UP LAMP SWITCH, NO.2 | ||||
| 33576-0K020 |
GUN15#,16#,KUN156,165..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K050 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01 |
1 | ||
| 33576F - BRACKET, BACK-UP LAMP SWITCH, NO.3 | ||||
| 33576-0K030 |
GUN15#,16#,KUN156,165..6F TYPE A:REFER 33-01 |
1 | ||
| 33576-0K060 |
GUN15#,16#,KUN156,165..6F TYPE B:REFER 33-01 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-71050 |
GUN15#,16#,KUN156,165..6F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN15#,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| Common parts | ||||
| 82715-0K680 | ||||
| 82715-71120 | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
ILLUST NO. 8 OF11(1507- )
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price |
|---|
ILLUST NO.10 OF11(1507- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-02120C0 |
GUN156..6F..M;GUN156,165,KUN156..RHD..IDNSU..M;TGN166..RHD..(IDNSU,PKNSU)..(M,S);GUN155,TGN156..6FC..(H,L,M)..(GEN,IDN,SA) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM4# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-02080C0 |
GUN156..6F..M;GUN156,165,KUN156..RHD..IDNSU..M;TGN166..RHD..(IDNSU,PKNSU)..(M,S);GUN155,TGN156..6FC..(H,L,M)..(GEN,IDN,SA) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM4# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-06150 |
TGN166..RHD..(IDNSU,PKNSU)..(M,S);GUN156,165,KUN156..RHD..M..(ARL,GEN,IDN);GUN155,TGN156..6FC..(H,L,M)..(GEN,IDN,SA) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO.10 OF11(2006- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO. 7 OF11(2006- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 8 OF11(2006- )
CONSOLE BOX
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF11(2006- )GUN15#,16#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-71200 | ||||
| 8946A-KK020 | ||||
| 8946A-KK030 | ||||
| 90105-T0066 | ||||
| 90119-T0126 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90153-50015 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-T0055 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| 94151-80840 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 2 OF11(2006- )
TRANSMISSION 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0K680 | ||||
| 82715-71120 | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
ILLUST NO. 2 OF11(2006- )
TRANSMISSION 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0K680 | ||||
| 82715-71120 | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90461-08365 | ||||
ILLUST NO. 9 OF11(2006- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF11(2006- )GUN15#,16#,LAN155
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0313 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 6 OF11(2006- )RHD
COWL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0KD40 | ||||
| 90119-T0313 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90178-T0007 | ||||
| 91673-80620 | ||||
ILLUST NO. 3 OF11(2006- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0066 | ||||
| 90119-T0130 | ||||
| 90153-T0001 | ||||
| 90178-T0056 | ||||
| 94151-80801 | ||||
ILLUST NO. 5 OF11(2006- )RHD
COWL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-KK310 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90119-T0279 | ||||
| 90119-T0313 | ||||
| 90159-T0003 | ||||
| 90170-T0005 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-W0019 | ||||
| 94151-80600 | ||||
ILLUST NO.11 OF11(2006- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90166-T0003 | ||||
| 90178-T0018 | ||||
| 90189-06227 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
