Toyota Fortuner GUN155 WIRING & CLAMP

GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020

Engine 2GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

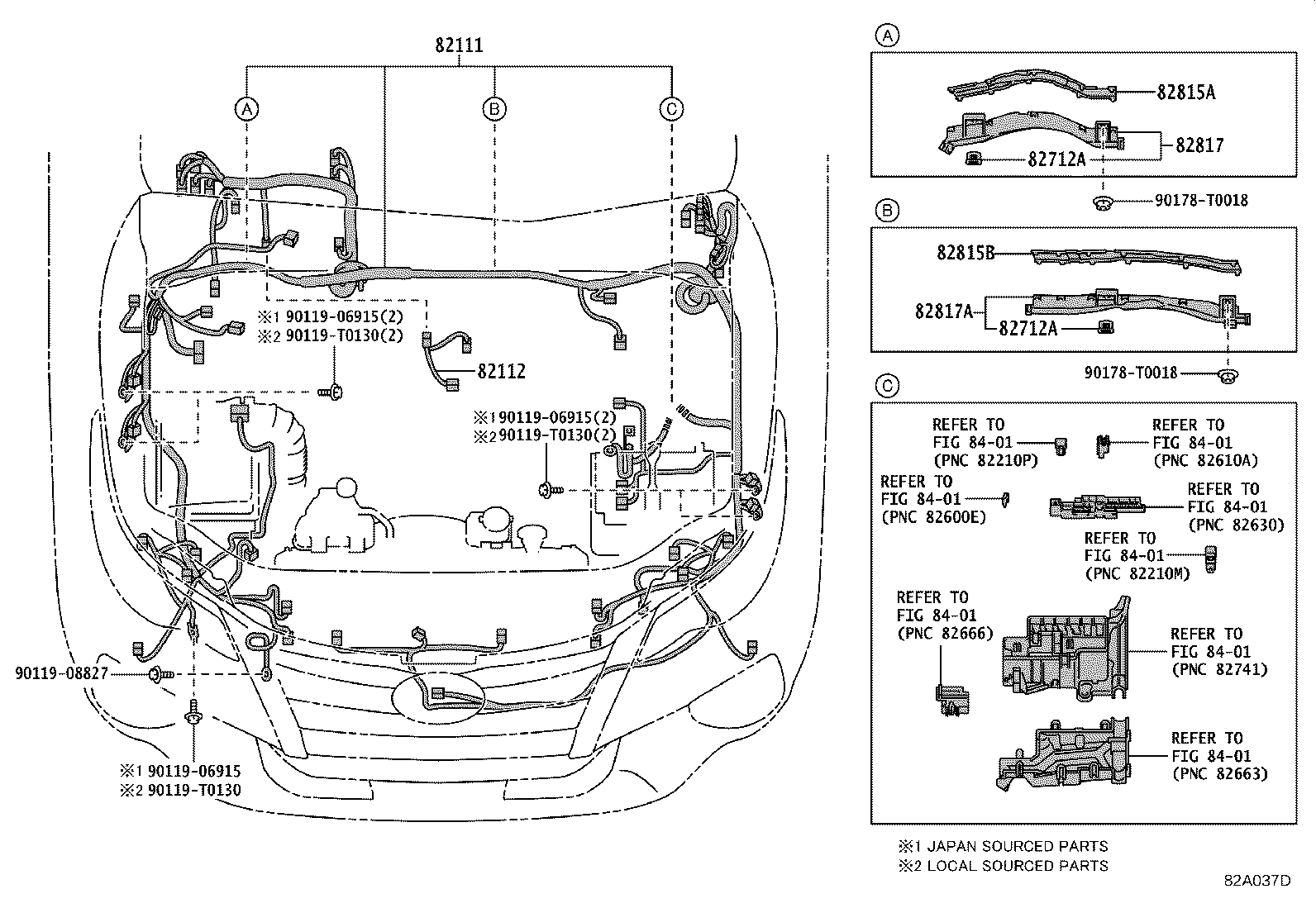

ILLUST NO. 1 OF13(1507- )RHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-KKU50	GUN156..6FC..SA;GUN155..M..(GEN,MA);GUN156..6FC..M..ARL;GUN16#..6FC..(M,S)..(MA,SA,TH)	07/2015 - 10/2017	1
82111-KKY00	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 10/2017	1
82111-KKD20	GUN155,165..S..(GEN,SA) VEHICLE STABILITY CONTROL-WITHOUT,P/N LABEL=82111KKD20	08/2017 - 08/2018	1
82111-KKD30	GUN155,165..S..(GEN,SA) P/N LABEL=82111KKD30	08/2017 - 08/2018	1
82115-KKL00	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&FRONT FOG LAMP-WITH(LED),P/N LABEL=82115KKL00	08/2017 - 08/2018	1
82116-KK880	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC),P/N LABEL=82116KK880	10/2017 - 08/2018	1
82115-KKM50	GUN16#..M..(MA,TH);GUN155..M..(GEN,MA);GUN156..6FC..M..ARL FRONT FOG LAMP-WITH(LED),P/N LABEL=82115KKM50	08/2017 - 09/2018	1
82116-KK530	GUN155..M..(GEN,MA);GUN156..6FC..M..ARL;GUN156..RHD..6FC..SA;GUN16#..6FC..(M,S)..(MA,SA,TH) P/N LABEL=82116KK530	10/2017 - 09/2018	1
82111-KKC80	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&DAYTIME RUNNING LIGHT SYSTEM-WITH	08/2017 - 05/2019	1
82111-KKC60	GUN155,165..S..IDN DAYTIME RUNNING LIGHT SYSTEM-WITH	08/2017 - 05/2019	1
82115-KKL30	GUN155,165..S..IDN HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH	08/2017 - 05/2019	1
82115-KKM20	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH	08/2017 - 05/2019	1
82116-KK430	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH	08/2017 - 05/2019	1
82116-KK430	GUN155..M..IDN	08/2017 - 05/2019	1
82115-KKM20	GUN155..M..IDN FRONT FOG LAMP-WITH(LED)	08/2017 - 05/2019	1
82116-KK580	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	08/2017 - 05/2019	1
82116-KK500	GUN155,165..S..IDN HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH	08/2017 - 05/2019	1
82116-KK560	GUN155,165..S..IDN	08/2017 - 05/2019	1
82115-KKM51	GUN16#..M..TH;GUN155..M..GEN FRONT FOG LAMP-WITH(LED),P/N LABEL=82115KKM51	06/2018 - 06/2019	1
82116-KK531	GUN16#..M..TH;GUN155..M..GEN P/N LABEL=82116KK531	06/2018 - 06/2019	1
82115-KKL01	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&FRONT FOG LAMP-WITH(LED),P/N LABEL=82115KKL01	06/2018 - 07/2019	1
82116-KK881	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC),P/N LABEL=82116KK881	06/2018 - 07/2019	1
82115-KKL02	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&FRONT FOG LAMP-WITH(LED),P/N LABEL=82115KKL02	05/2019 - 07/2020	1
82115-KKM21	GUN155..M..IDN FRONT FOG LAMP-WITH(LED)	05/2019 - 07/2020	1
82111-KKC61	GUN155,165..S..IDN DAYTIME RUNNING LIGHT SYSTEM-WITH	05/2019 - 07/2020	1
82115-KKM21	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH	05/2019 - 07/2020	1
82111-KKC81	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&DAYTIME RUNNING LIGHT SYSTEM-WITH	05/2019 - 07/2020	1
82115-KKL31	GUN155,165..S..IDN HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)&DAYTIME RUNNING LIGHT SYSTEM-WITH	05/2019 - 07/2020	1
82116-KK431	GUN155..M..IDN	05/2019 - 07/2020	1
82116-KK581	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	05/2019 - 07/2020	1
82116-KK561	GUN155,165..S..IDN	05/2019 - 07/2020	1
82116-KK431	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH	05/2019 - 07/2020	1
82116-KK501	GUN155,165..S..IDN HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH	05/2019 - 07/2020	1
82116-KK882	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC),P/N LABEL=82116KK882	05/2019 - 07/2020	1
82712A - SUPPORT, WIRING HARNESS
82712-33190	TGN166..TH;GUN155..M..MA;GUN165,TGN156..RHD..(MA,SA,TH);GUN15#,166..RHD..6FC..(ARL,GEN,SA,TH)	07/2015 - 06/2018	2
82712-33190	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN156..RHD..6FC..SA;GUN165,TGN156..MA,TH;GUN166..6FC..(SA,TH)	06/2018 - 09/2018	4
82712-33190	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN16#..6FC..(M,S)..(MA,SA,TH);GUN156,TGN156..RHD..6FC..(MA,SA)	09/2018 - 05/2019	2
82712-33190	GUN166..6FC..(SA,TH);GUN165,TGN156..M..(MA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,MA,SA)	05/2019 - 06/2019	4
82712-33190	GUN156..6FC..BZAGT;GUN15#..(H,L)..(GCC,GEN,LA);GUN165..LHD..(GCC,GEN,LA,PH);TGN156..LHD..(BZAGT,GEN,LA,VN);TGN166..LHD..(BZAGT,GEN,LA,PH);GGN155,GUN156..LHD..(AGTSU,IDNSU)..M	05/2019 - 07/2019	2
82712-33190	GUN156..PKN;GUN165,TGN156..RHD..IDNSU;TGN166..RHD..(IDNSU,PKNSU,SASUV);GGN155,GUN155..6FC..(M,S)..(IDN,SA);GUN156,166,KUN156..RHD..(5FC,6F)..(ARL,GEN,SA)	07/2015 - 12/2999	2
82712-33190	GUN16#..6FC..(M,S)..(SA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,SA)	06/2019 - 12/2999	2
82712A - SUPPORT, WIRING HARNESS
82712-33190	TGN166..TH;GUN155..M..MA;GUN165,TGN156..RHD..(MA,SA,TH);GUN15#,166..RHD..6FC..(ARL,GEN,SA,TH)	07/2015 - 06/2018	2
82712-33190	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN156..RHD..6FC..SA;GUN165,TGN156..MA,TH;GUN166..6FC..(SA,TH)	06/2018 - 09/2018	4
82712-33190	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN16#..6FC..(M,S)..(MA,SA,TH);GUN156,TGN156..RHD..6FC..(MA,SA)	09/2018 - 05/2019	2
82712-33190	GUN166..6FC..(SA,TH);GUN165,TGN156..M..(MA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,MA,SA)	05/2019 - 06/2019	4
82712-33190	GUN156..6FC..BZAGT;GUN15#..(H,L)..(GCC,GEN,LA);GUN165..LHD..(GCC,GEN,LA,PH);TGN156..LHD..(BZAGT,GEN,LA,VN);TGN166..LHD..(BZAGT,GEN,LA,PH);GGN155,GUN156..LHD..(AGTSU,IDNSU)..M	05/2019 - 07/2019	2
82712-33190	GUN156..PKN;GUN165,TGN156..RHD..IDNSU;TGN166..RHD..(IDNSU,PKNSU,SASUV);GGN155,GUN155..6FC..(M,S)..(IDN,SA);GUN156,166,KUN156..RHD..(5FC,6F)..(ARL,GEN,SA)	07/2015 - 12/2999	2
82712-33190	GUN16#..6FC..(M,S)..(SA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,SA)	06/2019 - 12/2999	2
82815A - COVER, WIRING HARNESS PROTECTOR
82815-0K560	TGN166..TH;GUN155..M..MA;GUN165,TGN156..RHD..(MA,SA,TH);GUN15#,166..RHD..6FC..(ARL,GEN,SA,TH)	07/2015 - 06/2018	1
82815-0K560	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN156..RHD..6FC..SA;GUN165,TGN156..MA,TH;GUN166..6FC..(SA,TH)	06/2018 - 09/2018	2
82815-0K560	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN16#..6FC..(M,S)..(MA,SA,TH);GUN156,TGN156..RHD..6FC..(MA,SA)	09/2018 - 05/2019	1
82815-0K560	GUN166..6FC..(SA,TH);GUN165,TGN156..M..(MA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,MA,SA)	05/2019 - 06/2019	2
82815-0K530	GUN156..6FC..BZAGT;GUN15#..(H,L)..(GCC,GEN,LA);GUN165..LHD..(GCC,GEN,LA,PH);GUN156..LHD..(AGTSU,IDNSU)..M;TGN156..LHD..(BZAGT,GEN,LA,VN);TGN166..LHD..(BZAGT,GEN,LA,PH)	05/2019 - 07/2019	2
82815-0K560	GUN156..PKN;GUN165,TGN156..RHD..IDNSU;TGN166..RHD..(IDNSU,PKNSU,SASUV);GGN155,GUN155..6FC..(M,S)..(IDN,SA);GUN156,166,KUN156..RHD..(5FC,6F)..(ARL,GEN,SA)	07/2015 - 12/2999	1
82815-0K560	GUN16#..6FC..(M,S)..(SA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,SA)	06/2019 - 12/2999	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-0K550	TGN166..TH;GUN155..M..MA;GUN165,TGN156..RHD..(MA,SA,TH);GUN15#,166..RHD..6FC..(ARL,GEN,SA,TH)	07/2015 - 06/2018	1
82815-0K550	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN156..RHD..6FC..SA;GUN165,TGN156..MA,TH;GUN166..6FC..(SA,TH)	06/2018 - 09/2018	2
82815-0K550	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN16#..6FC..(M,S)..(MA,SA,TH);GUN156,TGN156..RHD..6FC..(MA,SA)	09/2018 - 05/2019	1
82815-0K550	GUN166..6FC..(SA,TH);GUN165,TGN156..M..(MA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,MA,SA)	05/2019 - 06/2019	2
82815-0K520	GUN156..6FC..BZAGT;GUN15#..(H,L)..(GCC,GEN,LA);GUN165..LHD..(GCC,GEN,LA,PH);GUN156..LHD..(AGTSU,IDNSU)..M;TGN166..LHD..(BZAGT,GEN,LA,PH);GGN155,TGN156..LHD..(BZAGT,GEN,LA,VN)	05/2019 - 07/2019	2
82815-0K550	GUN156..PKN;GUN165,TGN156..RHD..IDNSU;TGN166..RHD..(IDNSU,PKNSU,SASUV);GGN155,GUN155..6FC..(M,S)..(IDN,SA);GUN156,166,KUN156..RHD..(5FC,6F)..(ARL,GEN,SA)	07/2015 - 12/2999	1
82815-0K550	GUN16#..6FC..(M,S)..(SA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,SA)	06/2019 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0K560	TGN166..TH;GUN155..M..MA;GUN165,TGN156..RHD..(MA,SA,TH);GUN15#,166..RHD..6FC..(ARL,GEN,SA,TH)	07/2015 - 06/2018	1
82817-0K560	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN156..RHD..6FC..SA;GUN165,TGN156..MA,TH;GUN166..6FC..(SA,TH)	06/2018 - 09/2018	2
82817-0K560	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN16#..6FC..(M,S)..(MA,SA,TH);GUN156,TGN156..RHD..6FC..(MA,SA)	09/2018 - 05/2019	1
82817-0K560	GUN166..6FC..(SA,TH);GUN165,TGN156..M..(MA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,MA,SA)	05/2019 - 06/2019	2
82817-0K530	GUN156..6FC..BZAGT;GUN15#..(H,L)..(GCC,GEN,LA);GUN165..LHD..(GCC,GEN,LA,PH);GUN156..LHD..(AGTSU,IDNSU)..M;TGN156..LHD..(BZAGT,GEN,LA,VN);TGN166..LHD..(BZAGT,GEN,LA,PH)	05/2019 - 07/2019	2
82817-0K560	GUN156..PKN;GUN165,TGN156..RHD..IDNSU;TGN166..RHD..(IDNSU,PKNSU,SASUV);GGN155,GUN155..6FC..(M,S)..(IDN,SA);GUN156,166,KUN156..RHD..(5FC,6F)..(ARL,GEN,SA)	07/2015 - 12/2999	1
82817-0K560	GUN16#..6FC..(M,S)..(SA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,SA)	06/2019 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-0K550	TGN166..TH;GUN155..M..MA;GUN165,TGN156..RHD..(MA,SA,TH);GUN15#,166..RHD..6FC..(ARL,GEN,SA,TH)	07/2015 - 06/2018	1
82817-0K550	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN16#..6FC..(M,S)..(MA,SA,TH);GUN156,TGN156..RHD..6FC..(MA,SA)	09/2018 - 05/2019	1
82817-0K550	GUN156..M..ARL;GUN155..M..(GEN,MA);GUN156..RHD..6FC..SA;GUN165,TGN156..MA,TH;GUN166..6FC..(SA,TH)	06/2018 - 09/2018	2
82817-0K550	GUN166..6FC..(SA,TH);GUN165,TGN156..M..(MA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,MA,SA)	05/2019 - 06/2019	2
82817-0K520	GUN156..6FC..BZAGT;GUN15#..(H,L)..(GCC,GEN,LA);GUN165..LHD..(GCC,GEN,LA,PH);GUN156..LHD..(AGTSU,IDNSU)..M;TGN166..LHD..(BZAGT,GEN,LA,PH);GGN155,TGN156..LHD..(BZAGT,GEN,LA,VN)	05/2019 - 07/2019	2
82817-0K550	GUN156..PKN;GUN165,TGN156..RHD..IDNSU;TGN166..RHD..(IDNSU,PKNSU,SASUV);GGN155,GUN155..6FC..(M,S)..(IDN,SA);GUN156,166,KUN156..RHD..(5FC,6F)..(ARL,GEN,SA)	07/2015 - 12/2999	1
82817-0K550	GUN16#..6FC..(M,S)..(SA,TH);GUN15#..RHD..6FC..(M,S)..(GEN,SA)	06/2019 - 12/2999	1
Common parts
90119-06915
90119-08827
90119-T0130
90178-T0018
Linked diagrams
8401

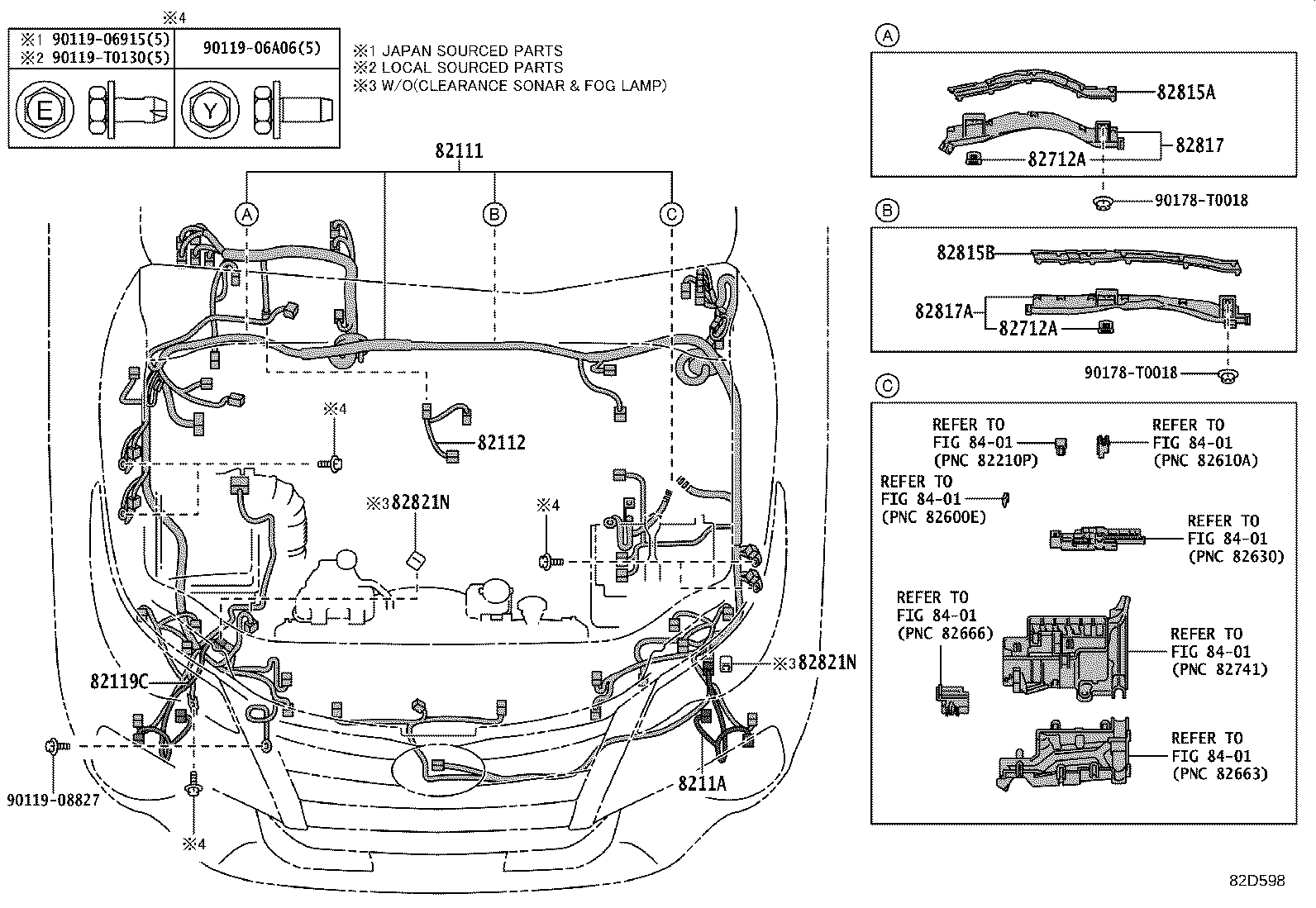

ILLUST NO. 2 OF13(1507- )GUN15#,16#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82139-KKB20	GUN155..RHD..IDNSU P/N LABEL=82139KKB20	08/2017 - 08/2018	1
82121-KK610	GUN155..M..GEN KENYA SPEC	08/2017 - 08/2018	1
82121-KK611	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82139-KKC91	GUN155..M..GEN EXHAUST EMISSION CONTROL-WITHOUT,P/N LABEL=82139KKC91	05/2019 - 06/2019	1
82121-KK612	GUN15#..RHD..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 11/2019	1
82139-KKC92	GUN155..M..GEN EXHAUST EMISSION CONTROL-WITHOUT,P/N LABEL=82139KKC92	05/2019 - 11/2019	1
82139-KKB21	GUN155..RHD..IDNSU P/N LABEL=82139KKB21	08/2018 - 07/2020	1
82121-KK613	GUN15#..RHD..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	11/2019 - 07/2020	1
82139-KKB23	GUN155..RHD..(IDNSU,SASUV);GUN156..RHD..6FC..(PKN,SA) P/N LABEL=82139KKB23	11/2019 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-KK060	GUN156..(M,S)..ARL;GUN156..THSUV..(H,L);GUN155..GCC,GEN,IDN,MA,SA;GUN156..AGTSU,IDNSU,SASUV,VNSUV;GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV	07/2015 - 12/2020	1
82125N - WIRE, ENGINE, NO.5
82125-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,GUN15#,KUN156,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-0K270	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82815-0K270	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82815-0K270	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82815-0K270	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82815-0K270	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-0K350	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82815-0K350	GUN155,165..RHD..IDNSU..6FC	08/2017 - 09/2017	2
82815-0K350	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82815-0K350	GUN15#..PH,TH,VN;GUN156..AGTSU..6FC..LA;GUN155,166..H..(GEN,IND);GUN165..6FC..(GEN,LA,PH,VN)	07/2015 - 05/2019	1
82815-0K350	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82815-0K350	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-0K350	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82815-0K350	GUN155,165..RHD..IDNSU..6FC	08/2017 - 09/2017	2
82815-0K350	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82815-0K350	GUN15#..PH,TH,VN;GUN156..AGTSU..6FC..LA;GUN155,166..H..(GEN,IND);GUN165..6FC..(GEN,LA,PH,VN)	07/2015 - 05/2019	1
82815-0K350	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82815-0K350	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-0K280	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82815-0K280	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82815-0K280	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82815-0K280	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82815-0K280	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-0K510	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82815-0K510	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82815-0K510	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82815-0K510	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82815-0K510	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-0K400	GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-0K270	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K270	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82817-0K270	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K270	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K270	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-0K280	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K280	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82817-0K280	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K280	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K280	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0K350	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K350	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K350	GUN155,165..RHD..IDNSU..6FC	08/2017 - 09/2017	2
82817-0K350	GUN15#..PH,TH,VN;GUN156..AGTSU..6FC..LA;GUN155,166..H..(GEN,IND);GUN165..6FC..(GEN,LA,PH,VN)	07/2015 - 05/2019	1
82817-0K350	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K350	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0K350	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K350	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K350	GUN155,165..RHD..IDNSU..6FC	08/2017 - 09/2017	2
82817-0K350	GUN15#..PH,TH,VN;GUN156..AGTSU..6FC..LA;GUN155,166..H..(GEN,IND);GUN165..6FC..(GEN,LA,PH,VN)	07/2015 - 05/2019	1
82817-0K350	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K350	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-0K510	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82817-0K510	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K510	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K510	GUN155..H..GEN;GUN156..IDNSU..(GEN,PH,VN)	07/2015 - 08/2018	1
82817-0K510	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K510	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-0K300	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K300	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K300	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82817-0K300	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K300	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-0K310	GUN155,165..6FC..IDN	08/2017 - 09/2017	2
82817-0K310	GUN155..M..GEN KENYA SPEC	08/2017 - 09/2017	1
82817-0K310	GUN155,165..RHD..IDNSU..6FC	09/2017 - 08/2018	1
82817-0K310	GUN155..M..GEN KENYA SPEC	08/2018 - 05/2019	1
82817-0K310	GUN155..M..GEN EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)	05/2019 - 07/2020	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-0K400	GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-0K030	GUN165..L..GCC;GUN156..GCC,PH,VN;GUN155..GCC,GEN,IDN;GUN156..LHD..IDNSU..GEN;GUN16#..GEN,IDN,PH,TH,VN;GUN156..RHD..6FC..(ARL,GEN) (L)	08/2017 - 08/2018	1
82823-35050	GUN165..L..GCC;GUN156..GCC,PH,VN;GUN155..GCC,GEN,IDN;GUN156..LHD..IDNSU..GEN;GUN16#..GEN,IDN,PH,TH,VN;GUN156..RHD..6FC..(ARL,GEN) (J)	08/2017 - 08/2018	1
82823-35050	GUN16#..M..TH;GUN165..6F..TH;GUN155..GCC,GEN,IDN;GUN156..RHD..(ARL,GEN);GUN156,165..LHD..IDNSU..GEN;GUN156,165..(IDNSU,THSUV)..(GCC,IDN,PH,VN)	08/2018 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	TGN156..5F;TGN166..5F..GCC;TGN166..L..(GEN,LA,SA);GUN165,TGN156..L..(EPT,LA,SA,VN);GUN15#..ARL,BZAGT,GEN,IDN,LA,PH,SA,TH,VN;TGN166..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(H,M,S);GUN165,TGN156..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..(H,M,S);GGN155,165,GUN166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV	07/2015 - 12/2999	1
Common parts
90119-08C69
90119-T0134
90119-T0260
90119-T0313
90178-T0018

ILLUST NO. 3 OF13(1507- )RHD

Click highlighted areas on diagram

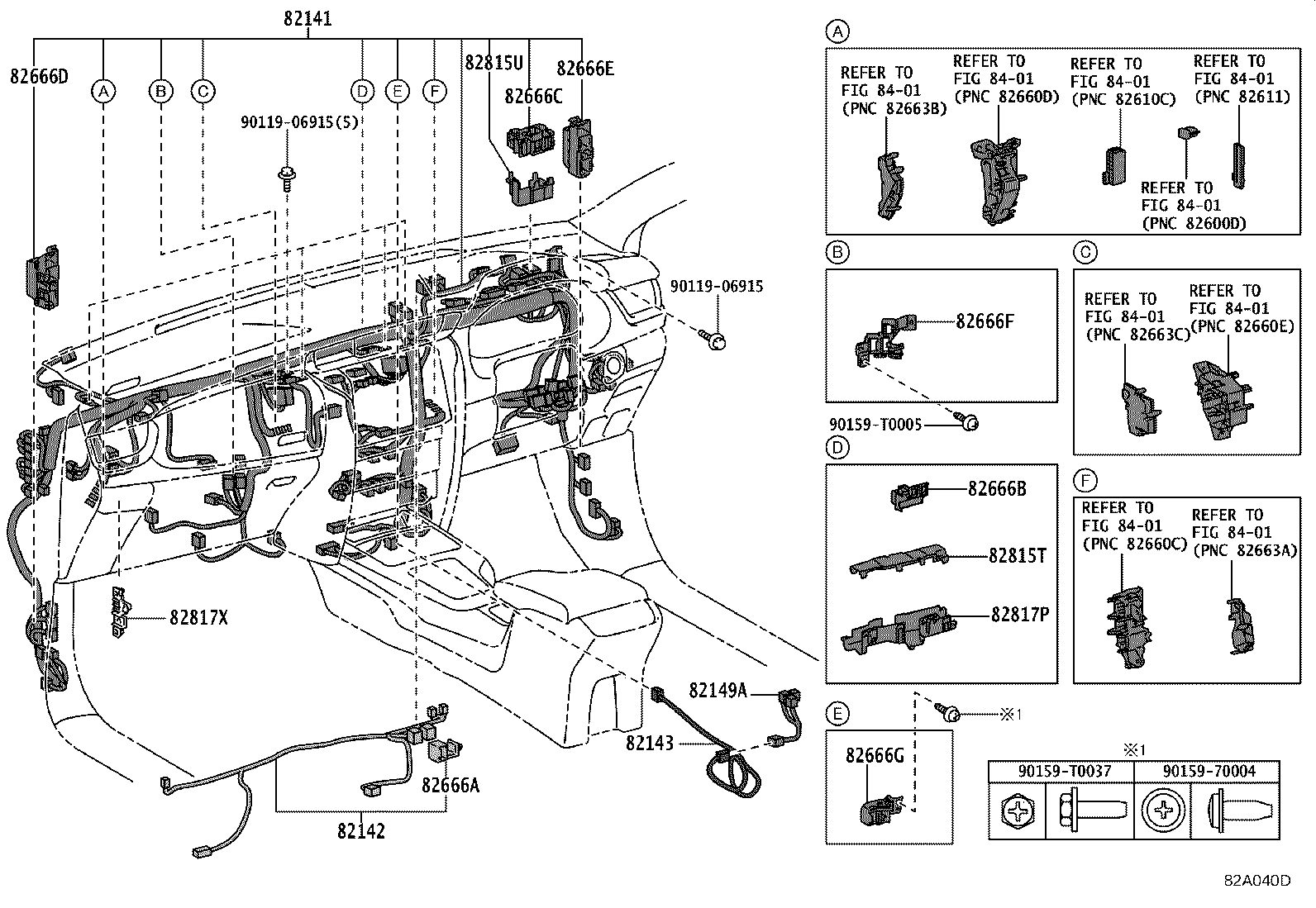

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-KKX20	GUN15#..RHD..GEN ASEAN GENERAL SPEC,P/N LABEL=82141KKX20	08/2017 - 09/2017	1
82117-KKB40	GUN156..GCC;GUN155,165..H	08/2017 - 06/2018	1
82117-KKC20	GUN15#..RHD..GEN ASEAN GENERAL SPEC,P/N LABEL=82117KKC20	08/2017 - 06/2018	1
82117-KK150	GUN155,165..S..IDN HEADLAMP-LED	08/2017 - 05/2019	1
82117-KK370	GUN15#..RHD..GEN	08/2017 - 05/2019	1
82117-KKA50	GUN155,165..S..(GCC,GEN)	08/2017 - 05/2019	1
82117-KKC10	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&HEADLAMP-LED	08/2017 - 05/2019	1
82117-KKC10	GUN155,165..M..IDN	08/2017 - 05/2019	1
82117-KKB70	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)	08/2017 - 05/2019	1
82117-KKB60	GUN155,165..S..IDN	08/2017 - 05/2019	1
82117-KKC21	GUN15#..RHD..GEN ASEAN GENERAL SPEC,P/N LABEL=82117KKC21	06/2018 - 05/2019	1
82117-KKB41	GUN155..H..GEN	06/2018 - 05/2019	1
82117-KK151	GUN155,165..S..IDN HEADLAMP-LED	05/2019 - 07/2020	1
82117-KK371	GUN15#..RHD..GEN	05/2019 - 07/2020	1
82117-KKB61	GUN155,165..S..IDN	05/2019 - 07/2020	1
82117-KKC11	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&HEADLAMP-LED	05/2019 - 07/2020	1
82117-KKC11	GUN155,165..M..IDN	05/2019 - 07/2020	1
82117-KKB42	GUN155..H..GEN	05/2019 - 07/2020	1
82117-KKB71	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)	05/2019 - 07/2020	1
82117-KKC21	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER,P/N LABEL=82117KKC21	05/2019 - 07/2020	1
82117-KKC22	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER,P/N LABEL=82117KKC22	05/2019 - 07/2020	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-KK290	GUN156..6F..M;GUN165..M..TH;TGN166..RHD..(H,M,S);GUN156,165..RHD..(IDNSU,INDSU,MASUV,PKNSU,SASUV)..(H,M,S);GGN155,GUN155,166,KUN156,TGN156..RHD..(IDNSU,INDSU,MASUV,SASUV,THSUV)..(H,M,S) P/N LABEL=82142KK290	07/2015 - 07/2020	1
82142-KK291	GUN165..M..TH;GUN165..RHD..(IDNSU,MASUV);GGN155,GUN15#,166,TGN156,166..RHD..(H,M,S)..(GEN,IDN,IND,MA,SA,TH) P/N LABEL=82142KK291	05/2019 - 07/2020	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-KK600	GUN15#..6FC..(L,S)..(ARL,IDN) P/N LABEL=82143KK600	08/2017 - 07/2020	1
82143-KK610	GUN155..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),P/N LABEL=82143KK610	08/2017 - 07/2020	1
82143-KK660	GUN155..H..GEN DIFFERENTIAL LOCK-WITH&VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL &DAC),P/N LABEL=82143KK660	08/2017 - 07/2020	1
82143-KK660	GUN155..H..GEN DIFFERENTIAL LOCK-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL),P/N LABEL=82143KK660	08/2017 - 07/2020	1
82143-KK660	GUN155..H..GEN DIFFERENTIAL LOCK-WITH,P/N LABEL=82143KK660	08/2017 - 07/2020	1
82143-KK660	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC),P/N LABEL=82143KK660	08/2017 - 07/2020	1
82143-KK610	TGN156..S..GEN;GUN165..6FC..TH;TGN166..6FC..(GEN,PKN);GUN156..RHD..(PKNSU,THSUV)..6FC..M;GUN155,166..RHD..(IDNSU,SASUV,THSUV)..(L,M) P/N LABEL=82143KK610	08/2017 - 12/2999	1
82149A - WIRE, INSTRUMENT PANEL, NO.5
82149-KK040	GUN155..H..GEN DIFFERENTIAL LOCK-WITH&VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL &DAC)	08/2017 - 07/2020	1
82149-KK070	GUN155..M..GEN DIFFERENTIAL LOCK-WITHOUT	08/2017 - 07/2020	1
82149-KK030	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 07/2020	1
82149-KK080	TGN166..6FC..GEN;GUN156..6FC..(ARL,PKN);GUN155..RHD..(IDNSU,SASUV)	08/2017 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-0K370	GUN165..M..TH;TGN166..RHD..(H,M,S);GUN156,165..RHD..THSUV..6F;GUN156,165..RHD..(IDNSU,INDSU,MASUV,PKNSU,SASUV)..(H,M,S);GGN155,GUN155,166,KUN156,TGN156..RHD..(IDNSU,INDSU,MASUV,SASUV,THSUV)..(H,M,S) TYPE A:REFER ILLUST.	07/2015 - 07/2020	1
82666-0K200	GUN156..LHD..6F..SA;GUN156..LHD..6FC..S..(BZAGT,SA);LAN155,TGN156..IDNSU,SASUV,THSUV;GGN155,GUN15#,16#,TGN166..IDNSU,THSUV,VNSUV TYPE B:REFER ILLUST.	05/2019 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-0K160	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82666-0K160	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82666-0K160	GUN165..S..TH;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,SASUV)	07/2015 - 12/2020	1
82666C - HOLDER, CONNECTOR NO.4
82666-0K180	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82666-0K180	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82666-0K180	GUN165..S..TH;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,SASUV)	07/2015 - 12/2020	1
82666D - HOLDER, CONNECTOR NO.5
82666-0K210	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82666-0K210	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82666-0K210	GUN156..M..ARL;GUN155,165..H..GCC;TGN156,166..L..(KZS,LA);GUN155,165..GEN,IDN,LA,SA,VN;TGN166..BZAGT,GEN,IDN,PH,SA,VN;GGN155,165,GUN166,KUN165,LAN155..L,S;GUN156,165..(IDNSU,THSUV)..(L,S)..(LA,PH,TH);GUN156..(AGTSU,THSUV)..(H,L)..(ARL,GCC,GEN,LA);GUN156,TGN156..(M,S)..(HTWC,IART)..(BZAGT,GEN,SA);GUN156,KUN156,TGN168..(AGTSU,IDNSU,SASUV)..(H,M,S)..(DCR,HDCR,HTWCF)..(BZAGT,GCC,GEN,SA)	07/2015 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-0K220	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82666-0K220	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82666-0K220	GUN156..M..ARL;GUN155,165..H..GCC;TGN156,166..L..(KZS,LA);GUN155,165..GEN,IDN,LA,SA,VN;TGN166..BZAGT,GEN,IDN,PH,SA,VN;GGN155,165,GUN166,KUN165,LAN155..L,S;GUN156,165..(IDNSU,THSUV)..(L,S)..(LA,PH,TH);GUN156..(AGTSU,THSUV)..(H,L)..(ARL,GCC,GEN,LA);GUN156,TGN156..(M,S)..(HTWC,IART)..(BZAGT,GEN,SA);GUN156,KUN156,TGN168..(AGTSU,IDNSU,SASUV)..(H,M,S)..(DCR,HDCR,HTWCF)..(BZAGT,GCC,GEN,SA)	07/2015 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-0K240	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82666-0K240	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82666-0K240	GUN165..S..TH;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,SASUV)	07/2015 - 12/2020	1
82666G - HOLDER, CONNECTOR NO.8
82666-0K300	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82666-0K300	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82666-0K300	GUN165..S..TH;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,SASUV)	07/2015 - 12/2020	1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-0K420	TGN156..6FC..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,IDN,PKN,SA,TH)	07/2015 - 12/2999	1
82815U - COVER, WIRING HARNESS PROTECTOR, NO.17
82815-0K480	TGN156..6FC..GEN;GUN156..(L,M)..ARL;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(GEN,IDN,PKN,SA,TH)	07/2015 - 12/2999	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-0K420	GUN15#..RHD..GEN ASEAN GENERAL SPEC	08/2017 - 05/2019	1
82817-0K420	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82817-0K420	GUN165..S..TH;GUN156..(L,M)..ARL;GUN15#..RHD..(GEN,IDN,SA,TH);TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV);GGN155,GUN16#,KUN156,TGN156..RHD..(IDNSU,SASUV)	07/2015 - 12/2999	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-0K240	GUN15#..RHD..GEN ASEAN GENERAL SPEC,MADE IN INDIA	08/2017 - 05/2019	1
82817-0KA40	GUN15#..RHD..GEN MADE IN INDONESIA	08/2017 - 07/2020	1
82817-0KA40	GUN155,165..S..IDN HEADLAMP-LED	08/2017 - 07/2020	1
82817-0K240	GUN155..M..GEN ASEAN GENERAL SPEC&AUDIO-DA & CD & BT & 4SPEAKER,MADE IN INDIA	05/2019 - 07/2020	1
82817-0K840	GUN16#,TGN166..M..TH;GUN15#..RHD..(GEN,PKN) MADE IN THAILAND	07/2015 - 12/2999	1
82817-0K840	TGN156..S..GEN;GUN155,KUN156..IDN,LA,TH;GUN165,KUN156..RHD..IDNSU;GUN156..RHD..THSUV..(L,M);GUN165,TGN166..S..(PKN,TH);GUN156..6FC..S..HDCR..BZAGT	07/2015 - 12/2999	1
Common parts
90119-06915
90159-70004
90159-T0005
90159-T0037
Linked diagrams
8401

ILLUST NO. 4 OF13(1507- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-KKB50	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82151KKB50	06/2018 - 07/2019	1
82151-KK890	GUN155..(IDNSU,THSUV)..M;GUN156,166,TGN166..(H,M)..(ARL,IND) P/N LABEL=82151KK890	07/2015 - 01/2020	1
82151-KK570	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) P/N LABEL=82151KK570	06/2018 - 12/2019	1
82151-KKB51	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82151KKB51	05/2019 - 07/2020	1
82151-KK881	GUN155,165..RHD..IDNSU..S WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(DRS & SIDE & CURTAIN),P/N LABEL=82151KK881	05/2019 - 07/2020	1
82151-KK831	GUN155,165..RHD..IDNSU..S SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82151KK831	05/2019 - 07/2020	1
82151-KK571	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) P/N LABEL=82151KK571	05/2019 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-KKB50	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82152KKB50	06/2018 - 07/2019	1
82152-KK841	GUN155,165..RHD..IDNSU..S SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82152KK841	08/2017 - 08/2019	1
82152-KKA10	GUN155..(IDNSU,THSUV)..M;GUN156,166,TGN166..(H,M)..(ARL,IND) P/N LABEL=82152KKA10	07/2015 - 01/2020	1
82152-KK280	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) P/N LABEL=82152KK280	06/2018 - 12/2019	1
82152-KK831	GUN155,165,KUN156..RHD..(IDNSU,SASUV)..S P/N LABEL=82152KK831	08/2017 - 07/2020	1
82152-KK842	GUN155,165..RHD..IDNSU..S SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82152KK842	05/2019 - 07/2020	1
82152-KKB51	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),P/N LABEL=82152KKB51	05/2019 - 07/2020	1
82152-KKA31	GUN155,165..RHD..IDNSU..S WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(DRS & SIDE & CURTAIN),P/N LABEL=82152KKA31	05/2019 - 07/2020	1
82152-KK281	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) P/N LABEL=82152KK281	05/2019 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-KK210	TGN156..PKN,SA;GUN156..LHD..SA;GUN155,KUN156,165,LAN155..(5F,5FC,6F)..(L,S) P/N LABEL=82153KK210	07/2015 - 02/2018	1
82153-KK250	GUN156..(H,M)..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,VN);GGN155,165,GUN155,16#,KUN156,TGN156,166..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M)	07/2015 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-KK250	GUN156..(H,M)..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,VN);GGN155,165,GUN155,16#,KUN156,TGN156,166..(AGTSU,EPTSU,IDNSU,THSUV)..(H,M)	07/2015 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-KK410	GUN155,165..S..IDN POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)	08/2017 - 05/2019	1
82184-KK411	GUN155,165..S..IDN POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)	05/2019 - 07/2020	1
82184-KK611	GUN156..IDNSU..GEN;GUN155,TGN156,166..M..GEN AUDIO-DA & CD & BT & 4SPEAKER	05/2019 - 07/2020	1
82184-KK611	GUN155,165,TGN166..M..IDN	05/2019 - 07/2020	1
82184-KK601	GUN155,165..S..IDN	05/2019 - 07/2020	1
82184-KK611	GUN155..IDNSU..H;GGN155,TGN156..IDNSU..(H,M)..(GCC,VN);GUN156,TGN166..IDNSU..(H,M)..(GCC,GEN,VN) AUDIO-DA & DVD & BT	05/2019 - 07/2020	1
82184-KK621	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)	05/2019 - 07/2020	1
82184-KKE40	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)	05/2019 - 07/2020	1
82184-KK131	TGN166..LHD..(GCC,GEN,PH);GGN155,GUN15#,165,TGN156..(L,S)..(GCC,GEN,KZS,PH,VN) P/N LABEL=82184KK131	05/2019 - 12/2999	1
Common parts
90119-06915
90119-06A06
90119-T0130

ILLUST NO. 5 OF13(1507- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82127 - WIRE, DIFFERENTIAL
82127-0K010	TGN156,166..L..LA;TGN156..BZAGT,KZS,VN;TGN156,166..AGTSU..M;TGN166..BZAGT,GEN,SA;GUN155..RHD..(IDNSU,SASUV);GGN155,GUN156,16#,KUN156..RHD..SA;GUN156..(PKNSU,THSUV,VNSUV)..(L,M,S)..(ARL,GEN,PKN,VN);GUN156,TGN168..(AGTSU,IDNSU)..6FC..(L,M)..(HDCR,HTWCF)..(BZAGT,VN)	07/2015 - 12/2999	1
82161 - WIRE, FLOOR
82199-KKB10	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&POWER BACK DOOR-WITHOUT& WITH(EASY CLOSER)	08/2017 - 06/2018	1
82199-KKM20	GUN155,165..S..IDN	08/2017 - 06/2018	1
82199-KKA60	GUN155,165..S..IDN POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)	08/2017 - 06/2018	1
82199-KKB70	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&POWER BACK DOOR-WITHOUT& WITH(EASY CLOSER)&SRS AIR BAG-WITH(DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKM30	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)	08/2017 - 06/2018	1
82199-KKB70	GUN155,165..S..IDN POWER BACK DOOR-WITHOUT & WITH(EASY CLOSER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKM70	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	08/2017 - 06/2018	1
82199-KKN40	GUN155,165..S..IDN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKM80	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)	08/2017 - 06/2018	1
82199-KKN50	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKN50	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKN40	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKR00	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 06/2018	1
82199-KKR90	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82199-KKP10	GUN156..TH;GUN155..M..(GEN,TH)	08/2017 - 05/2019	1
82199-KK491	GUN155..M..IDN	06/2018 - 05/2019	1
82199-KK491	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	06/2018 - 05/2019	1
82199-KK481	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)	06/2018 - 05/2019	1
82199-KK491	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(DRS & SIDE & CURTAIN)	06/2018 - 05/2019	1
82199-KKA61	GUN155,165..S..IDN	06/2018 - 05/2019	1
82199-KK501	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)	06/2018 - 05/2019	1
82199-KKB71	GUN155,165..S..IDN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	06/2018 - 05/2019	1
82199-KKB11	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	06/2018 - 05/2019	1
82199-KKB71	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	06/2018 - 05/2019	1
82199-KKQ91	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	06/2018 - 05/2019	1
82199-KKR81	GUN165..M..PH;GUN15#..H..GEN;GUN156..LHD..IDNSU..M..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	06/2018 - 05/2019	1
82199-KKR81	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	06/2018 - 05/2019	1
82199-KK482	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)	05/2019 - 07/2020	1
82199-KK492	GUN155..M..IDN	05/2019 - 07/2020	1
82199-KK492	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	05/2019 - 07/2020	1
82199-KK502	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)	05/2019 - 07/2020	1
82199-KK492	GUN155,165..S..IDN WIRELESS DOOR LOCK-WITH(SES & ANSWER BACK)&SRS AIR BAG-WITH(DRS & SIDE & CURTAIN)	05/2019 - 07/2020	1
82199-KKB72	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	05/2019 - 07/2020	1
82199-KKB12	GUN155,165..S..IDN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	05/2019 - 07/2020	1
82199-KKA62	GUN155,165..S..IDN	05/2019 - 07/2020	1
82199-KKB72	GUN155,165..S..IDN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	05/2019 - 07/2020	1
82199-KKP11	GUN156..TH;GUN155..M..(GEN,TH)	05/2019 - 07/2020	1
82199-KKQ92	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	05/2019 - 07/2020	1
82199-KKR82	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	05/2019 - 07/2020	1
82199-KKR82	GUN165..M..PH;GUN15#..H..GEN;GUN156..LHD..IDNSU..M..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	05/2019 - 07/2020	1
82164 - WIRE, FRAME
82164-KK280	TGN166..BZAGT;GUN156..THSUV..(L,S);TGN166..L..(GEN,LA,SA);GUN155..6FC..(L,S)..(IDN,SA);TGN156..(L,S)..(BZAGT,KZS,LA);GUN165,TGN168..(6F,6FC)..L..(BZAGT,SA) P/N LABEL=82164KK280	07/2015 - 07/2019	1
82164-KK390	GUN155..TH;GUN155..H..GEN;GUN156..LHD..H;GUN16#,KUN156..H,M;GUN165..6FC..S..TH;GUN156..RHD..(GEN,IND,TH);GUN156..LHD..(AGTSU,IDNSU)..M..(GEN,LA,PH) P/N LABEL=82164KK390	07/2015 - 07/2019	1
82164-KK390	GUN155..M..GEN DIFFERENTIAL LOCK-WITHOUT,P/N LABEL=82164KK390	08/2017 - 07/2019	1
82164-KK290	GUN156..IDNSU..VN;TGN156,166..AGTSU..M;GUN155..(IDNSU,MASUV)..M;TGN166..(H,M,S)..(GEN,SA);TGN156..(H,M)..(BZAGT,MA,VN);GGN155,GUN156,166,KUN156..RHD..SA;GUN156..(PKNSU,THSUV,VNSUV)..M..(ARL,GEN,PKN,VN) P/N LABEL=82164KK290	07/2015 - 07/2020	1
82164-KK290	TGN156..S..KZS;GUN15#..S..(GEN,IDN) HEADLAMP-LED,P/N LABEL=82164KK290	08/2017 - 07/2020	1
82164-KK291	GUN15#,TGN156..S..(GEN,IDN,KZS) HEADLAMP-LED,P/N LABEL=82164KK291	05/2019 - 07/2020	1
82164-KK391	GUN155..M..GEN DIFFERENTIAL LOCK-WITHOUT,P/N LABEL=82164KK391	05/2019 - 07/2020	1
82164-KK291	GUN155..H..GEN;GUN156..THSUV..H;GGN155,GUN156,TGN156..IDNSU..(H,M)..(GCC,GEN,PH) DIFFERENTIAL LOCK-WITH,P/N LABEL=82164KK291	05/2019 - 07/2020	1
82171 - WIRE, ROOF, NO.1
82171-KK280	GUN156..H..GEN;GUN15#..RHD..(GEN,TH);GGN155,GUN16#,KUN156,TGN156,166..(H,M)..(GEN,LA,TH);GUN156..LHD..(AGTSU,IDNSU)..6FC..(M,S)..(BZAGT,GEN,LA) FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),P/N LABEL=82171KK280	07/2015 - 02/2019	1
82171-KK270	GUN156..GCC;GGN155,GUN155..H..(GCC,GEN) AUDIO-DA & DVD & BT	08/2017 - 07/2020	1
82171-KK380	GUN156..IDNSU..GEN;GUN155,TGN156,166..M..GEN AUDIO-DA & CD & BT & 4SPEAKER	10/2017 - 07/2020	1
82171-KK281	GUN156..H..GEN;GUN156..RHD..(GEN,TH);GUN156..LHD..IDNSU..M..GEN;GUN155..(M,S)..(GCC,GEN,TH);GGN155,GUN16#,TGN156,166..M..(GEN,TH) FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX),P/N LABEL=82171KK281	06/2018 - 07/2020	1
82171-KK281	GUN156..IDNSU..GEN;GUN155,TGN156,166..M..GEN FRONT PERSONAL LAMP-WITH(LED TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-DA & CD & BT & 4SPEAKER,P/N LABEL=82171KK281	06/2018 - 07/2020	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-KK040	GUN155..M..GEN;GUN16#,TGN156,166..IND,VN;GUN156..(H,M,S)..(ARL,IND,VN)	07/2015 - 09/2018	1
82182-KK050	GUN156,TGN156,166..GCC;GUN156,TGN156..THSUV..S..(GEN,KZS);GGN155,165,GUN155,165..(H,L,S)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,P/N LABEL=82182KK050	08/2017 - 09/2018	1
82182-KK121	GUN155,165,TGN166..IDN	09/2018 - 07/2020	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-KK020	GUN155..M..GEN;GUN16#,TGN156,166..IND,VN;GUN156..(H,M,S)..(ARL,IND,VN)	07/2015 - 09/2018	1
82183-KK030	GUN156,TGN156,166..GCC;GUN156,TGN156..THSUV..S..(GEN,KZS);GGN155,165,GUN155,165..(H,L,S)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH,P/N LABEL=82183KK030	08/2017 - 09/2018	1
82183-KK051	GUN155,165,TGN166..IDN	09/2018 - 07/2020	1
82666L - HOLDER, CONNECTOR NO.9
82666-0K250	GUN155..H..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	07/2015 - 06/2018	1
82666-0K250	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	07/2015 - 06/2018	1
82666-0K250	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 06/2018	1
82666-0K250	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	07/2015 - 06/2018	1
82666-0K250	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82666-0K250	GUN155..H..GCC;GUN156..S..IART;TGN166..THSUV..5F;KUN156..IDNSU,SASUV;GUN165..(H,L,S)..(GCC,TH,VN);GUN165,TGN156..RHD..(IDNSU,SASUV);GUN155..(IDNSU,SASUV,THSUV)..(L,M,S);TGN166..6FC..(BZAGT,EPT,GCC,GEN,IDN,SA,VN);GUN156..HDCR..(ARL,BZAGT,GCC,GEN,PH,SA,TH,VN);GGN155,165,GUN166,KUN165,LAN155,TGN156..BZAGT,EPT,GCC,KZS,SA,VN	07/2015 - 12/2999	1
82666-0K250	GUN155..H..GEN;GUN165,TGN166..PH	06/2018 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-0K260	GUN155..H..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	07/2015 - 06/2018	1
82666-0K260	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	07/2015 - 06/2018	1
82666-0K260	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	07/2015 - 06/2018	1
82666-0K260	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 06/2018	1
82666-0K260	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82666-0K260	GUN155..H..GEN;GUN165,TGN166..PH	06/2018 - 12/2999	1
82666-0K260	GUN155..H..GCC;GUN156..S..IART;TGN166..THSUV..5F;KUN156..IDNSU,SASUV;GUN165..(H,L,S)..(GCC,TH,VN);GUN165,TGN156..RHD..(IDNSU,SASUV);GUN155..(IDNSU,SASUV,THSUV)..(L,M,S);TGN166..6FC..(BZAGT,EPT,GCC,GEN,IDN,SA,VN);GUN156..HDCR..(ARL,BZAGT,GCC,GEN,PH,SA,TH,VN);GGN155,165,GUN166,KUN165,LAN155,TGN156..BZAGT,EPT,GCC,KZS,SA,VN	07/2015 - 12/2999	1
82666P - HOLDER, CONNECTOR NO.11
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	07/2015 - 06/2018	2
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	07/2015 - 06/2018	2
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 06/2018	2
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	2
82666-0K280	GUN155..H..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	07/2015 - 06/2018	2
82666-0K280	GUN155..H..GEN;GUN165,TGN166..PH	06/2018 - 12/2999	2
82666-0K280	GUN155..H..GCC;GUN156..S..IART;TGN166..THSUV..5F;KUN156..IDNSU,SASUV;GUN165..(H,L,S)..(GCC,TH,VN);GUN165,TGN156..RHD..(IDNSU,SASUV);GUN155..(IDNSU,SASUV,THSUV)..(L,M,S);TGN166..6FC..(BZAGT,EPT,GCC,GEN,IDN,SA,VN);GUN156..HDCR..(ARL,BZAGT,GCC,GEN,PH,SA,TH,VN);GGN155,165,GUN166,KUN165,LAN155,TGN156..BZAGT,EPT,GCC,KZS,SA,VN	07/2015 - 12/2999	2
82666P - HOLDER, CONNECTOR NO.11
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	07/2015 - 06/2018	2
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	07/2015 - 06/2018	2
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 06/2018	2
82666-0K280	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	2
82666-0K280	GUN155..H..GEN SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	07/2015 - 06/2018	2
82666-0K280	GUN155..H..GEN;GUN165,TGN166..PH	06/2018 - 12/2999	2
82666-0K280	GUN155..H..GCC;GUN156..S..IART;TGN166..THSUV..5F;KUN156..IDNSU,SASUV;GUN165..(H,L,S)..(GCC,TH,VN);GUN165,TGN156..RHD..(IDNSU,SASUV);GUN155..(IDNSU,SASUV,THSUV)..(L,M,S);TGN166..6FC..(BZAGT,EPT,GCC,GEN,IDN,SA,VN);GUN156..HDCR..(ARL,BZAGT,GCC,GEN,PH,SA,TH,VN);GGN155,165,GUN166,KUN165,LAN155,TGN156..BZAGT,EPT,GCC,KZS,SA,VN	07/2015 - 12/2999	2
82666Q - HOLDER, CONNECTOR NO.12
82666-0K270	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)	08/2017 - 06/2018	1
82666-0K270	GUN155..H..GEN;GUN165,TGN166..PH VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	08/2017 - 06/2018	1
82666-0K270	GUN155..H..GEN;GUN165,TGN166..PH SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82666-0K270	GUN155..H..GEN VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL & DAC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	08/2017 - 06/2018	1
82666-0K270	GUN155..H..GEN;GUN165,TGN166..PH	06/2018 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
90980-12448	TGN156..M..GEN;GUN155..(H,S)..(GEN,IDN);GUN165,KUN156..(M,S)..(PH,SA);GUN156,LAN155,TGN156..LHD..SA;TGN166..(M,S)..(GEN,IDN,PH,TH);GUN156,165,KUN156..RHD..IDNSU..(M,S) SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)	07/2015 - 09/2020	1
90980-12448	GUN165..PH;GUN156,TGN156..LHD..SA;GUN155..(H,S)..(GEN,IDN);TGN166..(M,S)..(GEN,IDN,PH,TH);GUN156,165,KUN156..RHD..IDNSU..(M,S) VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)	07/2015 - 09/2020	1
90980-12448	GUN156..H..GEN;GUN156..RHD..SA;GUN156..6F..ARL;TGN166..(L,M)..(LA,SA);GUN156..LHD..IDNSU..M..GEN;TGN156..(H,S)..(BZAGT,GCC,GEN);GUN156..BZAGT,GCC,LA,PH,PKN,TH,VN;KUN156,TGN156..LHD..(EPT,GEN,LA,VN);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GUN155,165,TGN166..LHD..(L,S)..(GEN,SA);TGN166..(H,S)..(BZAGT,GCC,GEN,PKN,SA,VN);GGN155,GUN166,TGN168..BZAGT,EPT,GEN,LA,SA,TH;GUN165..(AGTSU,SASUV,THSUV,VNSUV)..(LA,SA,TH,VN)	07/2015 - 12/2999	1
90980-12878	TGN156..M..GEN;GUN155..(H,S)..(GEN,IDN);GUN165,KUN156..(M,S)..(PH,SA);GUN156,165,KUN156..RHD..IDNSU;GUN156,KUN165,LAN155,TGN156..LHD..SA;TGN166..6FC..(L,M,S)..(EPT,GEN,IDN,PH,TH)	07/2015 - 12/2999	1
90980-12448	GUN165..PH;GUN156,TGN156..LHD..SA;GUN155..(H,S)..(GEN,IDN);TGN166..(M,S)..(GEN,IDN,PH,TH);GUN156,165,KUN156..RHD..IDNSU..(M,S) VEHICLE STABILITY CONTROL-W(HSAC & TRAILER SWAY CONTROL)&SRS AIR BAG-WITH(DRS &SIDE & CURTAIN)	07/2015 - 09/2020	1
Common parts
90119-06915
90119-T0126
90119-T0130
90178-T0018
Linked diagrams
8121
8401

ILLUST NO.10 OF13(1507- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82284 - WIRE, EARTH
82284-KK030	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,GUN15#,KUN156,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
82284 - WIRE, EARTH
82284-KK030	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,GUN15#,KUN156,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
82284 - WIRE, EARTH
82284-KK030	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,GUN15#,KUN156,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
Common parts
90105-08253
90119-10699
90178-T0007
90182-T0021

ILLUST NO. 7 OF13(1507- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-0K100
82715-0K120
82715-0K140
82715-0K170
82715-0K220
82715-0K530
82715-0K550
82715-KK160
82715-KK170
82715-KK180
82715-KK190
82715-KK200
82715-KK210
82715-KK230
82715-KK240
82715-KK250
82715-KK330
82715-KK340
82715-KK350
82715-KK380
82715-KK430
82715-KK440
82715-KK450
82715-KK470
82715-KK480
82715-KK670
82715-KK680
82715-KK690
82715-KK720
82715-KK800
82715-KK820
82715-KK830
82715-KK870
82715-KKA30
82715-KKA90
90105-T0054
90105-T0056
90105-T0120
90119-T0134
90119-T0136
90119-T0223
90119-T0236
90119-T0260
91551-80816
91551-80820
91671-80612

ILLUST NO. 9 OF13(1507- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2B660
82711-95J26
82715-0K200
82715-0K250
82715-0K570
82715-0K610
82715-0K660
82715-0K760
82715-0K790
82715-0KD10
82715-30500
82715-6A380
82715-6A430
82715-6A490
82715-71050
82715-71060
82715-KK220
82715-KK280
82715-KK290
82715-KK420
82715-KK710
82715-KK780
82715-KK840
82715-KKA50
90105-T0053
90105-T0054
90105-T0071
90119-08A96
90119-T0136
90119-T0223
91511-B0610
91552-81014
91673-80616

ILLUST NO.11 OF13(1507- )

Click highlighted areas on diagram

CONNECTOR 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10796
90980-10825
90980-10860
90980-10897
90980-10981
90980-10988
90980-11016
90980-11019
90980-11020
90980-11148
90980-11156
90980-11162
90980-11194
90980-11292
90980-11314
90980-11659
90980-11660
90980-11875
90980-11967
90980-12F30

ILLUST NO.12 OF13(1507- )

Click highlighted areas on diagram

CONNECTOR 2/3

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10792
90980-10795
90980-10825
90980-11140
90980-11148
90980-12382
90980-12416
90980-12490
90980-12520
90980-12687
90980-12699
90980-12B01

ILLUST NO. 6 OF13(1507- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-0K050	GUN156,KUN156..RHD..M..(ARL,GEN);TGN166..RHD..(IDNSU,PKNSU)..(M,S);GUN155,165,TGN156..(H,M)..(GEN,IDN) SEAT COVER MATERIAL-NATURAL LEATHER	07/2015 - 12/2999	1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-0K050	GUN156,KUN156..RHD..M..(ARL,GEN);TGN166..RHD..(IDNSU,PKNSU)..(M,S);GUN155,165,TGN156..(H,M)..(GEN,IDN) SEAT COVER MATERIAL-NATURAL LEATHER	07/2015 - 12/2999	1

ILLUST NO. 8 OF13(1507- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
41534-0K070
41534-0K080
82715-0K330
82715-0K360
82715-0K371
82715-0K461
82715-0K490
82715-0K580
82715-0K600
82715-0K620
82715-0K640
82715-0K700
82715-0K710
82715-0K850
82715-0K860
82715-KK260
82715-KK270
82715-KK320
82715-KK360
82715-KK371
82715-KK490
82715-KK640
82715-KK810
82715-KK860
82715-KK880
82715-KKA01
82715-KKA60
89589-0K010
89589-0K020
90105-T0024
90105-T0054
90105-T0066
90119-T0126
90119-T0130
90119-T0134
90119-T0136
90119-T0236
90119-T0248
90119-T0260
90119-T0342
90178-T0018
90464-00757
91512-B1016

ILLUST NO.13 OF13(1507- )

Click highlighted areas on diagram

CONNECTOR 3/3

Part #	Description	Period	Qty	Price
Common parts
90980-10996
90980-10997
90980-12554
90980-12555
90980-12790
90980-12C39
90980-12D25

ILLUST NO. 1 OF13(2006- )RHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty	Price
Common parts
90119-06915
90119-06A06
90119-08827
90119-T0130
90178-T0018
Linked diagrams
8401

ILLUST NO. 2 OF13(2006- )GUN15#,16#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty	Price
Common parts
90119-08C69
90119-T0134
90119-T0260
90119-T0283
90119-T0313
90119-T0426
90178-T0018

ILLUST NO. 3 OF13(2006- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty	Price
Common parts
90119-06915
90119-06A06
90119-T0130
90159-70004
90159-T0005
Linked diagrams
8401

ILLUST NO. 4 OF13(2006- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty	Price
Common parts
90119-06915
90119-06A06
90119-T0130

ILLUST NO. 5 OF13(2006- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty	Price
Common parts
90119-06915
90119-06A06
90119-T0126
90119-T0130
90178-T0018
Linked diagrams
8121
8401

ILLUST NO. 6 OF13(2006- )RHD

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty	Price

ILLUST NO.10 OF13(2006- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
90105-08253
90119-10699
90178-T0007
90182-T0021

ILLUST NO. 7 OF13(2006- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-0K100
82715-0K120
82715-0K140
82715-0K170
82715-0K530
82715-0K550
82715-KK160
82715-KK170
82715-KK180
82715-KK190
82715-KK200
82715-KK210
82715-KK230
82715-KK250
82715-KK330
82715-KK340
82715-KK350
82715-KK380
82715-KK430
82715-KK440
82715-KK450
82715-KK470
82715-KK480
82715-KK670
82715-KK680
82715-KK690
82715-KK720
82715-KK800
82715-KK820
82715-KK830
82715-KK870
82715-KKA30
82715-KKA90
90105-T0054
90105-T0120
90119-T0134
90119-T0136
90119-T0223
90119-T0236
90119-T0260
91551-80816
91551-80820
91671-80612

ILLUST NO. 8 OF13(2006- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-95J26
82715-0K250
82715-0K580
82715-0K600
82715-0K620
82715-0K640
82715-0K760
82715-0K790
82715-0K850
82715-30500
82715-6A380
82715-6A430
82715-6A490
82715-71050
82715-KK260
82715-KK270
82715-KK320
82715-KK490
82715-KK700
82715-KK750
82715-KK770
82715-KK810
82715-KK860
82715-KK880
82715-KKA60
82715-KKA70
82715-KKA90
82715-KKB20
89589-0K020
90105-T0054
90105-T0071
90119-08A96
90119-T0130
90119-T0136
90119-T0248
90119-T0260
90119-T0342
90178-T0018
90464-00757
91511-B0610
91552-81014

ILLUST NO. 9 OF13(2006- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2B660
82715-0K200
82715-0K461
82715-0K570
82715-0K610
82715-0K660
82715-0KD10
82715-71060
82715-KK220
82715-KK280
82715-KK290
82715-KK420
82715-KK640
82715-KK710
82715-KK780
82715-KK790
82715-KK840
82715-KKA50
90105-T0053
90105-T0054
90119-T0126
90119-T0136
90119-T0223
90119-T0237
91552-81014
91673-80616

ILLUST NO.11 OF13(2006- )

Click highlighted areas on diagram

CONNECTOR 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10795
90980-10796
90980-10825
90980-10860
90980-10897
90980-10981
90980-11016
90980-11019
90980-11140
90980-11148
90980-11156
90980-11162
90980-11194
90980-11292
90980-11660
90980-12F30

ILLUST NO.12 OF13(2006- )

Click highlighted areas on diagram

CONNECTOR 2/3

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10792
90980-12382
90980-12416
90980-12490
90980-12520
90980-12687
90980-12699
90980-12B01

ILLUST NO.13 OF13(2006- )

Click highlighted areas on diagram

CONNECTOR 3/3

Part #	Description	Period	Qty	Price
Common parts
90980-10996
90980-10997
90980-12554
90980-12555
90980-12790
90980-12C39
90980-12D25

GUN155R-SDTMH (2017)

ILLUST NO. 1 OF13(1507- )RHD

ILLUST NO. 2 OF13(1507- )GUN15#,16#

ILLUST NO. 3 OF13(1507- )RHD

ILLUST NO. 4 OF13(1507- )

ILLUST NO. 5 OF13(1507- )

ILLUST NO.10 OF13(1507- )

ILLUST NO. 7 OF13(1507- )

ILLUST NO. 9 OF13(1507- )

ILLUST NO.11 OF13(1507- )

ILLUST NO.12 OF13(1507- )

ILLUST NO. 6 OF13(1507- )

ILLUST NO. 8 OF13(1507- )

ILLUST NO.13 OF13(1507- )

ILLUST NO. 1 OF13(2006- )RHD

ILLUST NO. 2 OF13(2006- )GUN15#,16#

ILLUST NO. 3 OF13(2006- )RHD

ILLUST NO. 4 OF13(2006- )

ILLUST NO. 5 OF13(2006- )

ILLUST NO. 6 OF13(2006- )RHD

ILLUST NO.10 OF13(2006- )

ILLUST NO. 7 OF13(2006- )

ILLUST NO. 8 OF13(2006- )

ILLUST NO. 9 OF13(2006- )

ILLUST NO.11 OF13(2006- )

ILLUST NO.12 OF13(2006- )

ILLUST NO.13 OF13(2006- )

Part Price Details
