GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

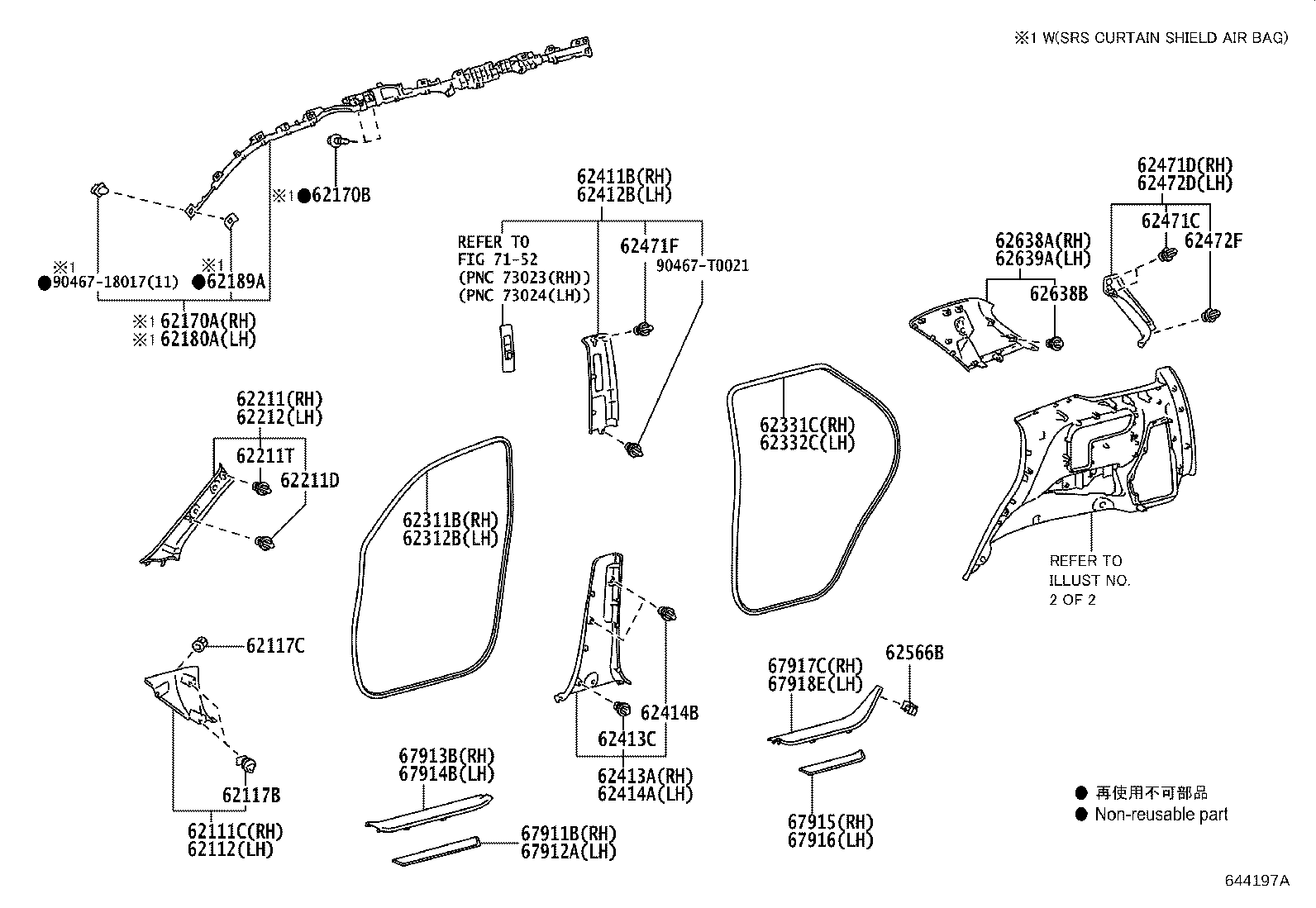

ILLUST NO. 1 OF 2(1507- )IDNSU,VNSUV

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62170A 62170B 62180A 62189A 62211 62211D 62211T 62212 62311B 62312B 62331C 62332C 62411B 62412B 62413A 62413C 62414A 62414B 62471C 62471D 62471F 62472D 62472F 62566B 62638A 62638B 62639A 67911B 67912A 67913B 67914B 67915 67916 67917C 67918E 7152 9046718017 90467T0021
Part # Description Qty Price
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-11089A0

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

IVORY

 4
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0K110

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;GUN165..MASUV,VNSUV;TGN166..AGTSU,VNSUV;GUN156..IDNSU..(LA,PH,VN);GGN155,TGN168..BZAGT,GEN,LA;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 1
62170-0K110

KUN156..LHD..H;GUN156..THSUV..H;GUN155..(H,L,S)..(GEN,IDN,MA);GUN156,TGN156..IDNSU..(H,M)..(GCC,GEN);GUN16#,KUN156,TGN166..(M,S)..(GEN,IDN,PH,TH)

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

 1
62170B - BOLT, W/WASHER
91673-80616

KUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M)

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

 4
91673-80616

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 4
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0K110

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;GUN165..MASUV,VNSUV;TGN166..AGTSU,VNSUV;GUN156..IDNSU..(LA,PH,VN);GGN155,TGN168..BZAGT,GEN,LA;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 1
62180-0K110

KUN156..LHD..H;GUN156..THSUV..H;GUN155..(H,L,S)..(GEN,IDN,MA);GUN156,TGN156..IDNSU..(H,M)..(GCC,GEN);GUN16#,KUN156,TGN166..(M,S)..(GEN,IDN,PH,TH)

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

 1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 4
62189-42010

KUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M)

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

 4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-T0021

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10188

TGN166..PH,PKN;TGN166..5F..GCC;TGN156..6FC..(GEN,SA);TGN156..L..(EPT,GCC,KZS);GGN155,165,GUN166..EPT,GCC,TH;GUN155..(IDNSU,SASUV,THSUV)..(H,L,S);GUN156..(IDNSU,PKNSU)..(GCC,GEN,PKN);GUN165,KUN156,165..GCC,GEN,IDN,PH,SA,TH;TGN166..6FC..(H,L,M)..(EPT,GCC,GEN,IDN,SA,TH);GUN156,LAN155..LHD..(SASUV,THSUV)..(H,S)..(GCC,SA)

 2
90467-T0021

TGN156..SA;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);KUN156,TGN166..LHD..(H,S)..(GEN,PH);GUN165,KUN156..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M);GUN156,LAN155..LHD..(SASUV,THSUV)..(H,S)..(GCC,SA)

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

 2
90467-T0021

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 2
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10167

GUN156..IDNSU..H..GEN;GUN156,TGN166..(H,L)..GCC;LAN155,TGN156..S..(GEN,KZS,SA);TGN156..(EPTSU,IDNSU,THSUV)..(L,M);GUN156..(IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(L,M,S);GGN155,165,GUN155,16#,KUN156,165..EPTSU,IDNSU,SASUV,THSUV,VNSUV;TGN166..(EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 2
62414B - CLIP (FOR CENTER LOWER GARNISH)
90467-10188

GUN156..IDNSU..H..GEN;GUN156,TGN166..(H,L)..GCC;LAN155,TGN156..S..(GEN,KZS,SA);TGN156..(EPTSU,IDNSU,THSUV)..(L,M);GUN156..(IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(L,M,S);GGN155,165,GUN155,16#,KUN156,165..EPTSU,IDNSU,SASUV,THSUV,VNSUV;TGN166..(EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 4
62471C - CLIP(FOR REAR PILLAR COVER)
90467-10188

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 4
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-10188

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62472F - CLIP(FOR REAR PILLAR GARNISH)
90467-T0021

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566-71010

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
Common parts
90467-18017
90467-T0021
Linked diagrams
7152

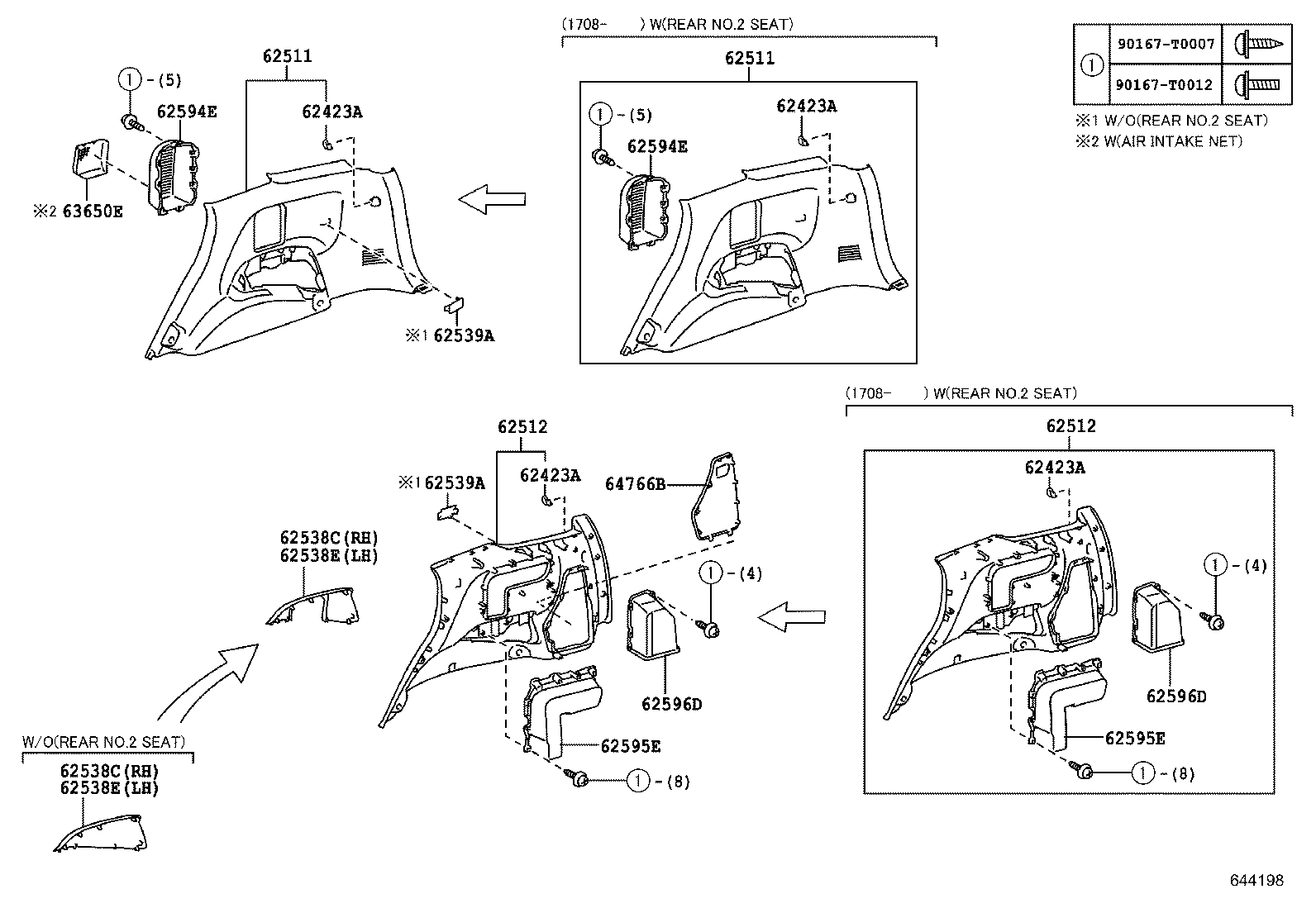

ILLUST NO. 2 OF 2(1507- )IDNSU,VNSUV

Click highlighted areas on diagram

diagram 62423A 62423A 62423A 62423A 62511 62511 62512 62512 62538C 62538C 62538E 62538E 62539A 62539A 62594E 62594E 62595E 62595E 62596D 62596D 63650E 64766B 90167T0007 90167T0012
Part # Description Qty Price
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K411C0

TGN156..IDNSU..L..GCC;TGN166..IDNSU..(H,L,M);TGN166..IDNSU..(PH,VN);TGN156..IDNSU..(GEN,LA,VN);GGN155,165,GUN15#,165..IDNSU

BLACK,TRIM4#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K411C0

TGN156..IDNSU..L..GCC;TGN166..IDNSU..(H,L,M);TGN166..IDNSU..(PH,VN);TGN156..IDNSU..(GEN,LA,VN);GGN155,165,GUN15#,165..IDNSU

BLACK,TRIM4#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K361C0

TGN156..IDNSU..L..GCC;TGN166..IDNSU..(H,L,M);TGN166..IDNSU..(PH,VN);TGN156..IDNSU..(GEN,LA,VN);GGN155,165,GUN15#,165..IDNSU

BLACK,TRIM4#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K361C0

TGN156..IDNSU..L..GCC;TGN166..IDNSU..(H,L,M);TGN166..IDNSU..(PH,VN);TGN156..IDNSU..(GEN,LA,VN);GGN155,165,GUN15#,165..IDNSU

BLACK,TRIM4#

 1
Common parts
90167-T0007
90167-T0012

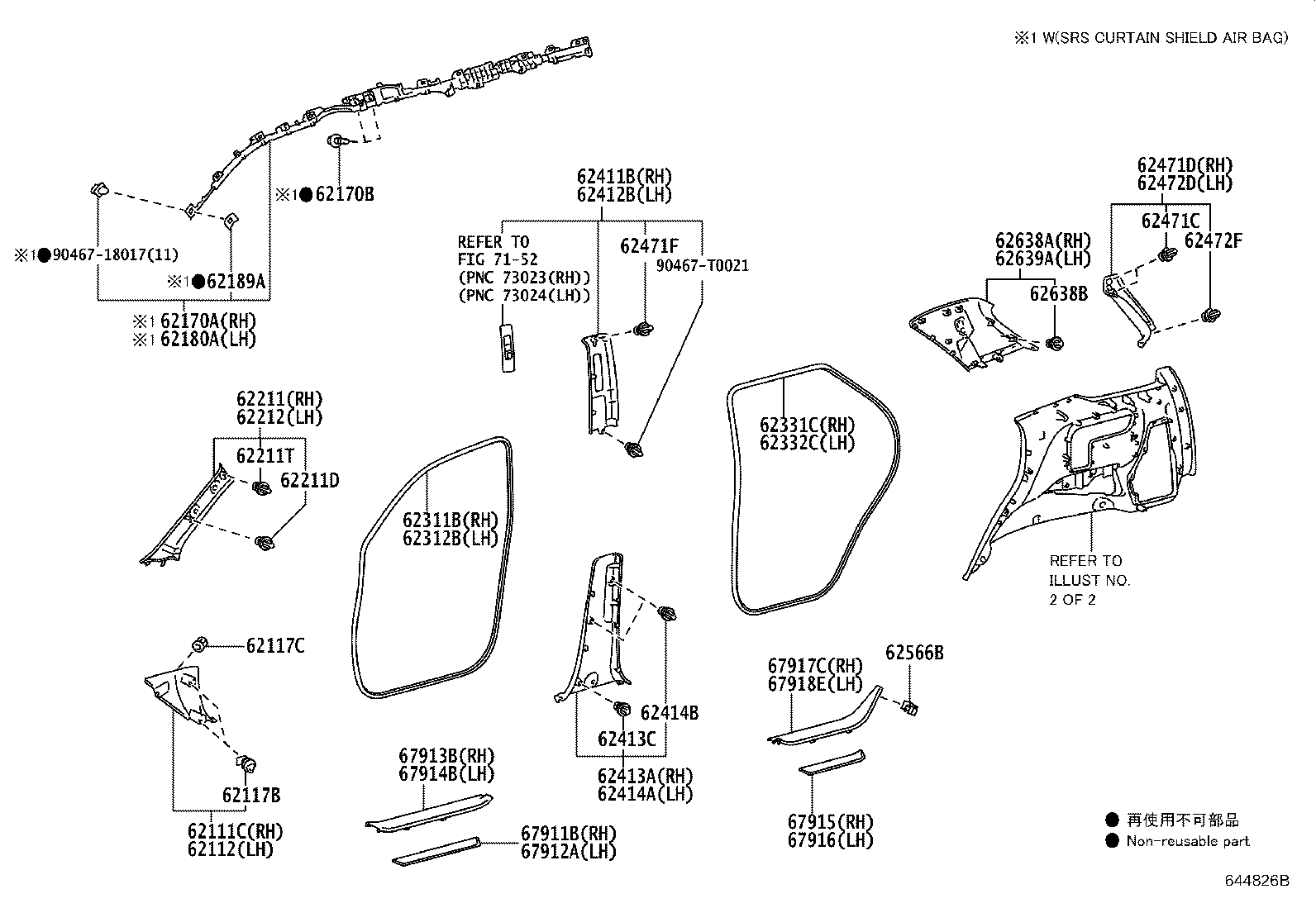

ILLUST NO. 1 OF 2(2005- )IDNSU

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62170A 62170B 62180A 62189A 62211 62211D 62211T 62212 62311B 62312B 62331C 62332C 62411B 62412B 62413A 62413C 62414A 62414B 62471C 62471D 62471F 62472D 62472F 62566B 62638A 62638B 62639A 67911B 67912A 67913B 67914B 67915 67916 67917C 67918E 7152 9046718017 90467T0021
Part # Description Qty Price
Common parts
90467-18017
90467-T0021
Linked diagrams
7152

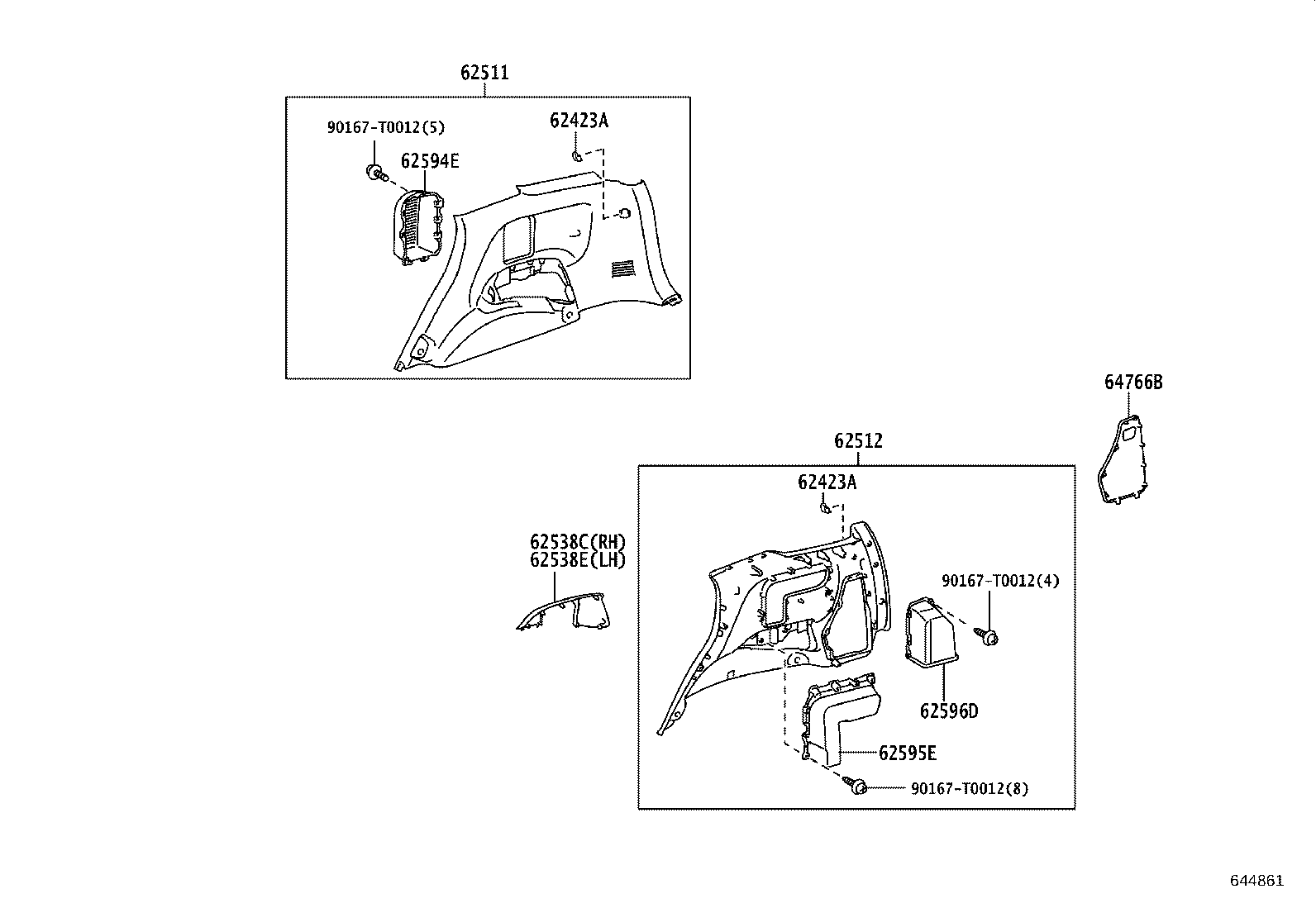

ILLUST NO. 2 OF 2(2005- )IDNSU

Click highlighted areas on diagram

diagram 62423A 62423A 62511 62512 62538C 62538E 62594E 62595E 62596D 64766B 90167T0012 90167T0012 90167T0012
Part # Description Qty Price
Common parts
90167-T0012
