GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

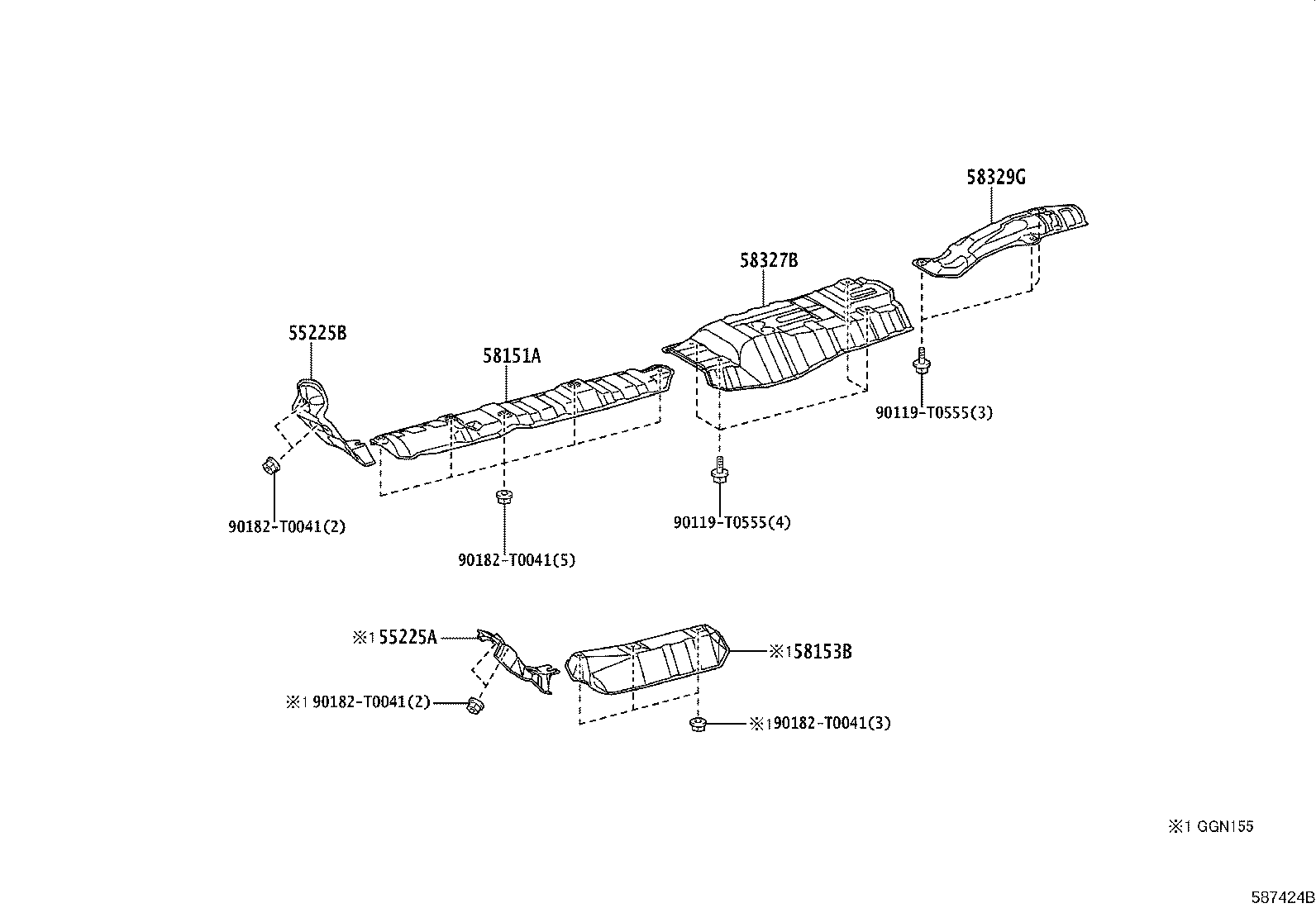

Click highlighted areas on diagram

diagram 55225A 55225B 58151A 58153B 58327B 58329G 90119T0144 90119T0144 90182T0041 90182T0041 90182T0041 90182T0041
Part # Description Qty Price
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-KK020

GGN155,GUN15#,165,TGN156,166..IDNSU

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0K030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90119-T0144
90182-T0041

(2005- )

Click highlighted areas on diagram

diagram 55225A 55225B 58151A 58153B 58327B 58329G 90119T0555 90119T0555 90182T0041 90182T0041 90182T0041 90182T0041
Part # Description Qty Price
Common parts
90119-T0555
90182-T0041
