GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )RHD

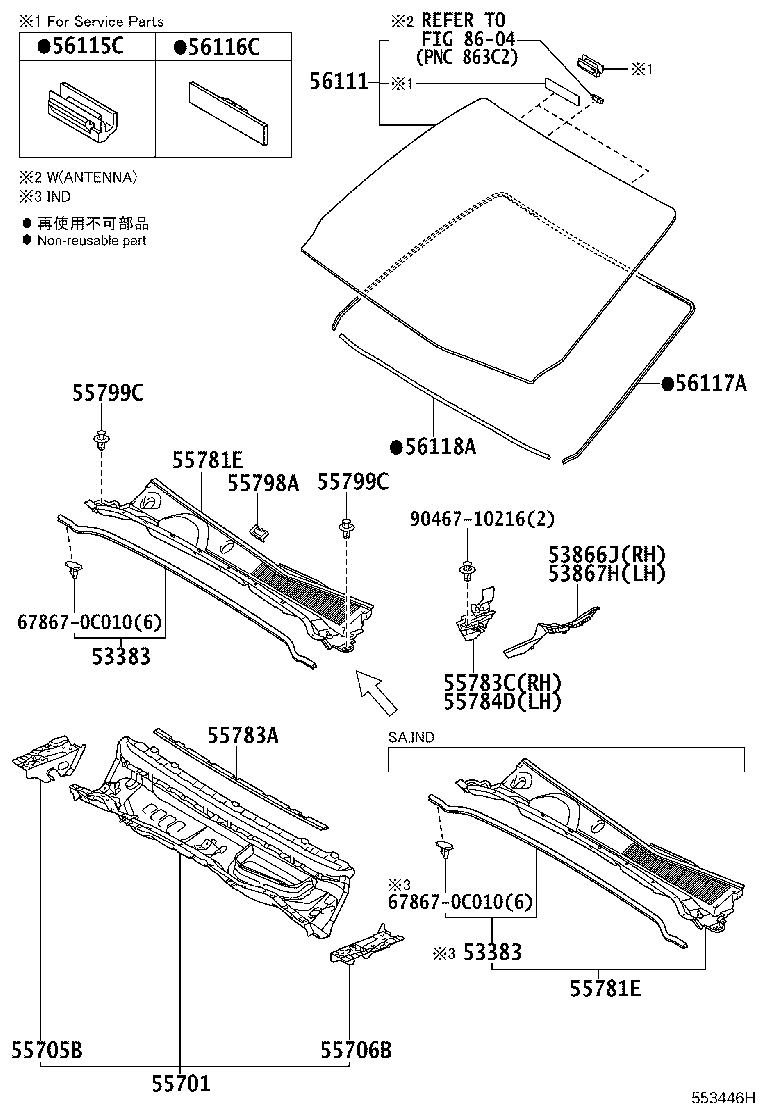

Click highlighted areas on diagram

diagram 53383 53383 53866J 53867H 55701 55705B 55706B 55781E 55781E 55783A 55783C 55784D 55798A 55799C 55799C 56111 56115C 56116C 56117A 56118A 678670C010 678670C010 8604 9046710216
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-KK010

TGN156..6FC..GEN;GGN155,GUN15#,16#,KUN156,TGN166..RHD..(IDNSU,PKNSU,SASUV,THSUV)

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
55783A - PAD, COWL TOP SILENCER
55785-0K040

TGN166..S..SA;TGN156..EPTSU,IDNSU,THSUV;GUN155,KUN156,165..(IDNSU,SASUV)..(5FC,6F);GGN155,165,GUN15#,16#,TGN166..EPTSU,IDNSU,PKNSU,THSUV,VNSUV

 1
55798A - SUPPORT, COWL WATER EXTRACT SEAL
55798-0K010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-07215

TGN156,166..L..GEN;GUN165..IDNSU..L..GCC;GUN165..GEN,IDN,PH,VN;TGN156..IDNSU..S..GCC;TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GGN155,GUN15#..IDNSU..(GCC,GEN,IDN,PH,VN);TGN166..IDNSU..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN)

 2
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-07215

TGN156,166..L..GEN;GUN165..IDNSU..L..GCC;GUN165..GEN,IDN,PH,VN;TGN156..IDNSU..S..GCC;TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GGN155,GUN15#..IDNSU..(GCC,GEN,IDN,PH,VN);TGN166..IDNSU..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN)

 2
56111 - GLASS, WINDSHIELD
56101-0K760

GUN155..H..GEN

 1
56115C - STOPPER, WINDSHIELD GLASS
56115-30100

GUN156..(L,S)..ARL;GUN156,TGN166..BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

GUN156..(L,S)..ARL;GUN156,TGN166..BZAGT,EPT,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV,VNSUV

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-KK060

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

L=2620

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

L=1248

 1
Common parts
67867-0C010
90467-10216
Linked diagrams
8604

(2005- )RHD

Click highlighted areas on diagram

diagram 53383 53383 53866J 53867H 55701 55705B 55706B 55781E 55781E 55783A 55783C 55784D 55798A 55799C 55799C 56111 56115C 56116C 56117A 56118A 678670C010 678670C010 8604 8617 9046710216 90467T0049
Part # Description Qty Price
Common parts
67867-0C010
90467-10216
90467-T0049
Linked diagrams
8604
8617
